TRIPET MUS 100 is a Internal grinding machine designed for precision, high accuracy and reliable performance. Capacities: max internal Ø 20 mm, centre height 60 mm, distance between centres 150 mm. Specs: workpiece spindle 3 steps 560–1000 t/min, spindle hole 12 mm, taper 12 W; grinding spindle 6000–9000 t/min; rotatable grinding head ±45°; supply 50 Hz 3x380 V; weight ~250 kg; dims 900×750×1300 mm. Accessories: 3-jaw chuck, horizontal grinding spindle support, set of flanges, set of collets W12, steady, external grinding spindle. Delivers tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical.
| Max. internal grinding diameter | 20 mm |
| Centre height | 60 mm |
| Distance between centres | 150 mm |
| Workpiece spindle speeds: | |
| number (steps) | 3 |
| from | 560 t/min |
| up to | 1000 t/min |
| Spindle hole | 12 mm |
| Taper in spindle: | 12 W |
| Possible grinding-spindle speeds: | |
| from | 6000 t/min |
| up to | 9000 t/min |
| Rotatable grinding spindle head (b-axis) | +45 / -45 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 250 kg |
| Overall dimensions machine: | |
| Length | 900 mm |
| Width | 750 mm |
| Height | 1300 mm |

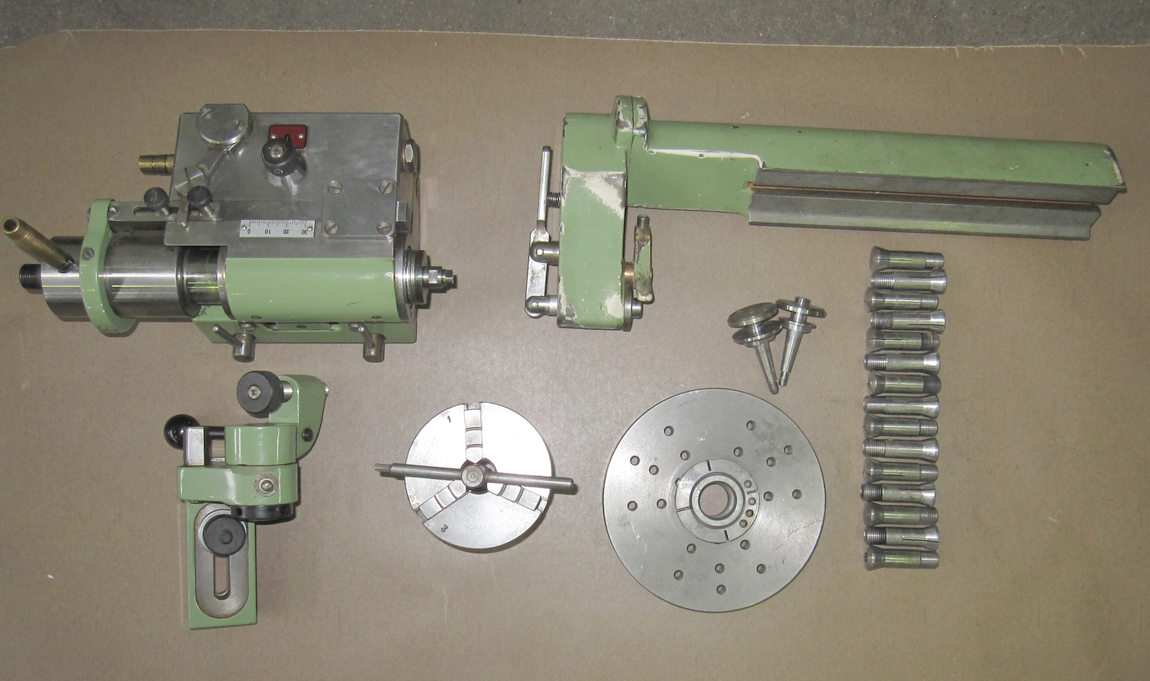

| Various accessories: | |
| 3-jaw chuck diameter | mm |
| Horizontal grinding spindle support | |
| Set of flanges | |
| Set of collets | W 12 |
| Steady | |
| External grinding spindle |
