JUNG JA 600-C
Special Price
CHF 17 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

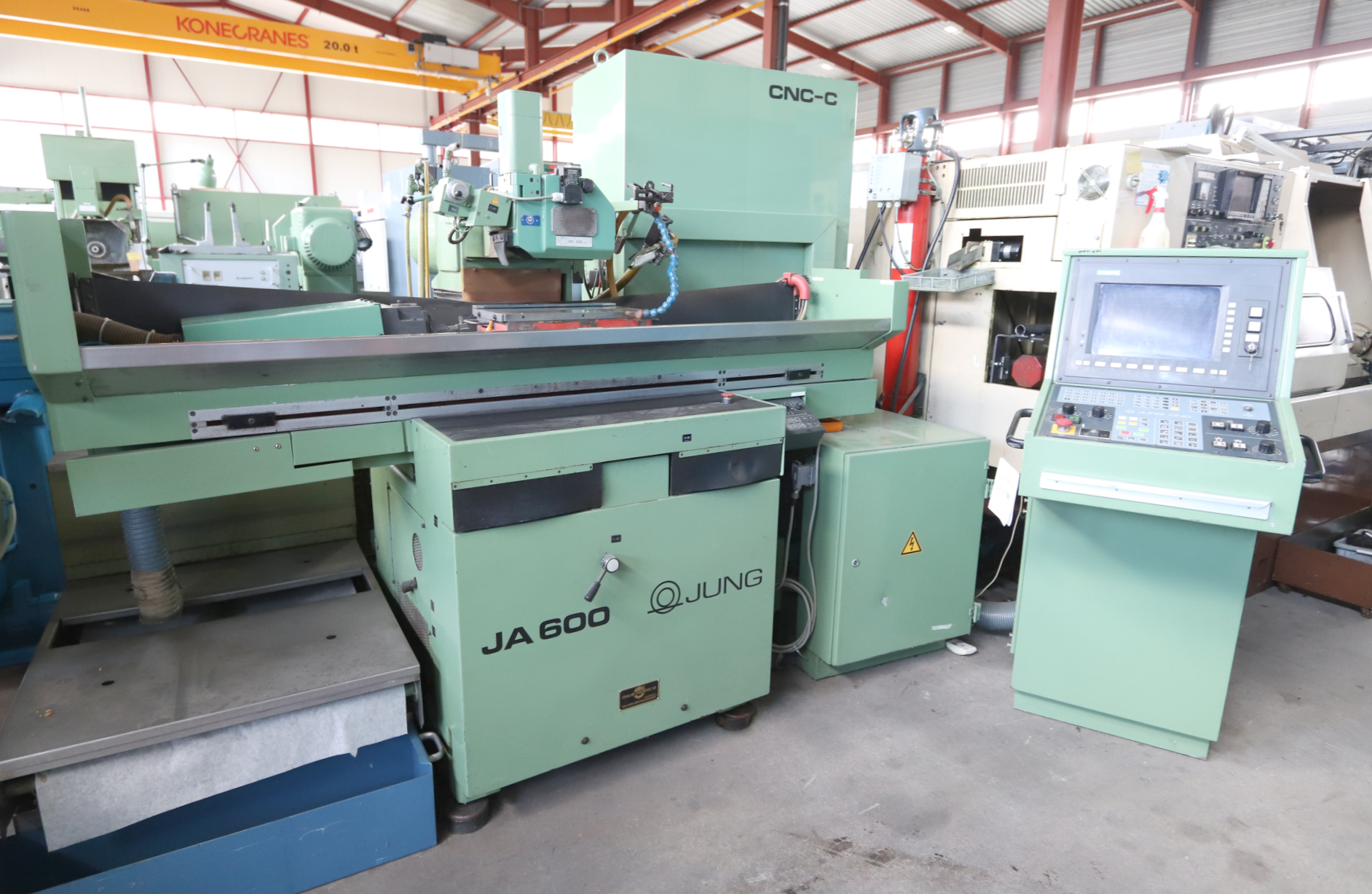

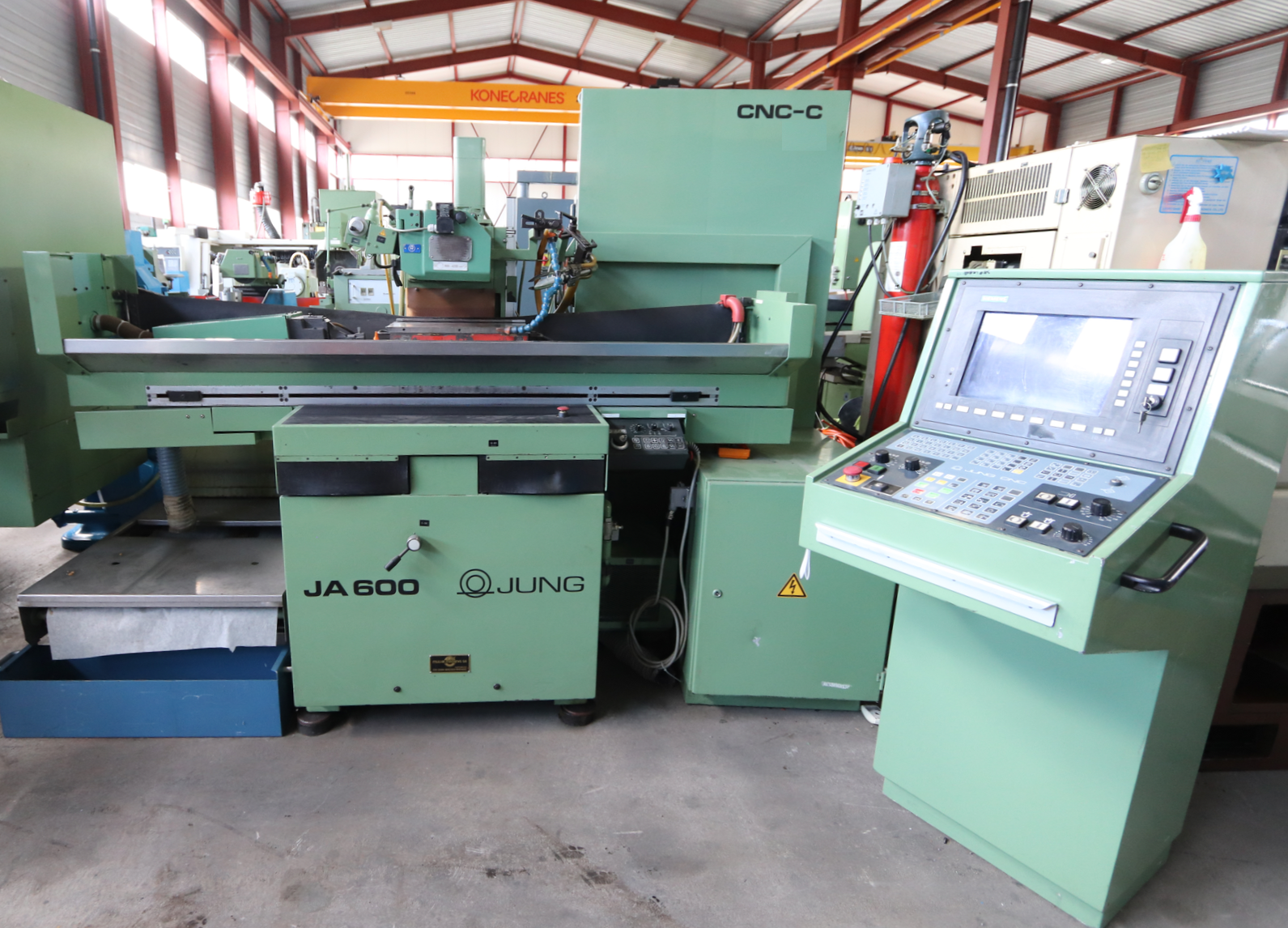

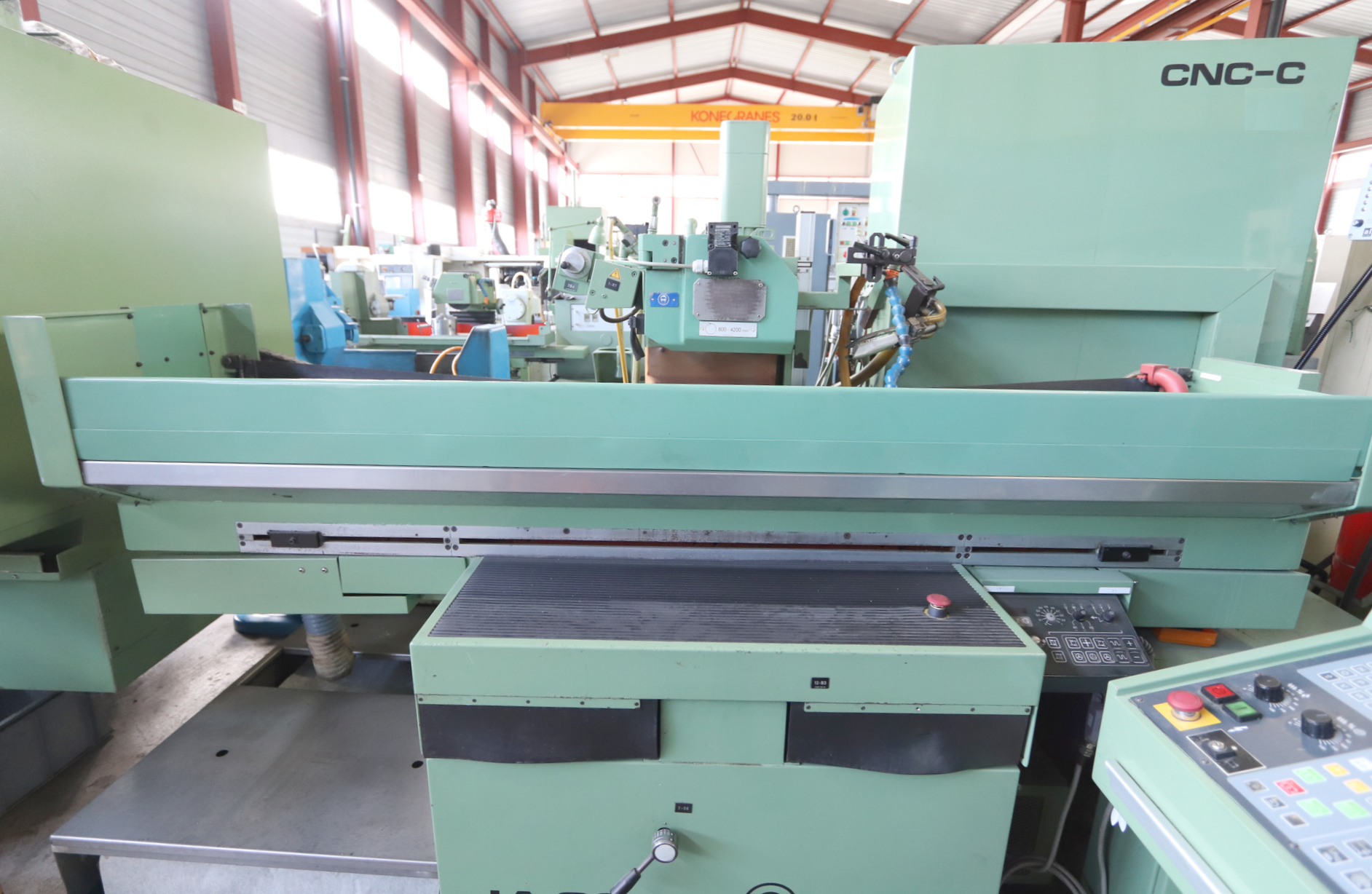

JUNG JA 600-C is a CNC Surface grinder engineered for precision, high accuracy and reliable production. Working capacities: table 600 x 200 mm; travels X 600 mm, Z 280 mm, Y 370 mm; max distance table to spindle centreline 500 mm; table load max. 150 kg. Main specs: grinding wheel Ø300 x 32 mm, bore 76 mm, speeds 800–4200 t/min; table speed stepless 1–24 m/min; voltage 3x 400 V 50 Hz; spindle motor 10 kW; total power 12 kVA; machine weight ~2300 kg; overall L2270 x W1500 x H1850 mm. Key equipment: coolant system, paper filtration, electrical magnetic chuck 450 x 240 mm, wheel dresser/CNC table dresser, set of flanges, splash guard, electronic hand held control. Enables tight tolerances; suitable for automotive, aerospace, toolmaking, medical and watchmaking applications.
| Table length | 600 mm |
| Table width | 200 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Cross travel (z-axis) | 280 mm |
| vertical travel (Y-axis) | 370 mm |
| Max. distance from table | |
| to spindle centreline | 500 mm |
| Table load max. | 150 kg |

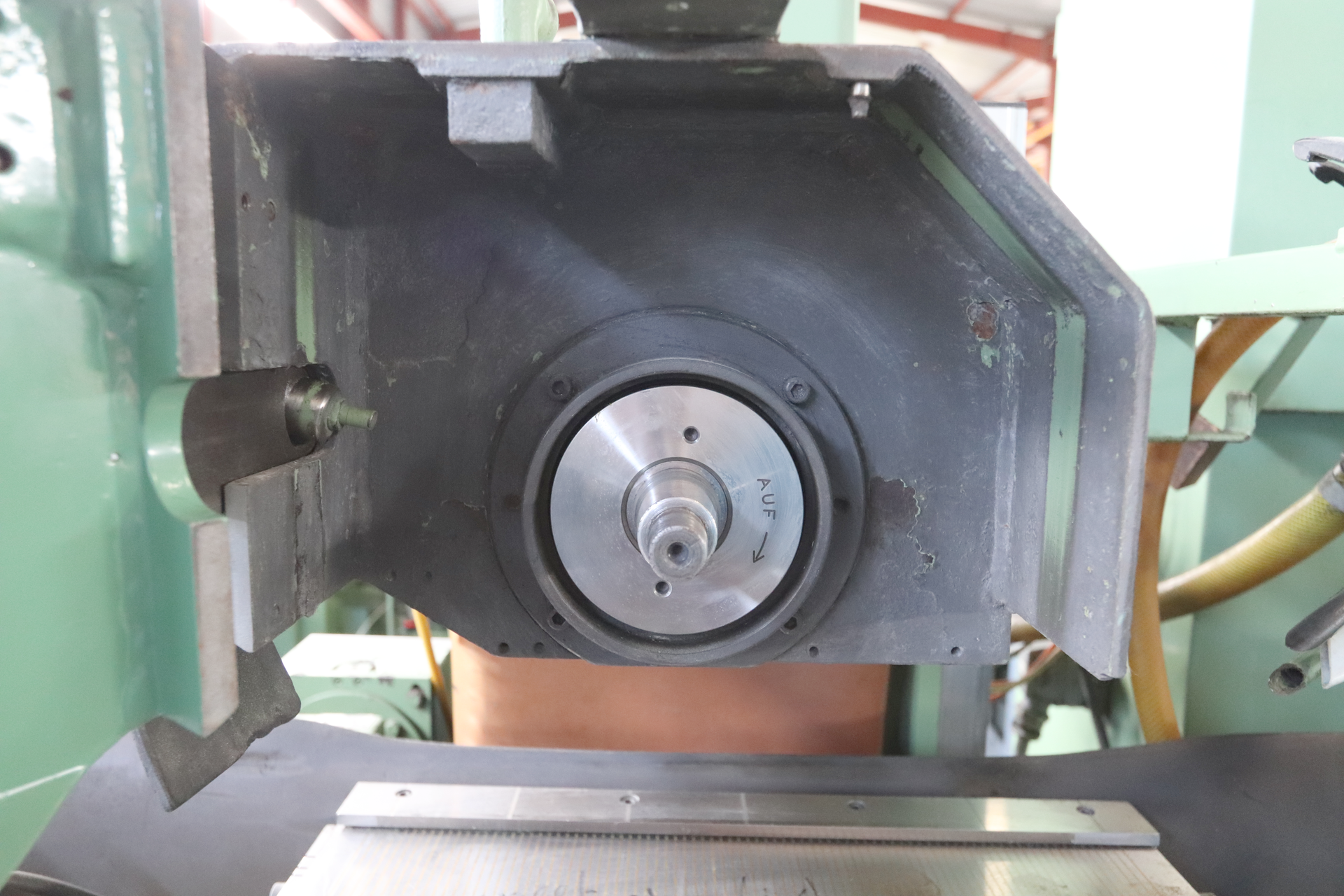

| Grinding wheel: | |
| Diameter | 300 mm |
| Width | 32 mm |
| Bore | 76 mm |

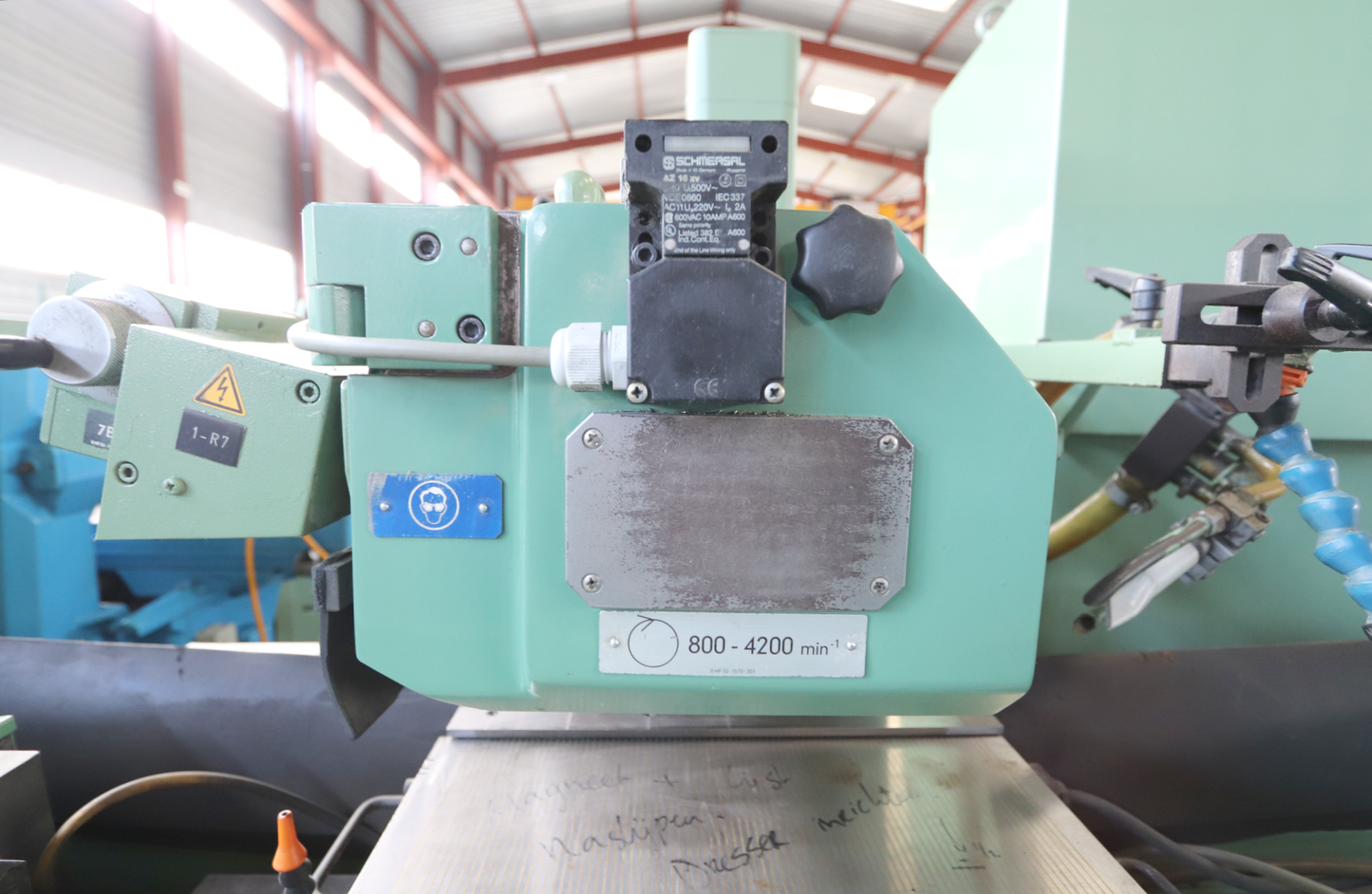

| Grinding wheel speeds: | |
| from | 800 t/min |
| up to | 4200 t/min |
| Table speeds: | |
| stepless | |
| from | 1 m/min |
| up to | 24 m/min |

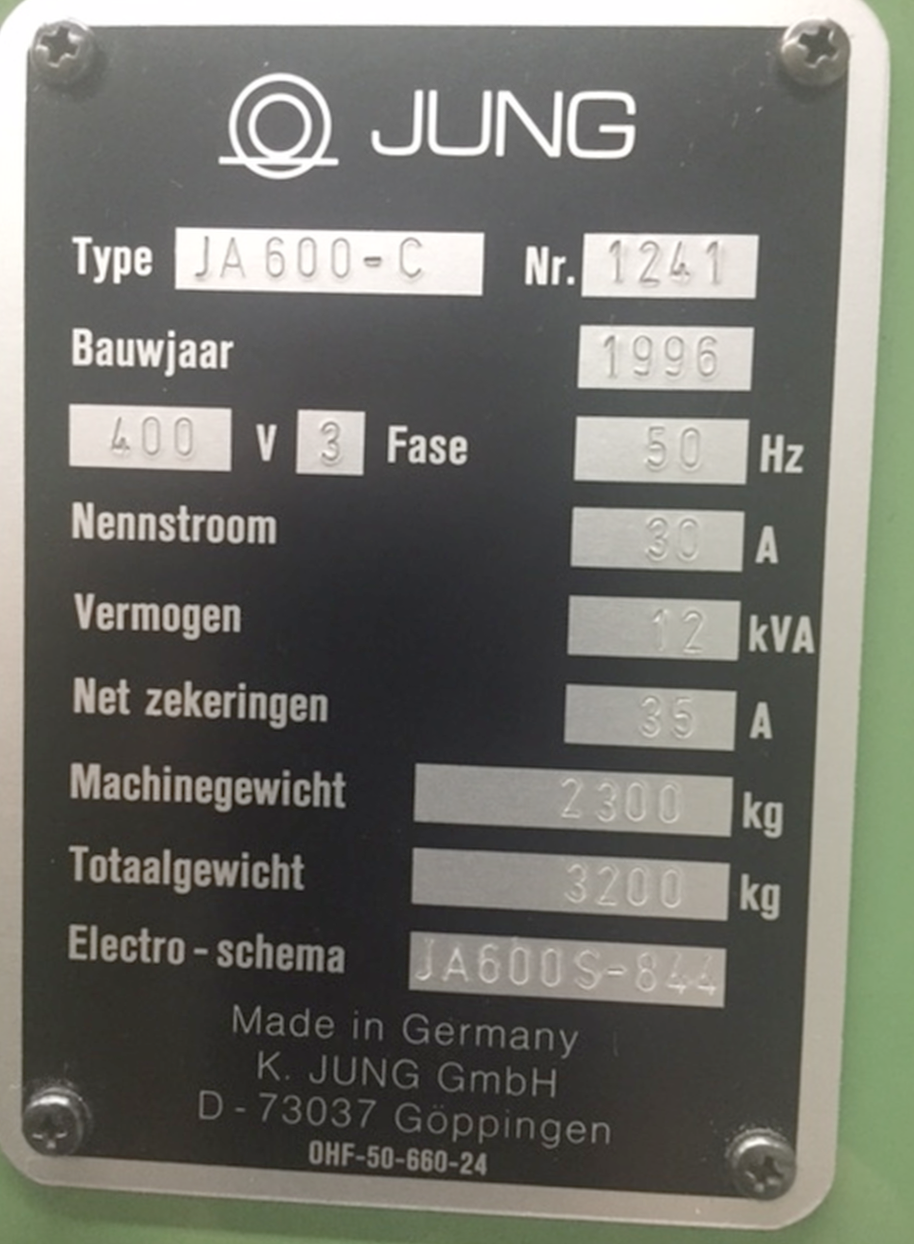

| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 10 kW |
| Total power required | 12 kVA |
| Machine's weight about | 2300 kg |
| Overall dimensions machine: | |
| Length | 2270 mm |
| Width | 1500 mm |
| Height | 1850 mm |
| Various accessories: | |
| Coolant system | |

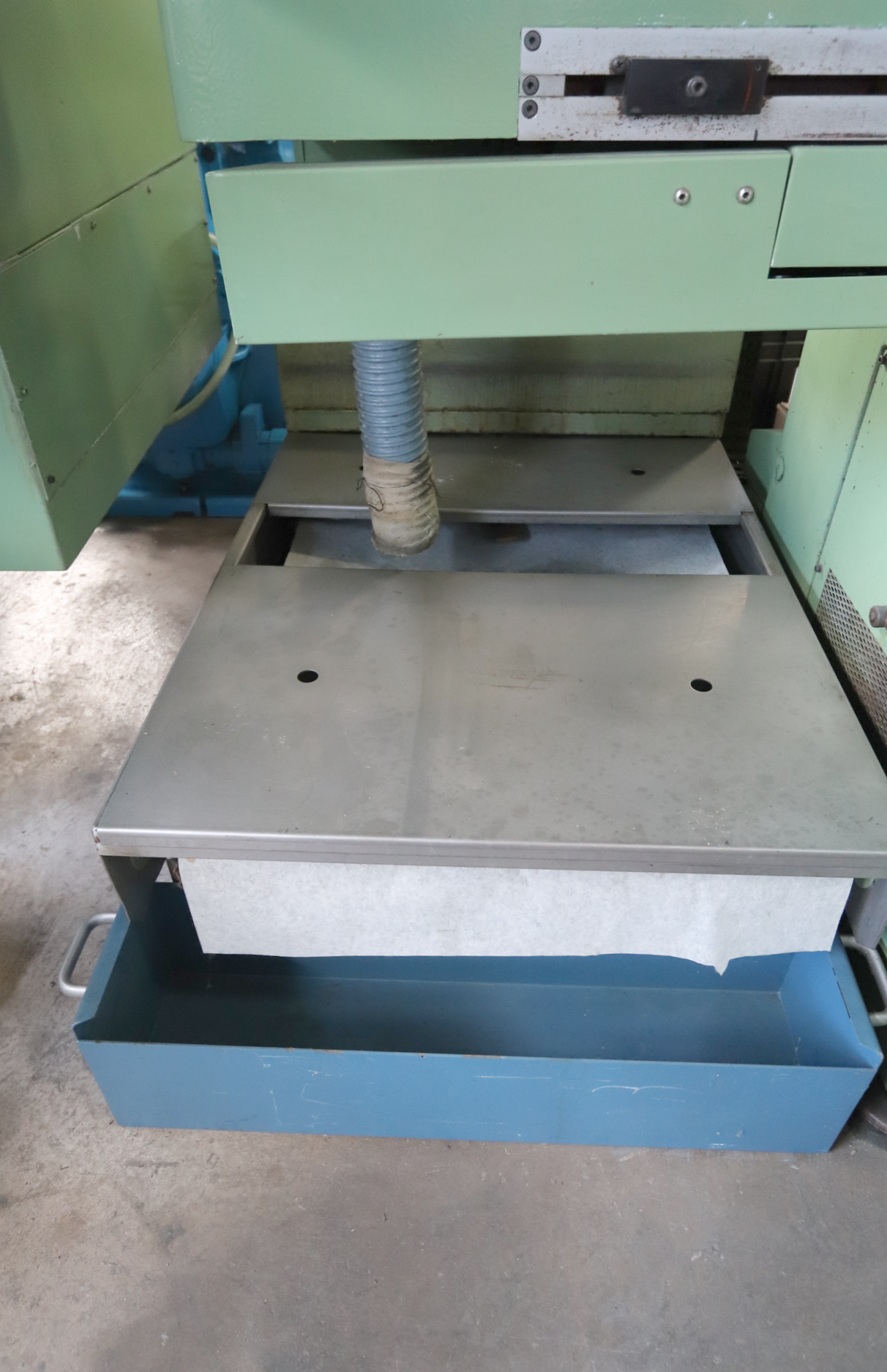

| Paper filtration system | |

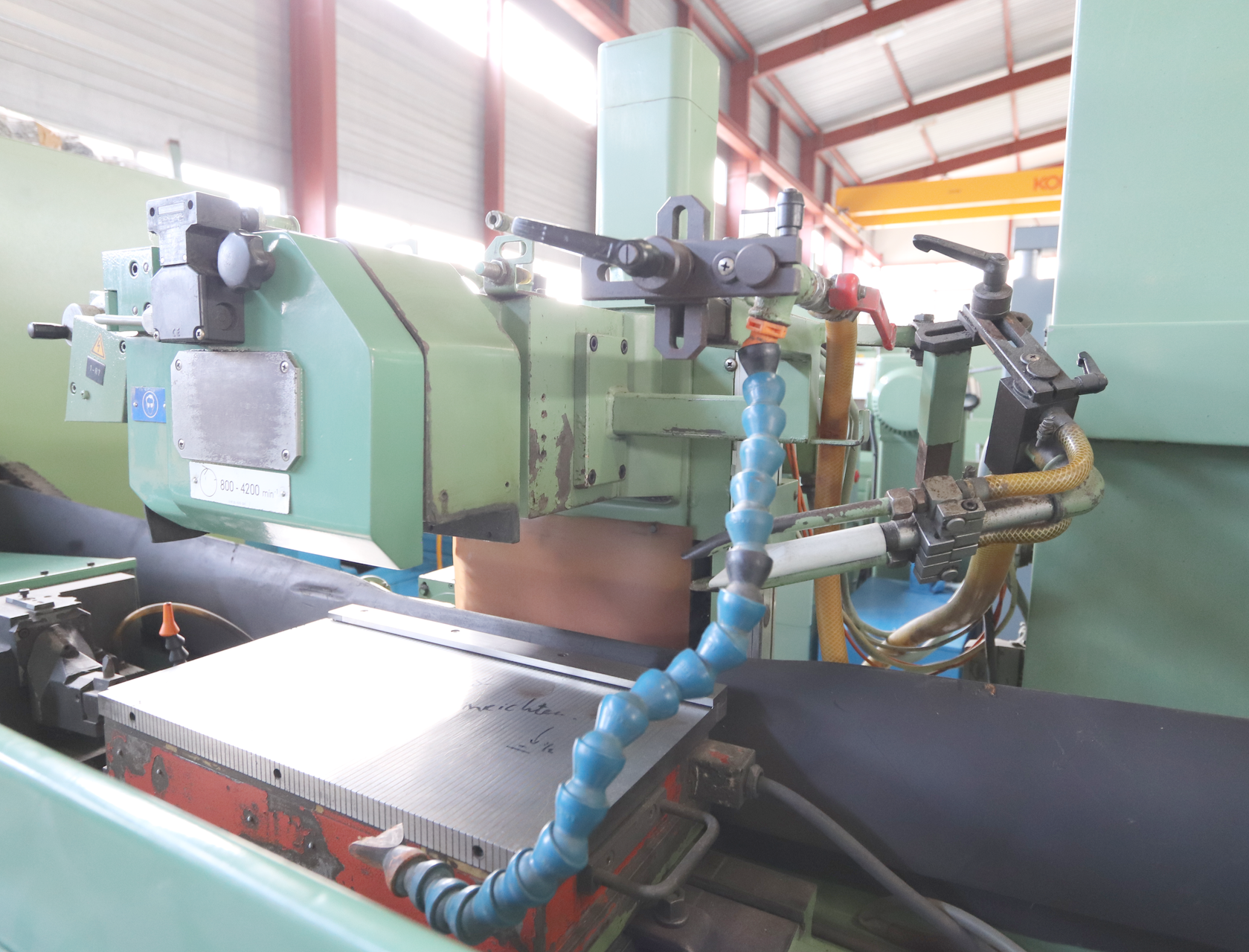

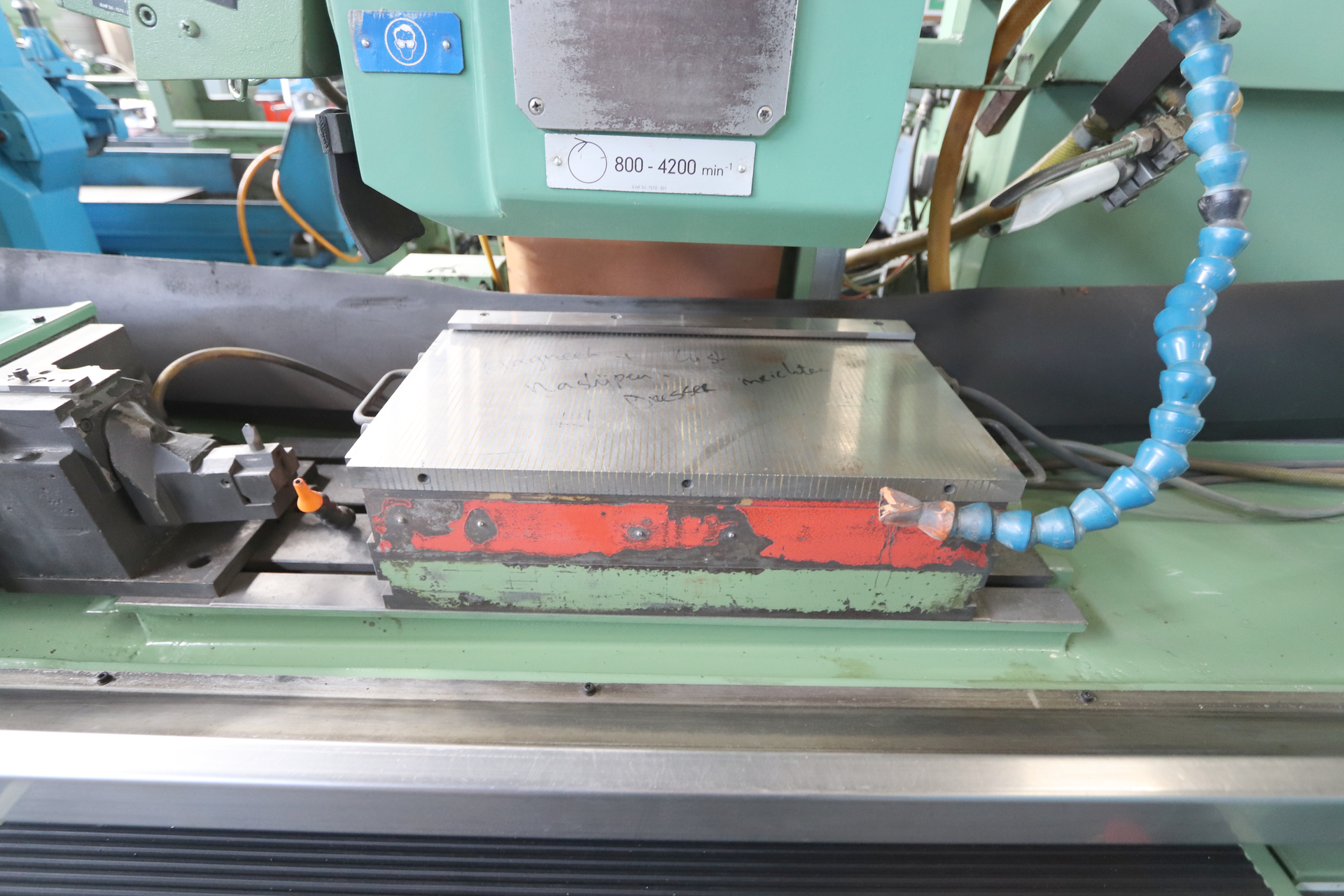

| Electrical magnetic chuck | |
| Length | 450 mm |
| Width | 240 mm |
| Redressing device | |

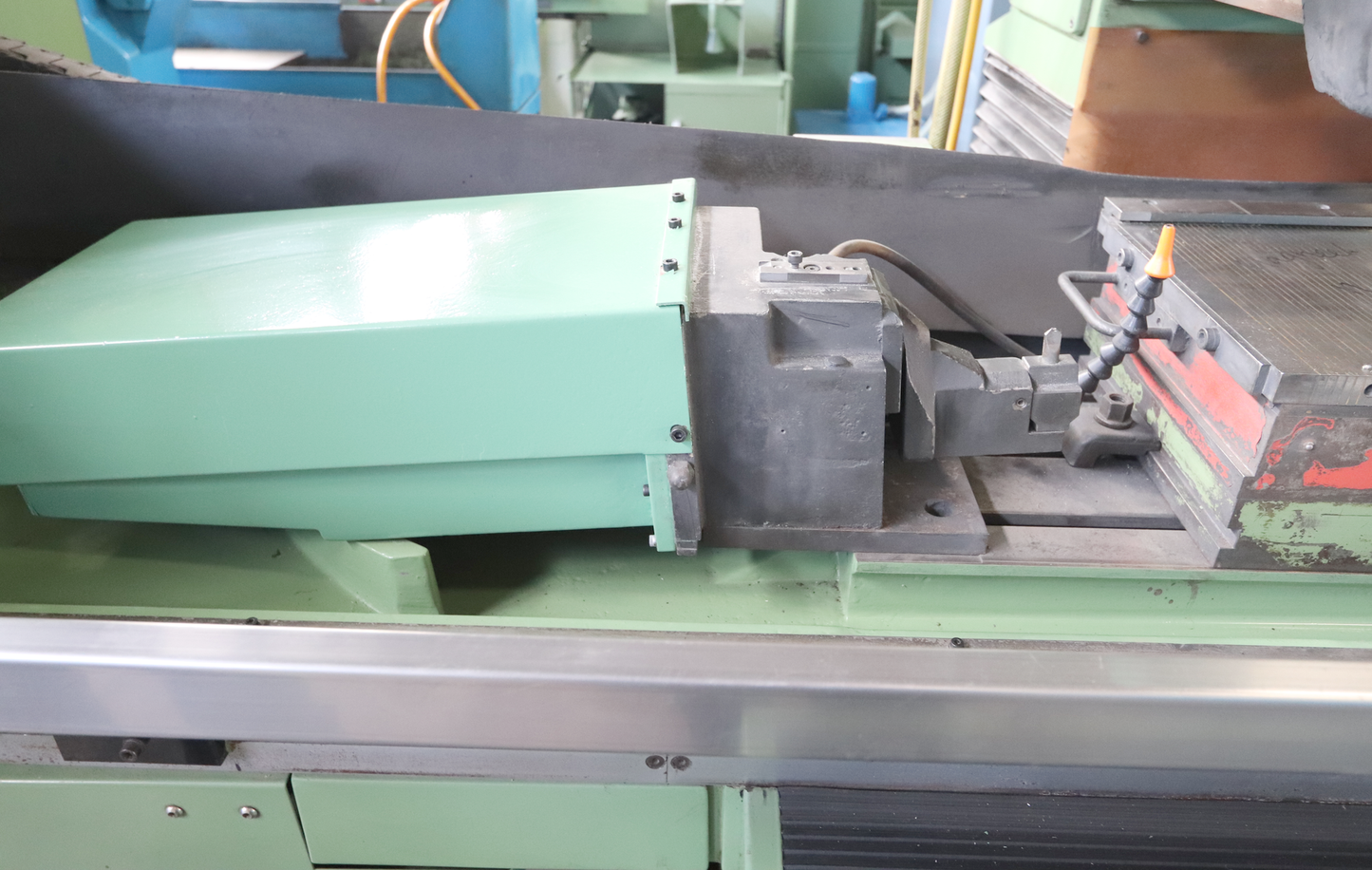

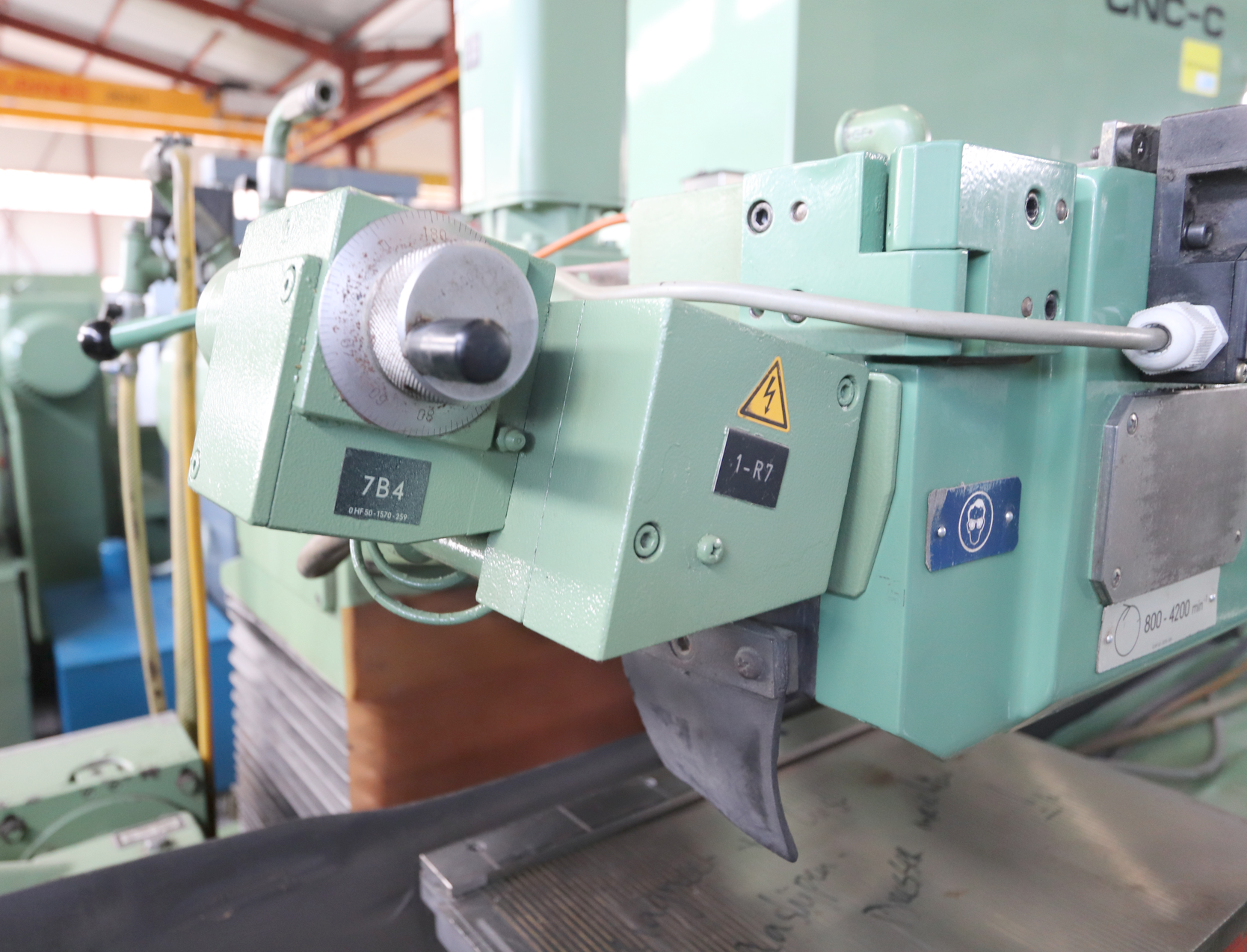

| Wheel dresser on CNC table | |

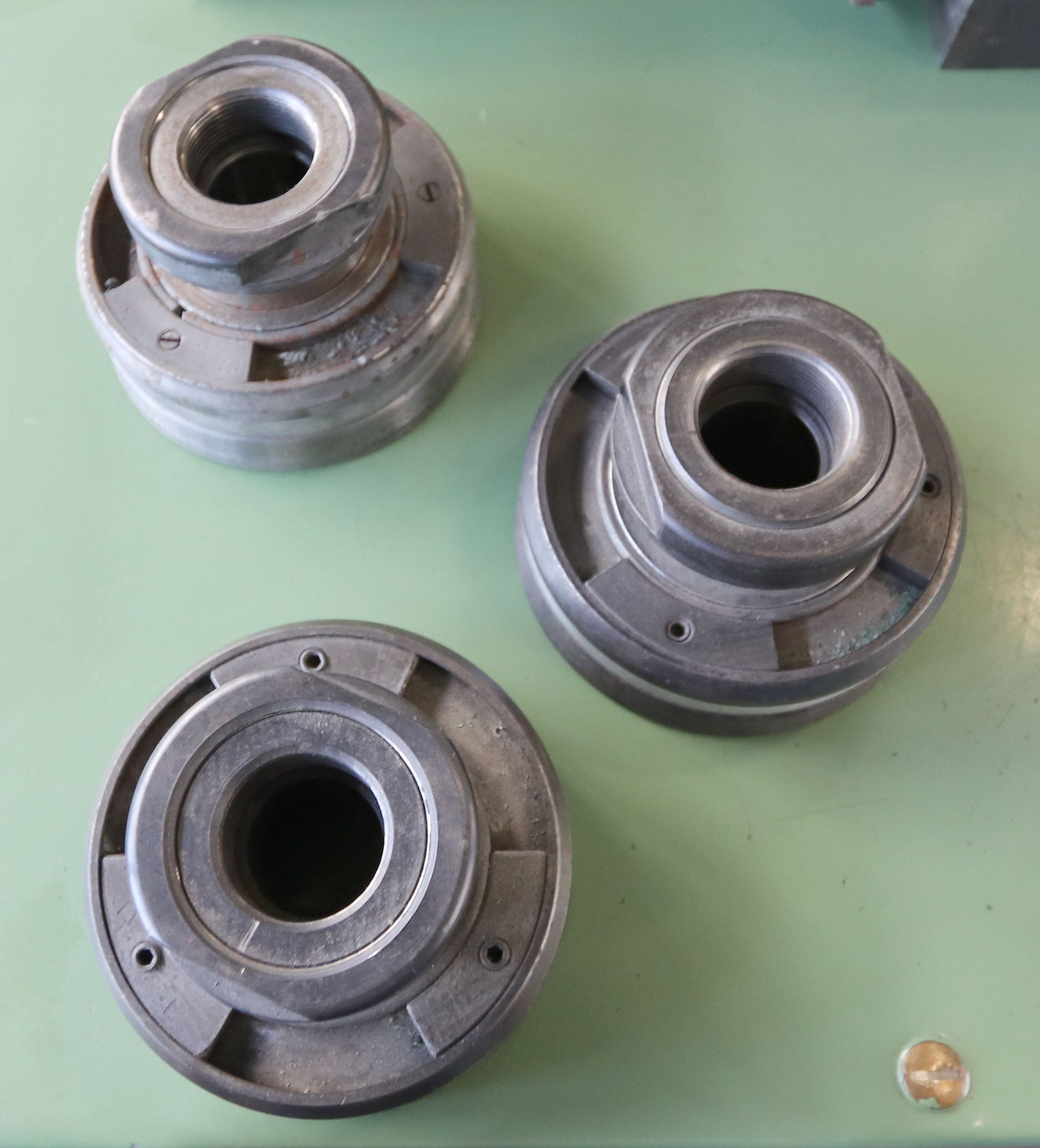

| Set of flanges | |
| Splash guard | |

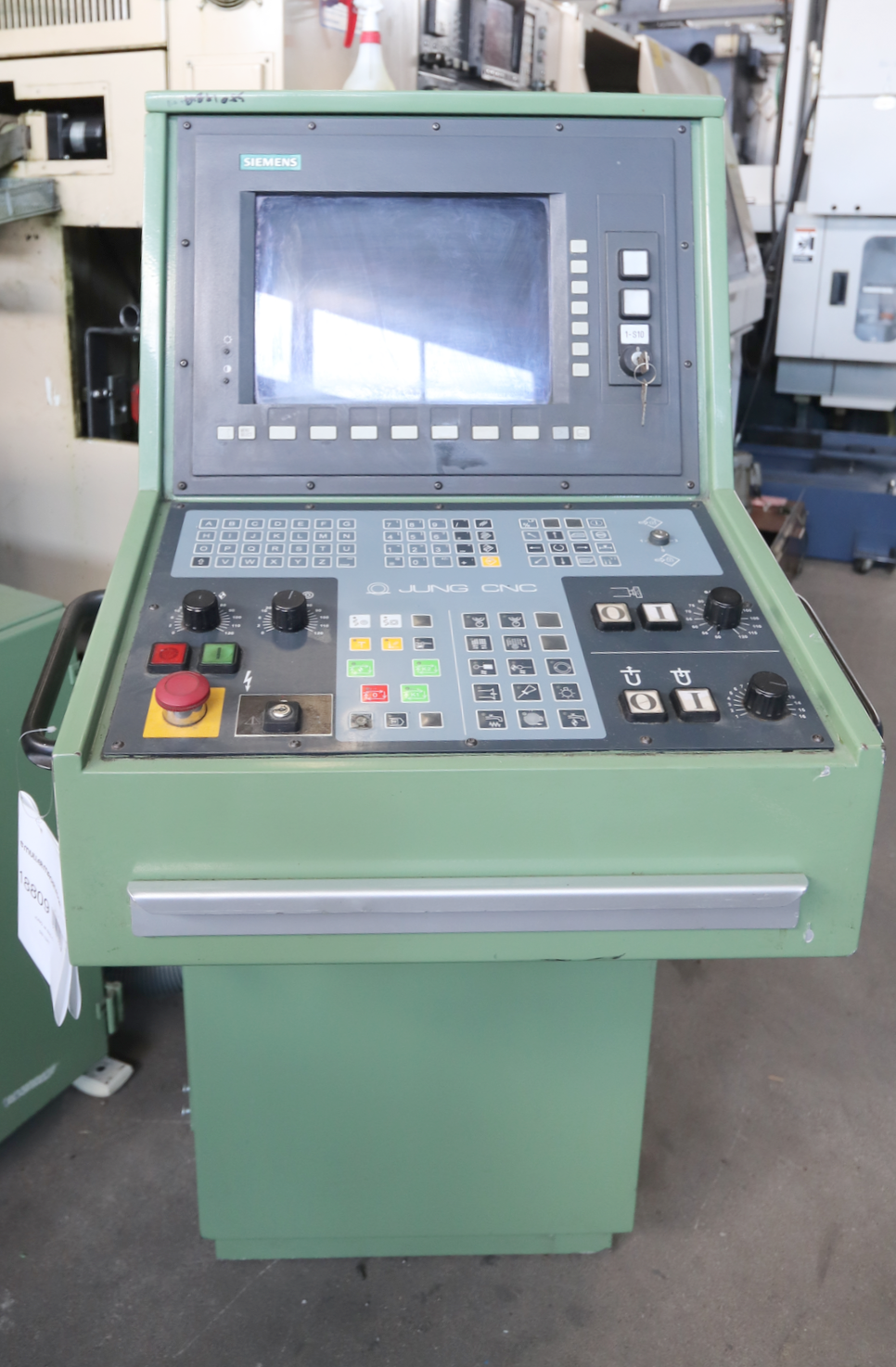

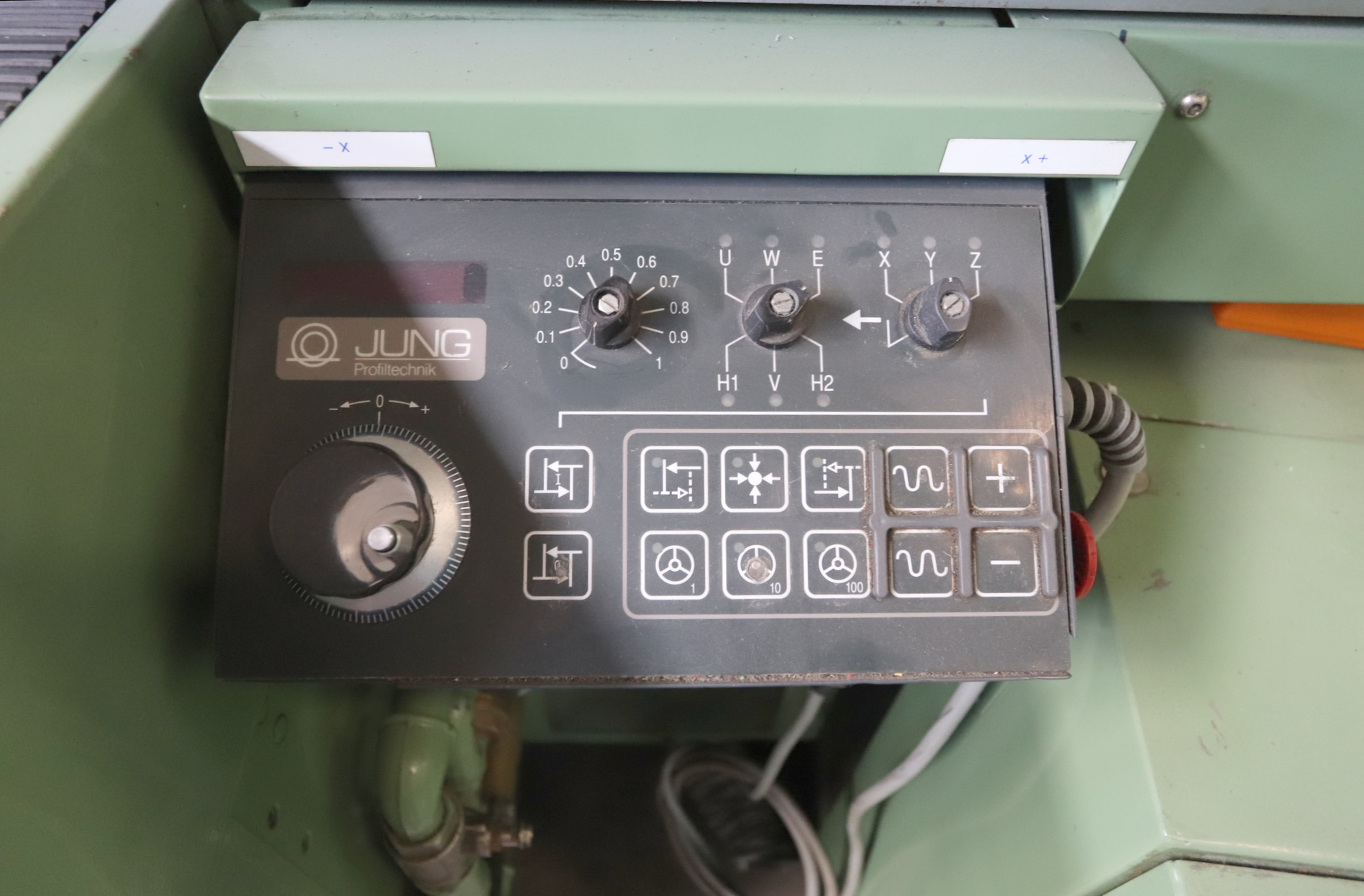

| Electronic hand held control |
