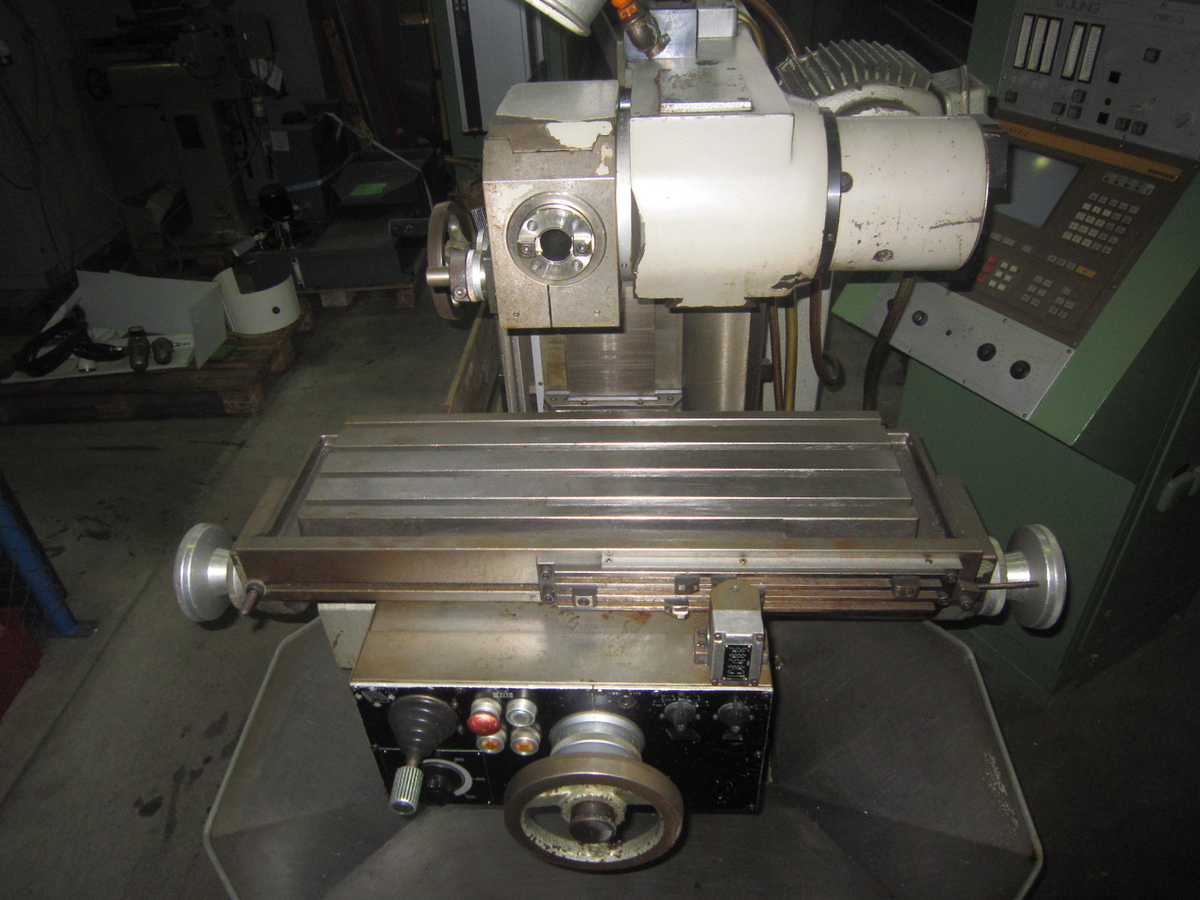

SCHAUBLIN 22 is a Universal milling machine offering precision, high accuracy and reliability. Table 650x250 mm; travels X 330 mm, Y 400 mm, Z 475 mm; quill travel 60 mm; spindle speeds 12 steps 63–2800 rpm (ISO30). Feeds longitudinal 4–500 mm/min, vertical 2–200 mm/min; rapid traverse long. 2.5 m/min, vert. 1.0 m/min; supply 50 Hz 3x380 V; motor 2.2 CV; weight ~950 kg; size 1600x1100x1650 mm. Enables tight tolerances; typical sectors: watchmaking, automotive, machine tools, aerospace, medical
| Table length | 650 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 475 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 63 t/min |
| up to | 2800 t/min |
| Taper in spindle | 30 ISO |
| Feeds stepless: | |
| longitudinal from | 4 mm/min |
| up to | 500 mm/min |
| vertical from | 2 mm/min |
| up to | 200 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 2.5 m/min |
| vertical | 1.0 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.2 CV |
| Machine's weight about | 950 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1100 mm |
| Height | 1650 mm |
