SCHAUBLIN 150 is a Centre lathe engineered for precision, high accuracy and reliability. Working capacities: centre height 150 mm; distance between centres 600 mm; swing over cross‑slide 177 mm; swing over bed 340 mm; turning length 600 mm; spindle hole 40 mm; spindle nose B32; tailstock taper 5 CM; spindle diameter 60 mm; Camlock D1-4. Specs: stepless 55–3000 t/min; 48 feed steps; rapid 4 m/min; 50Hz 3x380V; spindle motor 2.70 CV; total power 6 CV; weight ~1250 kg; L1730×W970×H1300 mm. Equipment: 3‑jaw chuck, coolant, quick closing attachment, MULTIFIX quick‑change toolholder, set of holders, lamp, drilling tailstock. Achieves tight tolerances; typical in automotive, watchmaking, machine tools, aerospace and medical.
| Centre height | 150 mm |
| Distance between centres | 600 mm |
| Swing over cross-slide | 177 mm |
| Swing over bed | 340 mm |
| Swing in gap | mm |
| Turning length | 600 mm |
| Spindle hole | 40 mm |
| Spindel nose for collets | B32 |
| Taper in spindelstock MK | 5 |
| Taper in spindle: | |
| Camlock | D 1-4" |
| Spindle speeds: | |
| stepless | |
| from | 55 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 5 CM |
| Spindle diameter | 60 mm |
| Feeds: | |
| number (steps) | 48 |
| length: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Frontal: | |
| from | 0.015 mm/t |
| up to | mm/t |
| Rapid motion | 4 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 2.70 CV |
| Total power required | 6 CV |
| Machine's weight about | 1250 kg |
| Overall dimensions machine: | |
| Length | 1730 mm |
| Width | 970 mm |
| Height | 1300 mm |

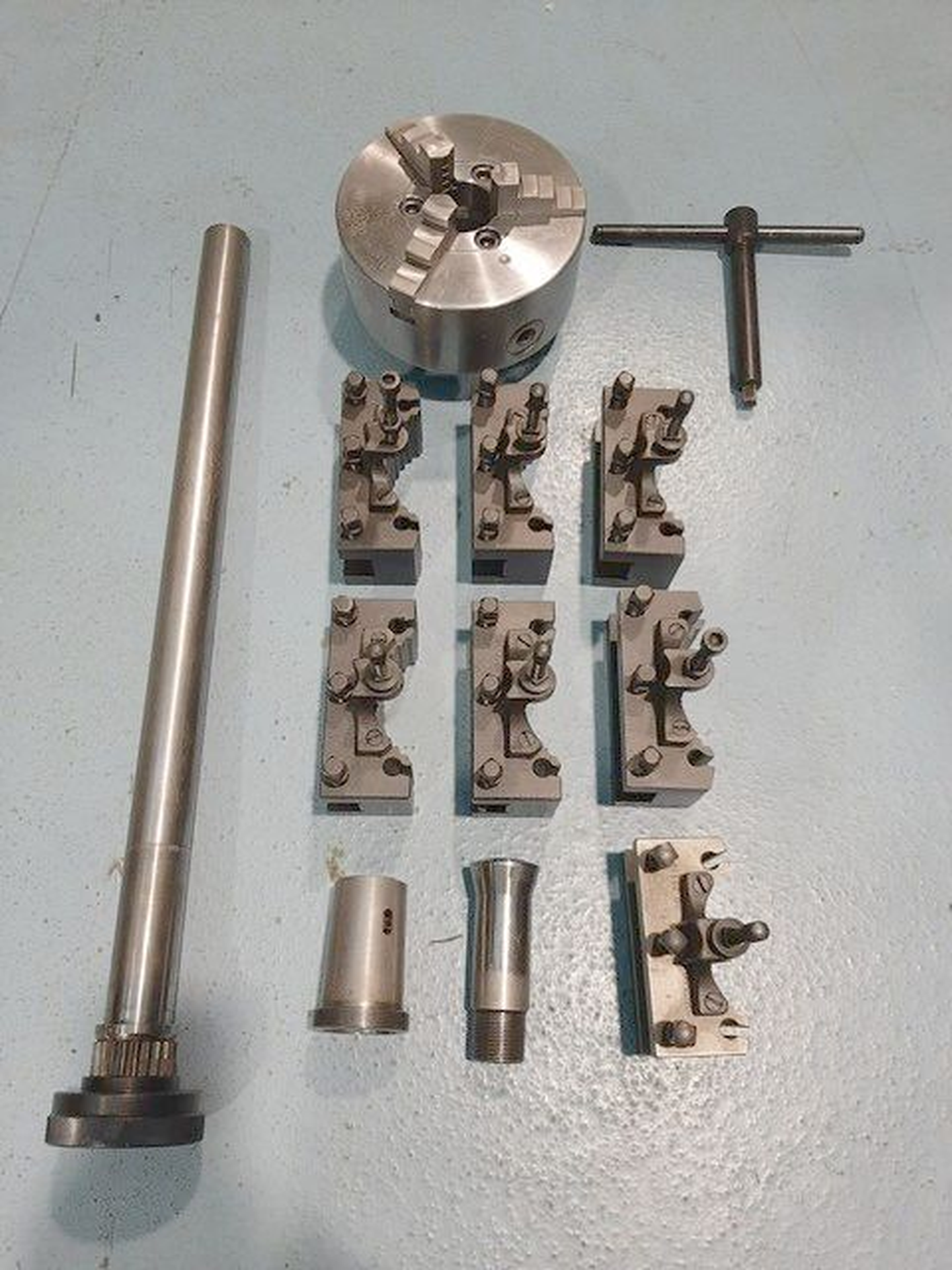

| Various accessories: | |
| 3-jaw chuck | |
| Coolant system | |
| Quick closing attachment | |
| Quick-change toolholder MULTIFIX | |
| Set of steel holders | |
| Lamp | |
| Drilling tailstock |
