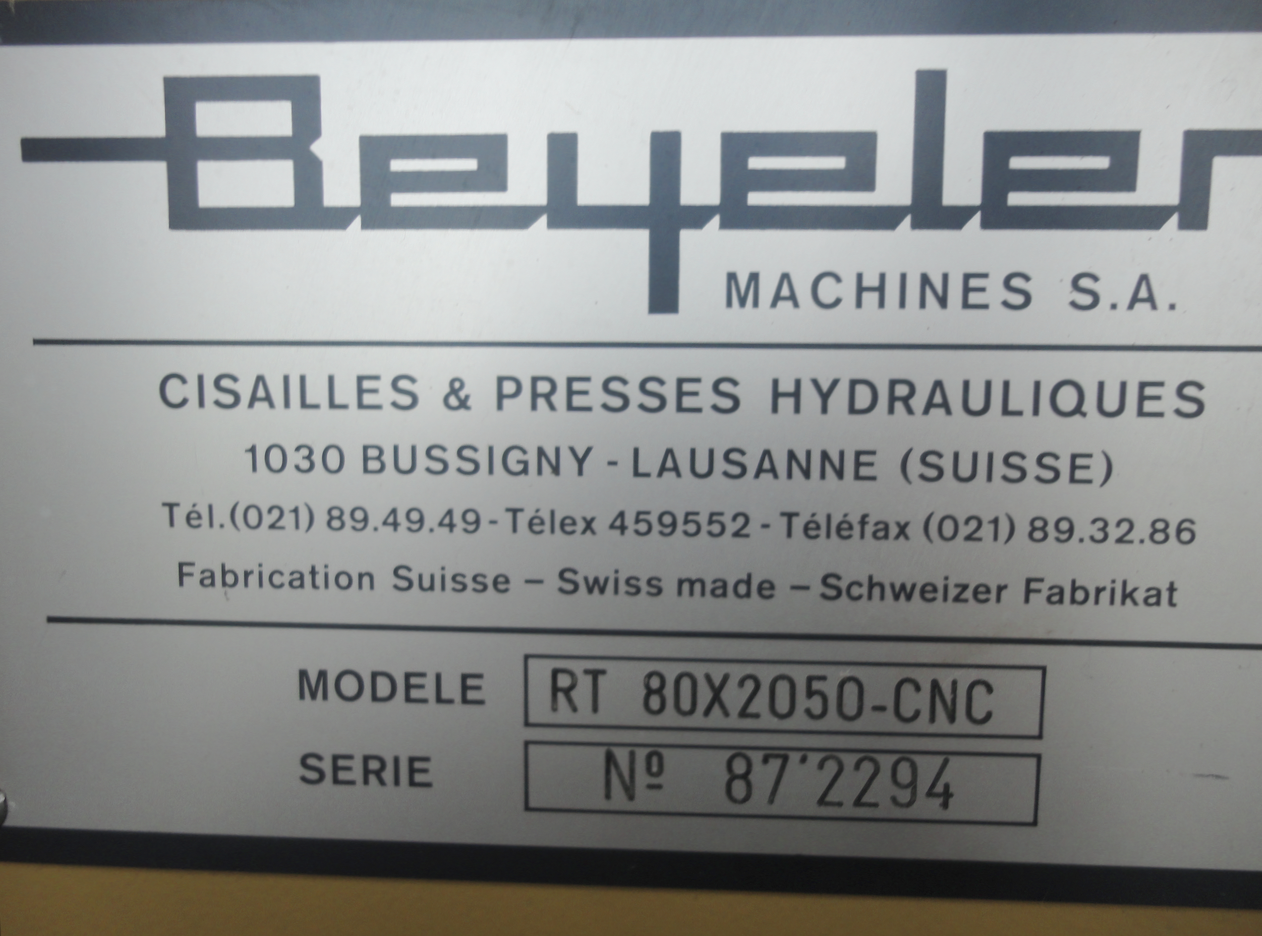

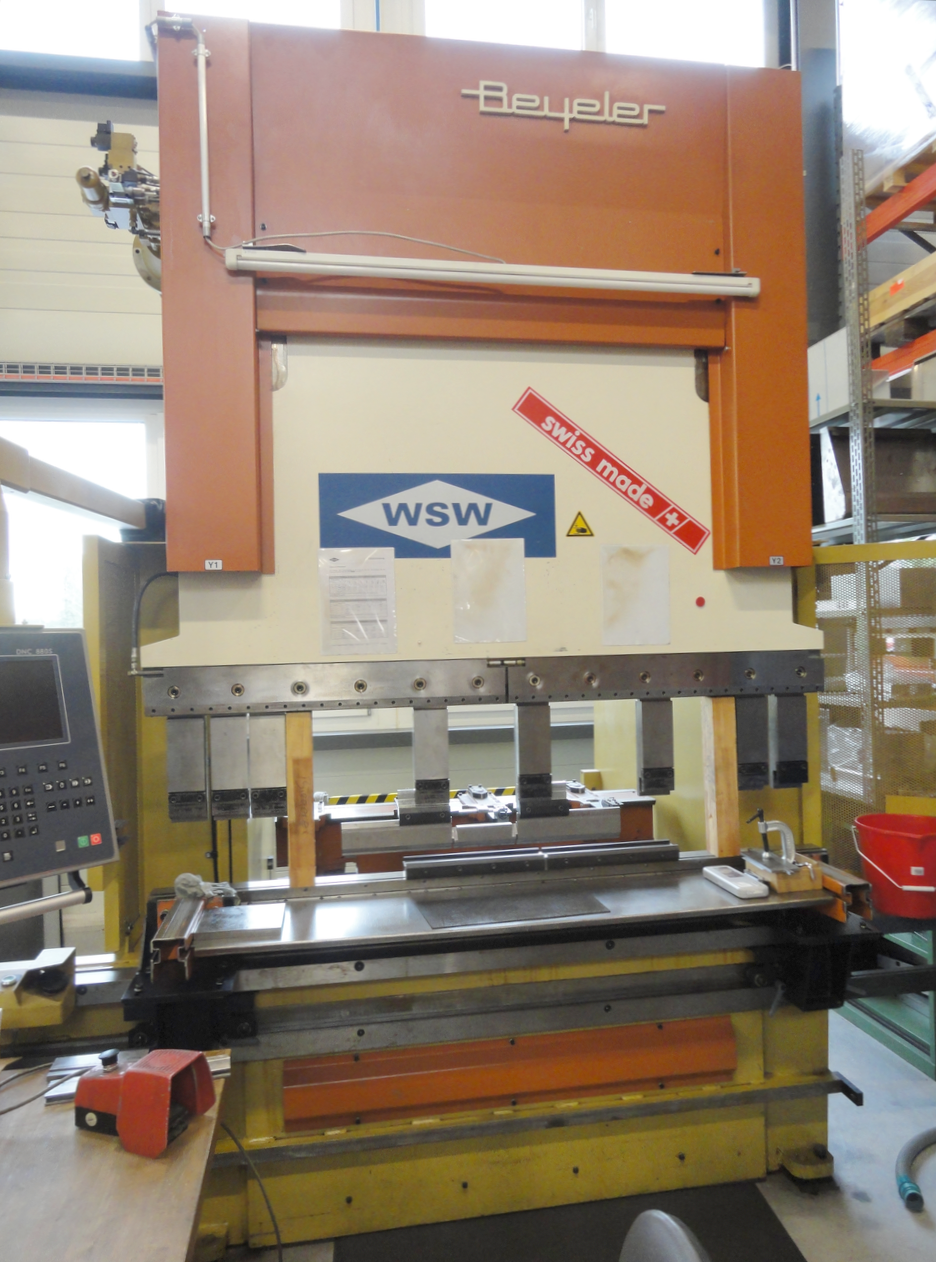

BEYELER RT80x2050-CNC
Special Price
CHF 14 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

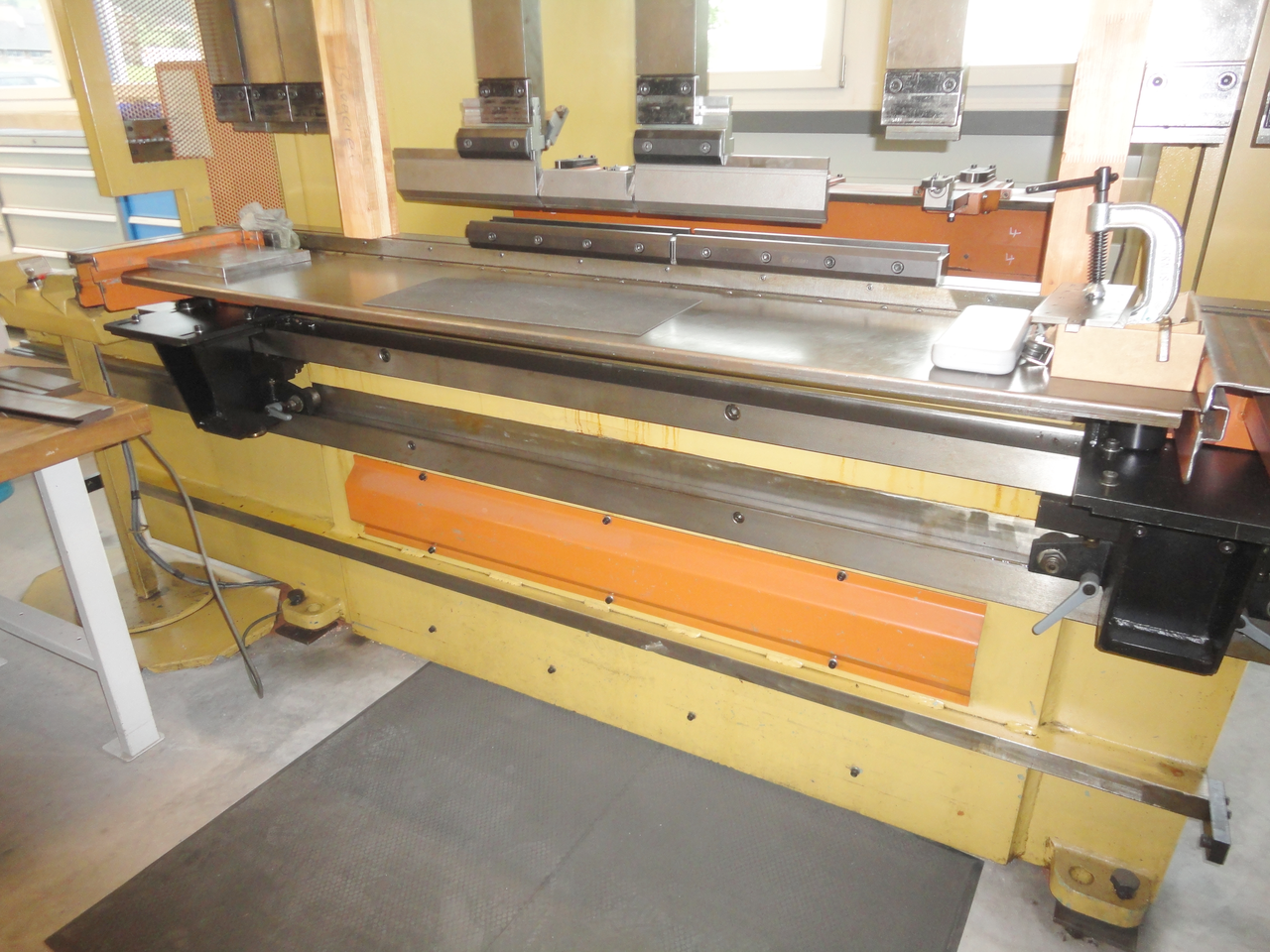

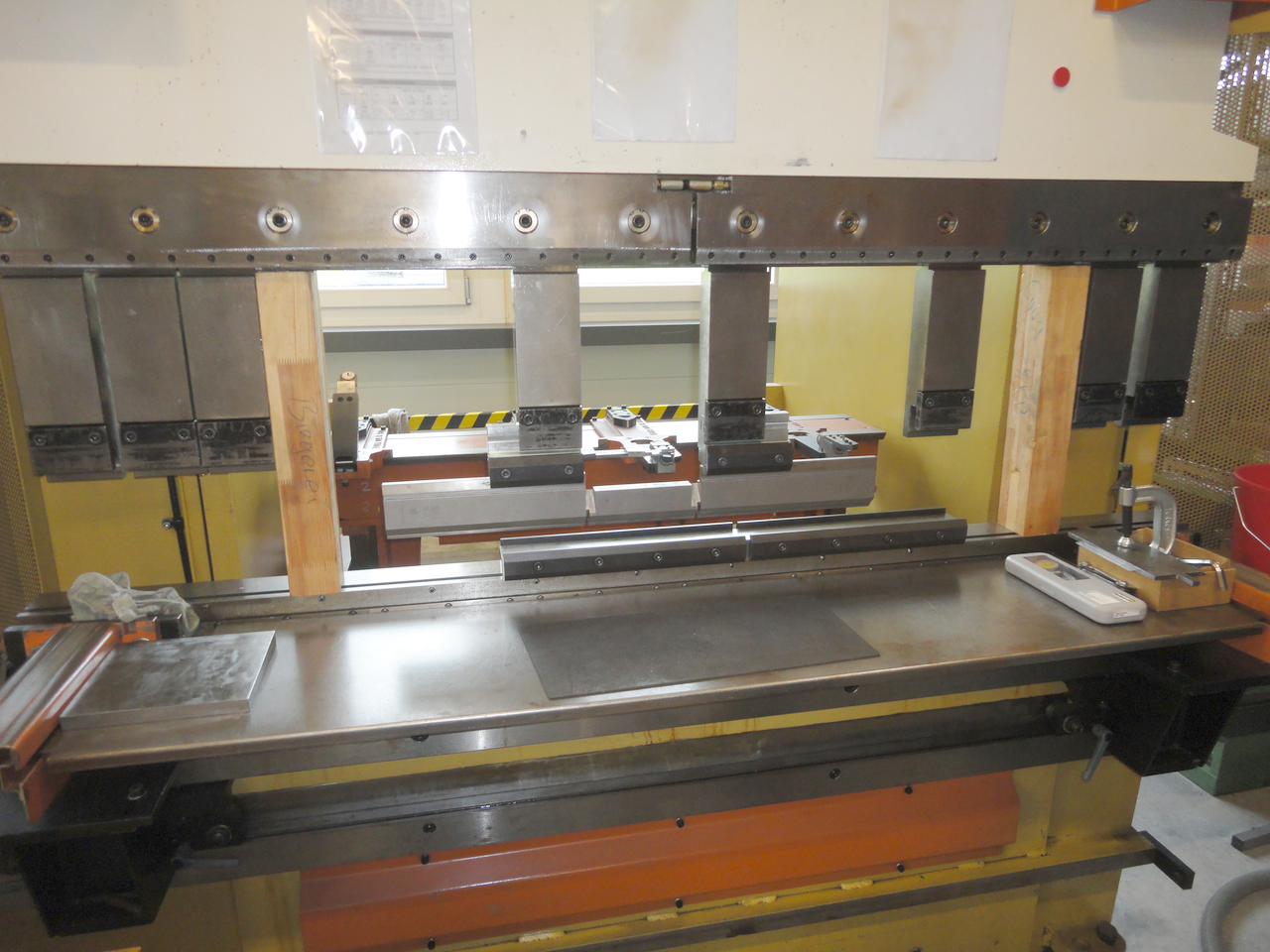

BEYELER RT80x2050-CNC is a Press brake engineered for precision, high accuracy and reliability. Capacities: 800 kN, working length 2050 mm, distance between standards 2050 mm, throat depth 255 mm, stroke from 215 mm, max mounting height 390 mm. Specs: press stroke 8 mm/s, up 60 mm/s, 3x380 V 50 Hz, motor 6 kW, weight ≈6700 kg, dimensions 3700×2000×3400 mm. Accessories: set of bending tools, set of retaining clamps, motorized stop 500 mm. Enables tight tolerances; ideal for automotive, aerospace, machine tools, medical and watchmaking.
| Pressure | 800 kN |
| Total working length | 2050 mm |
| Distance between the | |
| standards | 2050 mm |
| Standard depth of throat | 255 mm |
| Slide stroke, working stroke: | |
| from | 215 mm |
| Mounting height max. | 390 mm |
| Working speed: | |
| Press stroke | 8 mm/s |
| up | 60 mm/s |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 6 kW |
| Machine's weight about | 6700 kg |
| Overall dimensions machine: | |
| Length | 3700 mm |
| Width | 2000 mm |
| Height | 3400 mm |
| Various accessories: | |

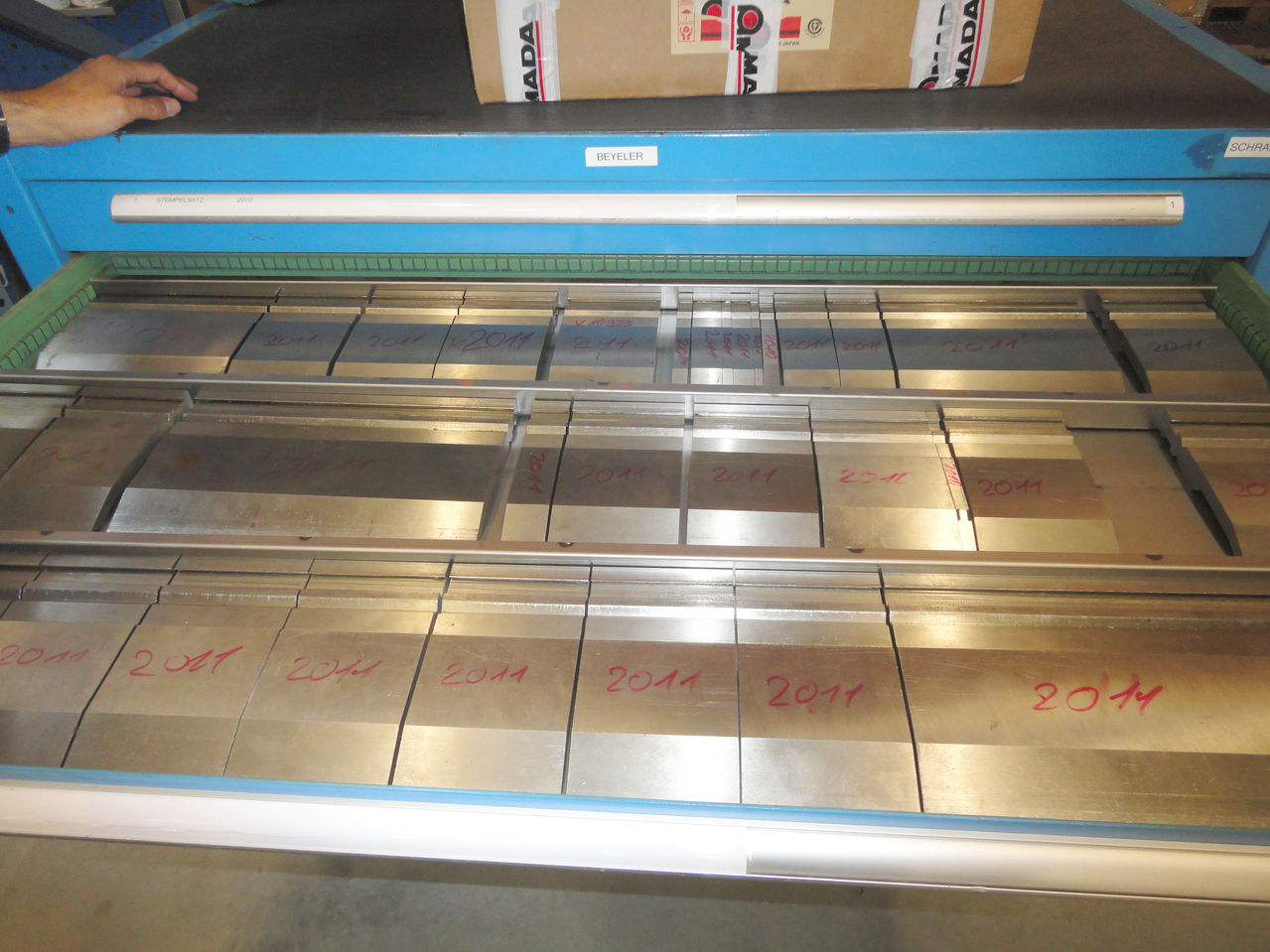

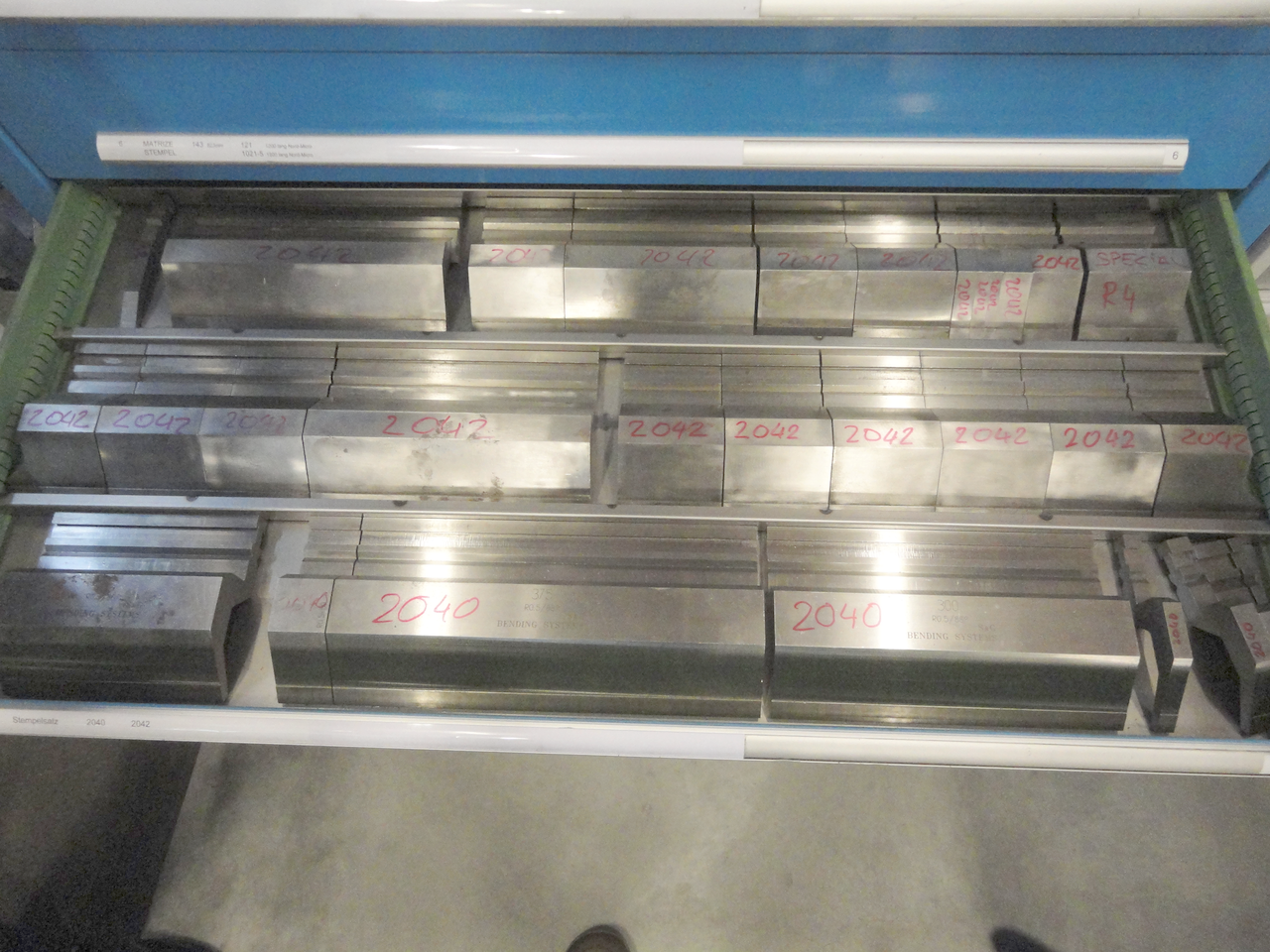

| Set of bending tools | |
| Set of retaining clamps | |

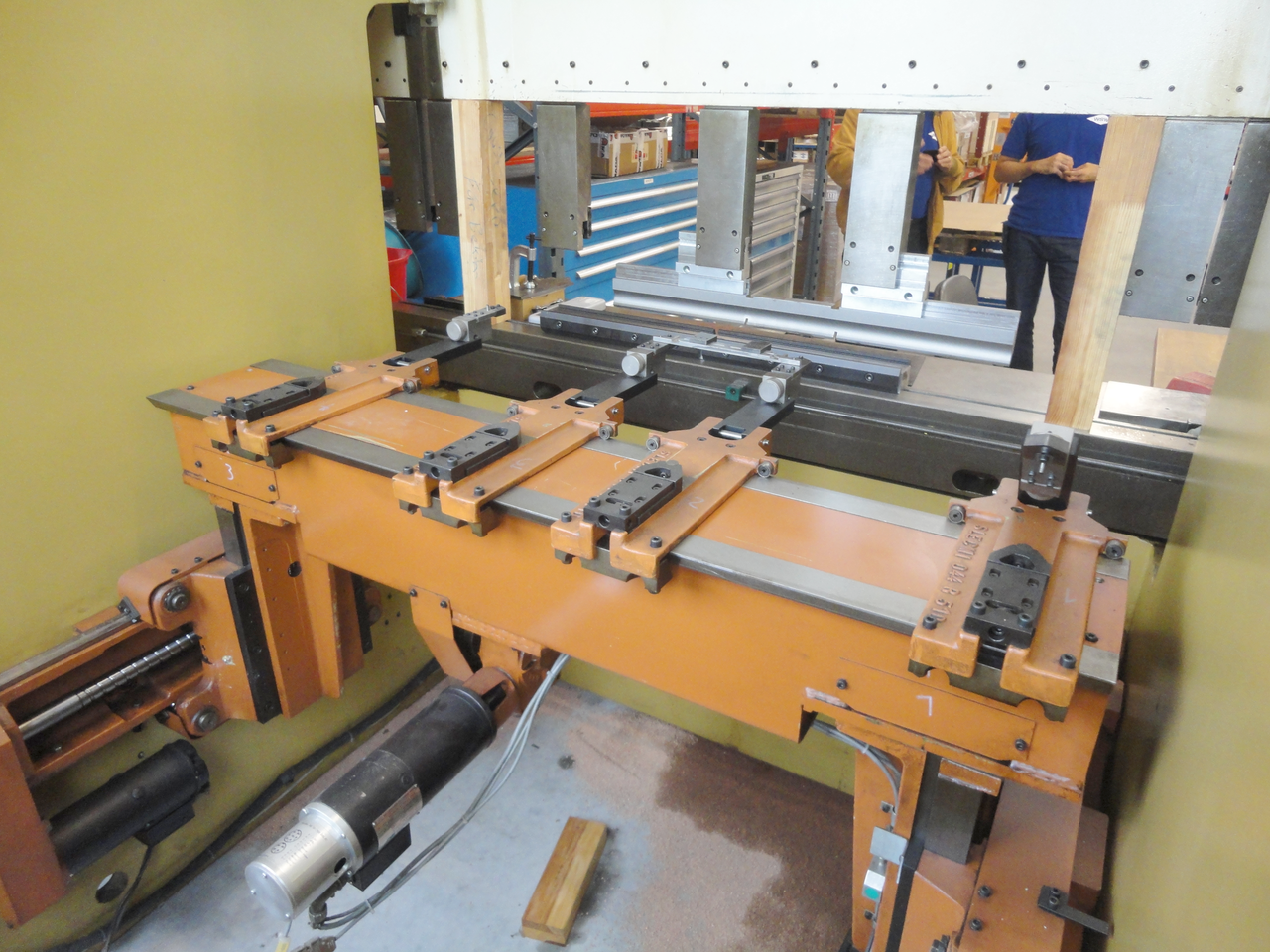

| Motorized stop | 500 mm |
