VOUMARD 400 is a CNC internal grinder engineered for precision, high accuracy and reliability. Capacities: grinding diameter 20–300 mm, max grinding depth 300 mm, max workpiece length with steady 1780 mm, centre height 300/430 mm. Specs: Z travel 650 mm, X travel 150 mm, U axis 500 mm, B axis ±20°, Z axis speed 12000 mm/min, grinding spindle motor 6.5/7.8 kW, weight ≈9500 kg, dimensions L5000×W2300×H2400 mm. Accessories: redressing device, coolant system, paper band filter, steady; new FANUC control. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Min. grinding diameter | 20 mm |
| Max. grinding diameter | 300 mm |
| Max. grinding depth | 300 mm |
| Max.workpiece length + steady | 1780 mm |
| Centre height | 300 / 430 mm |
| Axial motion: | |
| Longitudinal travel (Z-axis) | 650 mm |
| Cross travel (x-axis) | 150 mm |
| Spindle head (u axis) | 500 mm |
| Work piece spindle head (B-axis) | +/- 20 ° |
| Max. axial speeds: | |
| Z axis (longitudinal travel) | 12000 mm/min |
| Grinding spindle head: | |
| Grinding spindle motor | 6.5 / 7.8 kW |
| Machine's weight about | 9500 kg |
| Overall dimensions machine: | |
| Length | 5000 mm |
| Width | 2300 mm |
| Height | 2400 mm |
| Various accessories: | |
| Redressing device | |
| Coolant system | |
| Paper band filter | |
| Steady | |
| Notes: | |

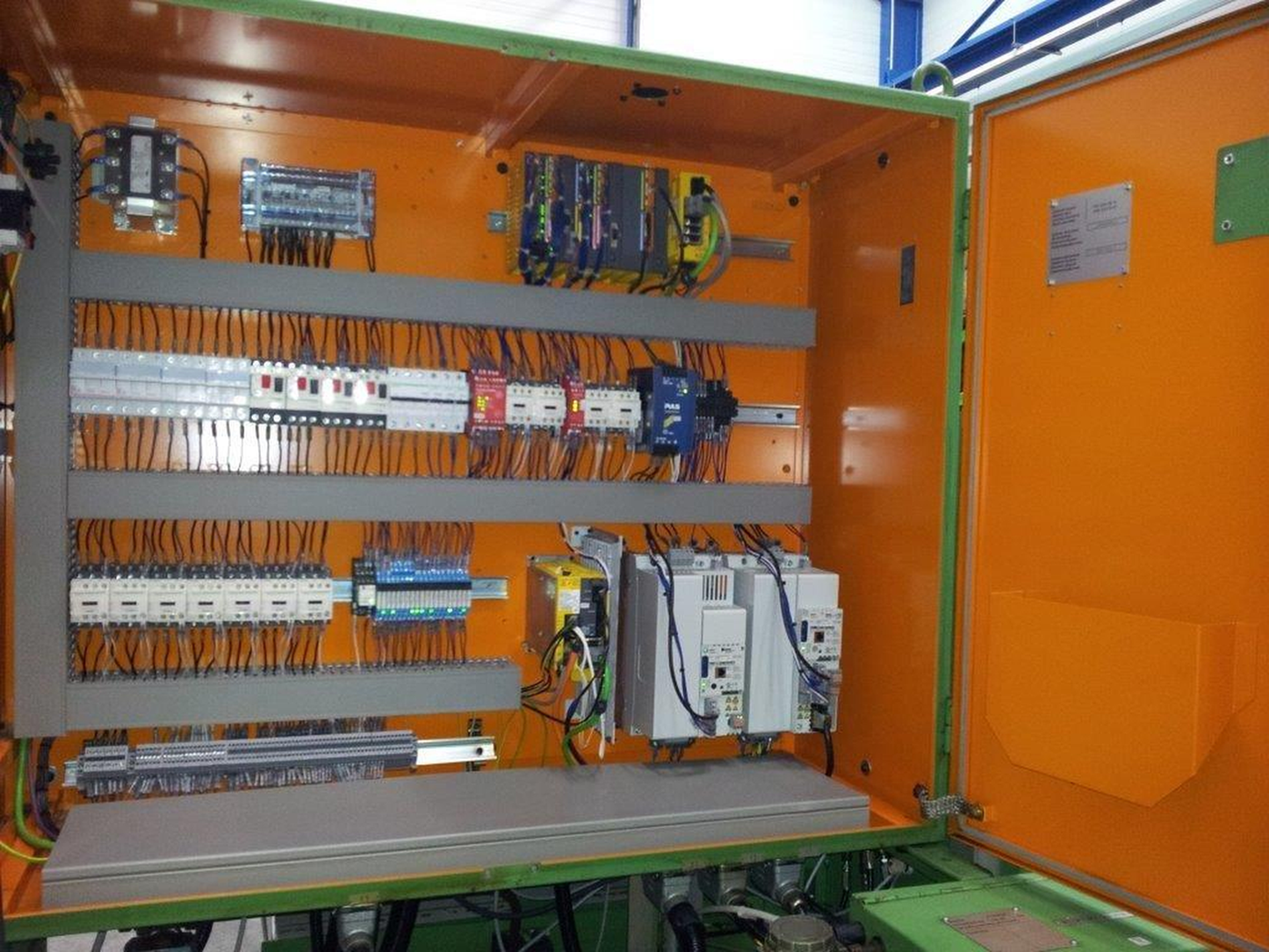

| New control system | FANUC |
