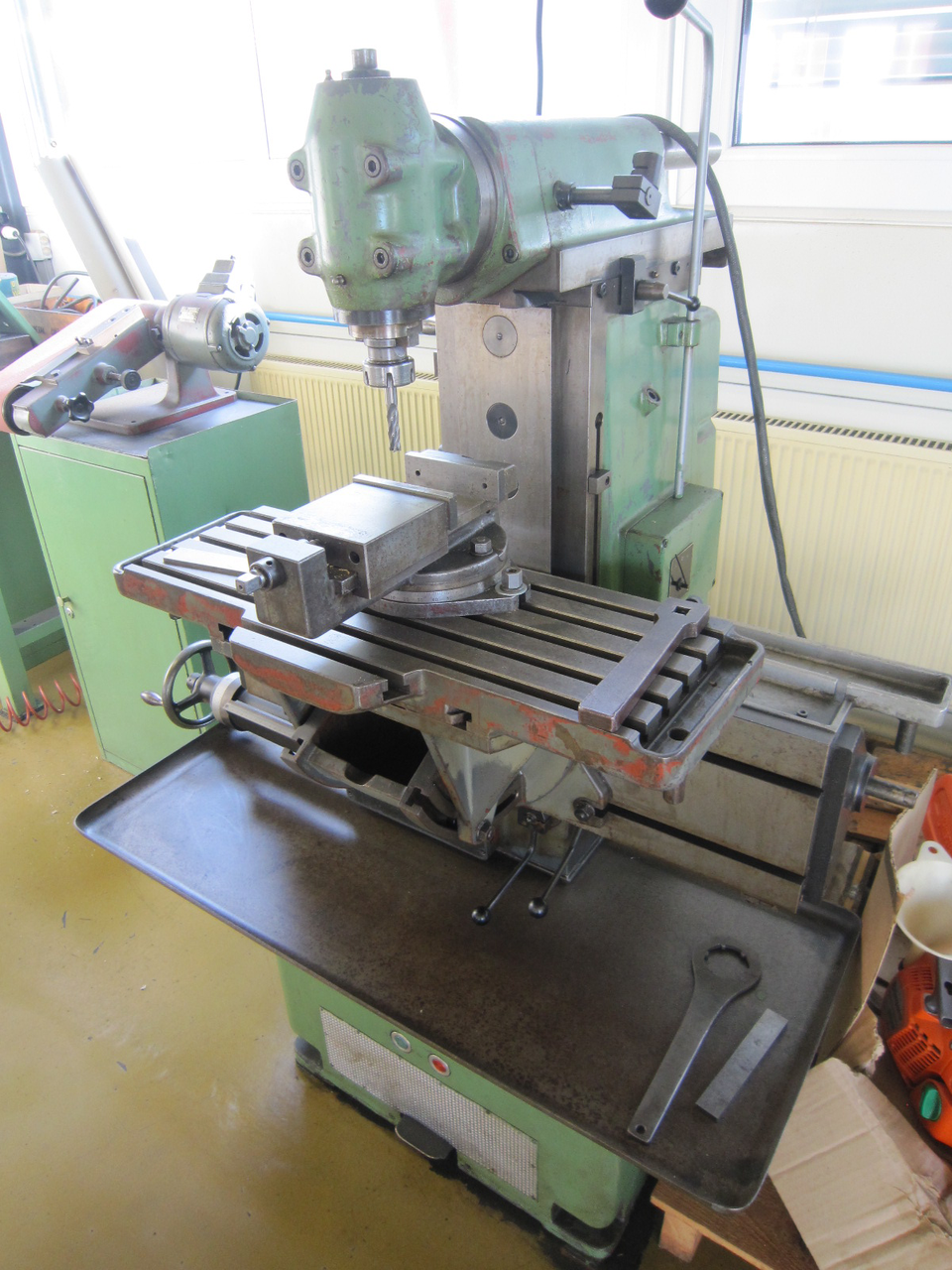

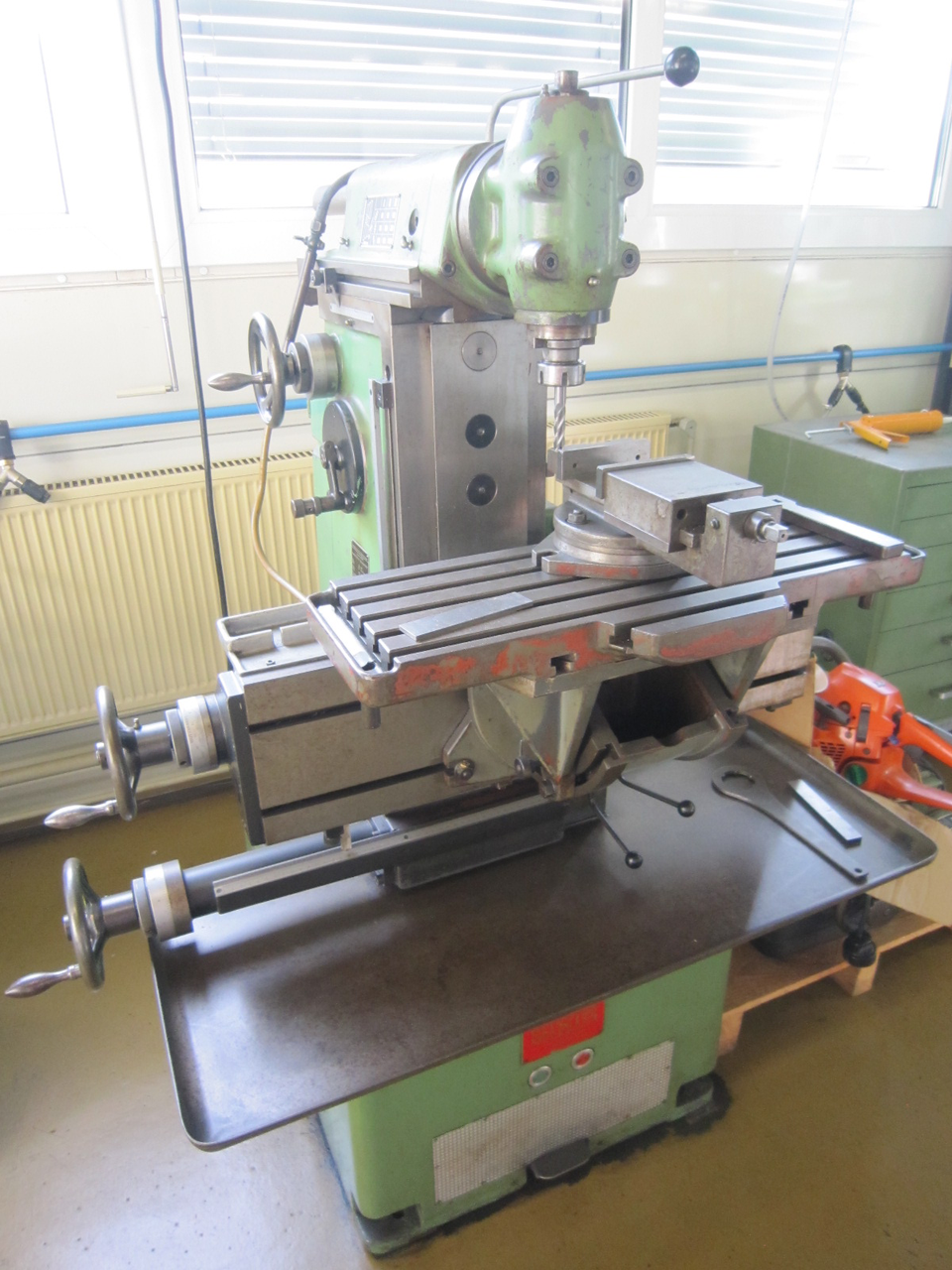

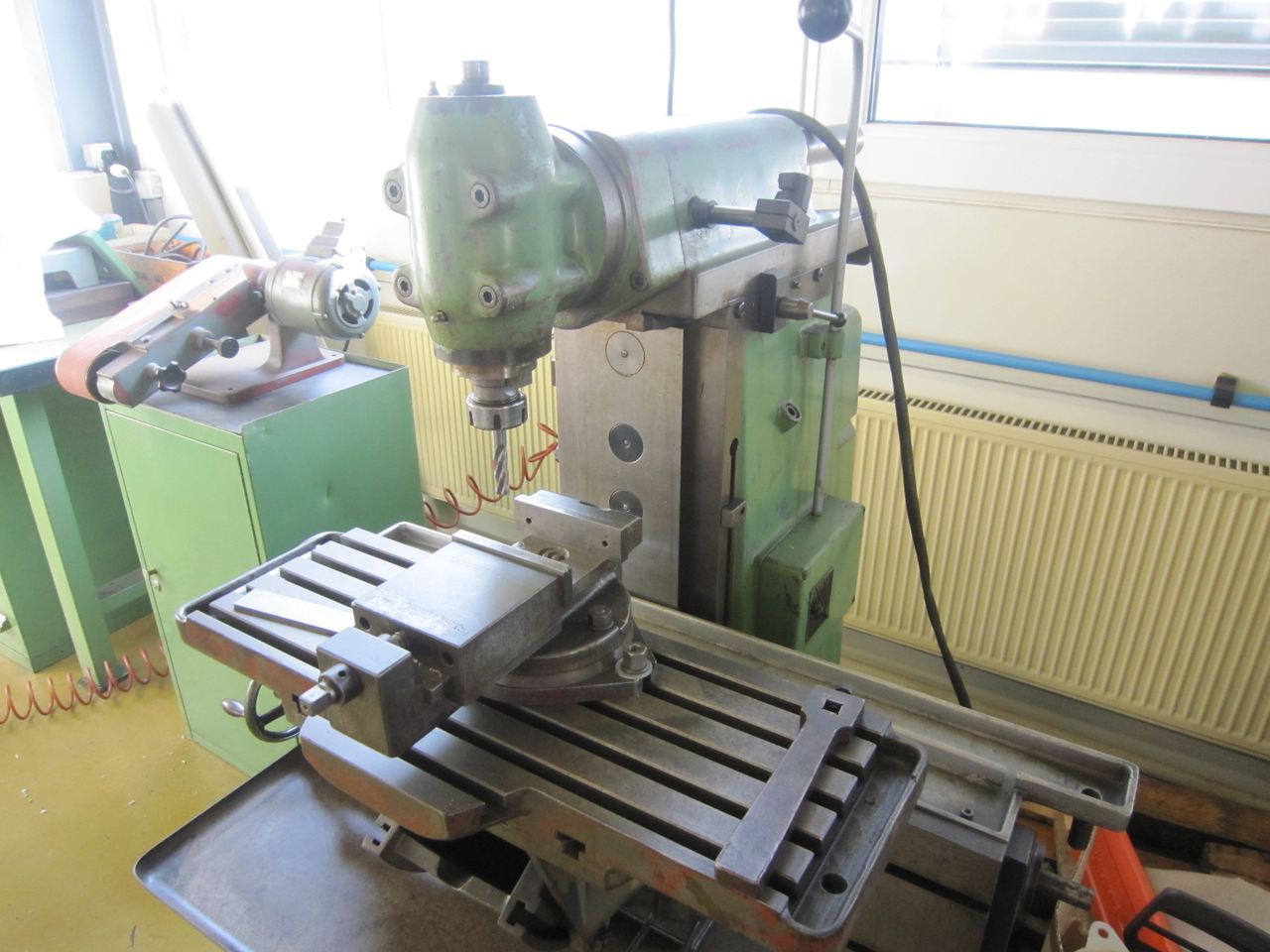

SIXIS S 103 is a Universal milling machine engineered for precision, high accuracy and reliable operation. Table 600×210 mm; travels X 450 mm, Y 175 mm, Z 400 mm; distance spindle‑to‑table 320 mm. ISO30 spindle with 9 steps 60–1200 t/min; 8 feed steps 12–216 mm/min (longitudinal/vertical); rapid traverse X 1.0 m/min, Z 0.5 m/min. Supply 3×380 V 50 Hz; motor 1.5 CV; total power 2 CV; weight ≈880 kg; overall 1100×1100×1600 mm. Delivers tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical industries.
| Table length | 600 mm |
| Table width | 210 mm |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y axis) | 175 mm |
| Vertical travel (z axis) | 400 mm |
| Distance from vertical spindle to table | 320 mm |
| Spindle speeds: | |
| number (steps) | 9 |
| from | 60 t/min |
| up to | 1200 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 216 mm/min |
| vertical from | 12.0 mm/min |
| up to | 216 mm/min |
| Rapid traverse: | |
| longitudinal | 1.0 m/min |
| vertical | 0.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 880 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 1100 mm |
| Height | 1600 mm |
