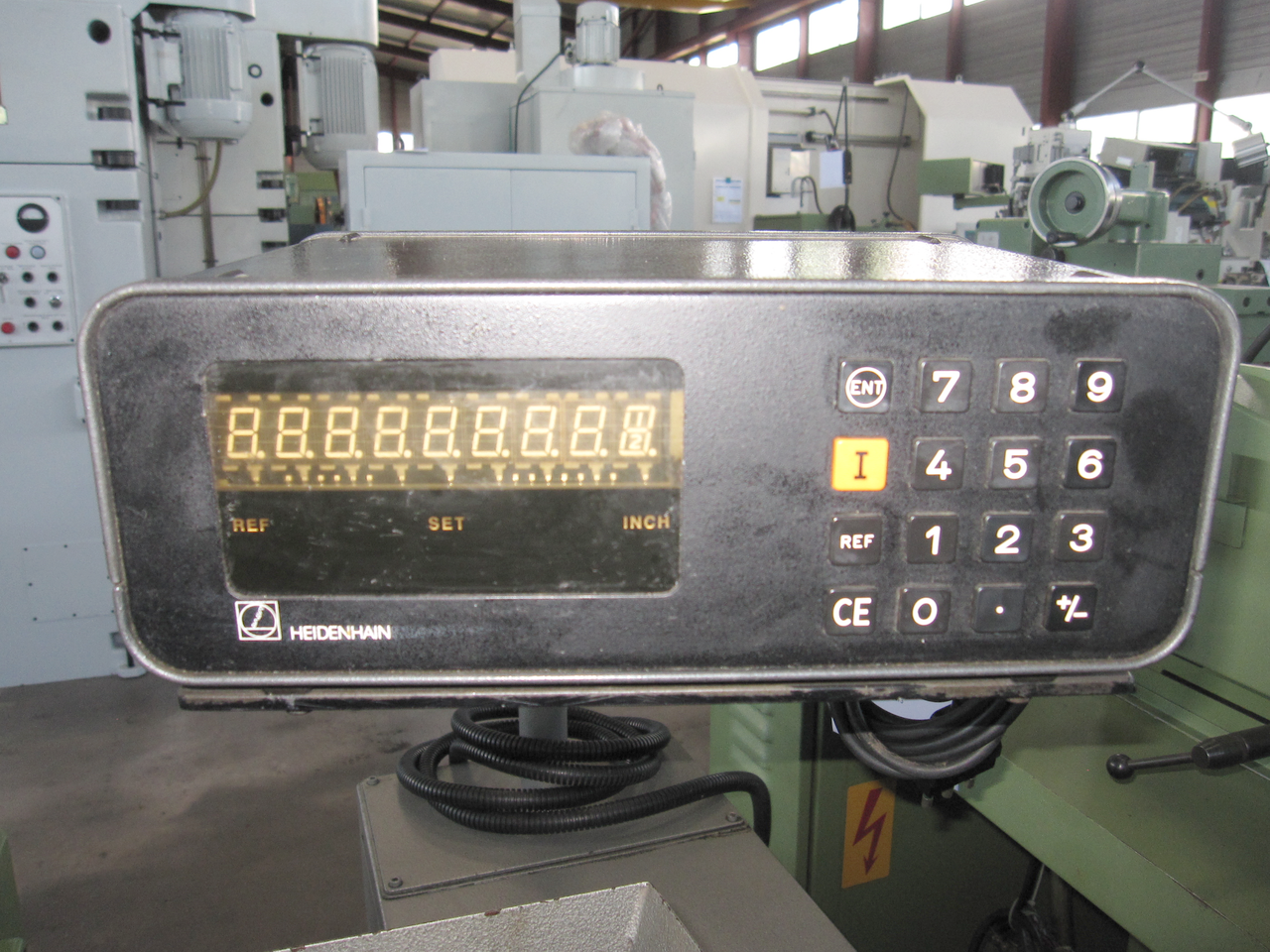

TSCHUDIN HTG 610
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

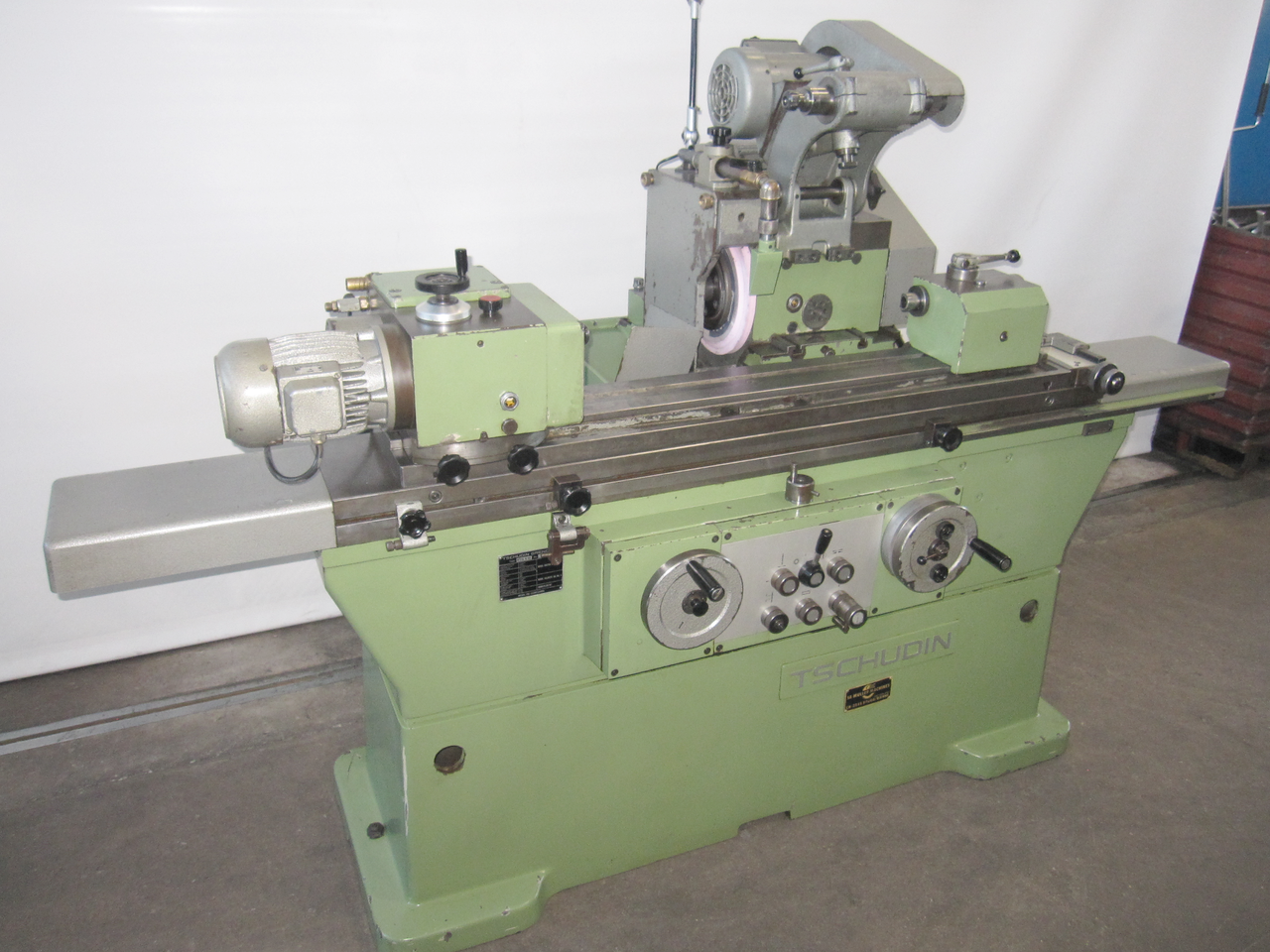

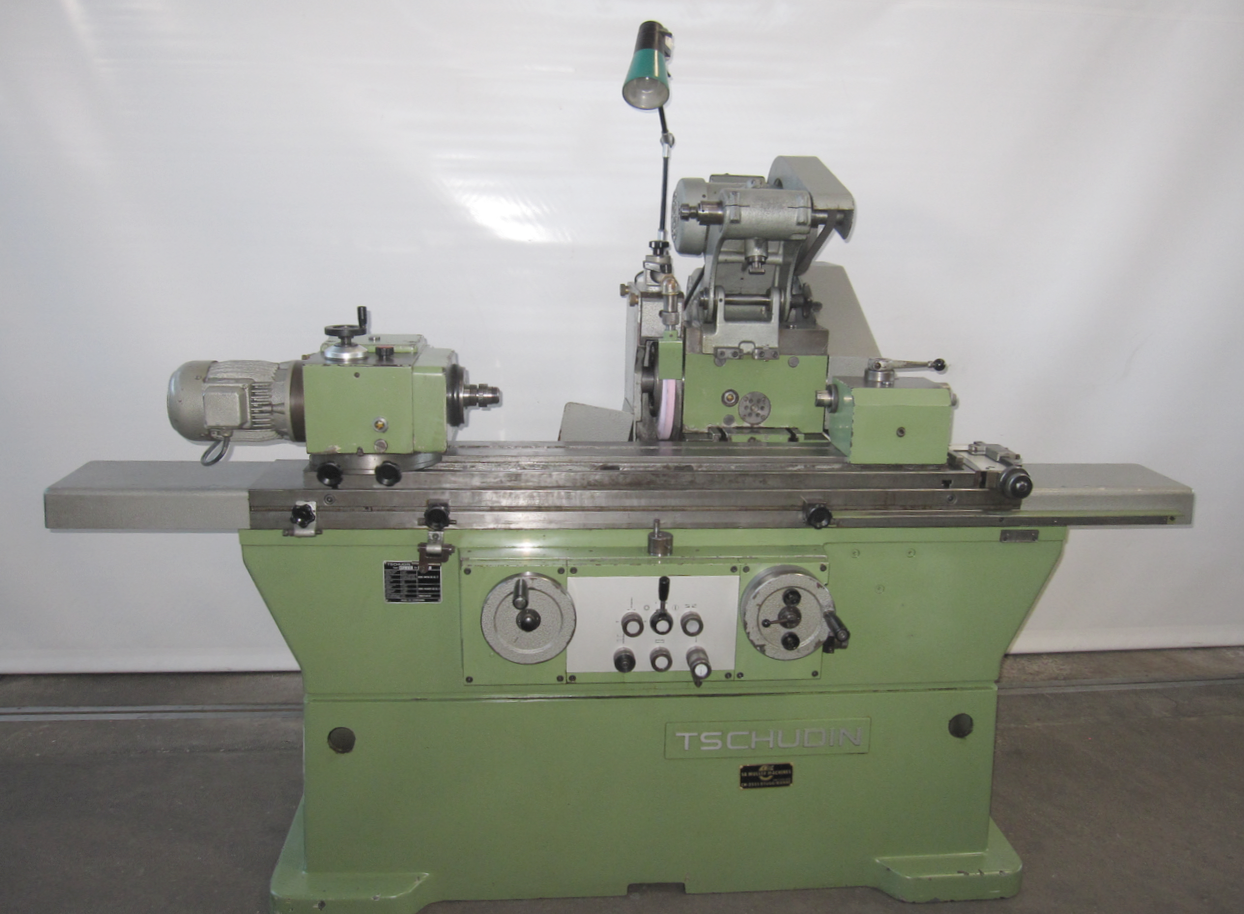

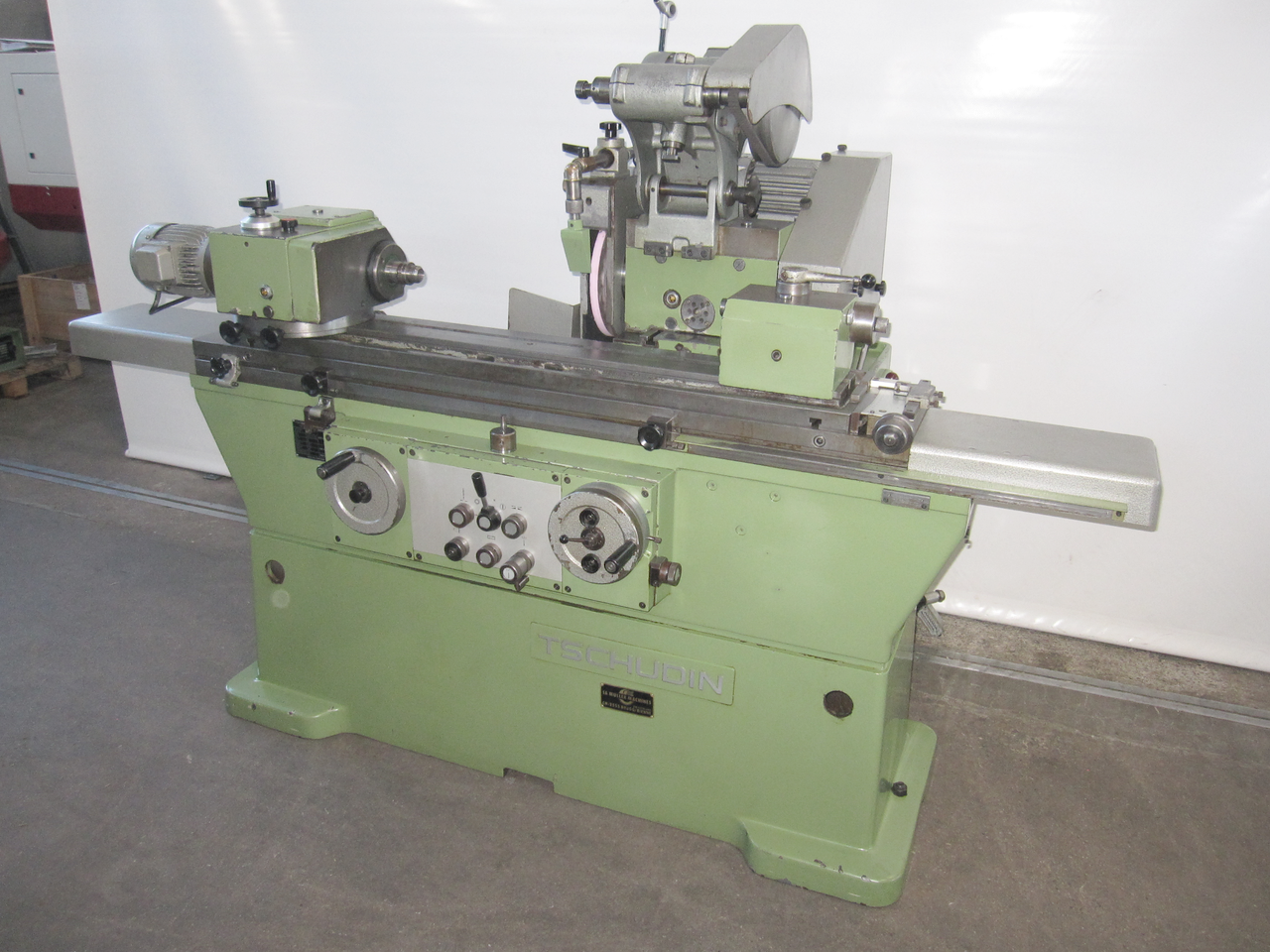

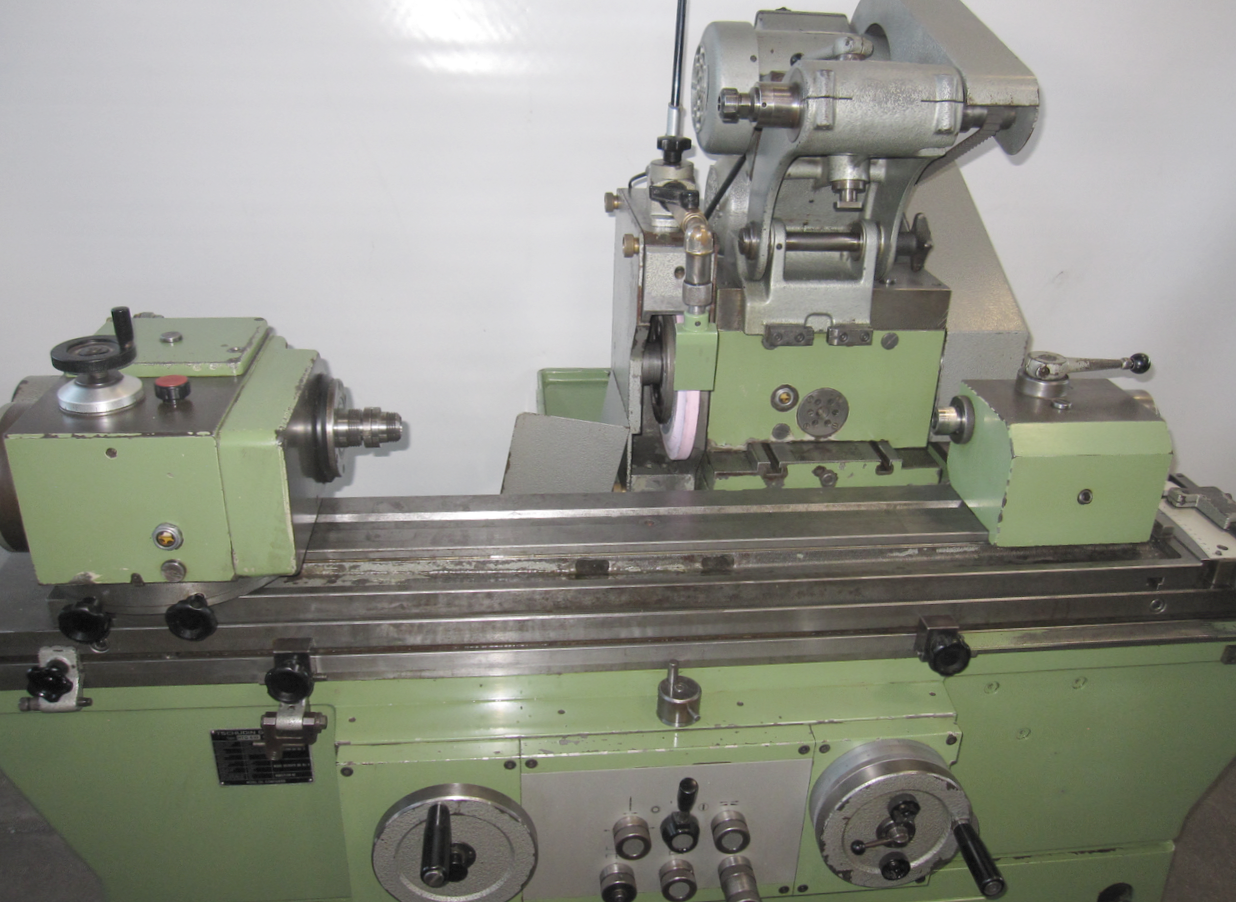

TSCHUDIN HTG 610 is a cylindrical grinder engineered for precision, high accuracy and reliability. Centre height 100 mm; distance between centres 680 mm; max longitudinal travel 620 mm. Wheel Ø350 mm, bore 127 mm, width 50 mm; wheel speeds 3 steps 1640–2300 t/min. Workpiece spindle stepless 65–500 t/min, rotatable 360°; spindle taper 5 CM; tailstock 3 CM; table tilt 8°, table speed up to 5 m/min. Voltage 50Hz 3×380V; wheel motor 4.0 CV; total installed power 7 CV; weight ≈2500 kg; dimensions 2700×1800×1900 mm. Accessories: swivellable internal grinding attachment, coolant, paper filtration, sparking-out attachment, lamp, full automatic cycle. Achieves tight tolerances for precision applications.
| Centre height | 100 mm |
| Distance between centres | 680 mm |
| Max. Longitudinal travel | 620 mm |
| Grinding wheel: | |
| Diameter | 350 mm |
| Bore | 127 mm |
| grinding wheel width | 50 mm |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| from | 1640 t/min |
| up to | 2300 t/min |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 65 t/min |
| up to | 500 t/min |
| rotatable | 360 ° |
| Spindle taper | 5 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 8 ° |
| Table speed: | |
| stepless | |
| up to | 5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 4.0 CV |
| Total power required | 7 CV |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 1800 mm |
| Height | 1900 mm |
| Various accessories: | |
| Internal grinding attachment swivellable: | |
| Spindle speeds | 50 t/min |

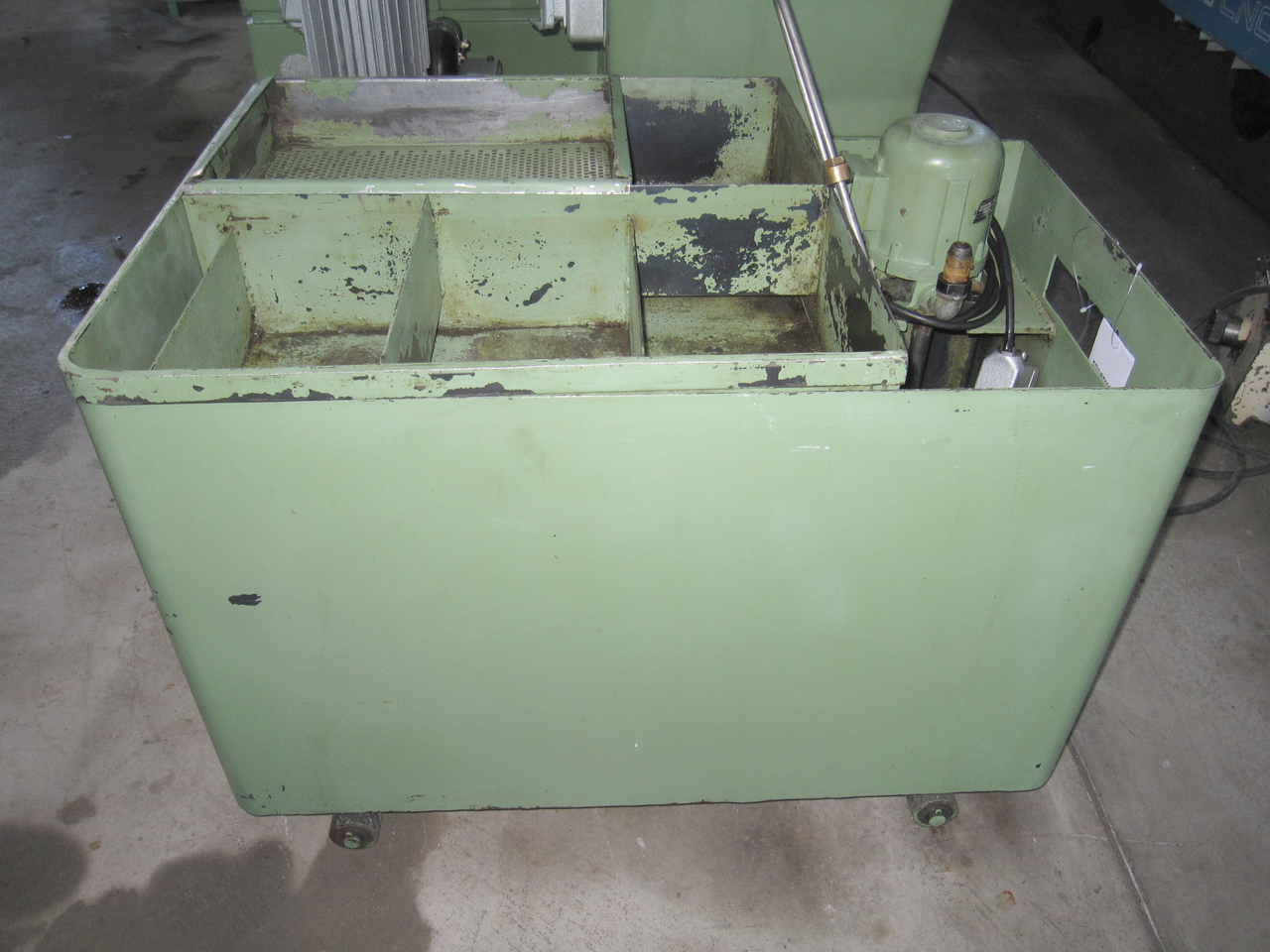

| Coolant system | |

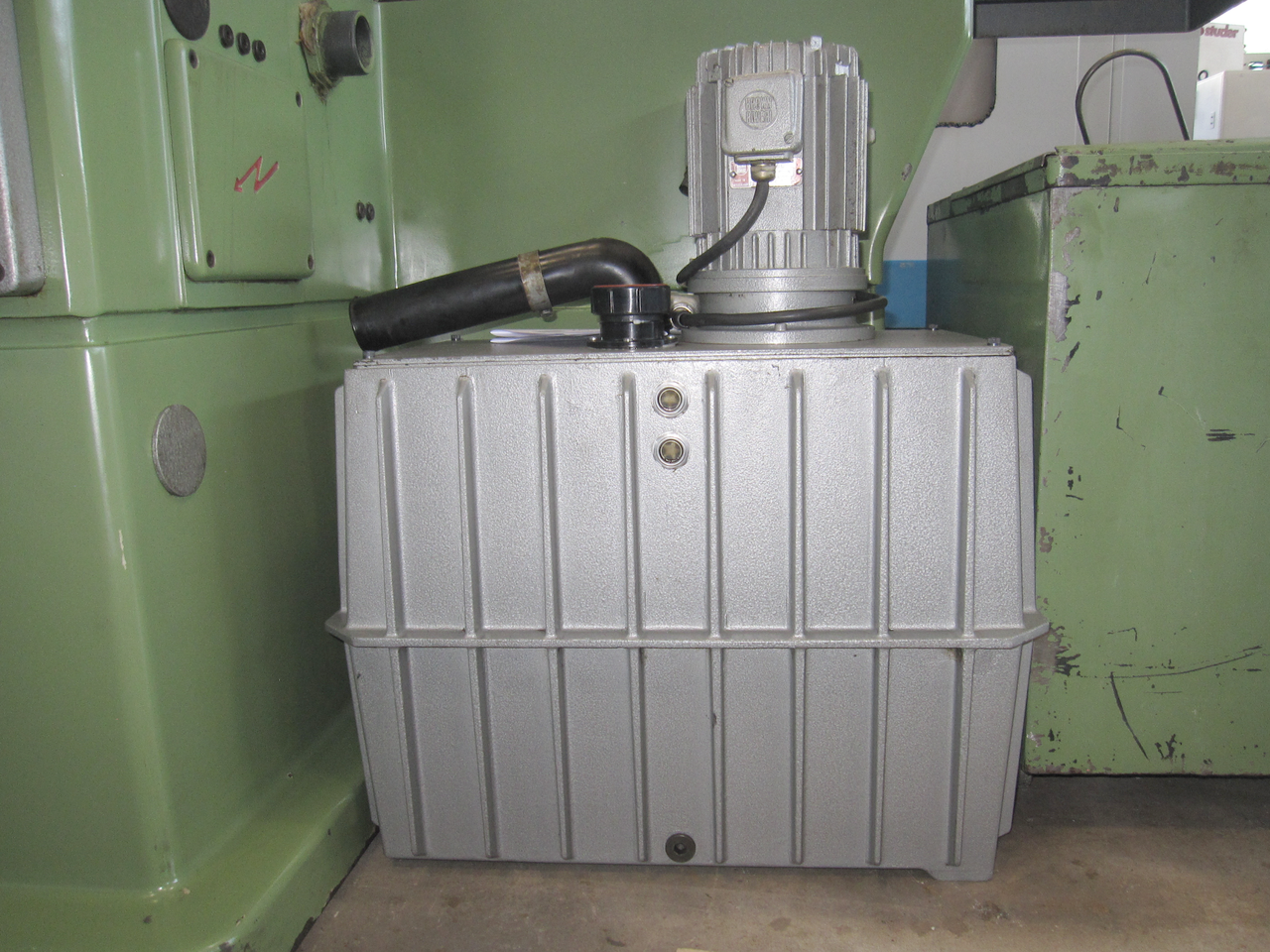

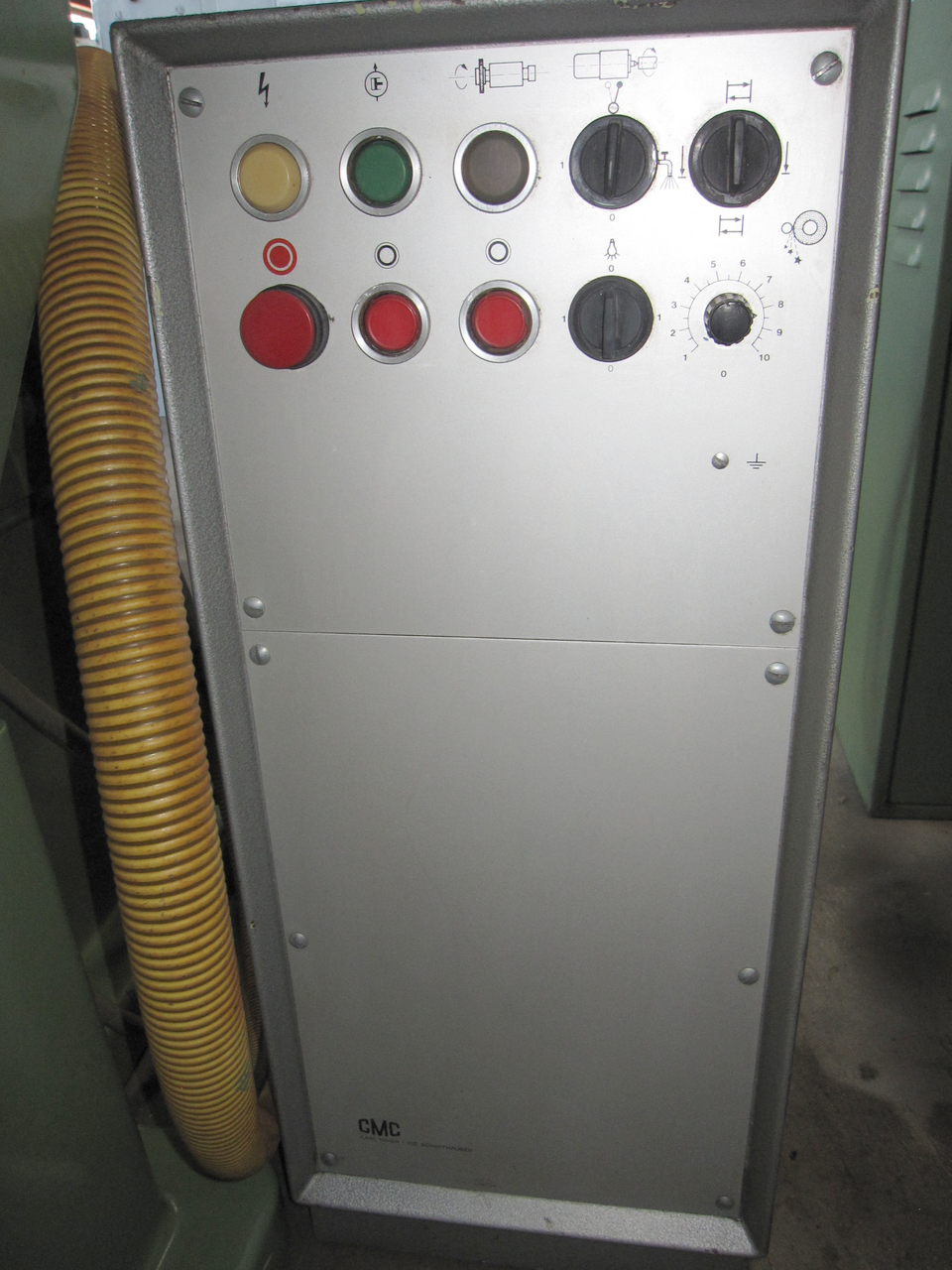

| Paper filtration system | |
| Sparking-out attachment | |
| Lamp | |
| Full automatic working cycle | |
| Infeed grinding | |
| Intermittant grinding with left side infeed | |
| Intermittant grinding with right side infeed | |
| Intermittant grinding right and left side infeed | |
| Preselected spark out time for all cycles |
