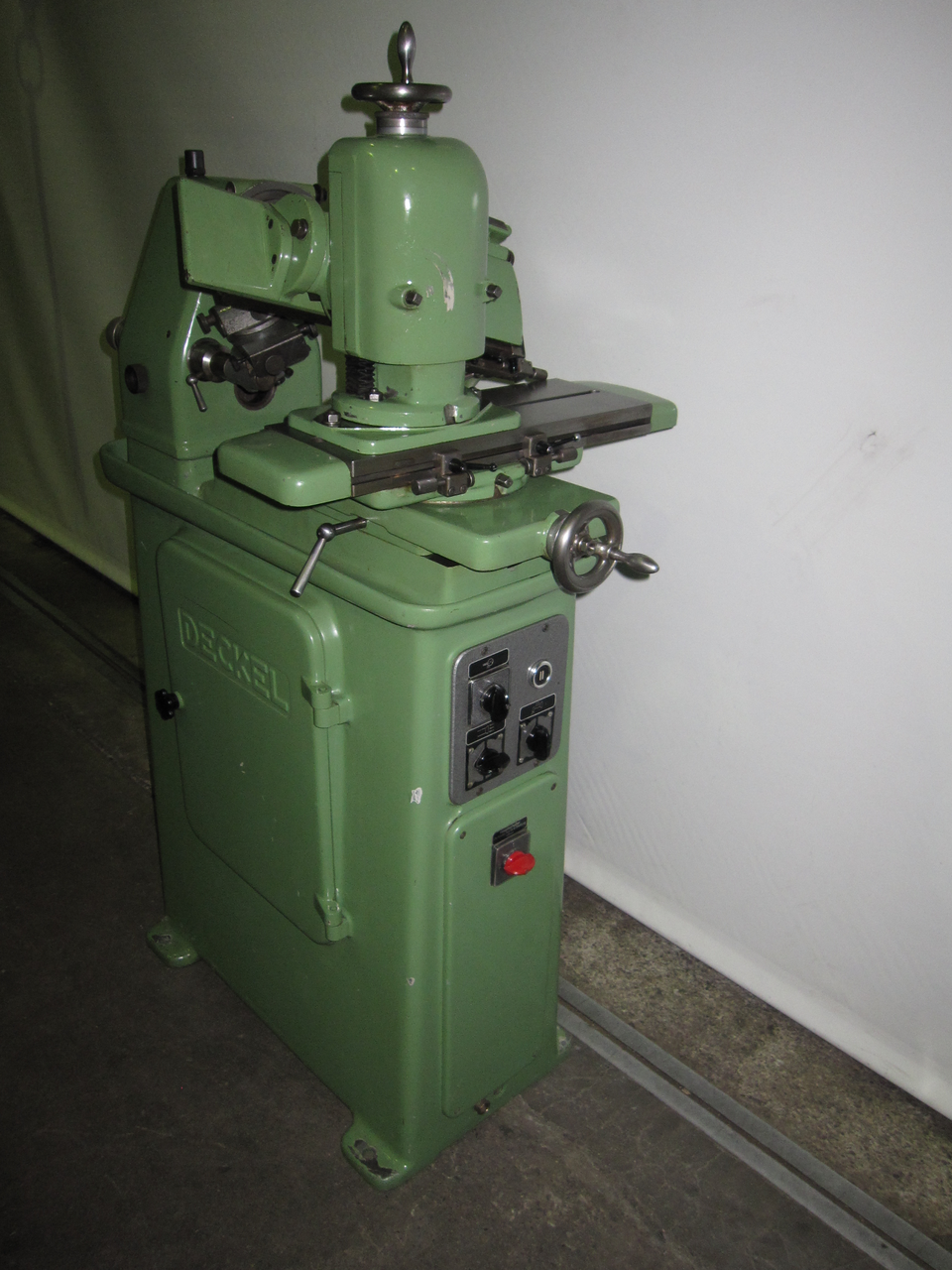

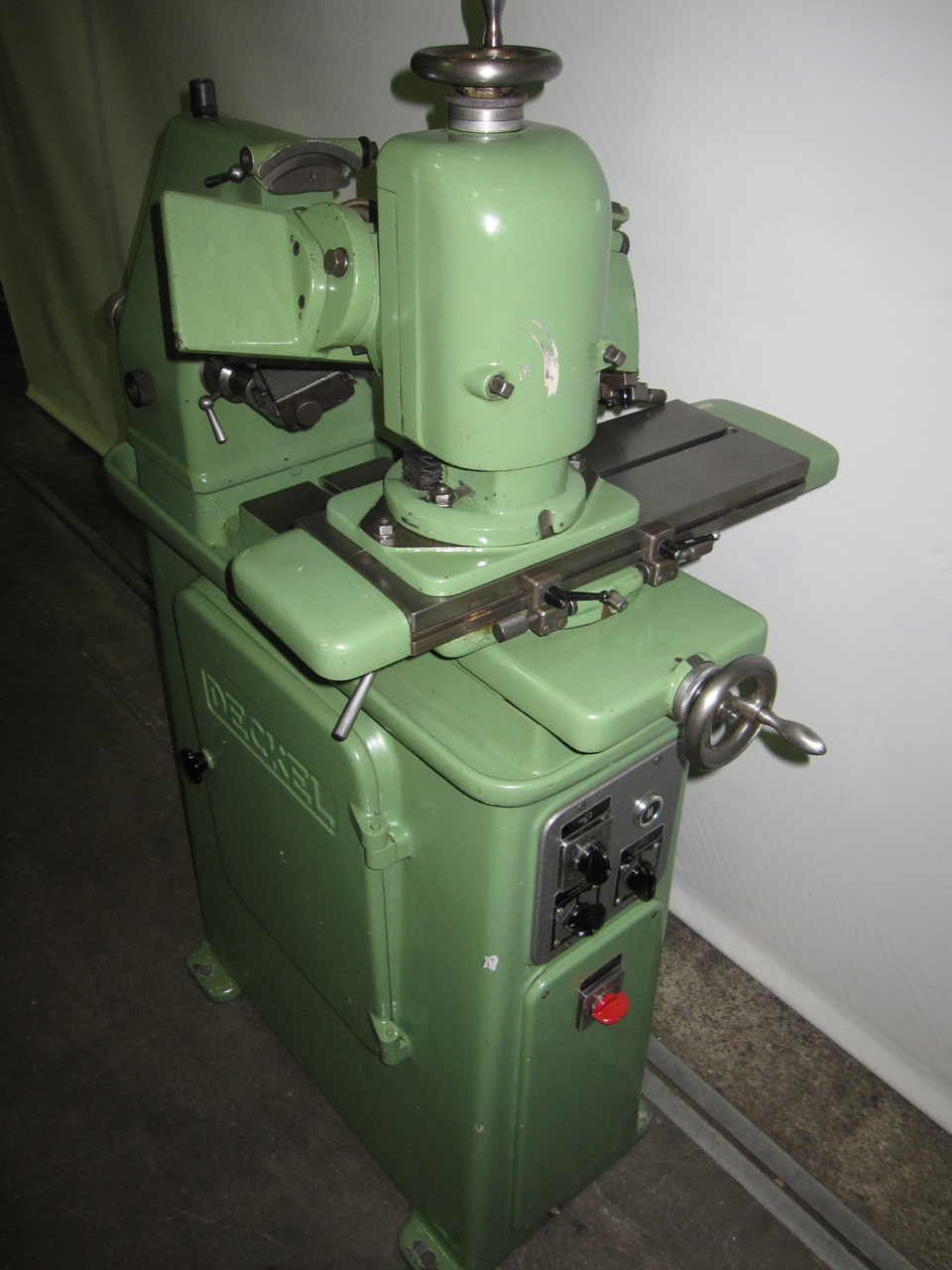

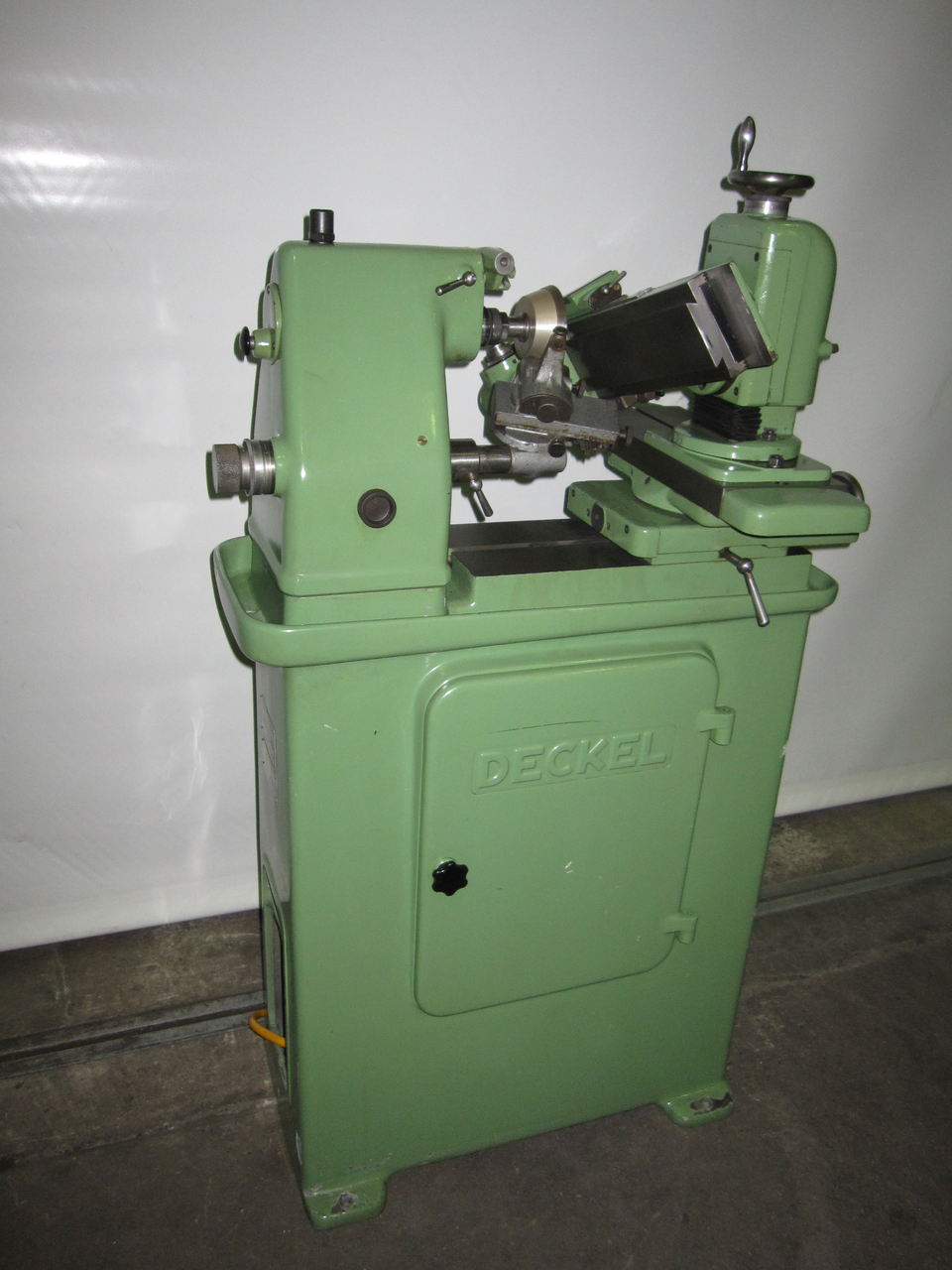

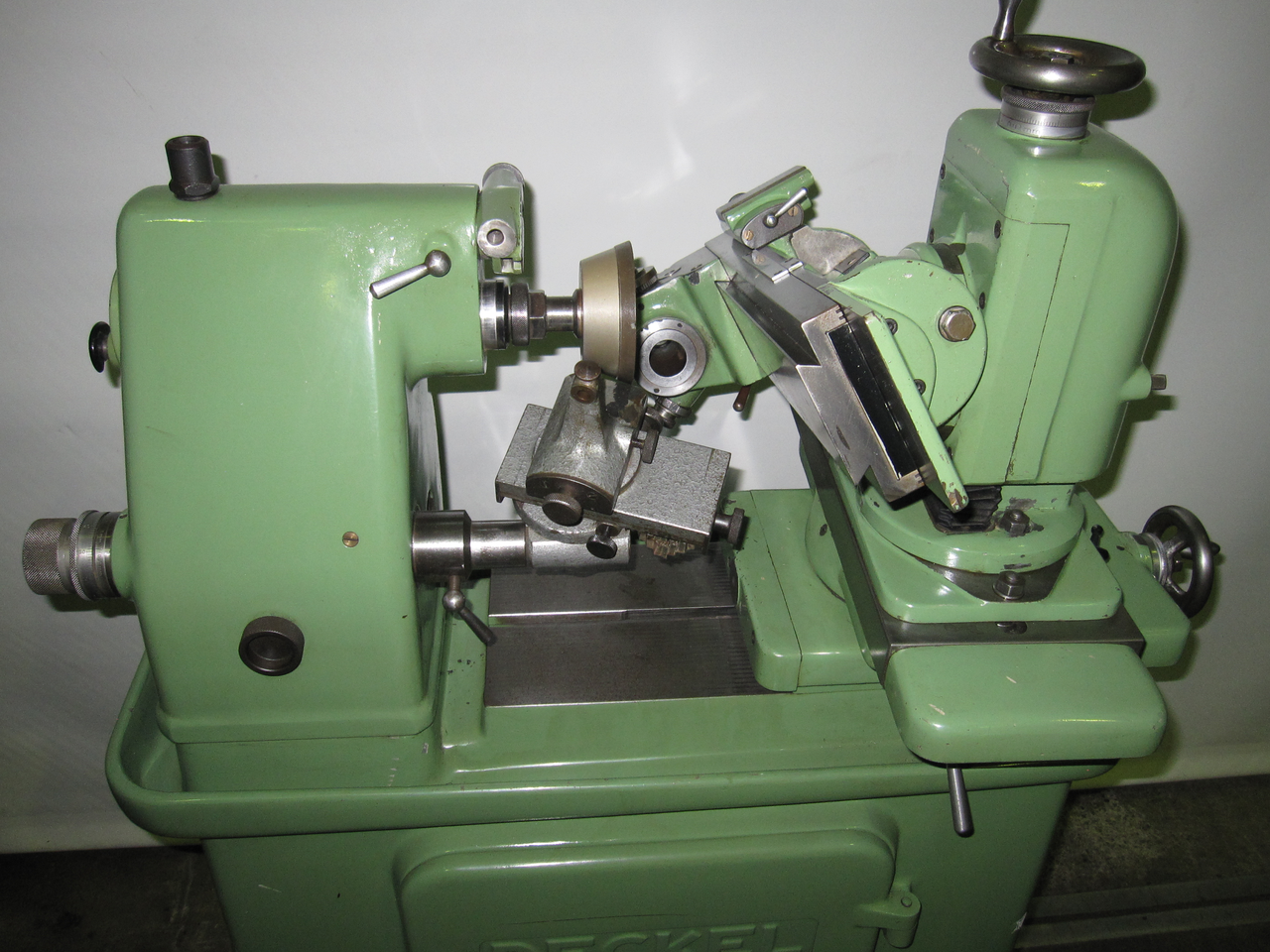

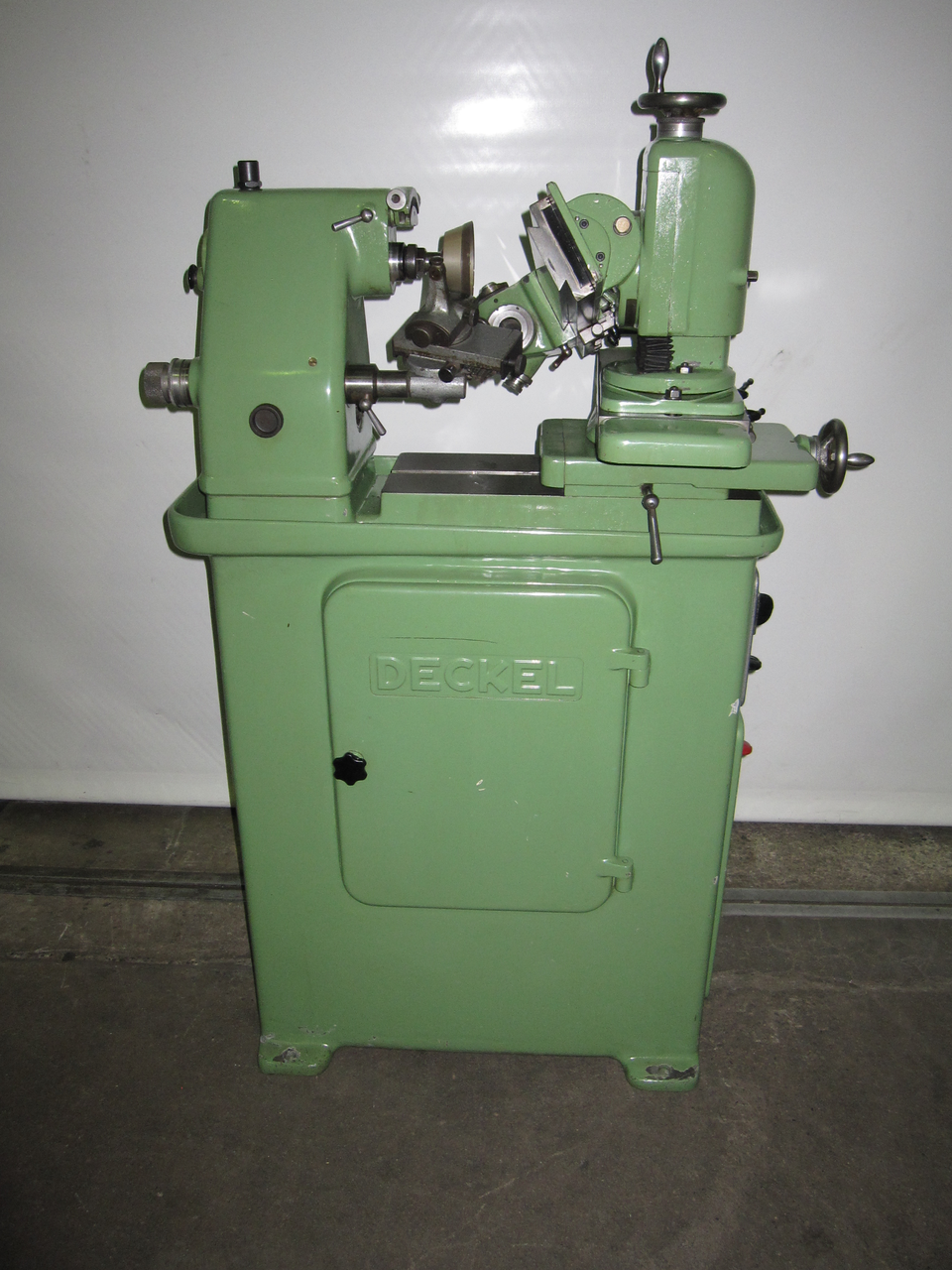

DECKEL S 1 is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: centre height 65 mm, distance between centres 250 mm, max. grinding diameter 130 mm; table 470×175 mm with longitudinal travel 260 mm, transversal 70 mm, vertical adjustment 50 mm and 360° swivel. Main specs: grinding spindle 2 steps from 1400 to 2800 t/min; voltage 50 Hz 3x: 380 Volt; total power 1 CV; machine weight approx. 350 kg; overall dimensions L1000×W600×H1400 mm. Suited to achieve tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.
| Centre height | 65 mm |
| Distance between centres | 250 mm |
| Table length | 470 mm |
| Table width | 175 mm |
| Max. grinding diameter | 130 mm |
| Longitudinal way of table | 260 mm |
| Transversal way of the table | 70 mm |
| Vertical adjustment of the table | 50 mm |
| Table swivels | 360 ° |
| Grinding spindle speeds: | |
| number (steps) | 2 |
| from | 1400 t/min |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 600 mm |
| Height | 1400 mm |
