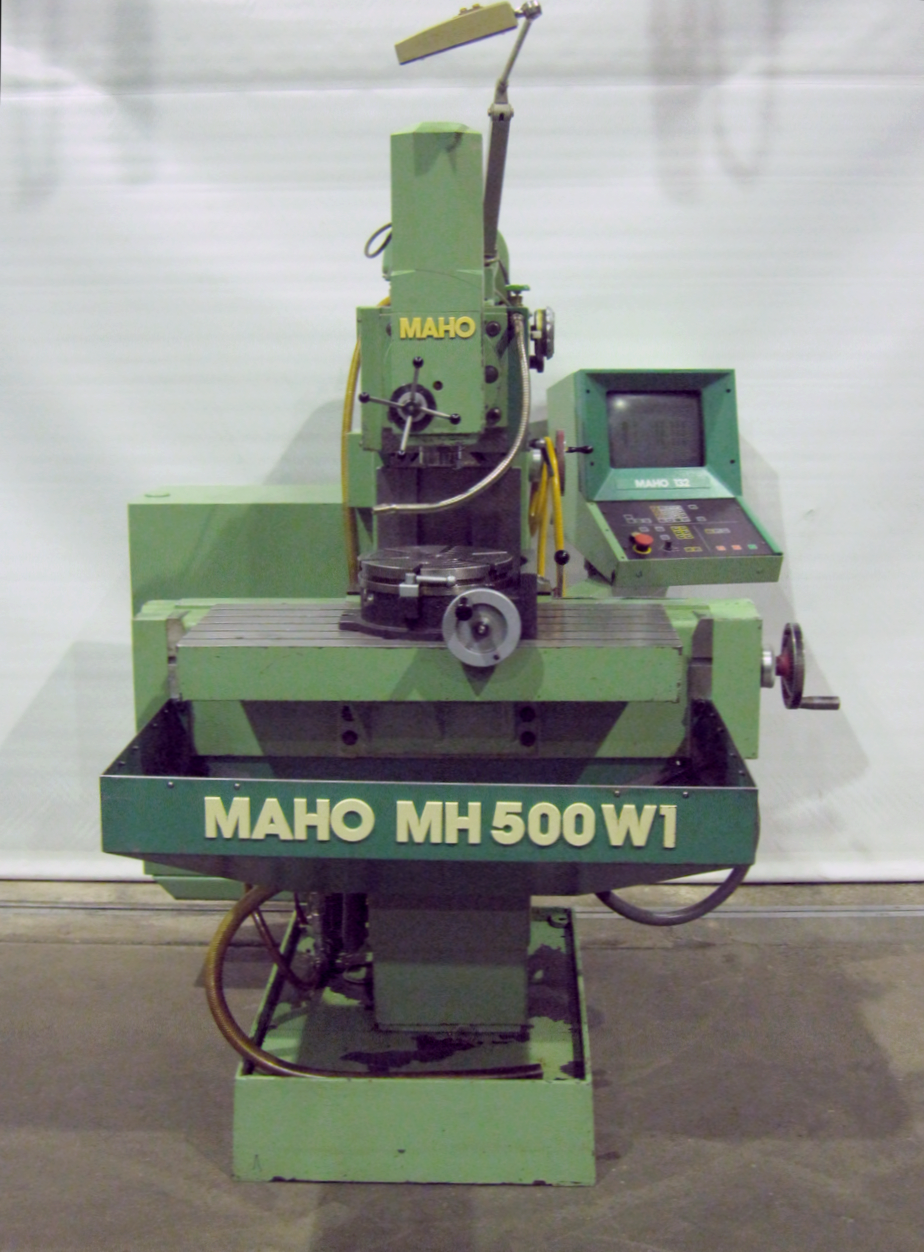

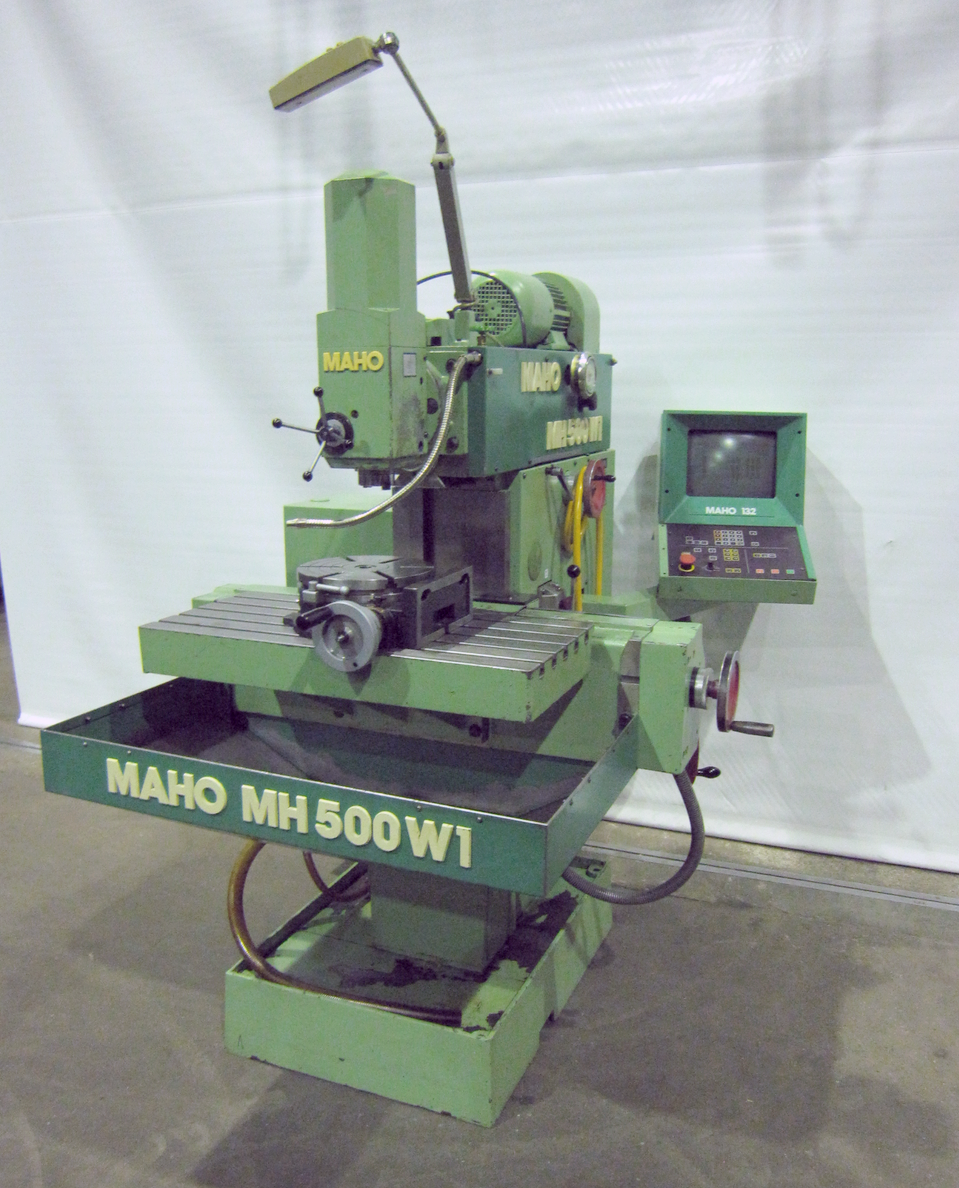

MAHO MH 500 W is a Universal milling machine for precision machining with high accuracy and reliability. Table 800×360 mm (5 T‑slots 14 mm, spacing 65 mm); travels X500/Y300/Z400 mm; max table load 250 kg; rotary table Ø250 mm. Spindle ISO40, stepless 63–4000 t/min; feeds 1–3000 mm/min (X/Y/Z); rapid 5 m/min; supply 3×380 V 50 Hz; motor 5 CV; weight ~1700 kg; dims 1700×1300×1800 mm. Accessories: rotary table, drilling/milling head, lamp. Enables tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 3 |
| Table length | 800 mm |
| Table width | 360 mm |
| Number of T-channels | 5 |
| T-channel width | 14 mm |
| Distance of the T-slots | 65 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y axis) | 300 mm |
| Vertical travel (z axis) | 400 mm |
| Table load max. | 250 kg |
| Spindle speeds: | |
| stepless | |
| from | 63 t/min |
| up to | 4000 t/min |
| Taper in spindle | 40 ISO |
| Feeds stepless: | |
| longitudinal from | 1 mm/min |
| up to | 3000 mm/min |
| transversal from | 1 mm/min |
| up to | 3000 mm/min |
| vertical from | 1 mm/min |
| up to | 3000 mm/min |
| Rapid traverse: | 5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 5 CV |
| Machine's weight about | 1700 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 1300 mm |
| Height | 1800 mm |

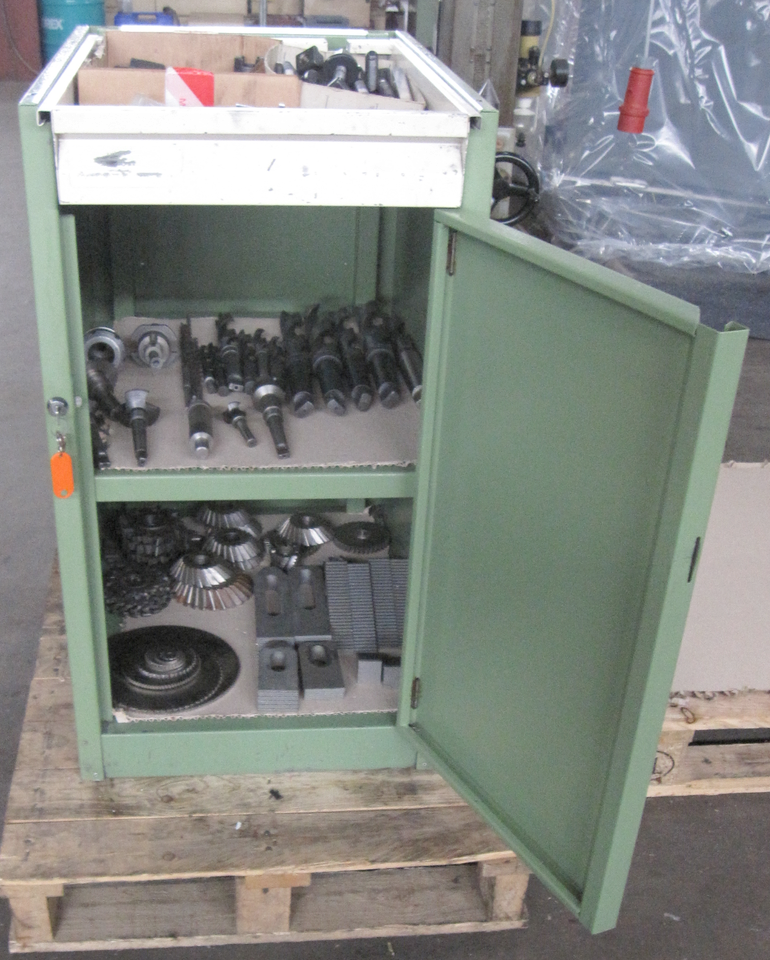

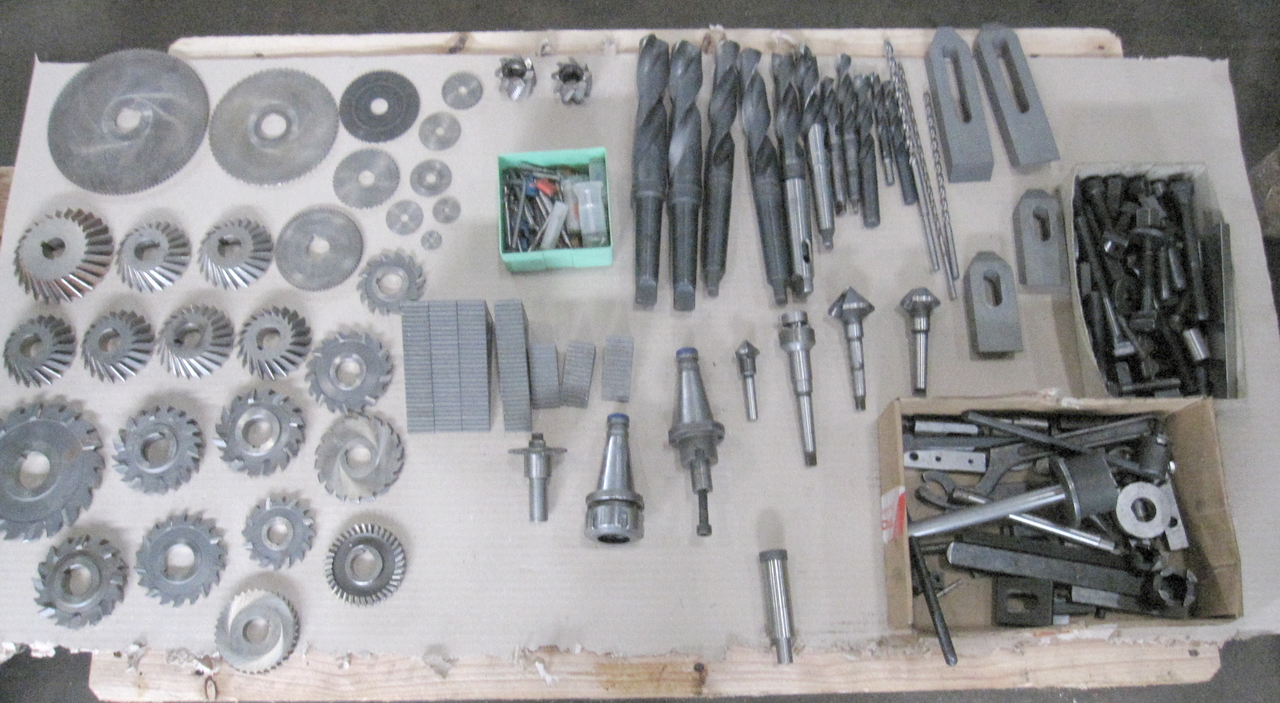

| Various accessories: | |

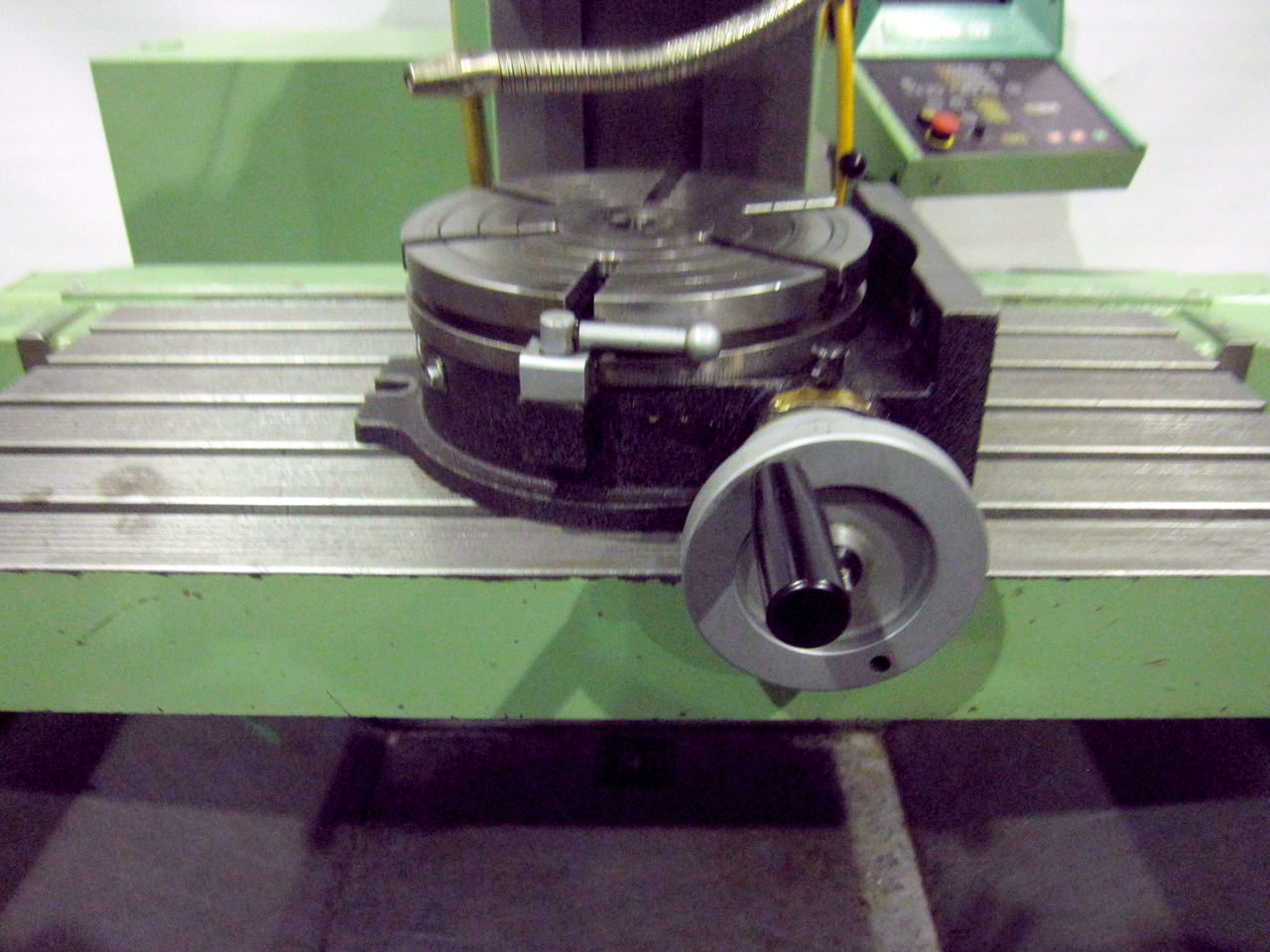

| Rotary table:diameter | 250 mm |
| Drilling/milling head | |
| Lamp |
