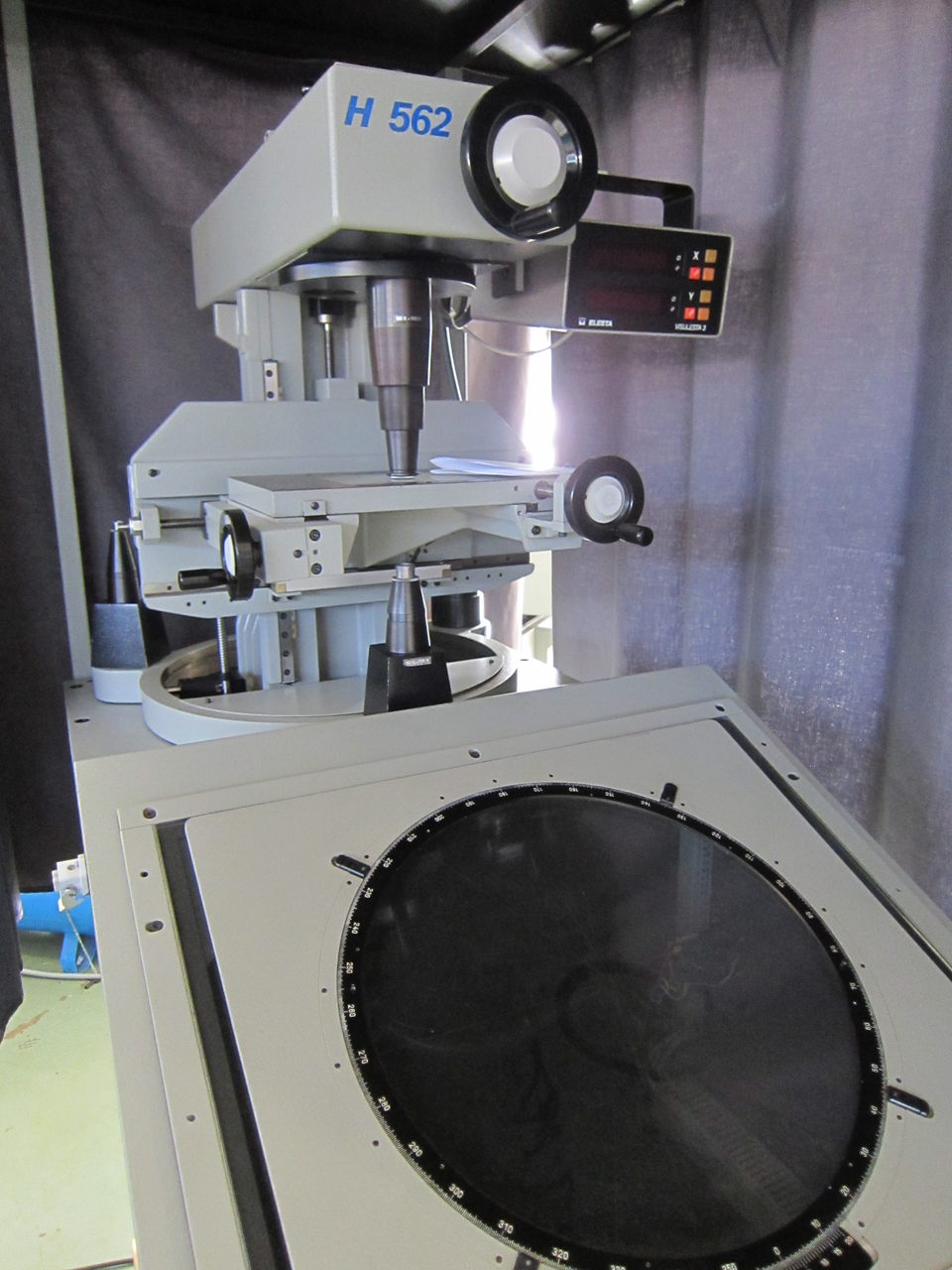

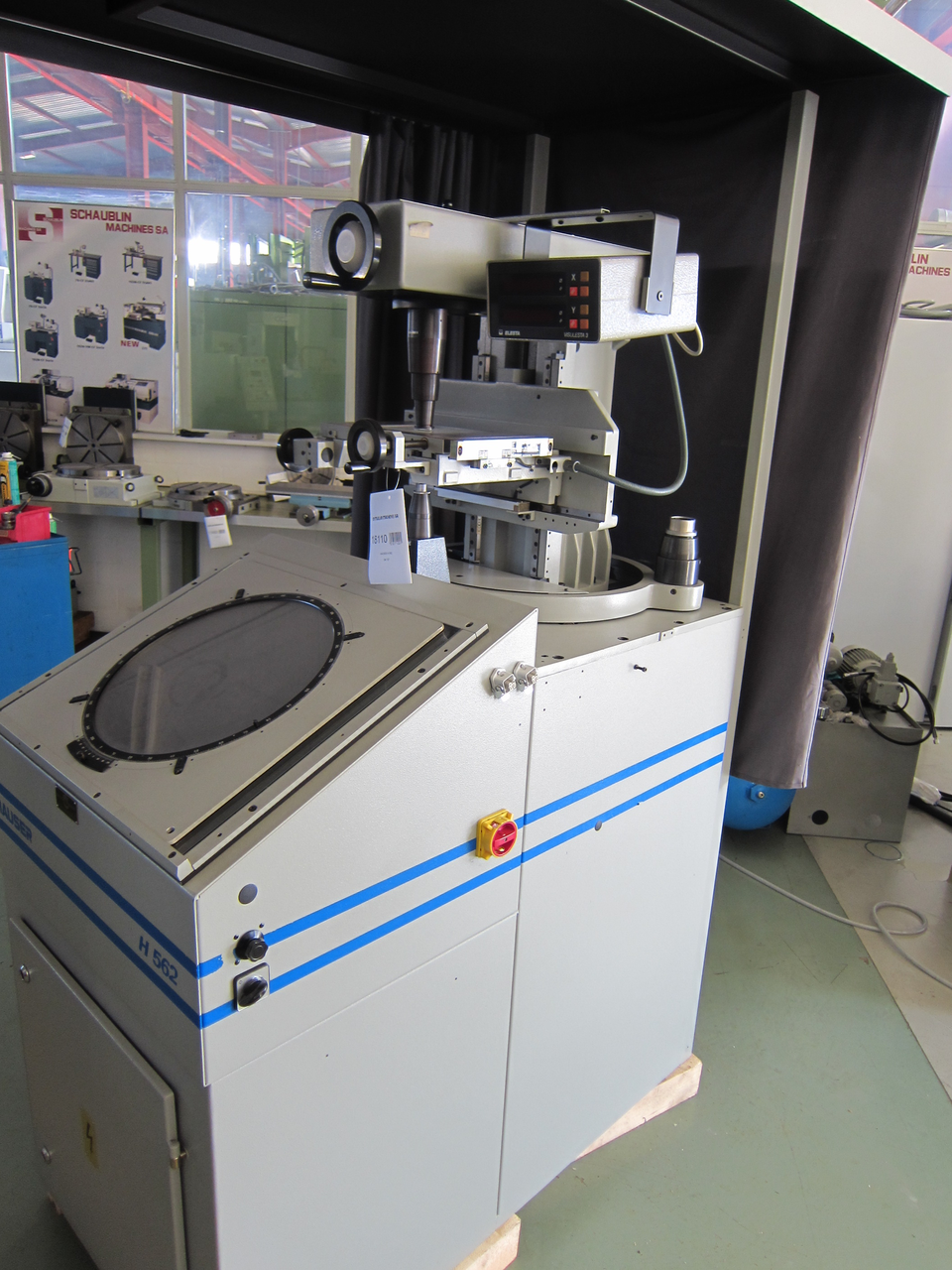

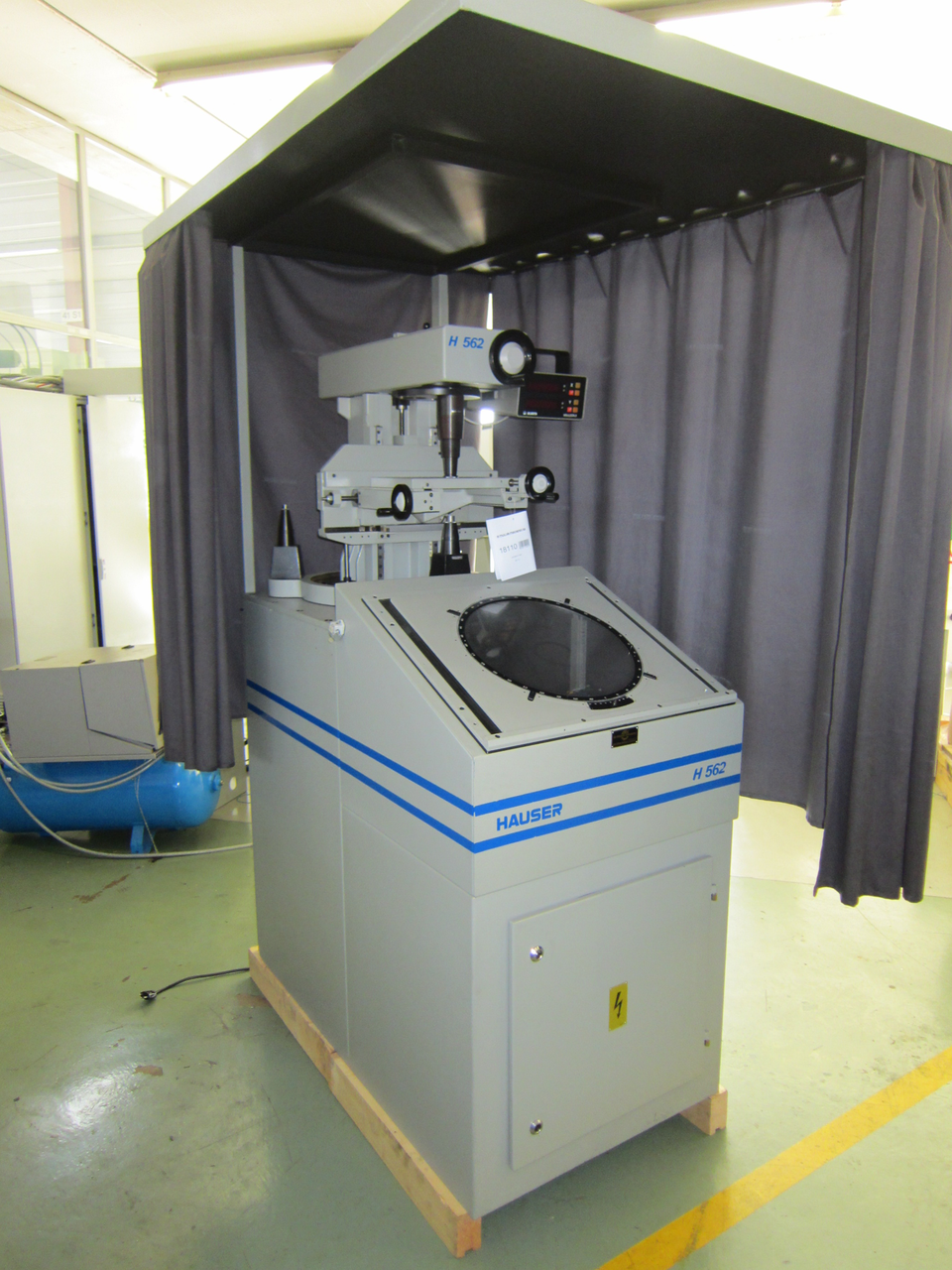

HAUSER H 562 is a profile projector designed for high precision, accuracy and reliability. Capacities: screen 560×460 mm; stage 320×215 mm (Ø380); longitudinal/transversal travel 100 mm; glass opening 160×160 mm; magnifications 20×,50×,100×. Specs: 50 Hz 3×400 V; weight ≈400 kg; footprint 1500×1000×1800 mm. Equipment: diascope lighting, digital readout 2 axes (Elesta). Enables tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical
| Screen width | 560 mm |
| Screen height | 460 mm |
| Microscope stage length | 320 mm |
| Microscope stage width | 215 mm |
| Microscope stage diameter | 380 mm |
| Longitudinal way | 100 mm |
| Transversal way | 100 mm |
| Diameter of the glass table | 160X160 mm |
| Amplifications: | |
| 20 | x |
| 50 | x |
| 100 | x |
| Change of objective with: | |
| turret | |
| Lighting: | |
| Diascopy lighting | |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 400 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1000 mm |
| Height | 1800 mm |
| Various accessories: | |

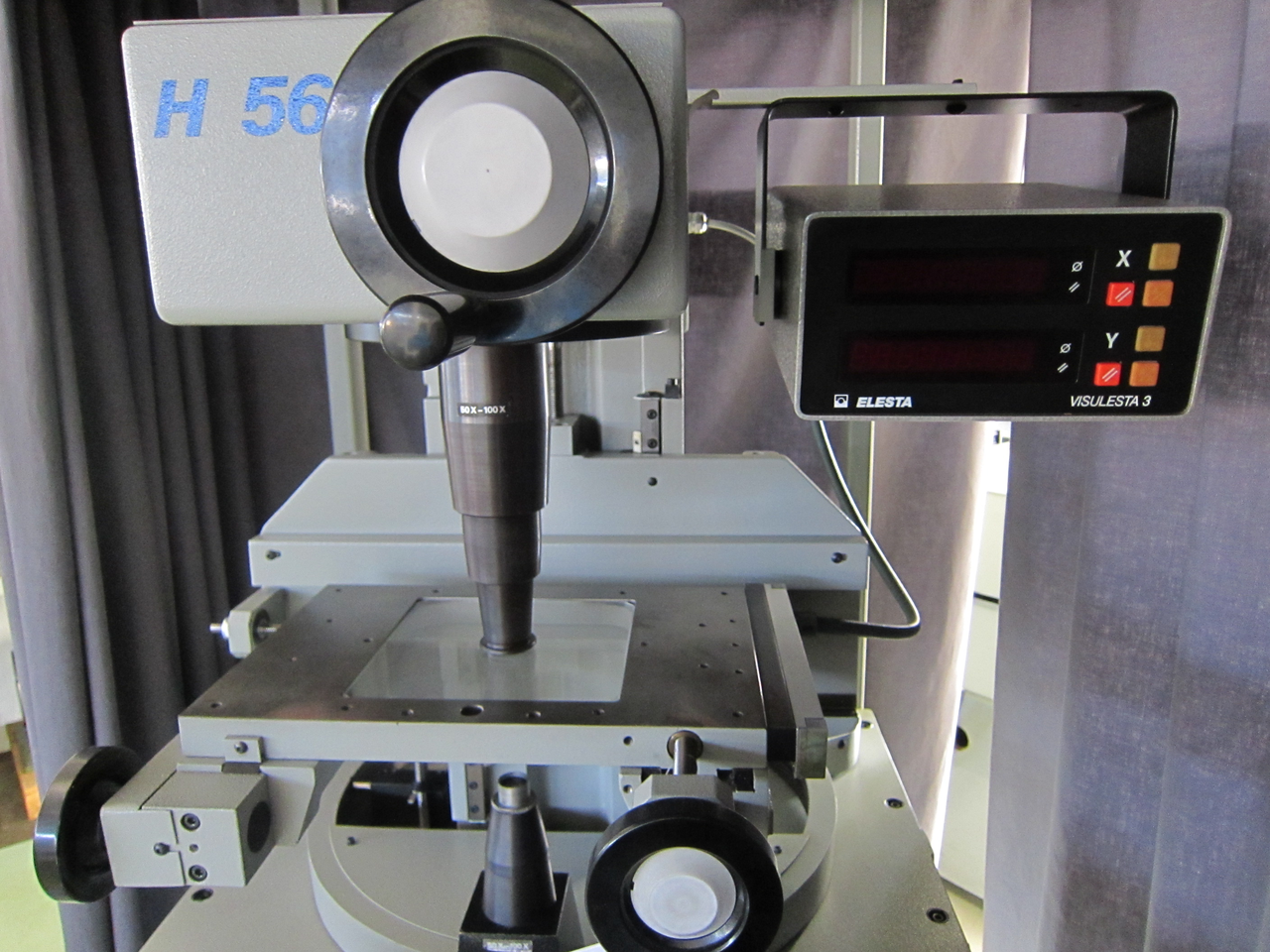

| Digital readout number of axis: | 2 |
| Manufacturer | Elesta |
| Obscuration device | |
| Angle measuring device |
