018063 - SCHAUBLIN 102-80
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

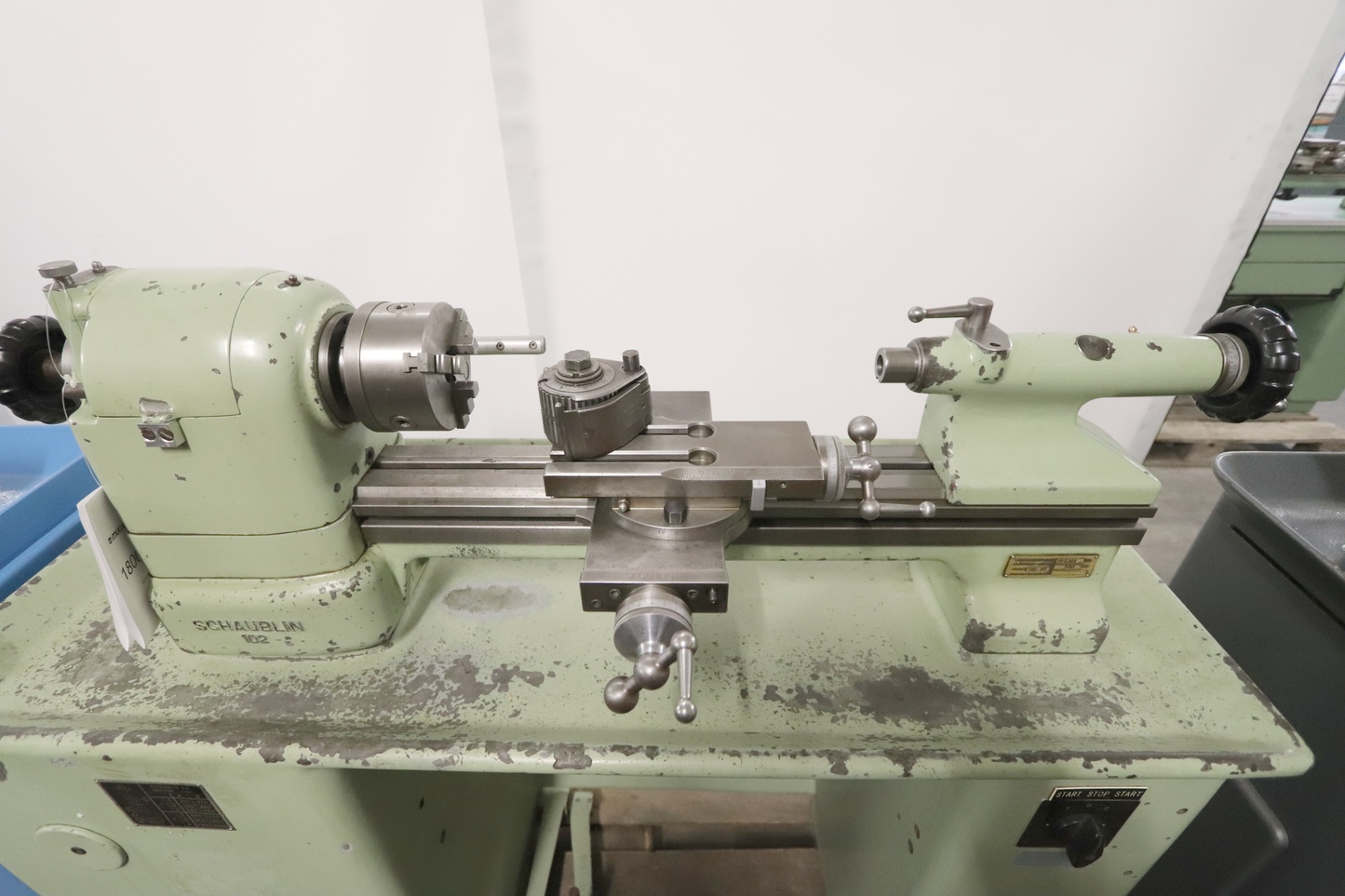

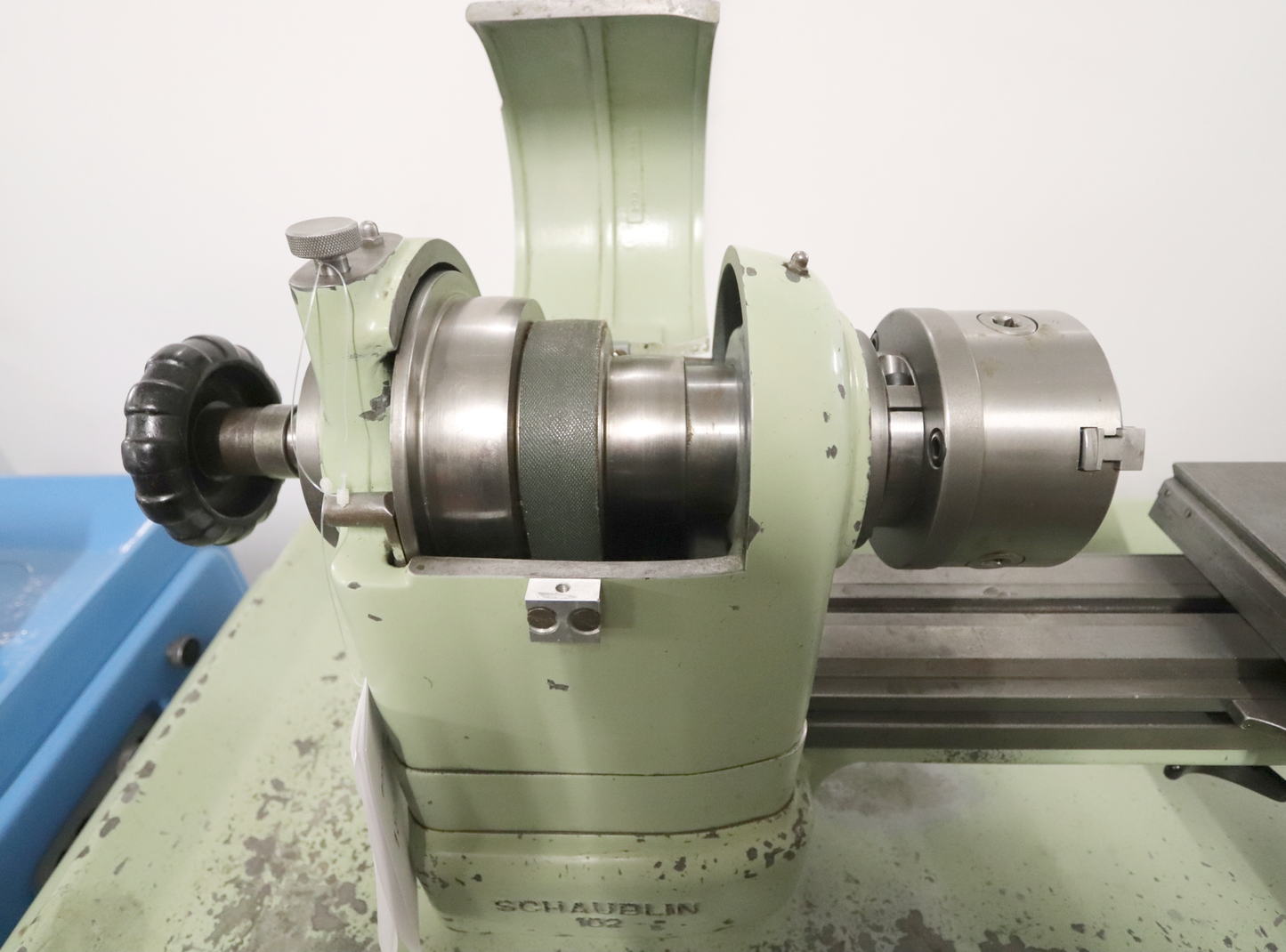

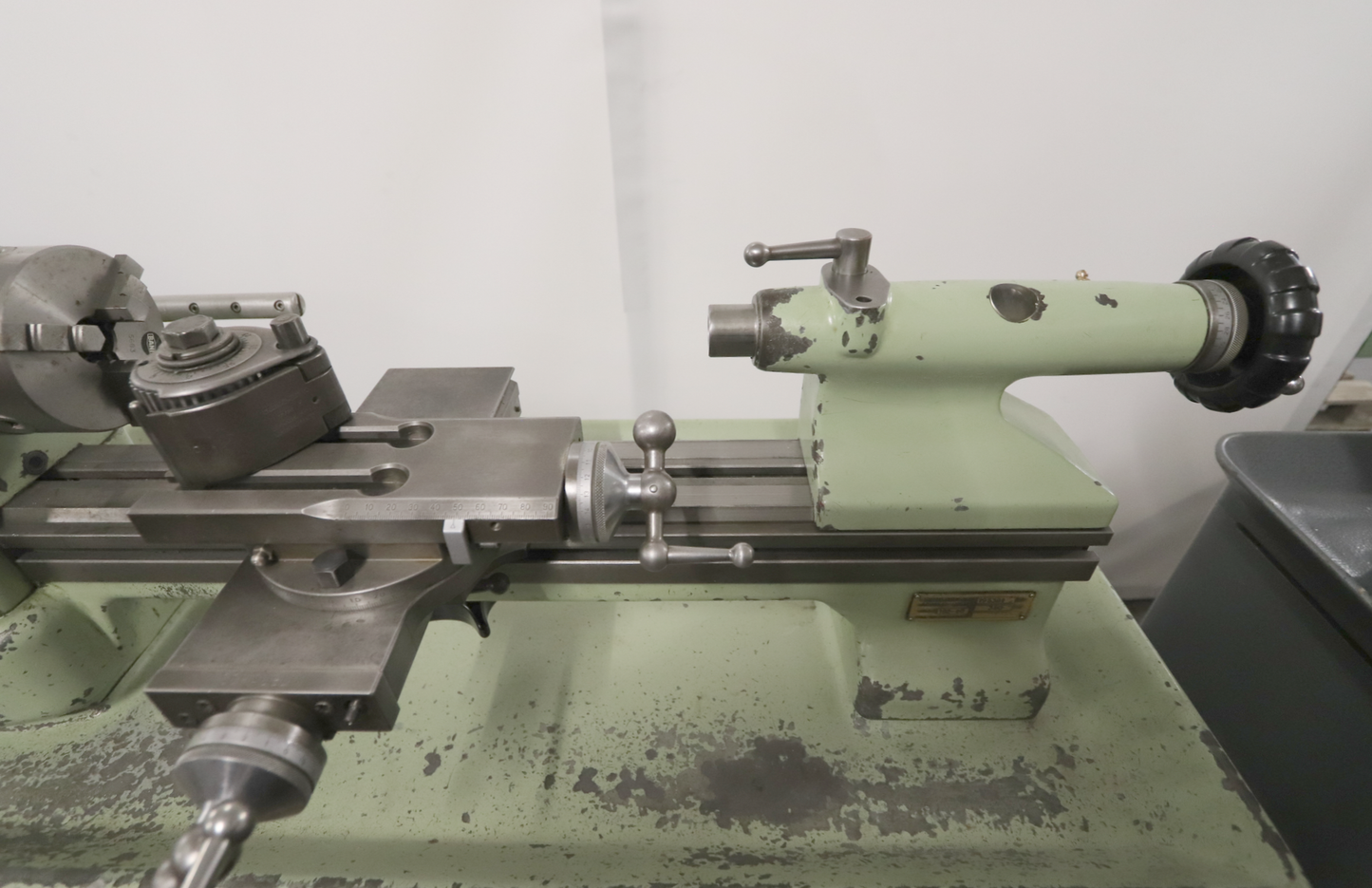

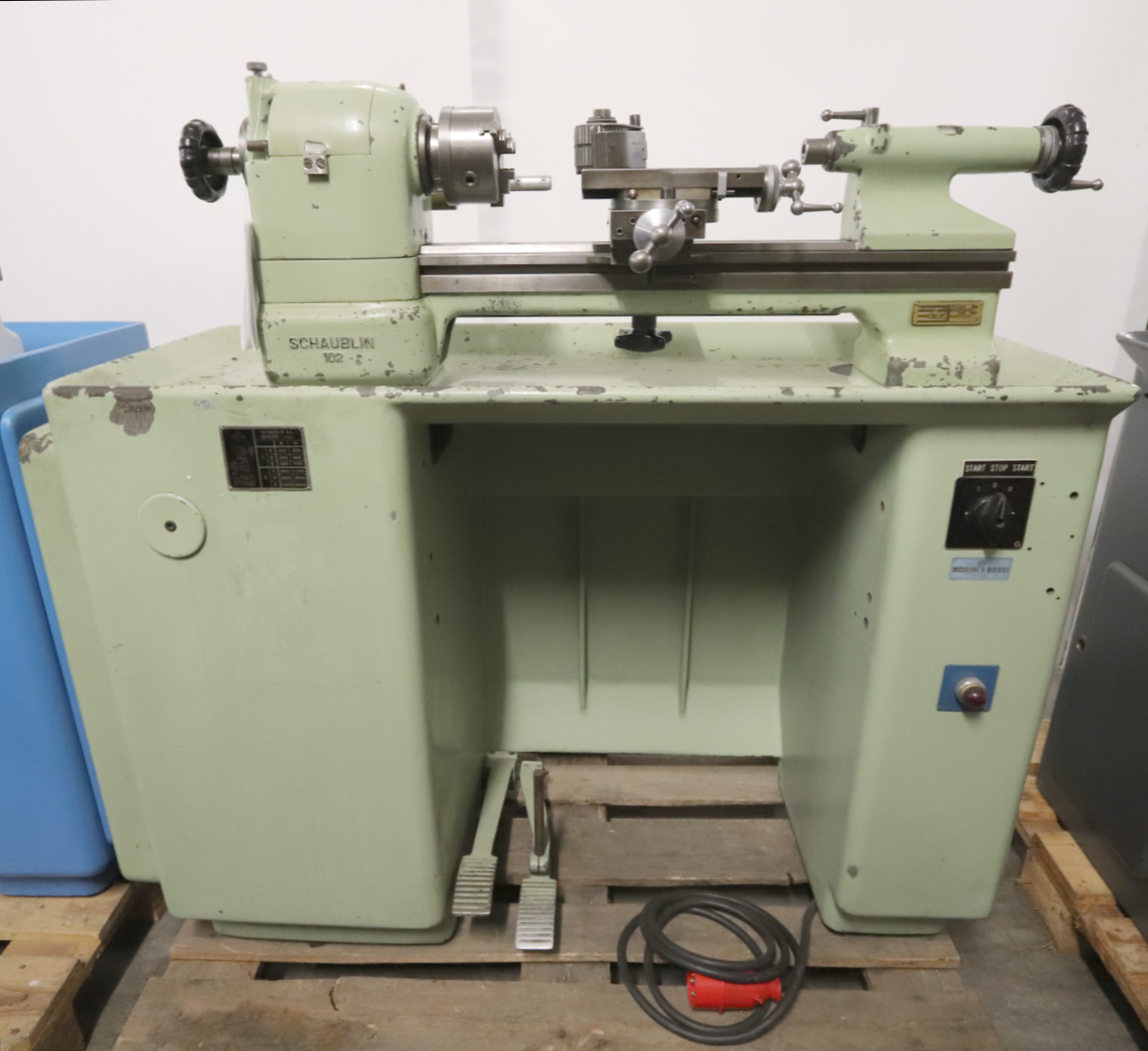

SCHAUBLIN 102-80 is a Toolmakers lathe for precision machining, delivering high accuracy and reliability. Capacities: centre height 102 mm, distance between centres 450 mm, swing over cross-slide 120 mm, over bed 200 mm, spindle hole 20 mm; collet 20 W. Specs: 210–3000 rpm (stepless), spindle motor 1.5 CV, total power 2 CV, 3x380 V 50 Hz; weight approx. 550 kg; L1400×W510×H1300 mm. Achieves tight tolerances; suitable for watchmaking, toolmaking, aerospace, medical and automotive.
| Centre height | 102 mm |
| Distance between centres | 450 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 20 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| stepless | |
| from | 210 t/min |
| up to | 3000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 550 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 510 mm |
| Height | 1300 mm |
| Various accessories: | |
| Clutch and brake | |
| 3-jaw chuck diameter | mm |
| Drilling tailstock | |
| Quick change tool |
