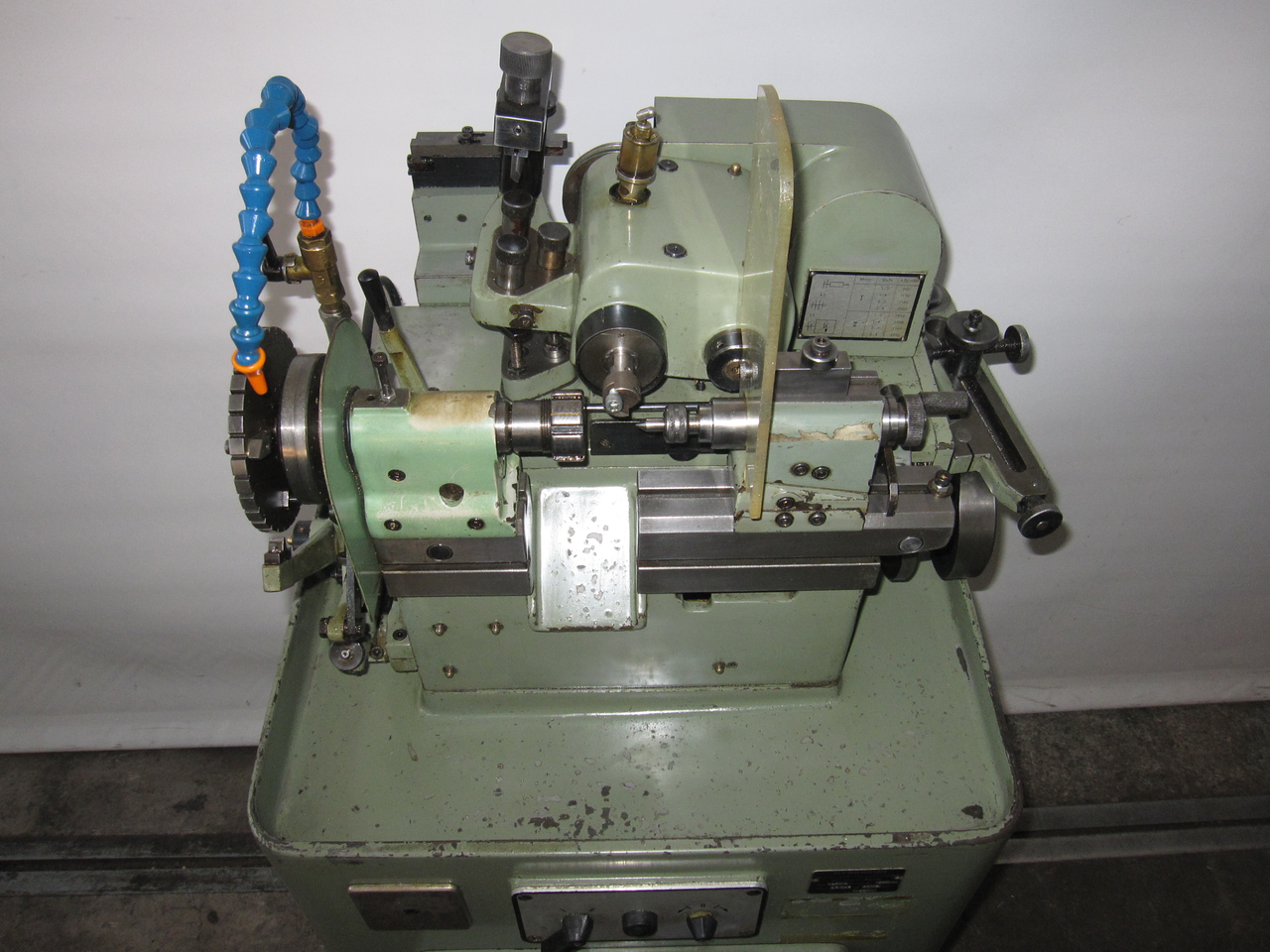

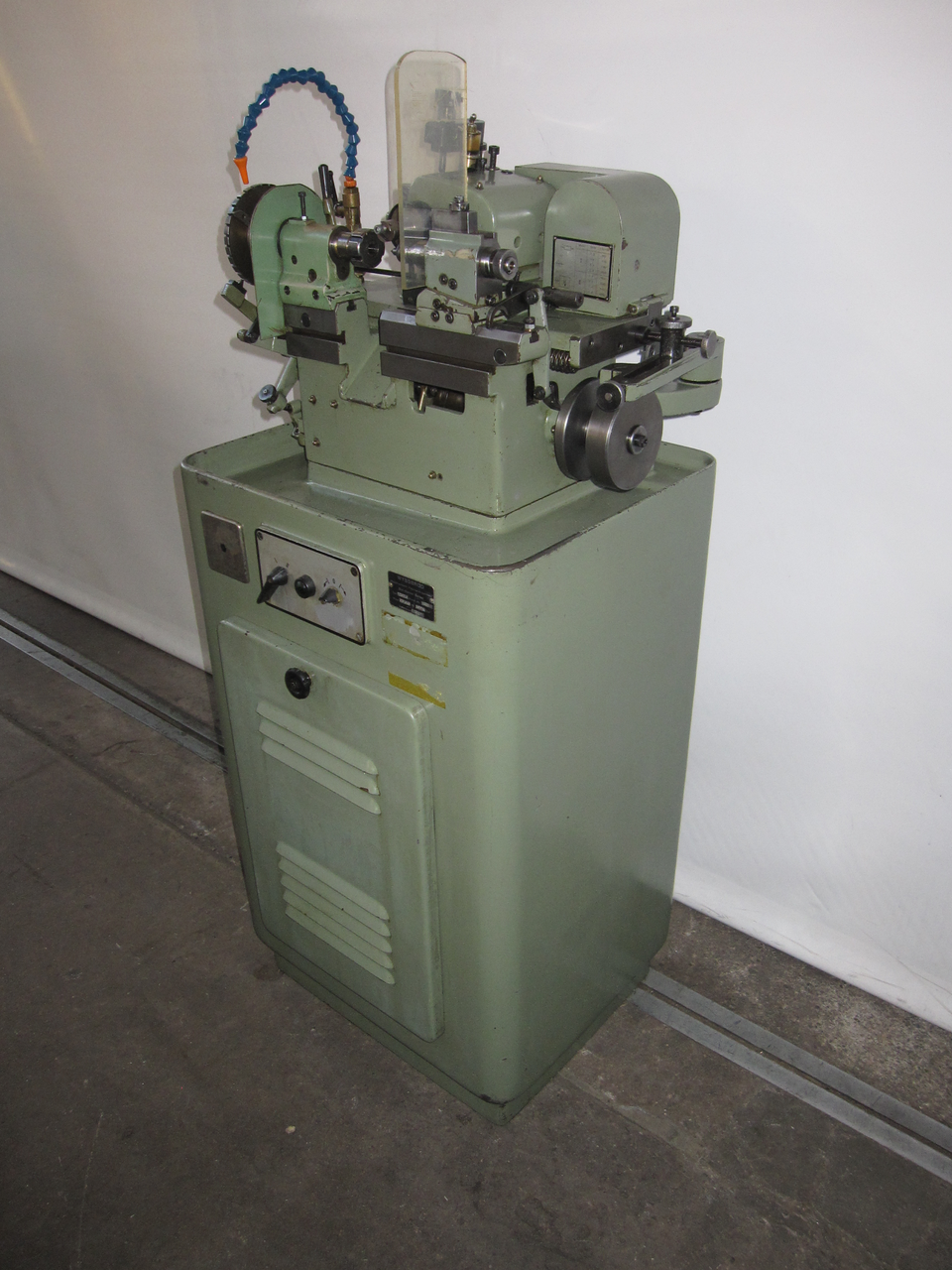

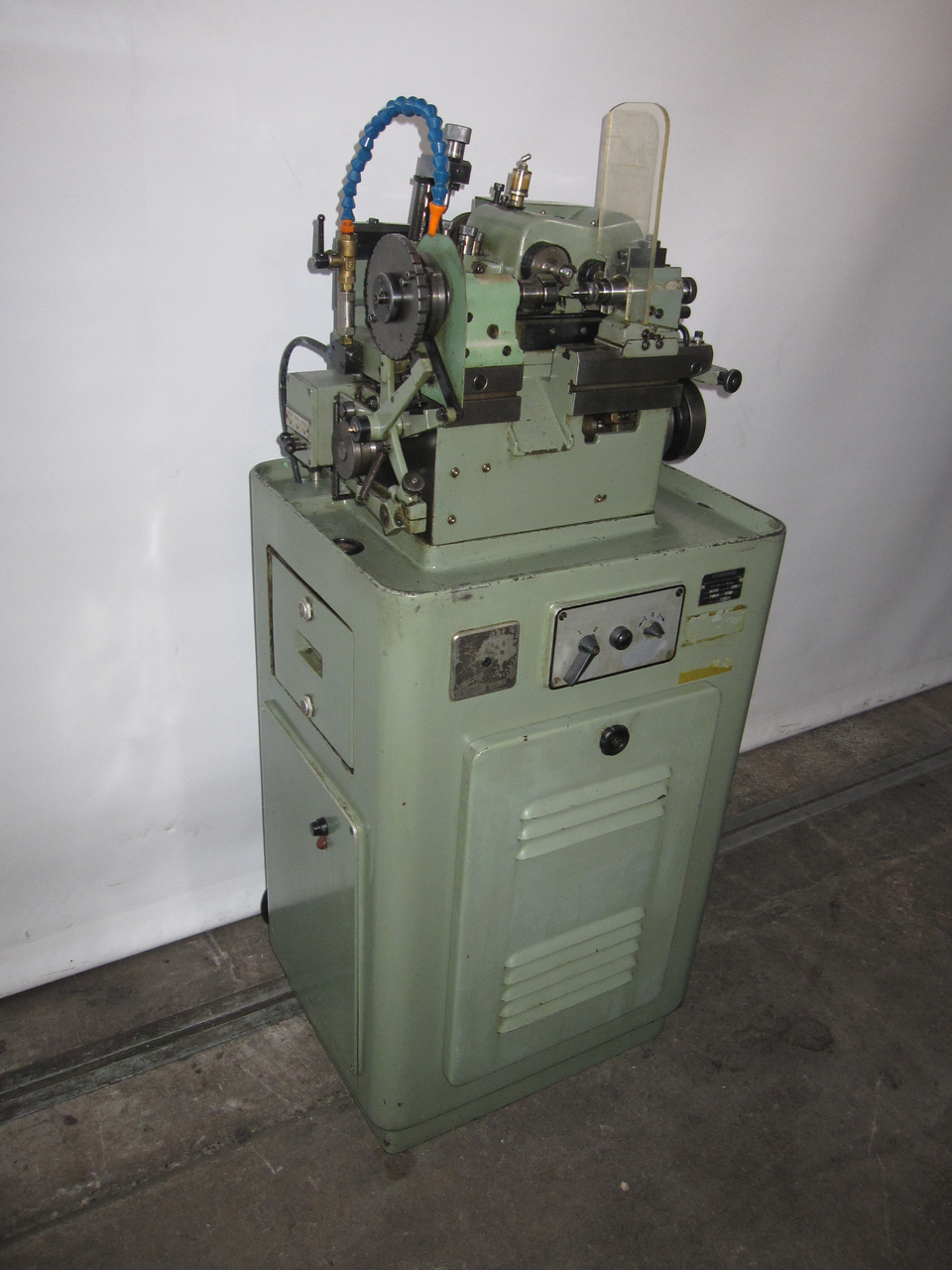

WYSSBROD 125/IIA
Type: 125/IIA
Manufacturer: WYSSBROD
Subgroup: Hobbing machine
Stock: 017977
Download technical sheet (PDF)
WYSSBROD 125/IIA is a hobbing machine built for precision, high accuracy and reliable gear generation. Work capacity: max Ø 45 mm, max module 1.00, max gear width 45 mm, teeth 6–180. Main specs: cutter speeds 8 steps from 900 to 4000 rpm, 50 Hz 3x380 V, 0.50 CV; weight ~350 kg; size L600×W500×H1300 mm. Accessories: coolant system and dividing plates. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.

Work capacity:max. diameter 45 mm
Max. module 1.00
max. gear wheel width 45 mm
Pitch min. 6
   max. 180
Milling cutter speeds:
   number (steps) 8
   from 900 t/min
   up to 4000 t/min
Voltage 50 Hz 3x 380 Volt
Power 0.50 CV
Machine's weight about 350 kg
Overall dimensions machine:
   Length 600 mm
   Width 500 mm
   Height 1300 mm

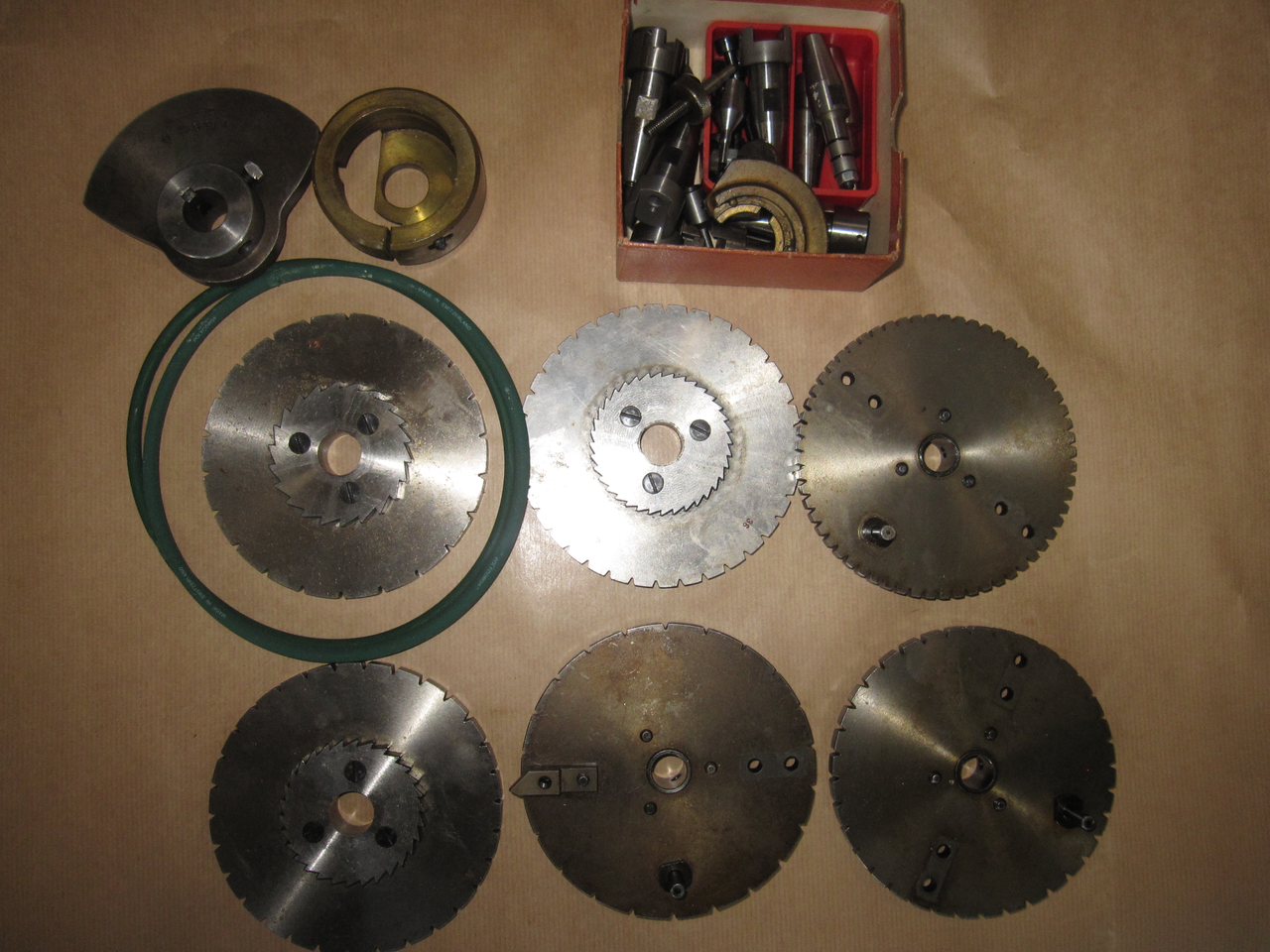

Various accessories:
Coolant system
Dividing plates
