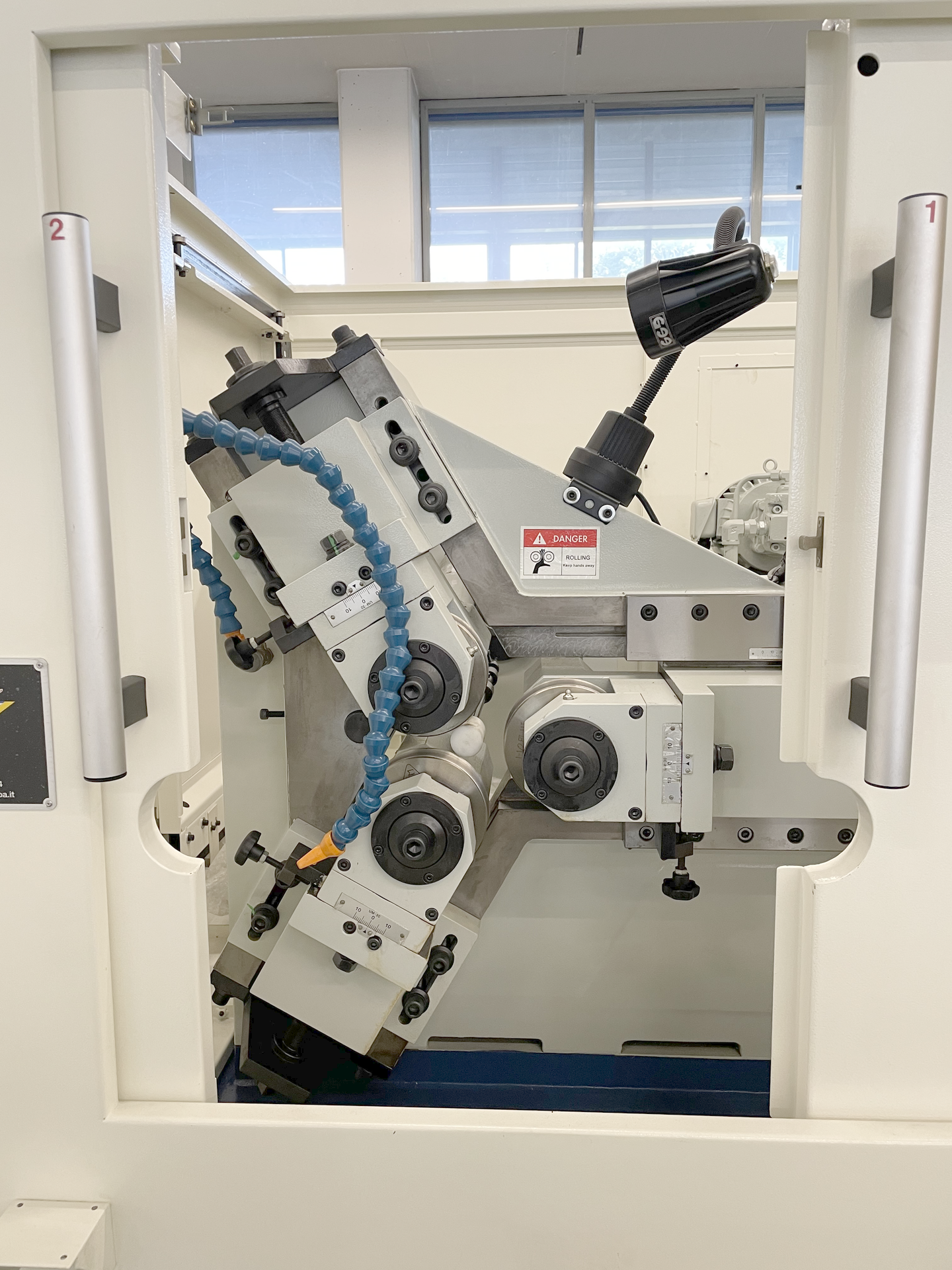

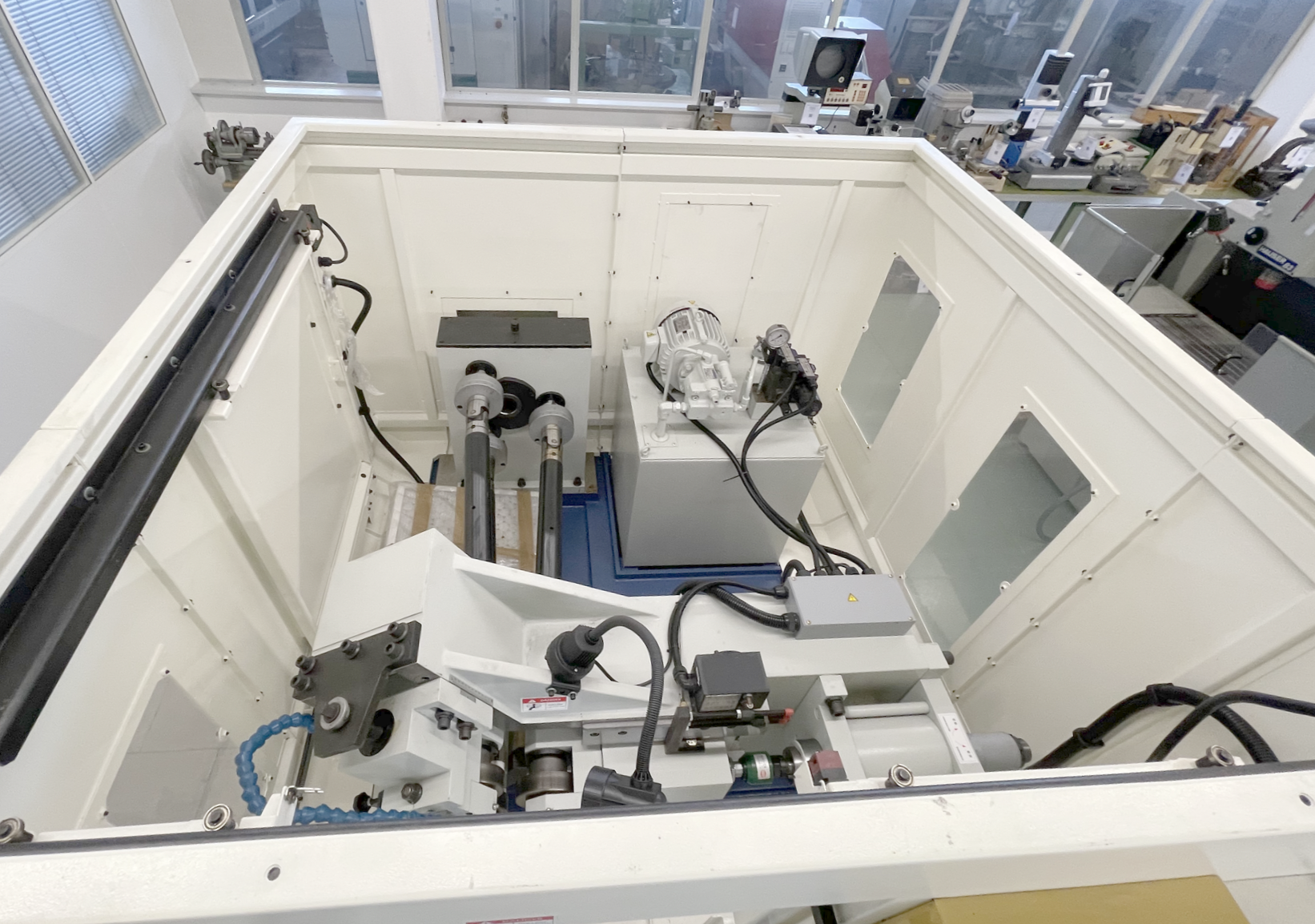

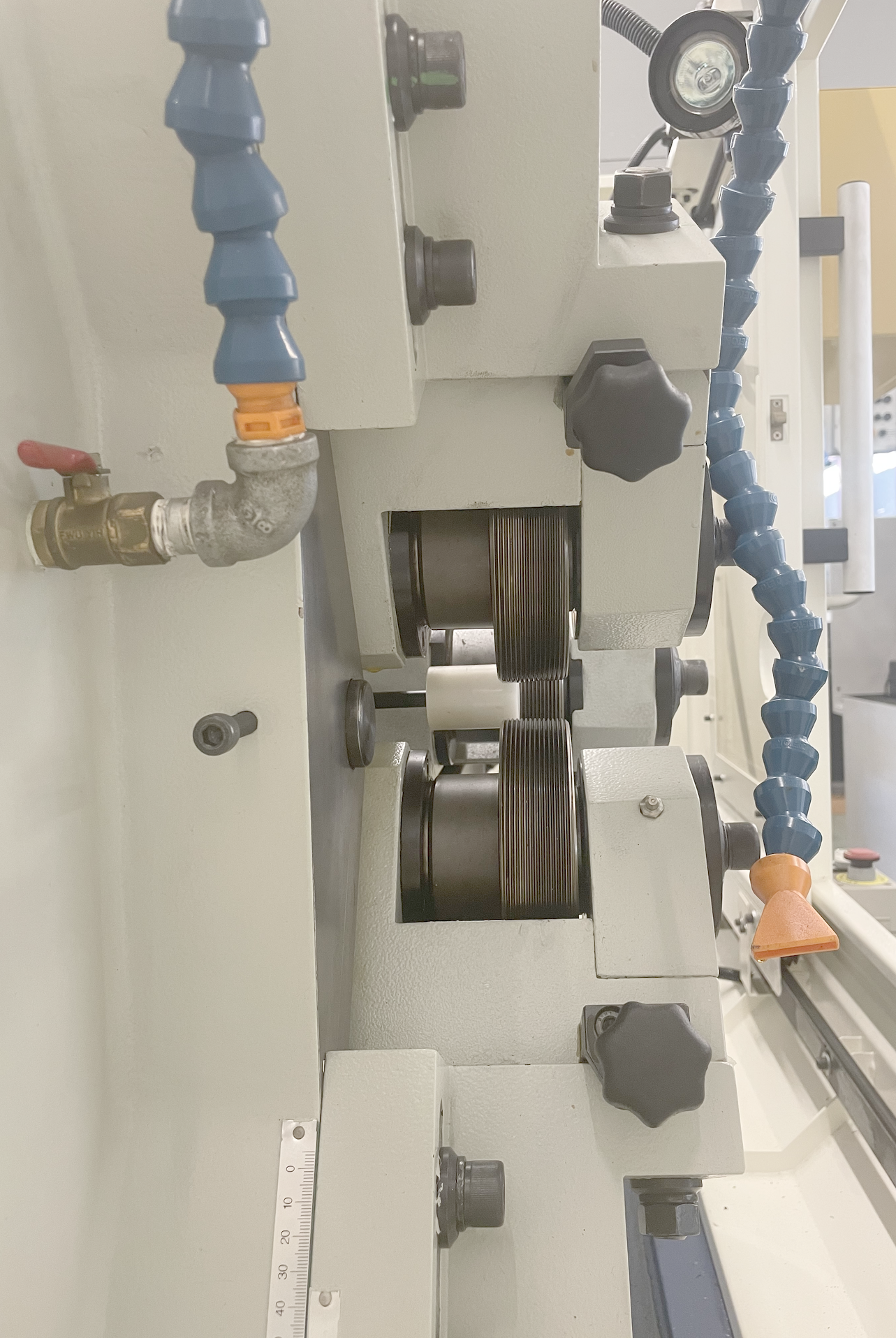

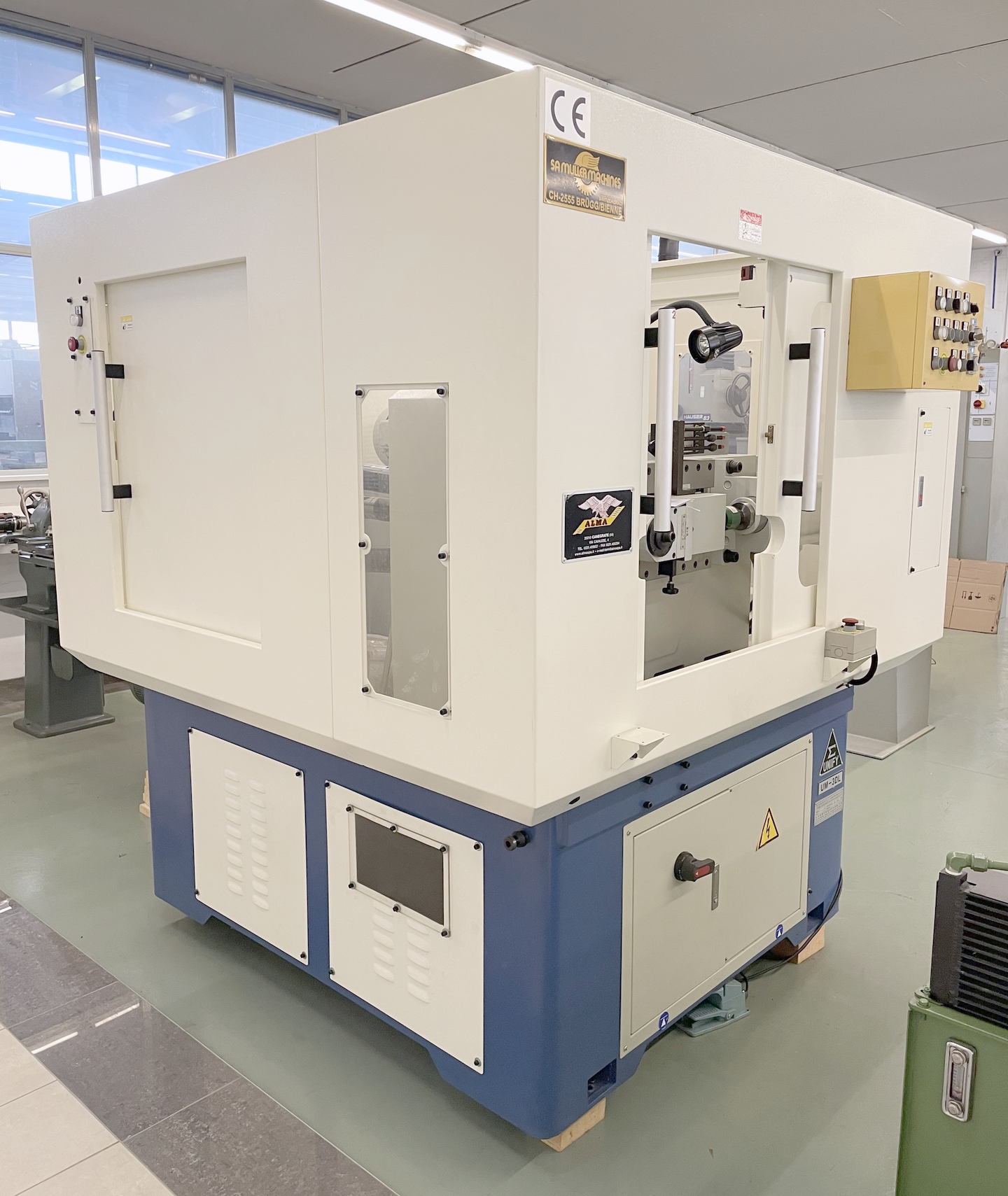

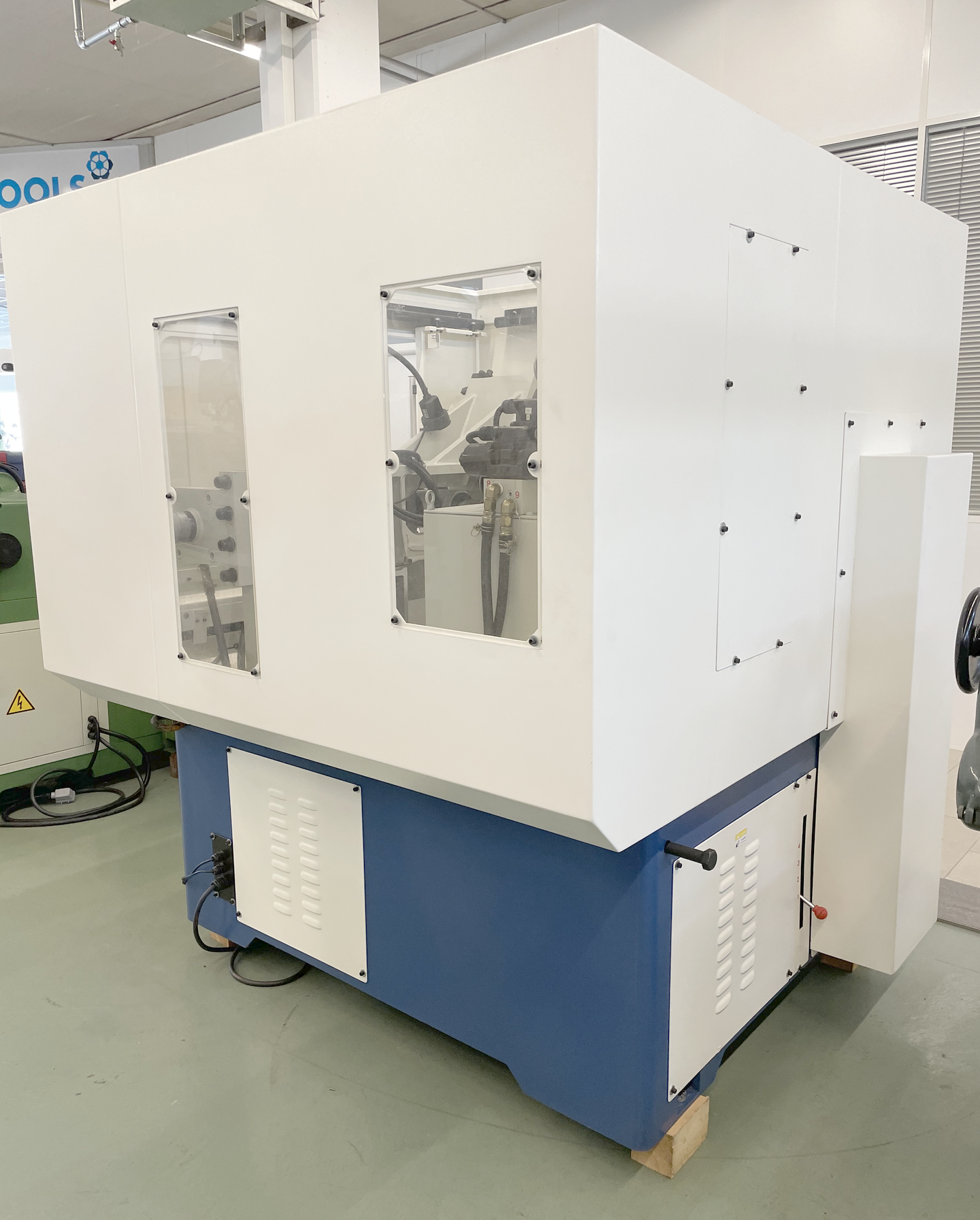

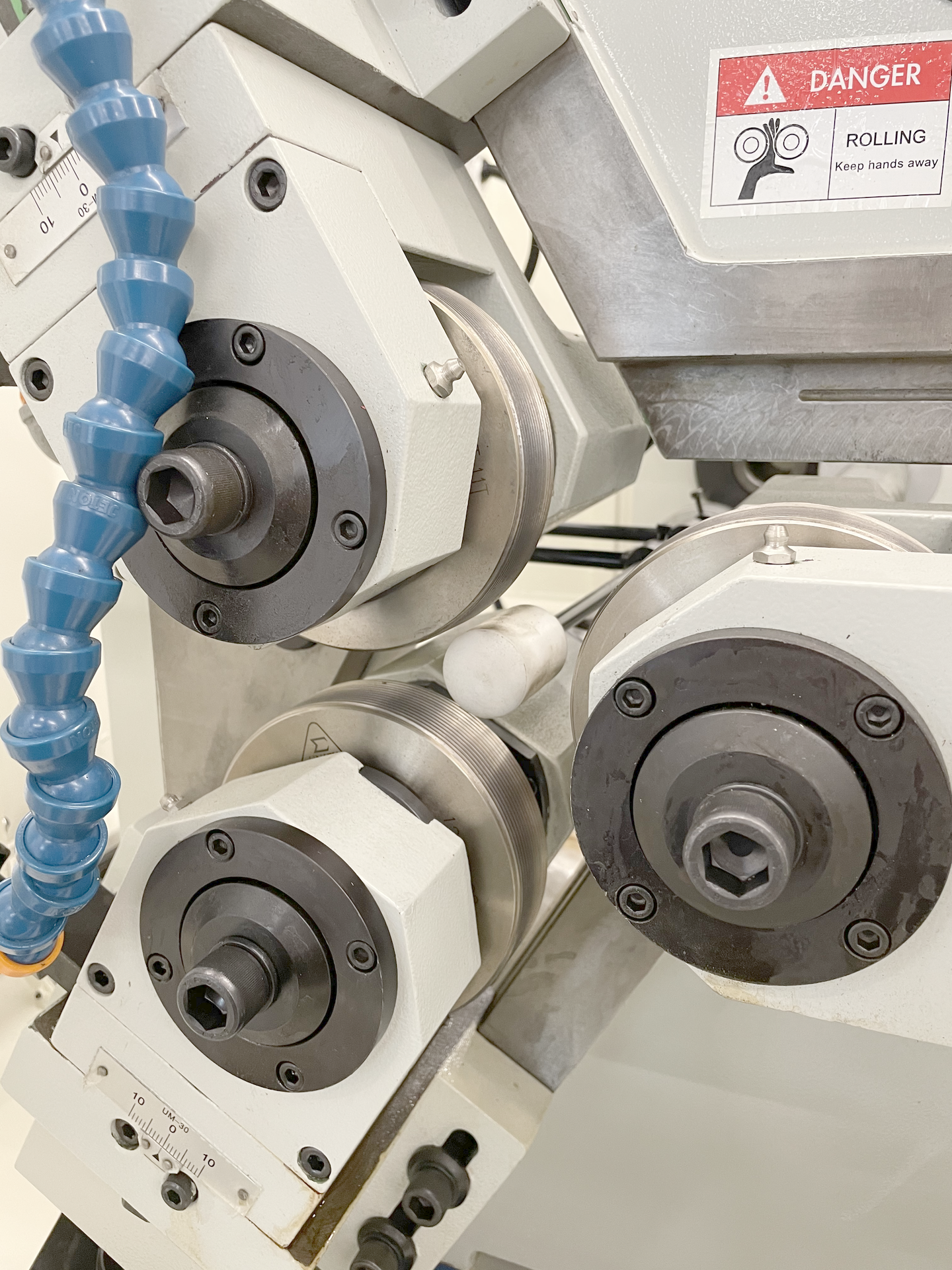

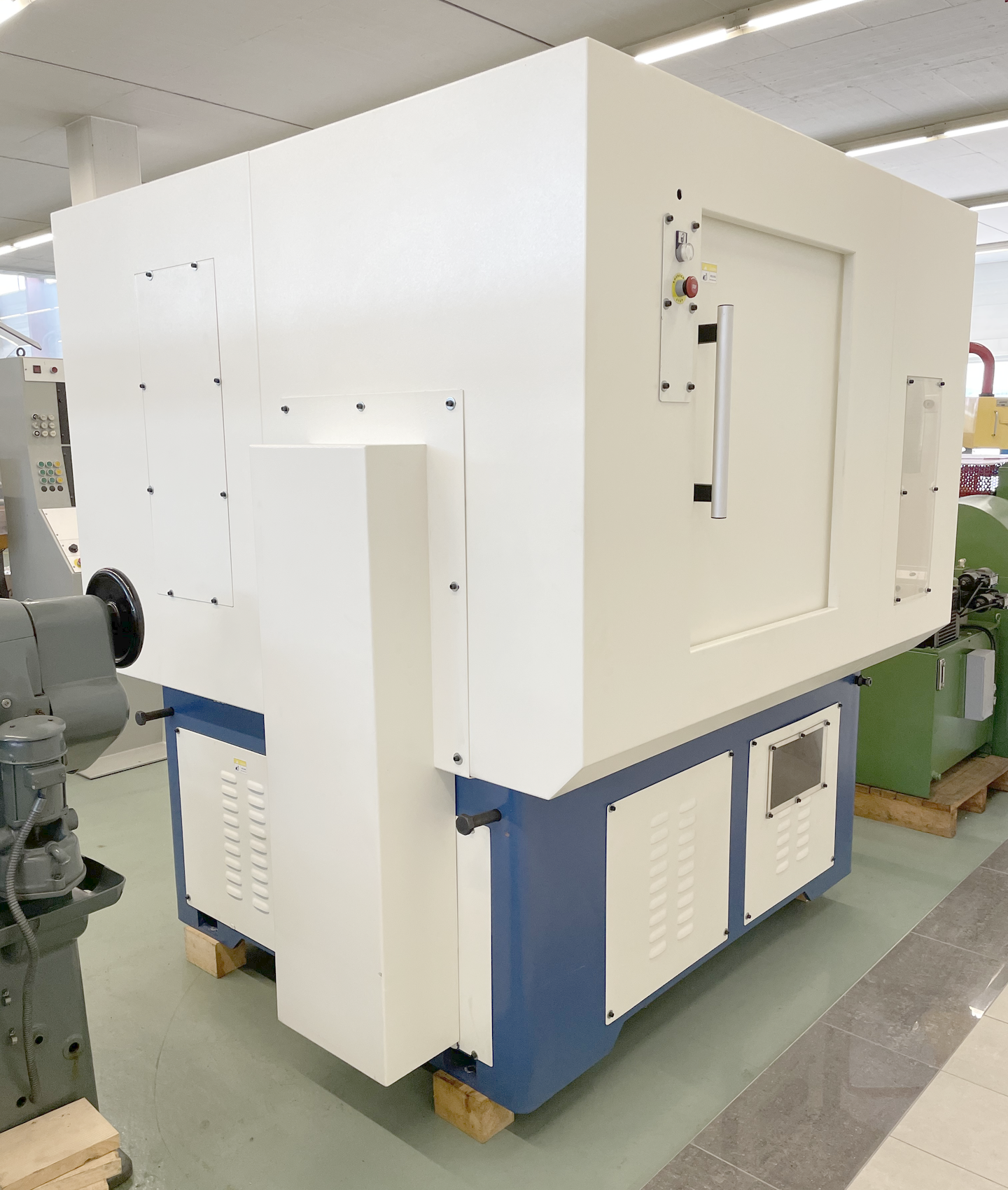

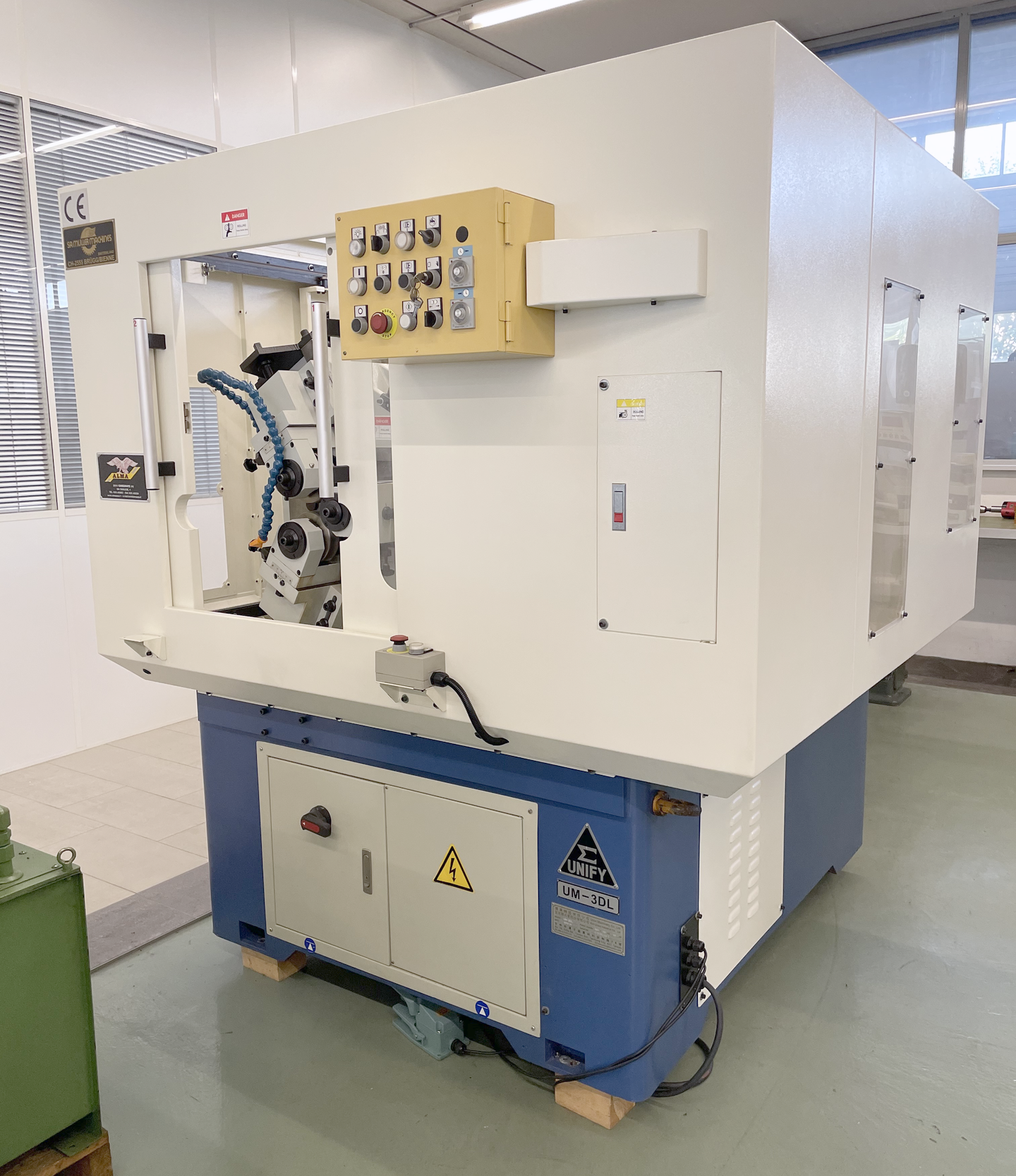

UNIFY UM 3 DL is a Thread rolling machine built for precision, high accuracy and reliability. Working capacities: min. threaded diameter 27 mm, max. 90 mm; pitch 1–6 mm; max. infeed length 68 mm; max. roll die diameter 150 mm; roll die width 35.70 mm; shaft diameter 54 mm; roll axis swivel max. 3°; max. rolling force 17 to. Main technical specs: roll speeds from 150 t/min to 500 t/min; voltage 50 Hz 3x 400 Volt; motor power 7.5 kW; machine weight about 2420 kg; overall dimensions L 2200 mm × W 1900 mm × H 2000 mm. Designed to achieve tight tolerances; typical sectors include automotive, watchmaking, machine tools, aerospace and medical.
