HAUSER OP 3 is a Jig boring machine engineered for high precision, exceptional accuracy and long-term reliability. Working capacities: table 550×320 mm, travels X 400 mm, Y 250 mm, Z 400 mm; drilling in steel 20 mm; max boring Ø 75 mm; table-to-spindle 600 mm; spindle stroke 130 mm. Technical specs: spindle taper MT2, stepless speeds 120–3000 t/min, spindle motor 1 CV, 3×380 V 50 Hz supply, machine weight ~1500 kg, size 1400×1500×2100 mm; drill spindle slide with 2 positions. Equipment: 2-axis digital readout ACU RITE III. Capable of tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Table length | 550 mm |
| Table width | 320 mm |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 250 mm |
| Vertical travel (z axis) | 400 mm |
| Drill capacity in steel | 20 mm |
| Taper in spindle: MT | 2 |
| Stroke of drilling spindle (Z-axis) | 130 mm |
| Bore diameter max. | 75 mm |
| Distance table to spindle | 600 mm |
| Spindle speeds: | |
| stepless | |
| from | 120 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| number (steps) | 2 |
| from | mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1 CV |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1500 mm |
| Height | 2100 mm |

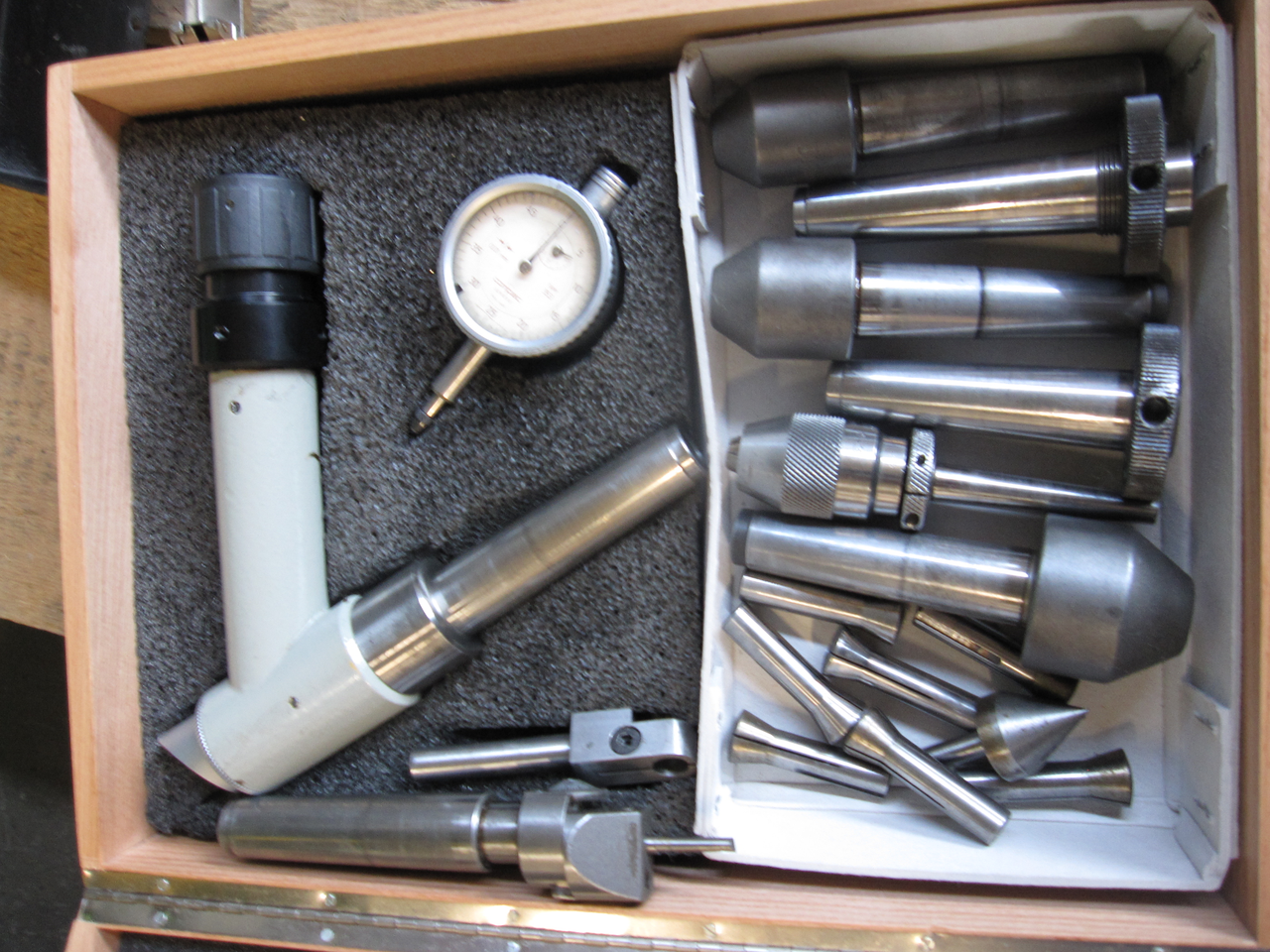

| Various accessories: | |
| Digital readout number of axis: | 2 |
| Manufacturer | ACU RITE III |
| Rotary table diameter | mm |
