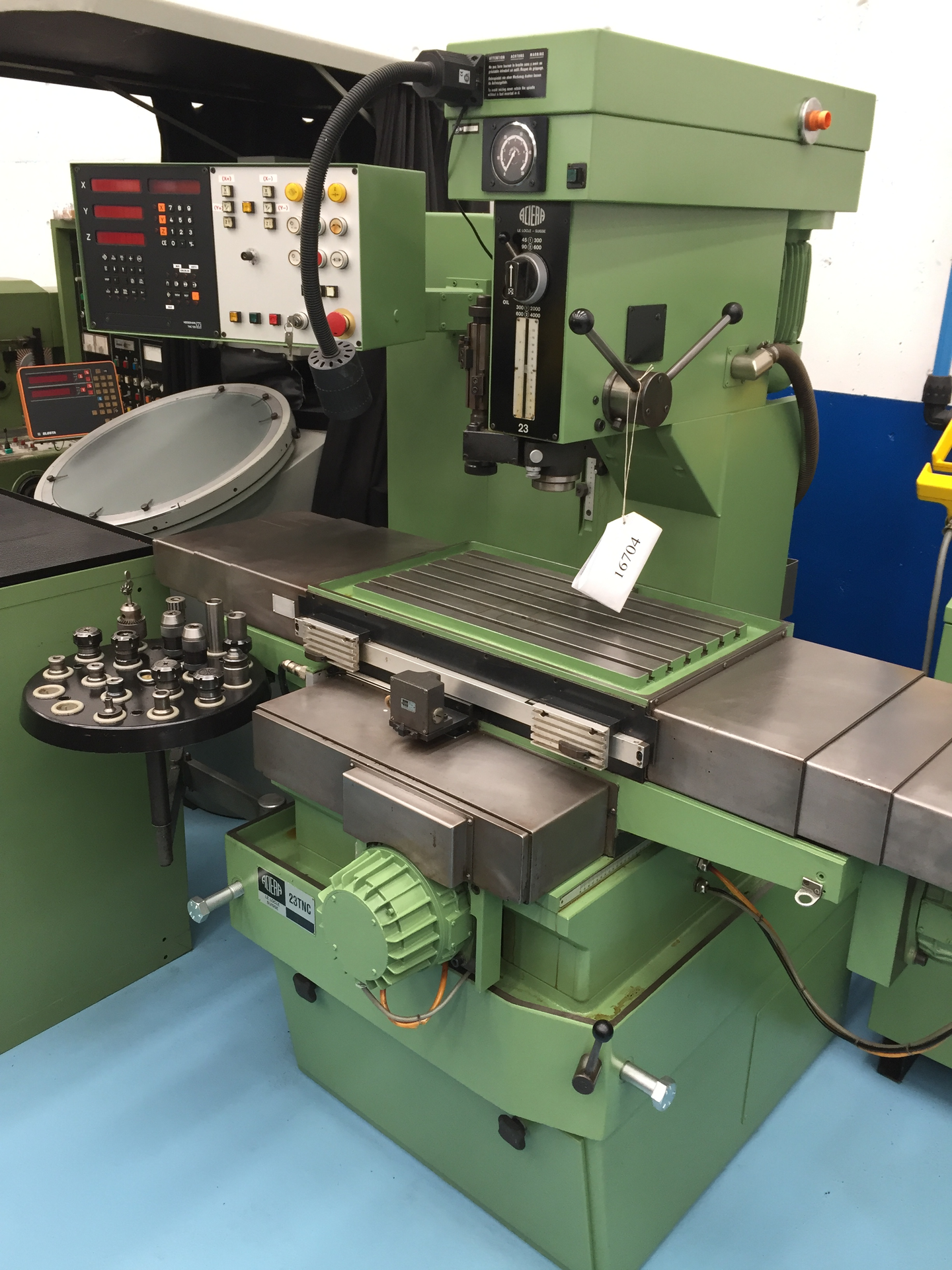

ACIERA 23 TNC is a CNC drilling machine for precision, high accuracy and reliability. Capacity: drilling in steel 23 mm, thread cutting M18; spindle stroke 120 mm; travels L500×T300 mm; table 590×320 mm; distance 110–570 mm. Specs: 45–4000 t/min, feeds 0.02–0.6 mm/min, 3×380 V 50 Hz, 5.0 kW, weight ~1550 kg, dims L1700×W1400×H2100 mm. Accessories: coolant, quick-change, tool holder, turret stop. Enables tight tolerances; sectors: automotive, aerospace, medical, watchmaking, machine building.
| Drill capacity in steel | 23 mm |
| Threat cutting in steel M | 18 |
| Spindle speeds :stepless | |
| from | 45 t/min |
| up to | 4000 t/min |
| Spindle stroke | 120 mm |
| Table length | 590 mm |
| Table width | 320 mm |
| Min. distance from table to spindle | 110 mm |
| Max. distance from table to spindle | 570 mm |
| Longitudinal travel | 500 mm |
| Transversal travel | 300 mm |
| Feeds | 0.02-0.6 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 5.0 kW |
| Machine's weight about | 1550 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 1400 mm |
| Height | 2100 mm |
| Various accessories: | |
| Coolant system | |
| Quick change device | |

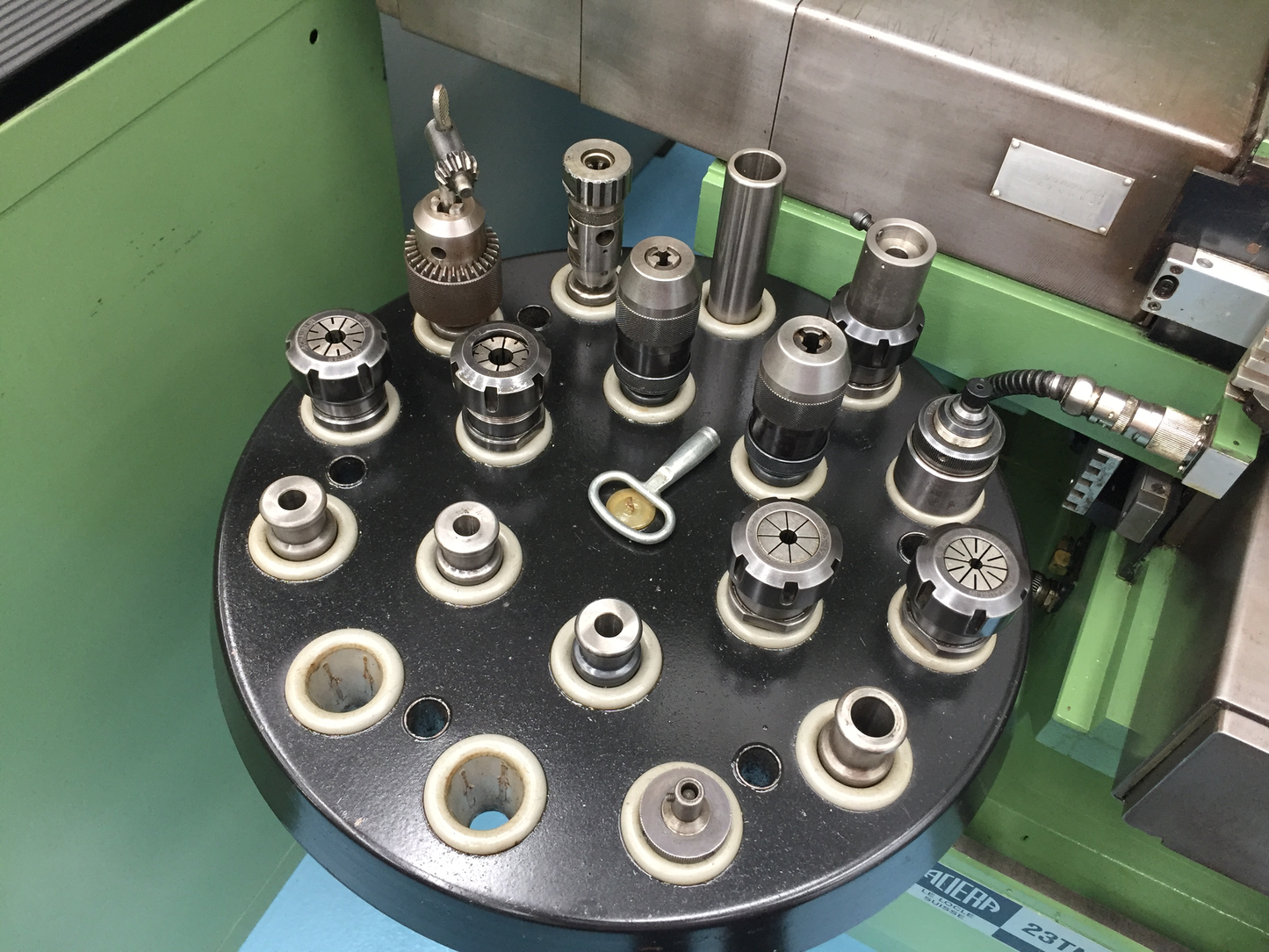

| Tool holder deposit | |
| Turret stopping device |
