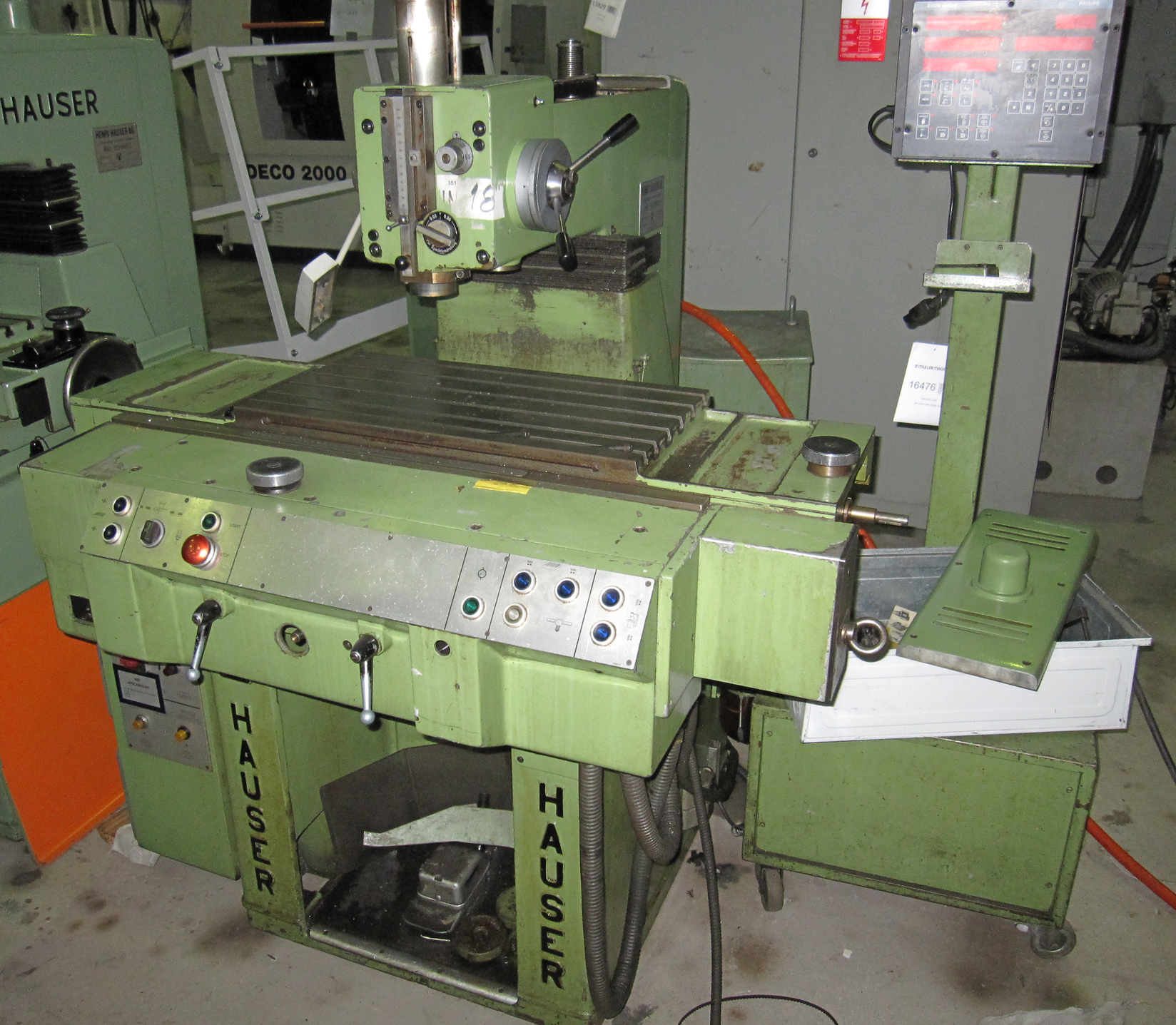

HAUSER 3 DR is a Jig boring machine designed for precision, high accuracy and reliable operation. Capacities: table 550×320 mm, table load 400 kg, travels X400 Y250 Z400 mm, drill capacity in steel 20 mm, max bore 75 mm, table-to-spindle 590 mm, spindle stroke 130 mm, rotary table Ø380 mm. Specs: spindle speeds stepless 60–3000 t/min, spindle motor 1 CV, 3×380 V 50 Hz, weight ≈1100 kg, dims 1200×1150×1650 mm. Equipment: 3-axis digital readout (PHILIPS), rotary table. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 550 mm |
| Table width | 320 mm |
| Table load max. | 400 kg |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 250 mm |
| Vertical travel (z axis) | 400 mm |
| Drill capacity in steel | 20 mm |
| Taper in spindle: MT | 2 |
| Stroke of drilling spindle (Z-axis) | 130 mm |
| Bore diameter max. | 75 mm |
| Distance table to spindle | 590 mm |
| Spindle speeds: | |
| stepless | |
| from | 60 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| number (steps) | 2 |
| from | mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1 CV |
| Machine's weight about | 1100 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1150 mm |
| Height | 1650 mm |
| Various accessories: | |
| Digital readout number of axis: | 3 |
| Manufacturer | PHILIPS |
| Rotary table diameter | 380 mm |
