| Table length | 600 mm |
| Table width | 210 mm |
| Longitudinal travel (X-axis) | 260 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 310 mm |
| Distance from vertical spindle to table | 310 mm |
| Distance from horizontal spindle to table | 410 mm |
| Spindle speeds: | |
| stepless | |
| from | 58 t/min |
| up to | 2000 t/min |
| Taper in spindle | 30 ISO |
| Feeds steps: | 10 |
| longitudinal from | 12.0 mm/min |
| up to | 400 mm/min |
| vertical from | 12.0 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | |
| longitudinal | 1.2 m/min |
| vertical | 1.2 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Total power required | 3 CV |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1100 mm |
| Height | 1600 mm |
| Various accessories: | |

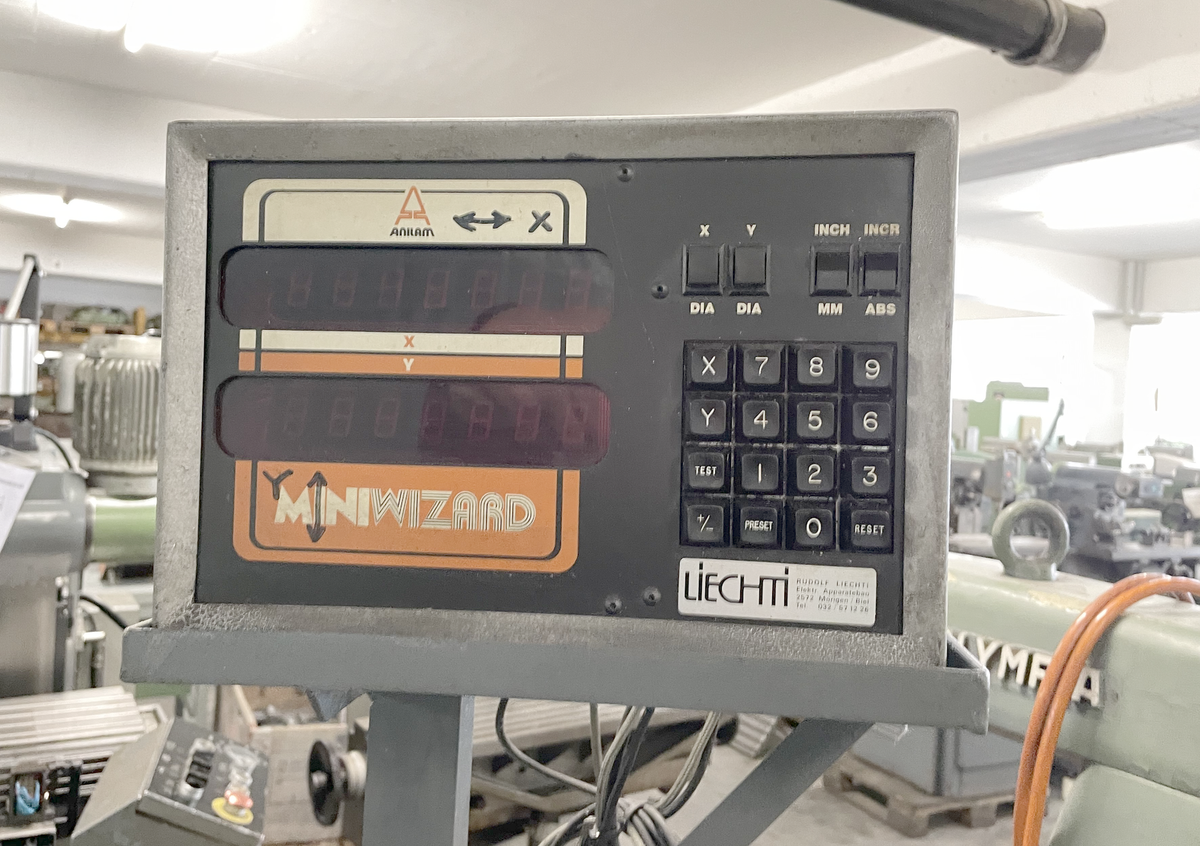

| Digital readout number of axis: | 2 |
| Tilting and swivel table | |
| Chip tray |
SCHAUBLIN 13 is a Universal milling machine engineered for precision, high accuracy and reliability. Table 600×210 mm; travels X 260 mm, Y 150 mm, Z 310 mm; vertical spindle–table 310 mm, horizontal spindle–table 410 mm. Spindle taper 30 ISO, stepless 58–2000 t/min. Feeds 10 steps: 12–400 mm/min (longitudinal/vertical); rapid traverse 1.2 m/min. Supply 3×380 V 50 Hz; motor 2.0 CV; total installed power 3 CV; weight ≈700 kg; dims 1500×1100×1600 mm. Fitted with 2‑axis digital readout, tilting/swivel table and chip tray. Designed to achieve tight tolerances for sectors such as automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
