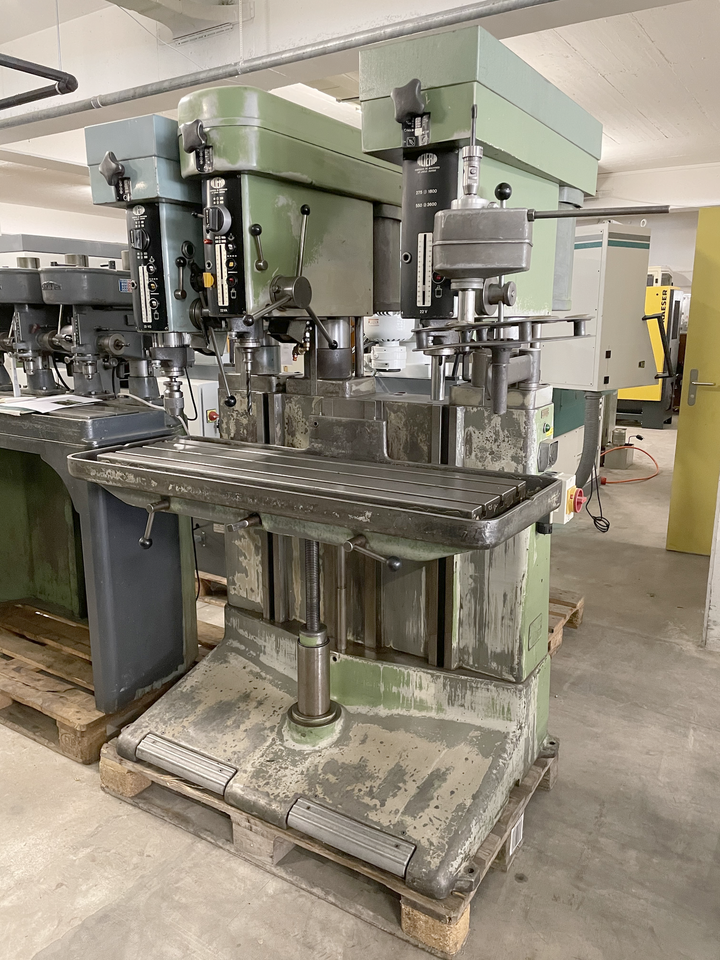

ACIERA 22 S 3 is a multi-head drill engineered for precision work, delivering high accuracy and reliability. Drill capacity 22 mm, spindle stroke 120 mm; table 1160 x 320 mm with 350 mm vertical travel; throat depth 280 mm; max spindle spacing 280 mm; spindle taper 3 CM; drill chuck 3–16 mm. Stepless spindle speeds from 40 to 3600 t/min; spindle motor 1.5 CV; voltage 50 Hz 3x 380 V; machine weight ≈ 1800 kg; overall dimensions L1300 x W1000 x H2000 mm. Equipped with coolant system, threading chuck, quick-change device, lamp and ACIERA drill heads (22 V, 22 VG, 22 VA). Achieves tight tolerances; ideal for automotive, aerospace, precision machinery, watchmaking and medical sectors.
Technical specifications are subject to change without notice
| Number of drill-heads | 3 |
| Drill capacity | 22 mm |
| Drill depth (spindle stroke) | 120 mm |
| Table length | 1160 mm |
| Table width | 320 mm |
| Vertical position of table | 350 mm |
| Taper in spindle | 3 CM |
| Depth of throat | 280 mm |
| Spindle speeds: | |
| stepless | |
| from | 40 t/min |
| up to | 3600 t/min |
| Distance between the | |
| spindles: | |
| max | 280 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 1300 mm |
| Width | 1000 mm |
| Height | 2000 mm |
| Various accessories: | |
| Coolant system | |
| Drill chuck | 3 - 16 mm |
| Quick change device | |
| Lamp | |
| Threading chuck | |
| Drill head ACIERA: | |
| 22 V (normal execution) | |
| 22 VG (thread + reduction) | |
| 22 VA (feed 0,6 - 0,12) |
