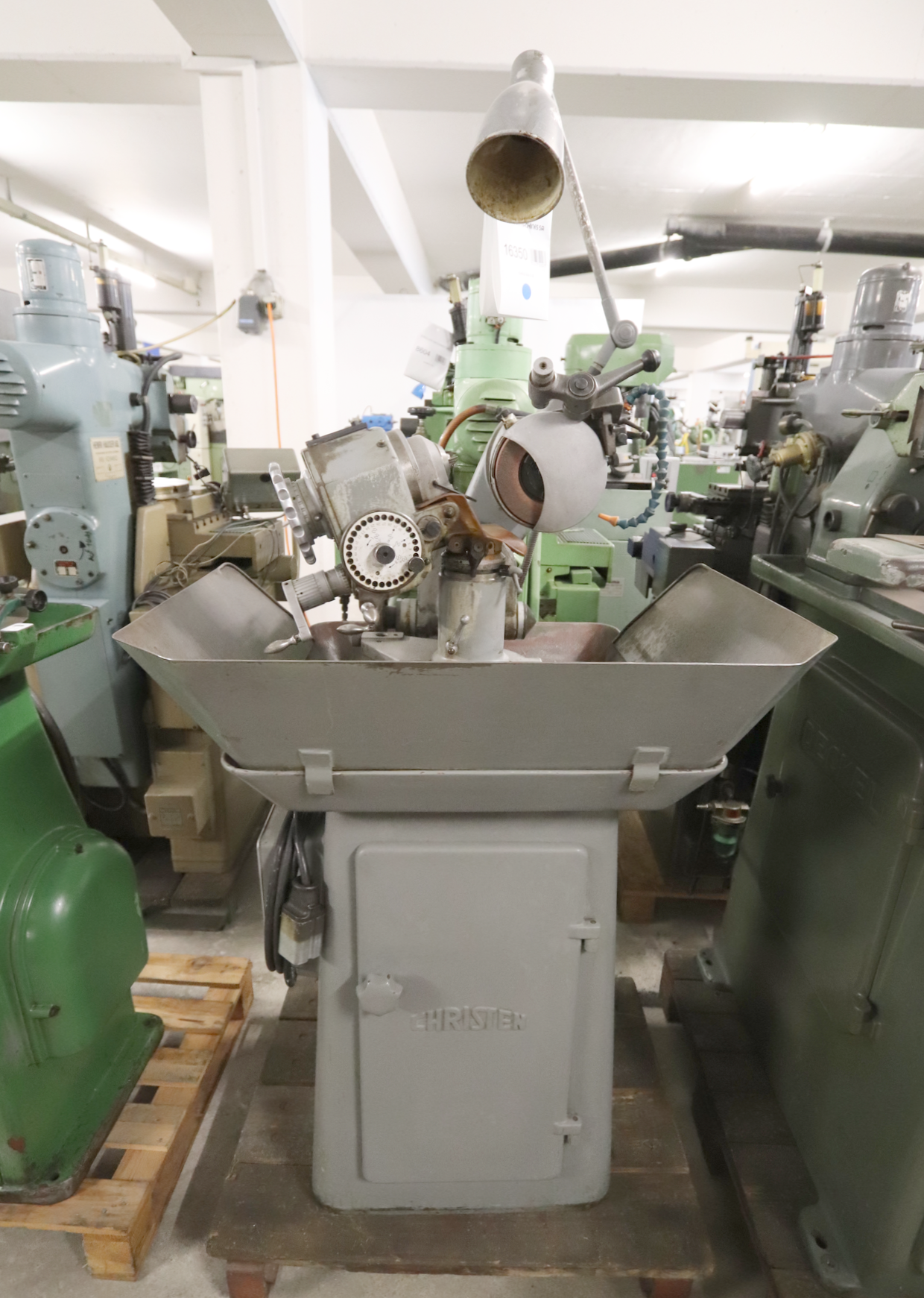

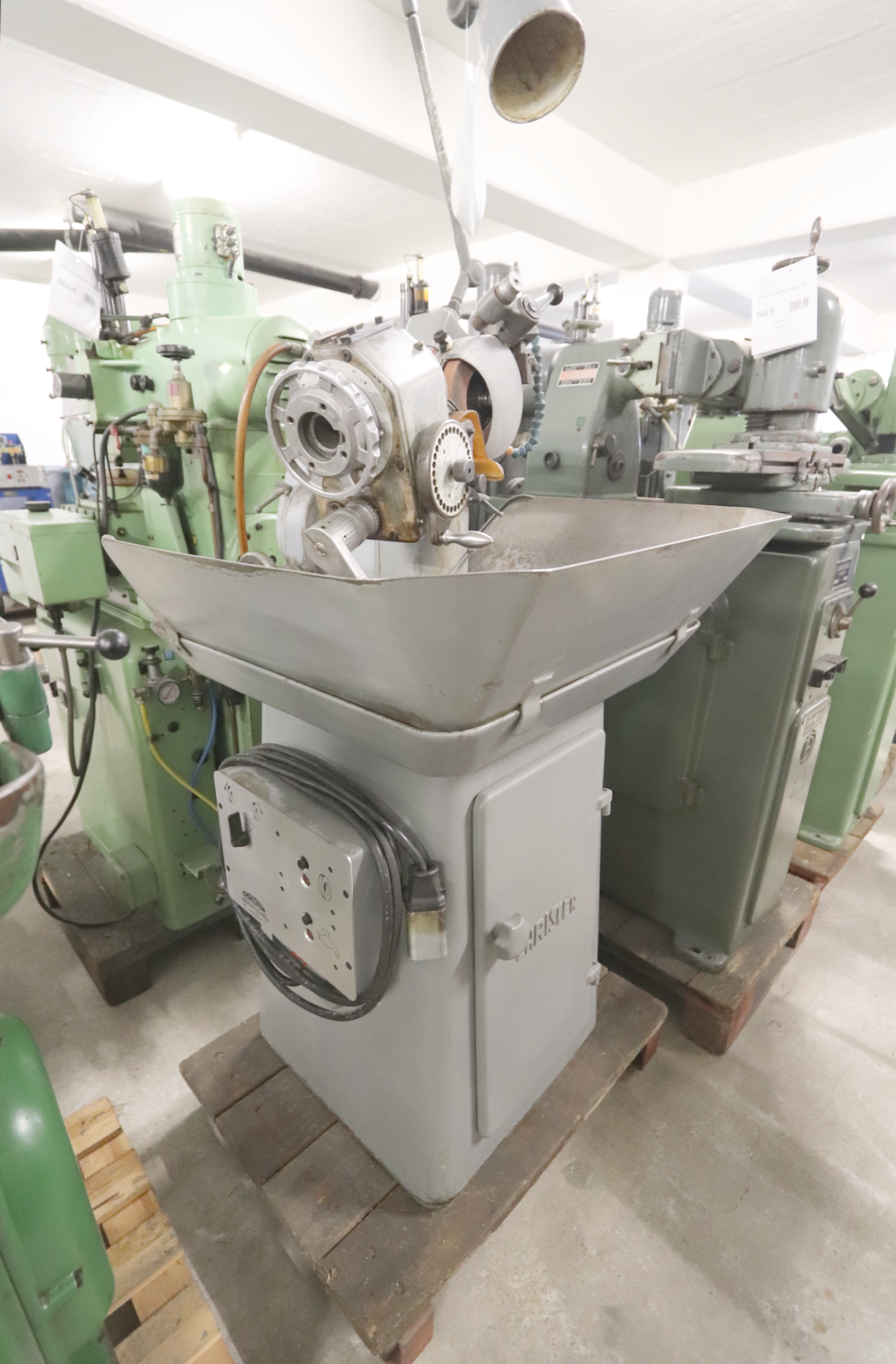

CHRISTEN 2-32 is a drill grinder providing precision, high accuracy and reliability. Capacity: Ø 2.0–32.0 mm; point angle 60°–180°; wheel Ø150 mm, width 40 mm, bore 50 mm; speed up to 2800 t/min. Specs: 50 Hz 3×380 Volt; power 1.00 CV; weight ≈450 kg; dims L800×W750×H1300 mm. Enables tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Min. drill capacity | 2.0 mm |
| Max. drill capacity | 32.0 mm |
| Spitzwinkel min. | 60 ° |
| max. | 180 ° |
| Diameter of grinding wheel | 150 mm |
| Width of the grinding wheel | 40 mm |
| Drilling cap. of grind.wheel | 50 mm |
| Grinding wheel speeds: | |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1.00 CV |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 750 mm |
| Height | 1300 mm |
