BEHRINGER HBP 340 G
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

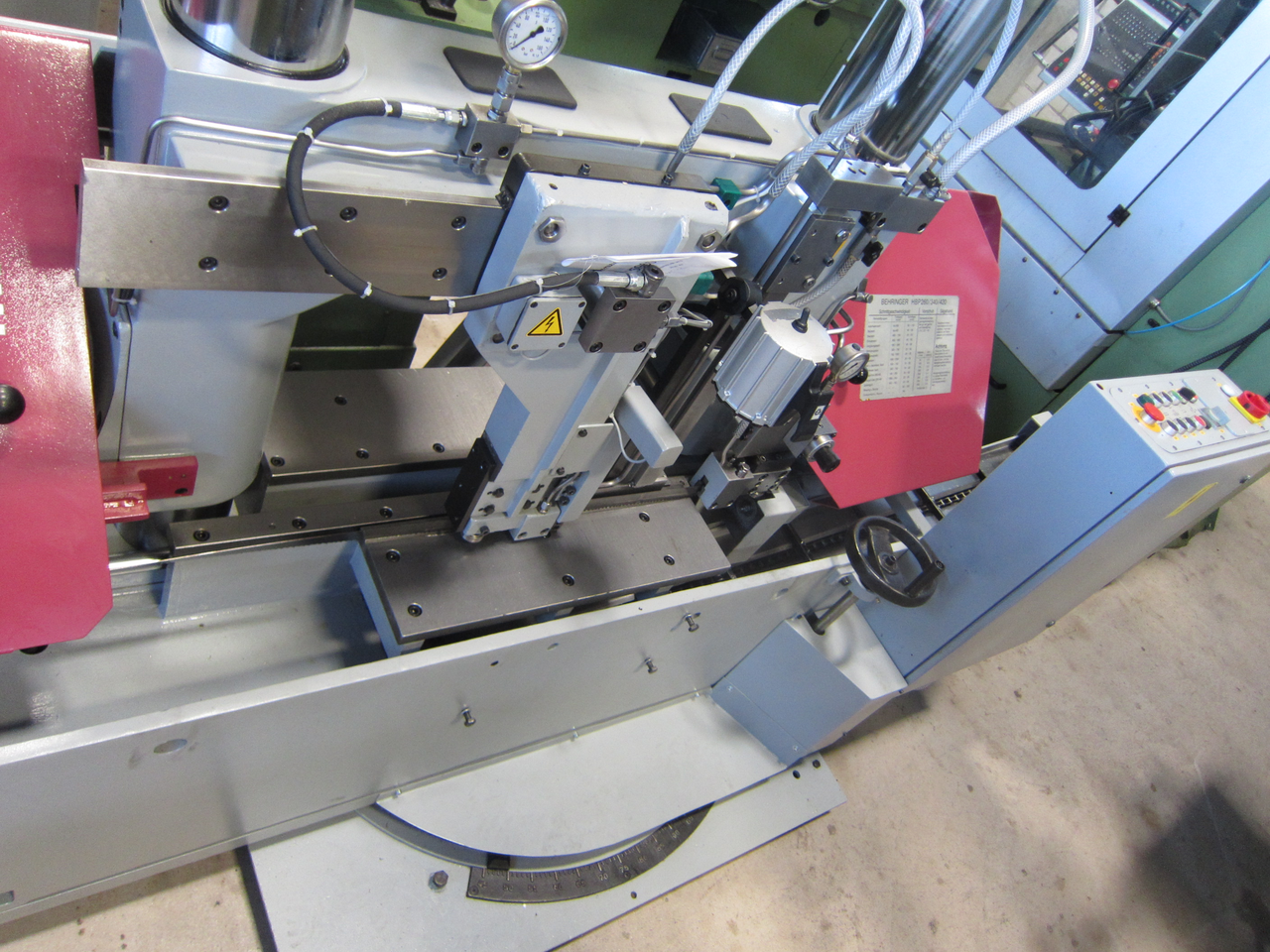

BEHRINGER HBP 340 G is a Band saw for precision, high accuracy and reliable performance. Capacity: round up to 340 mm; square 340×340 mm; table tilt ±45°. Specs: band 4860 mm×32 mm×1 mm; cutting speed 15–100 m/min (stepless); power 3×400 V 50 Hz; dims L3100×W1100×H1700 mm. Accessories: hydraulic vice, coolant system, chip conveyor. Enables tight tolerances; suited to automotive, machine tools, aerospace and medical sectors.
| Cut range: round up to | 340 mm |
| Square | 340 x 340 mm |
| Execution: | |
| Horizontal | |
| hydraulic | |
| Cutting speed: | |
| stepless | |
| from | 15 m/min |
| up to | 100 m/min |
| Miter cuts: | |
| Table inclination right side | +45 ° |
| Table incline left | -45 ° |
| Band length | 4860 mm |
| Band width | 32 mm |
| Sheet thickness | 1 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Overall dimensions machine: | |
| Length | 3100 mm |
| Width | 1100 mm |
| Height | 1700 mm |
| Various accessories: | |
| Hydraulic vice | mm |
| Coolant system | |
| Chip conveyor |
