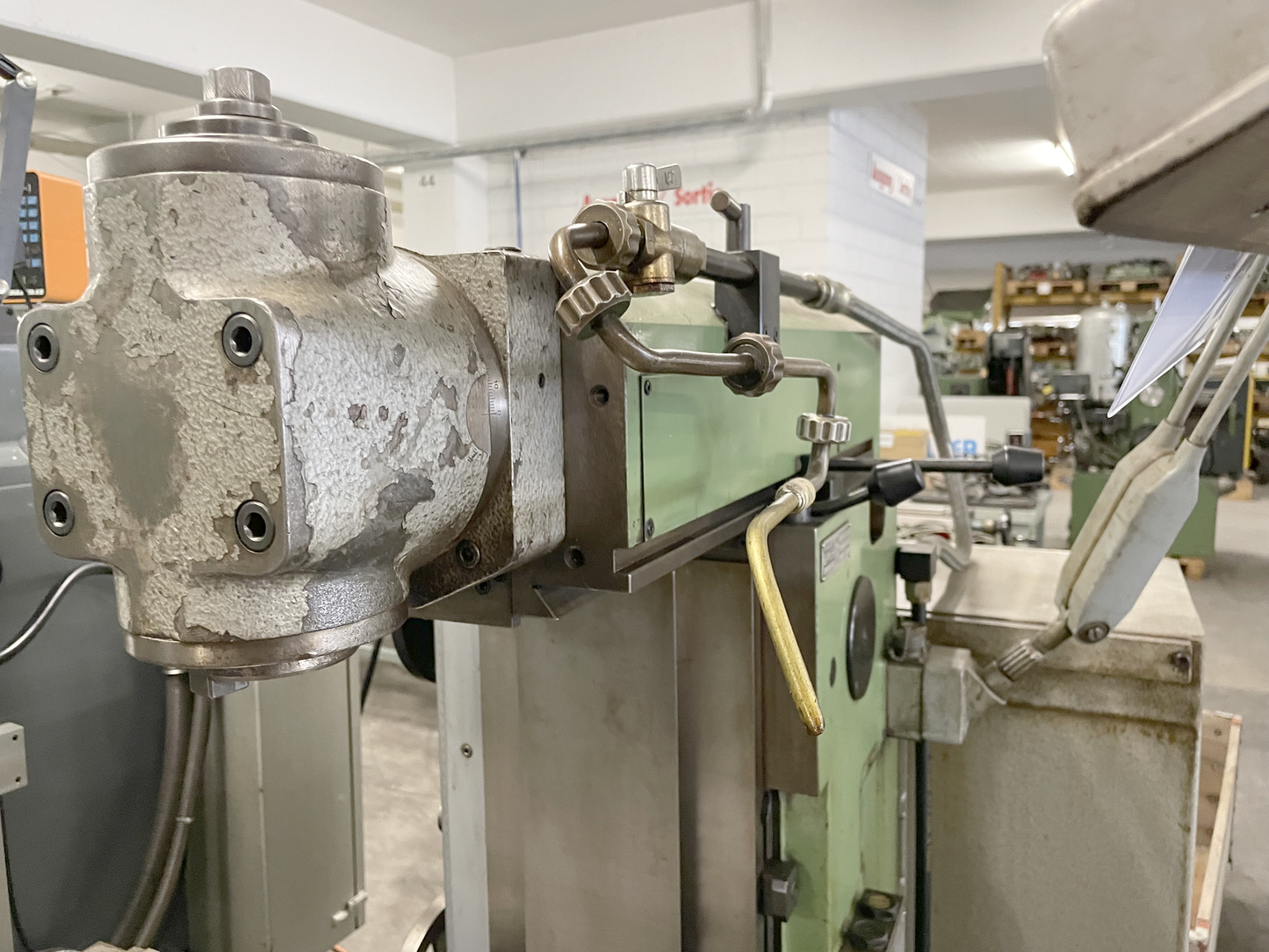

SCHAUBLIN 213 is a universal milling machine engineered for precision, high accuracy and reliability. Working capacities: table 700×250 mm; travels X 320 mm, Y 220 mm, Z 410 mm; quill travel 60 mm. Main specs: stepless spindle speeds 56–3150 rpm, spindle taper ISO30; stepless feeds 8–1000 mm/min (X/Y/Z); rapid traverse 2 m/min; motor 1.8 kW, total installed power 3 kW, 3×380 V 50 Hz; weight ~1000 kg; footprint 1800×1200×1500 mm. Equipment: coolant system and lamp. Enables tight tolerances; suitable for automotive, watchmaking, machine-tool, aerospace and medical applications.
| Table length | 700 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 320 mm |
| Transversal travel (y axis) | 220 mm |
| Vertical travel (z axis) | 410 mm |
| Spindle speeds: | |
| stepless | |
| from | 56 t/min |
| up to | 3150 t/min |
| Taper in spindle | 30 ISO |
| Feeds stepless: | |
| longitudinal from | 8 mm/min |
| up to | 1000 mm/min |
| transversal from | 8 mm/min |
| up to | 1000 mm/min |
| vertical from | 8 mm/min |
| up to | 1000 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 2 m/min |
| transversal | 2 m/min |
| vertical | 2 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 1.8 kW |
| Total power required | 3 kW |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1200 mm |
| Height | 1500 mm |
| Various accessories: | |
| Coolant system | |
| Lamp |
