MIKRON UMS 710 is a CNC milling machine of high precision, designed for excellent accuracy and reliability. Working capacities: table 1200 x 600 mm; travels X710 Y630 Z500 mm; tool changer 20 tools. Main specs: spindle speeds up to 6300 (42,000* HF option); feeds up to 15,000 mm/min on axes; milling spindle motor 11 kW; weight ~4,690 kg; dimensions L4700 x W2100 x H2700 mm. Key equipment: rigid table, high-frequency spindle (FISCHER), set of toolholders, oil-mist extractor FIBARON. Achieves tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical.
| Table length | 1200 mm |
| Table width | 600 mm |
| Longitudinal travel (X-axis) | 710 mm |
| Transversal travel (y axis) | 630 mm |
| Vertical travel (z axis) | 500 mm |
| Spindle speeds: | |
| up to | 6300 (42'000*) t/min |
| Tool changer: | |
| number of tools | 20 |
| Feeds: | |
| longitudinal from | mm/min |
| up to | 15000 mm/min |
| transversal from | mm/min |
| up to | 15000 mm/min |
| vertical from | mm/min |
| Milling spindle motor | 11 kW |
| Machine's weight about | 4690 kg |
| Overall dimensions machine: | |
| Length | 4700 mm |
| Width | 2100 mm |
| Height | 2700 mm |
| Various accessories: | |
| Rigide table | |

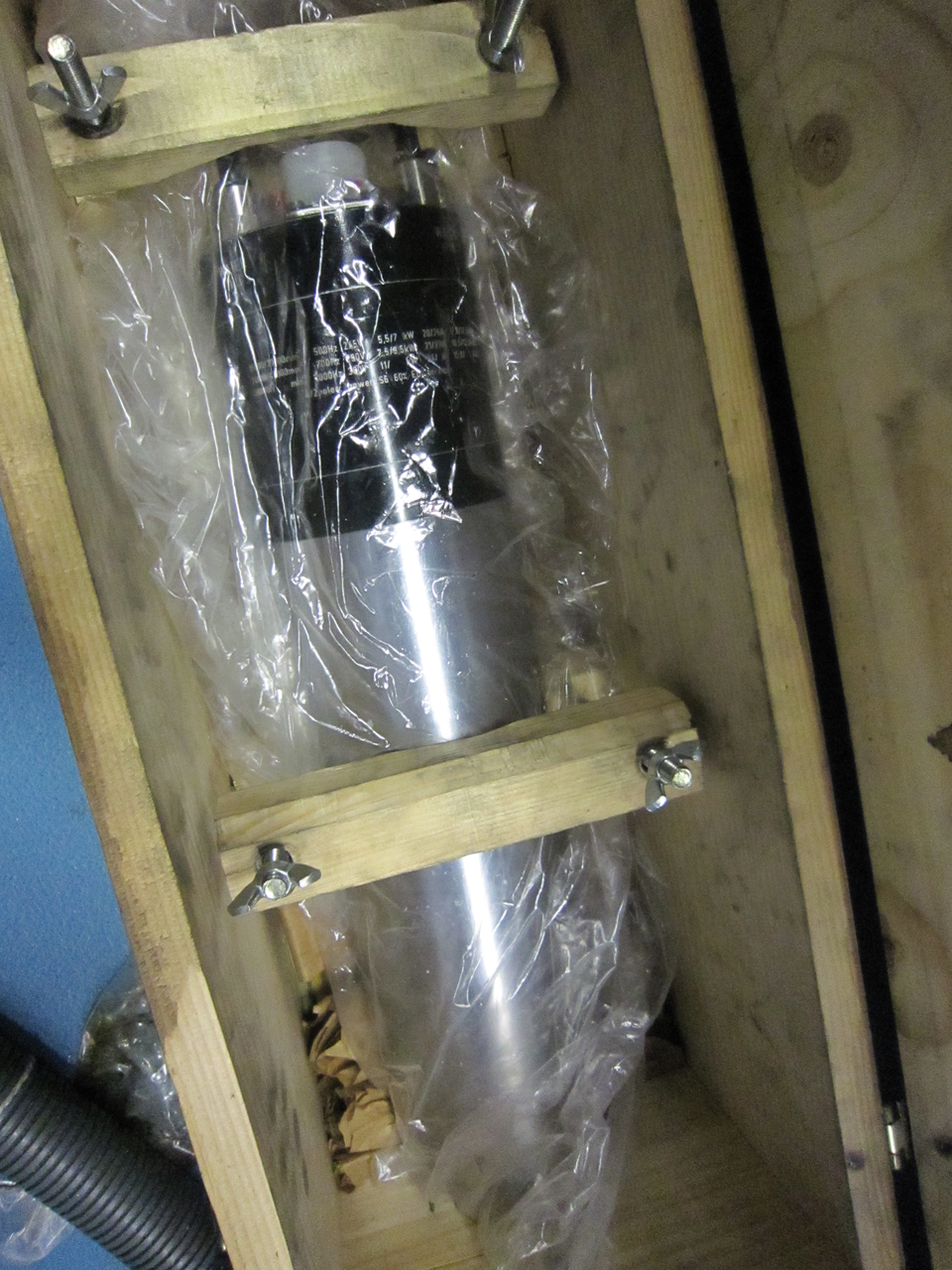

| High frequency spindle | 42000* t/min |
| Manufacturer | FISCHER |
| Set of toolholders | |
| Oil mist extractor | FIBARON |
