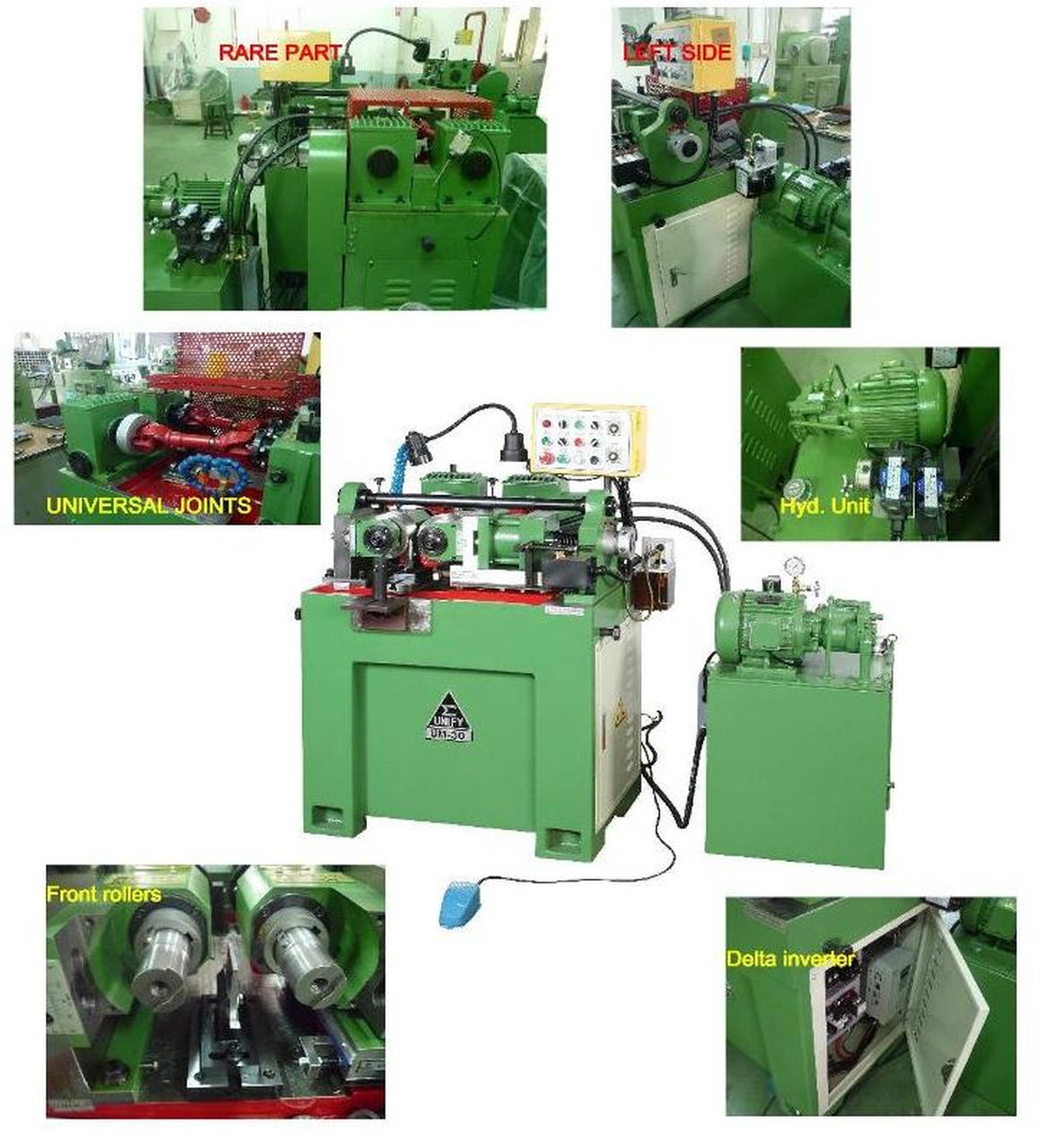

UNIFY UM-30 is a Thread rolling machine of high precision, accuracy and reliability. Capacity: threaded Ø 6–30 mm; pitch 1–4 mm; max roll Ø 148 mm; roll width 35–70 mm; shaft distance 130–175 mm; shaft Ø 54 mm; max force 17 to; roll speeds 20–60 t/min. Specs: 50 Hz 3x380 V; motor 3.65/2.19 kW; weight ≈1220 kg; dimensions L1600×W1200×H1340 mm. Accessories: set of thread rolls, lamp, service tools. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Min. diameter threaded | 6 mm |
| Max. diameter threaded | 30 mm |
| Min. pitch | 1 mm |
| Max. pitch | 4 mm |
| Max. roll die diameter | 148 mm |
| Roll die width | 35 - 70 mm |
| Max. rolling force | 17 to |
| Shaft distance: | |
| min. | 130 mm |
| max | 175 mm |
| Shaft diameter | 54 mm |
| Roll speeds: | |
| from | 20 t/min |
| up to | 60 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 3.65/2.19 kW |
| Machine's weight about | 1220 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1200 mm |
| Height | 1340 mm |
| Various accessories: | |
| Set of thread rolls | |
| Lamp | |
| Set of service tools |
