HAUSER 270 x 175 mm
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

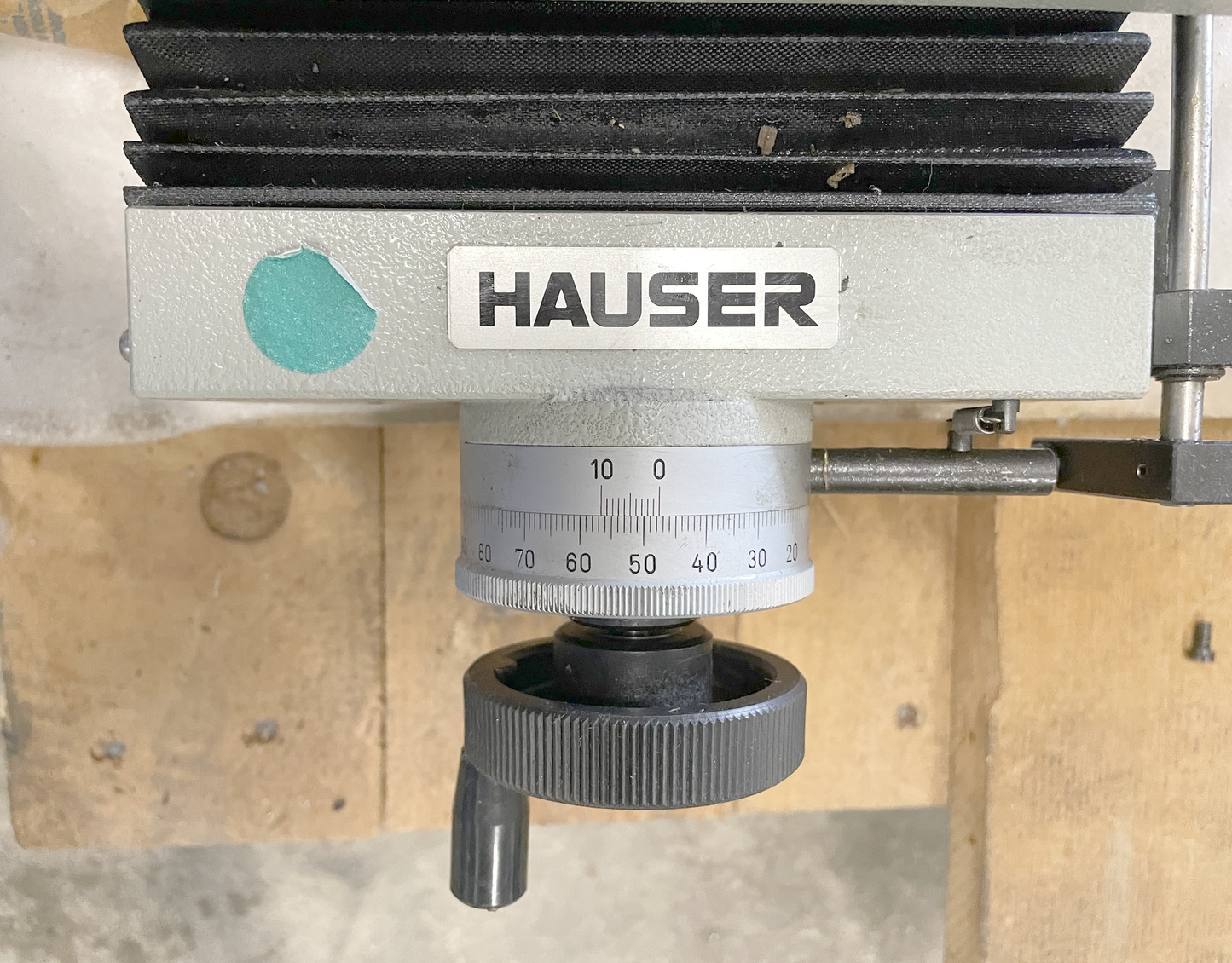

HAUSER 270 x 175 mm is a Cross table designed for high-precision work, offering high accuracy and reliability. Clamping surface 270 x 175 mm; travels longitudinal 120 mm, crosswise 120 mm; 4 T-channels 10H7 mm. Overall dimensions 350 x 250 x 200 mm (L x W x H). Enables tight tolerances and is suited to applications in automotive, watchmaking, machine tools, aerospace and medical.
| Cross table | |
| Execution: | |
| Horizontal | |
| Clamping surface: | |
| Length | 270 mm |
| Width | 175 mm |
| Travels: | |
| longitudinal | 120 mm |
| Crosswise | 120 mm |
| Number of T-channels | 4 |
| T-channel width | 10H7 mm |
| Dimensions: | |
| Length | 350 mm |
| Width | 250 mm |
| Height | 200 mm |
