CINCINNATI R 327
Special Price
CHF 20 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!
CINCINNATI R 327 is a Cylindrical grinder designed for precision, high accuracy and reliable performance. Capacities: centre height 390 mm; distance between centres 1600 mm; grinding wheel Ø600×80 mm, bore 305 mm; max. grinding Ø 600 mm; workpiece weight on centres max. 400 kg; table tilt ±10°. Specs: peripheral speed 30 m/s; spindle hole 38 mm, spindle taper 5 CM; workpiece spindle 6 steps 16–168 t/min; external grinding wheel motor 15 kW; workpiece spindle motor 2 kW; voltage 3x380 V 50 Hz; machine weight ≈8000 kg; overall L4400×W2300×H2250 mm. Accessories: coolant system 450 L, set of grinding wheels, flange with wheel, lamp, hydraulic tailstock. Achieves tight tolerances; suitable for automotive, aerospace, medical, machine tool and watchmaking sectors.
| Centre height | 390 mm |
| Distance between centres | 1600 mm |
| Grinding wheel: | |
| Diameter | 600 mm |
| Width | 80 mm |
| Bore | 305 mm |
| Max. grinding diameter | 600 mm |
| Workpiece weight on centres max. | 400 kg |
| Grinding wheel speeds: | |
| Peripheral speed | 30 m/s |
| Angular displacement | ° |
| Work piece spindle head: | |
| speeds: | |
| number (steps) | 6 |
| from | 16 t/min |
| up to | 168 t/min |
| Spindle hole | 38 mm |
| Spindle taper | 5 CM |
| Taper in tailstock: | 5 CM |
| Table angular displacement | +/-10 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 15 kW |
| Workpiece spindle motor | 2 kW |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 4400 mm |
| Width | 2300 mm |
| Height | 2250 mm |
| Various accessories: | |
| Coolant system | 450 L |

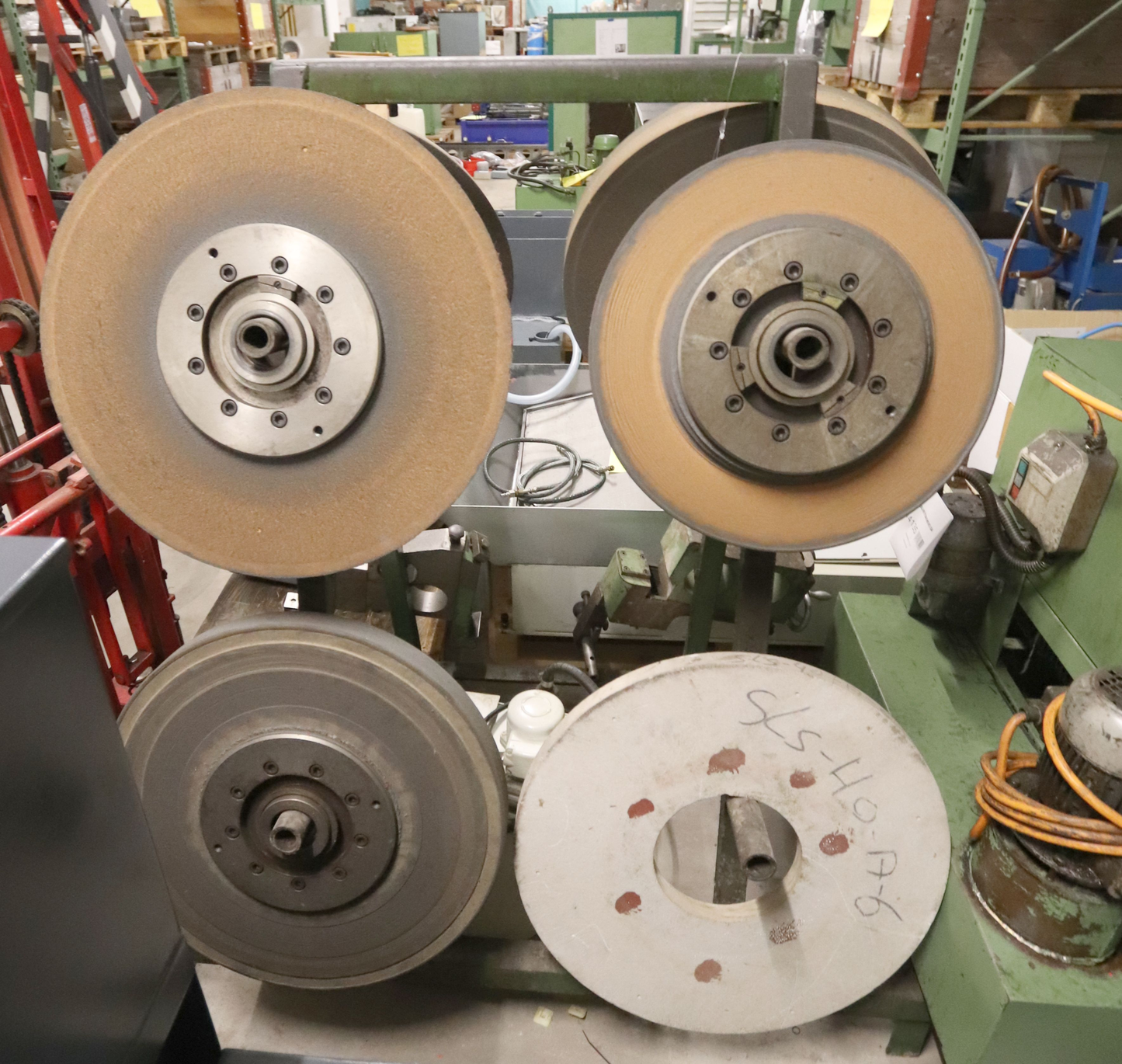

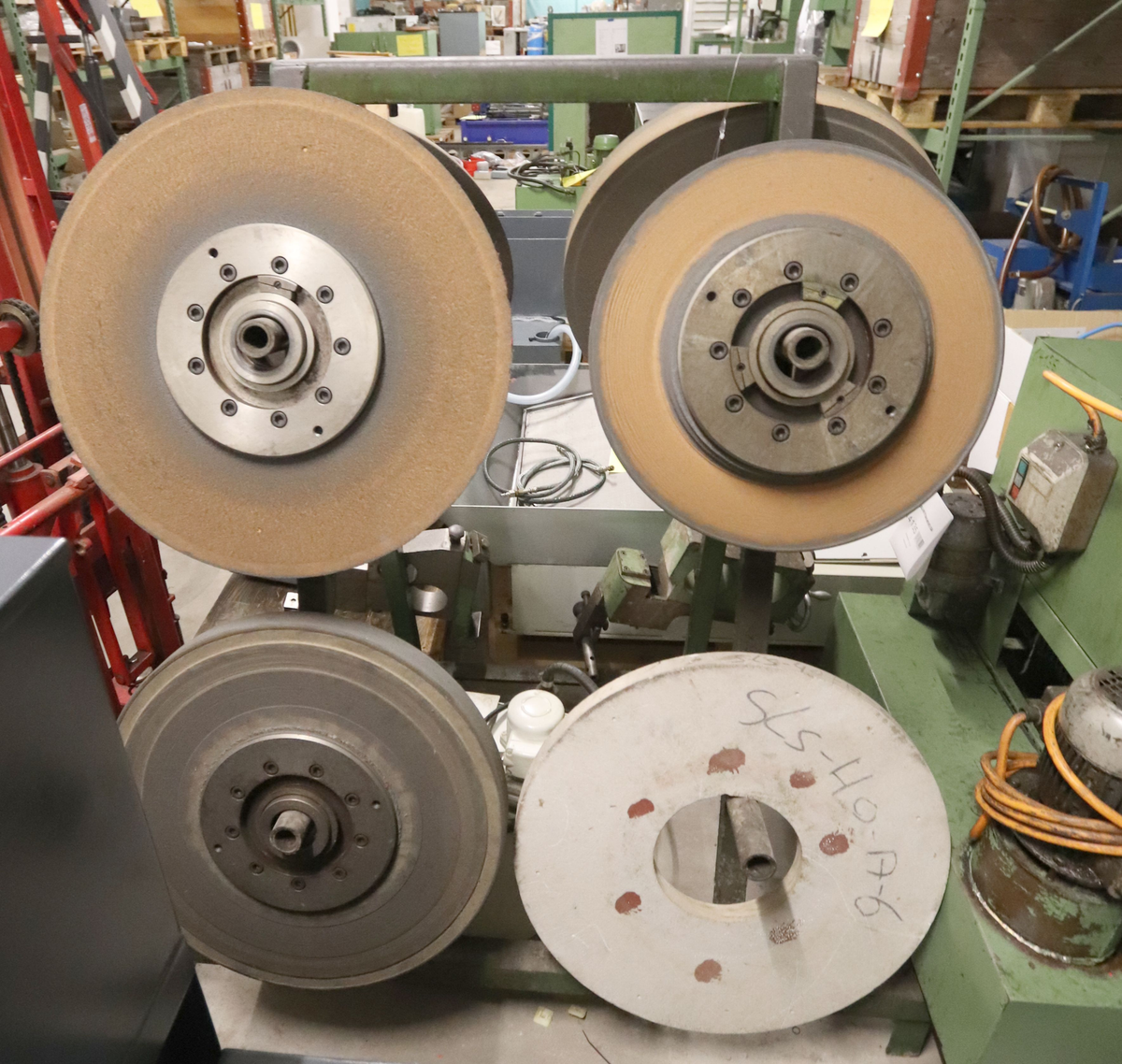

| Set of grinding wheels | |
| Flange with wheel | |
| Lamp | |
| Hydraulic tailstock |
