SACHMAN RP 3
Special Price
CHF 33 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

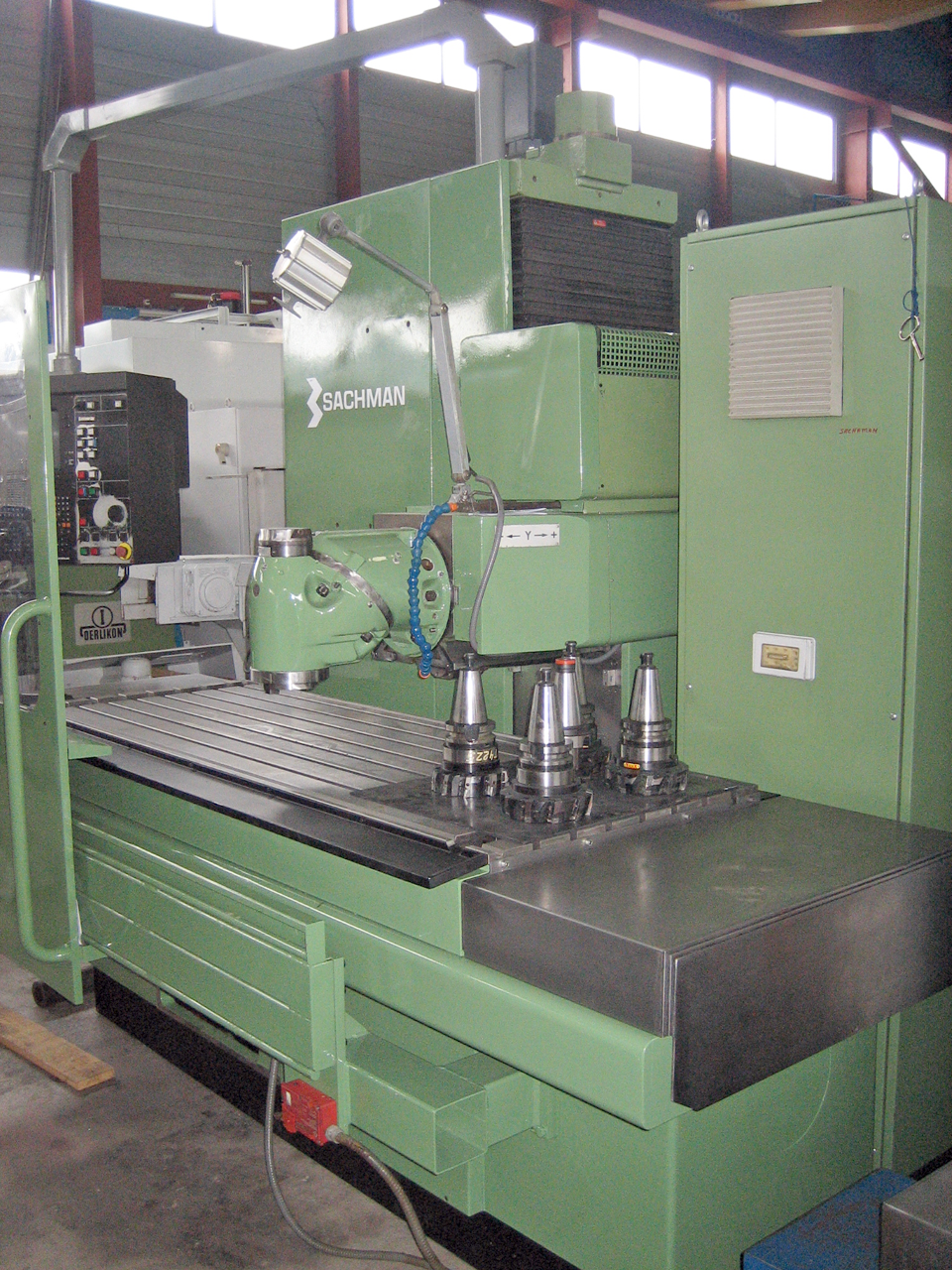

SACHMAN RP 3 is a CNC bed-type milling machine designed for precision, high accuracy and reliable operation. Working capacities: table 2000×730 mm, table load max 3000 kg, travels X 1800 mm, Y 815 mm, Z 802 mm, spindle-to-table distance 805 mm. Main specs: spindle taper 50 ISO, spindle speeds 0–2250 t/min, feeds X/Y/Z 1–5000 mm/min, rapid traverse all axes 8 m/min, milling spindle motor 15 kW, total installed power 27 kW, machine weight approx. 8000 kg, overall dims L3300×W4700×H2715 mm. Accessories: set of toolholders and lamp. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Table length | 2000 mm |
| Table width | 730 mm |
| Table load max. | 3000 kg |
| Longitudinal travel (X-axis) | 1800 mm |
| Transversal travel (y axis) | 815 mm |
| Vertical travel (z axis) | 802 mm |
| Distance from spindle | |
| to table | 805 mm |
| Taper in spindle | 50 ISO |
| Spindle speeds: | |
| from | 0 t/min |
| up to | 2250 t/min |
| Feeds: | |
| longitudinal from | 1 mm/min |
| up to | 5000 mm/min |
| transversal from | 1 mm/min |
| up to | 5000 mm/min |
| vertical from | 1 mm/min |
| up to | 5000 mm/min |
| Rapid traverse: | |
| all axis | 8 m/min |
| Milling spindle motor | 15 kW |
| Total installed power | 27 kW |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 4700 mm |
| Height | 2715 mm |
| Various accessories: | |

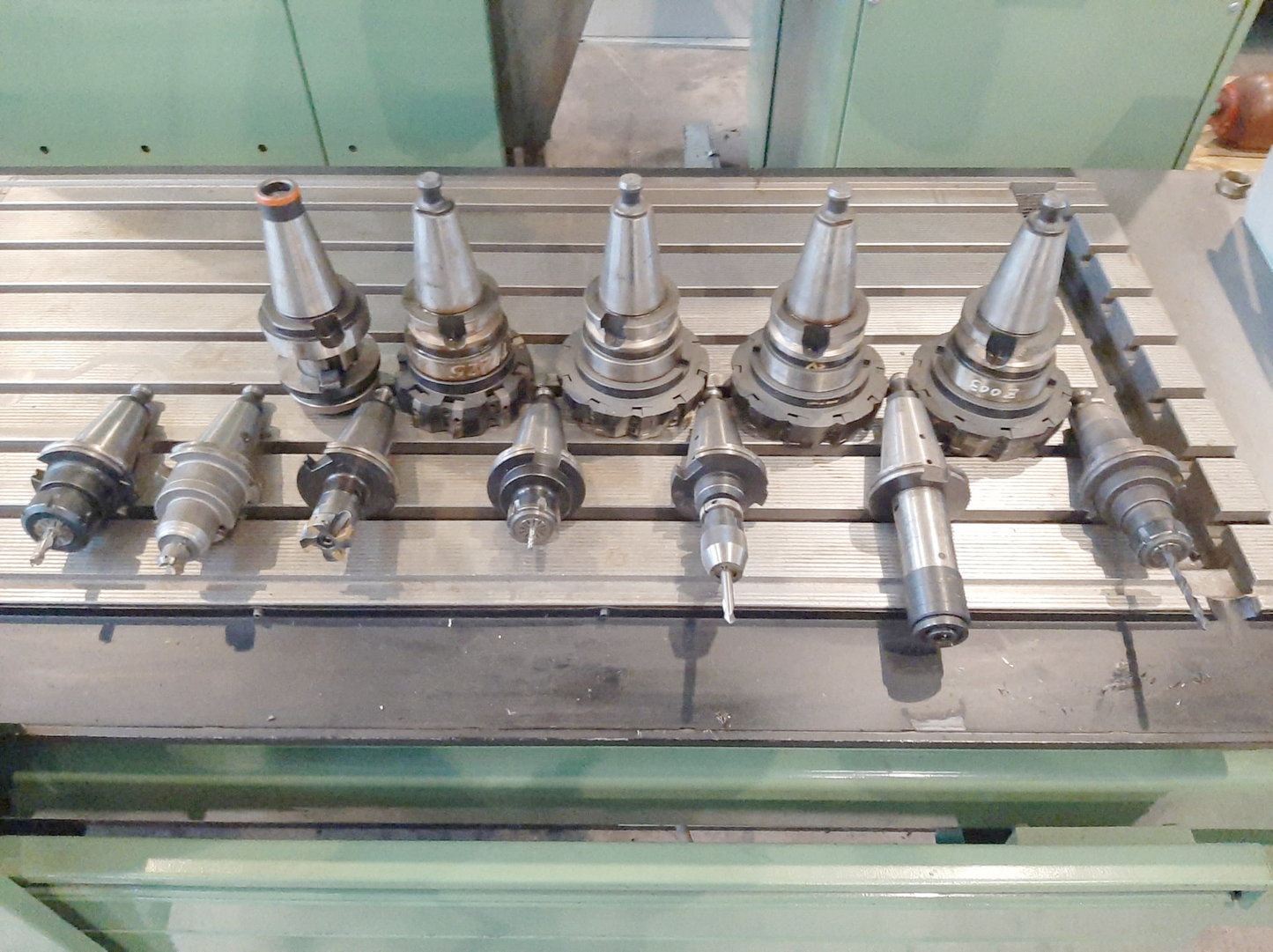

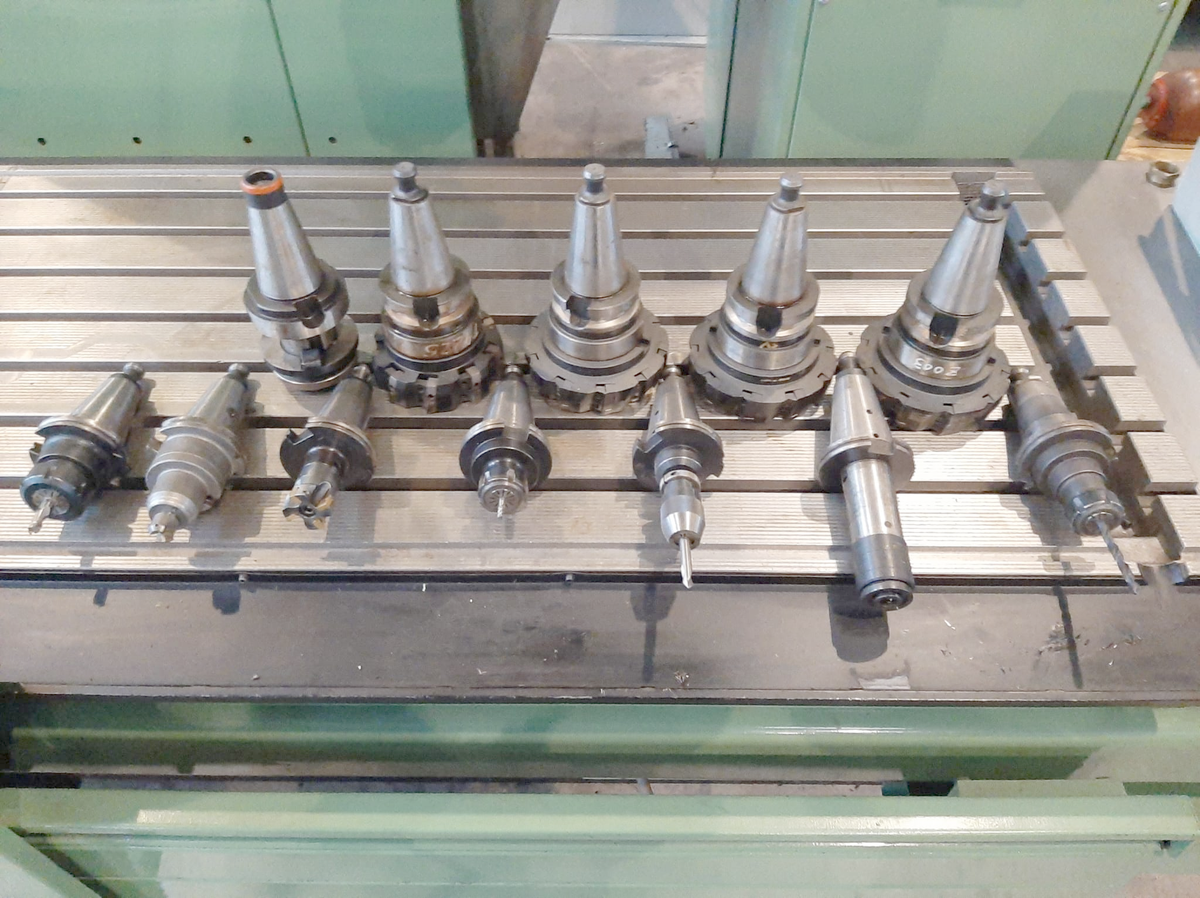

| Set of toolholders | |
| Lamp |
