| Max. work piece diameter | 15 mm |
| Turning length | 70 mm |
| Spindle hole | 15 mm |
| Max. treading diameter | 8 M |
| Production capacity | 28 - 2100 p/h |
| Spindle speeds: | |
| Number of spindle speeds | 12 |
| from | 900 t/min |
| up to | 6500 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1.5 CV |
| Machine's weight about | 650 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 800 mm |
| Height | 1500 mm |
| Various accessories: | |
| Pick-up attachment | |
| Gripper device | |
| Vertical support | |

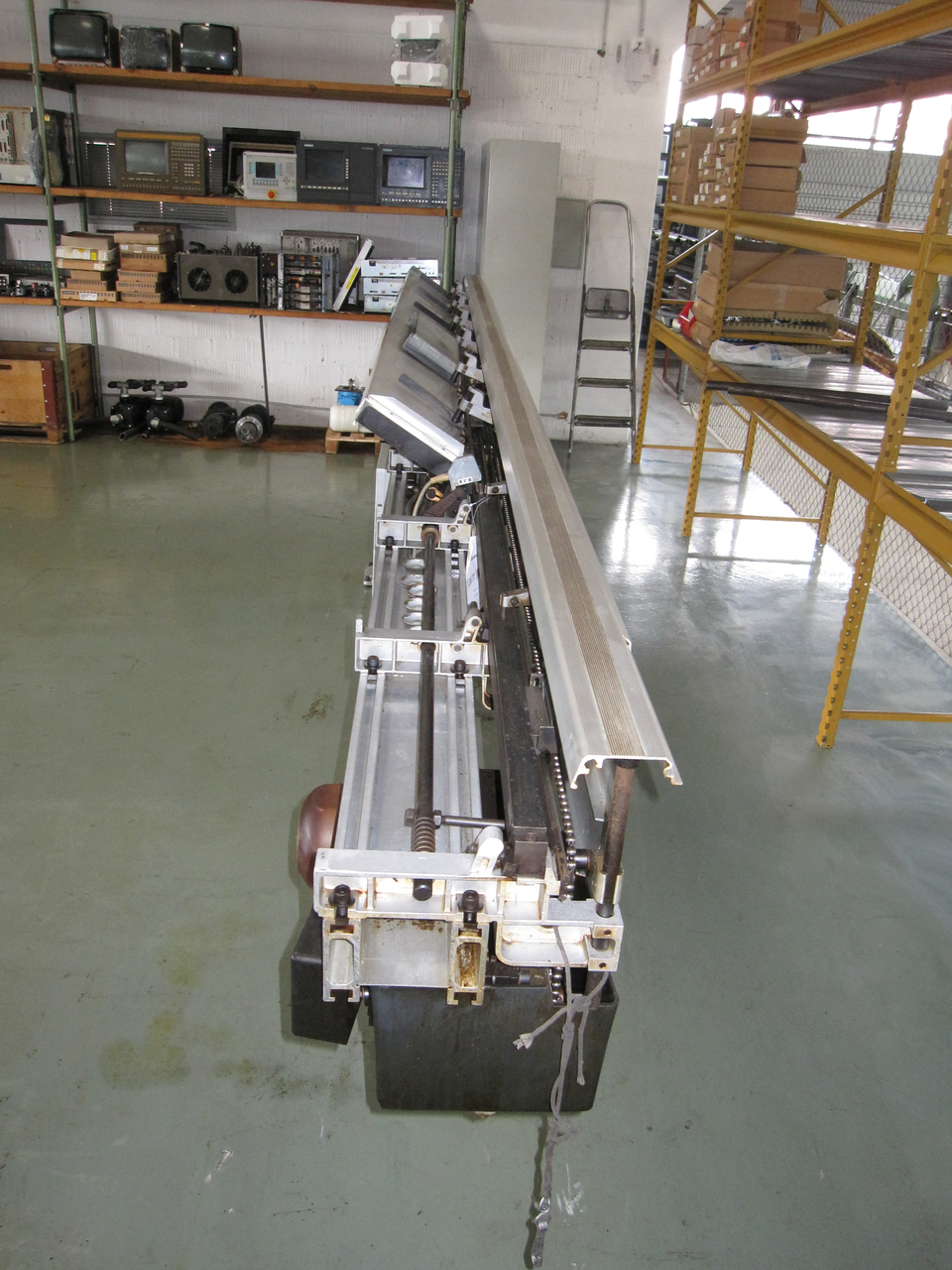

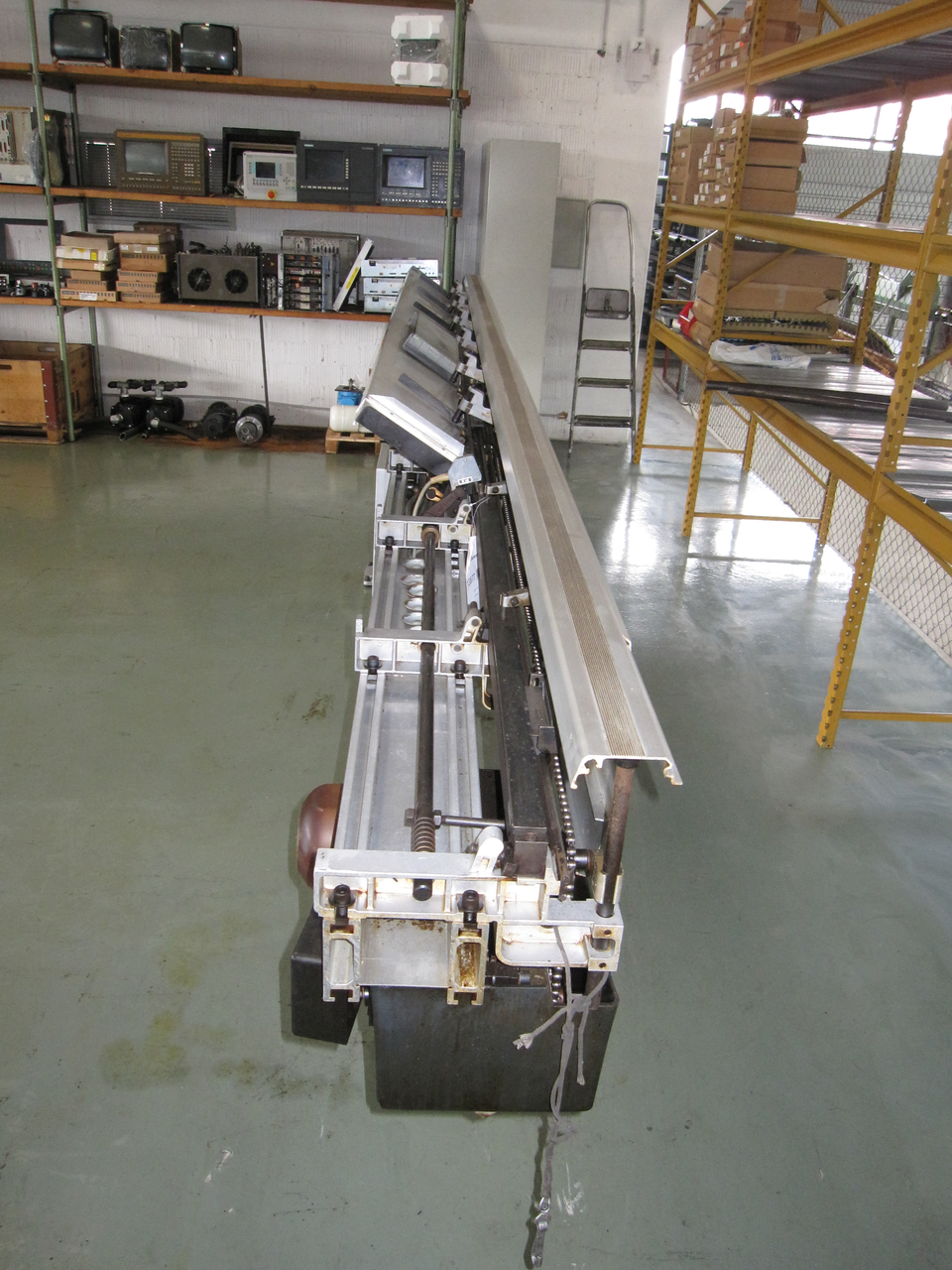

| Bar loader number of bars | TRAUB |
| Type | B3000 |
| Length of bars max. | 3200 mm |
| Slotting attachment | |
| Drilling tailstock | |
| Workpiece counter | |
| Protective cover |
TRAUB A 15 is an Automatic lathe engineered for precision, high accuracy and reliable serial production. Working capacities: max workpiece Ø 15 mm, turning length 70 mm, spindle hole 15 mm, max threading Ø 8 M, output 28–2100 p/h. Main specs: 12 spindle speeds from 900 to 6500 t/min; 50 Hz 3x380 V supply; total power 1.5 CV; weight ~650 kg; dimensions L1200×W800×H1500 mm. Equipment: TRAUB bar loader type B3000 (max bar length 3200 mm), pick-up attachment, gripper device, vertical support, slotting attachment, drilling tailstock, workpiece counter, protective cover. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
