MAGNAGHI RSC 350
Type: RSC 350
Manufacturer: MAGNAGHI
Group: Centerless grinding machine
Subgroup: Centreless grinding machine
Stock: 013181
MAGNAGHI RSC 350 is a Centreless grinding machine, engineered for precision, high accuracy and reliability. Capacities: grinding diameter 2–85 mm; grinding wheel Ø350×120 mm (bore 200 mm); regulating wheel Ø250×120 mm (bore 150 mm); wheel speeds up to 1800 rpm, regulating 18–250 rpm. Specs: 50 Hz 3×380 V; main motor 10 CV; weight ≈2000 kg; dimensions L1800×W1000×H1800 mm. Accessories: set of supporting templates, lamp, balancing attachment Gt Elettronica VM 23, 2 redressing devices. Achieves tight tolerances; suitable for automotive, watchmaking, tooling, aerospace, medical.
| Min. grinding diameter | 2 mm |
| Max. grinding diameter | 85 mm |
| Grinding wheel: | |
| diameter new wheel | 350 mm |
| Width | 120 mm |
| Bore | 200 mm |
| Speeds: | |
| up to | 1800 t/min |
| Regulating spindle: | |
| diameter new wheel | 250 mm |
| Width | 120 mm |
| Bore | 150 mm |
| Speeds: | |
| from | 18 t/min |
| up to | 250 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Main motor | 10 CV |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1000 mm |
| Height | 1800 mm |

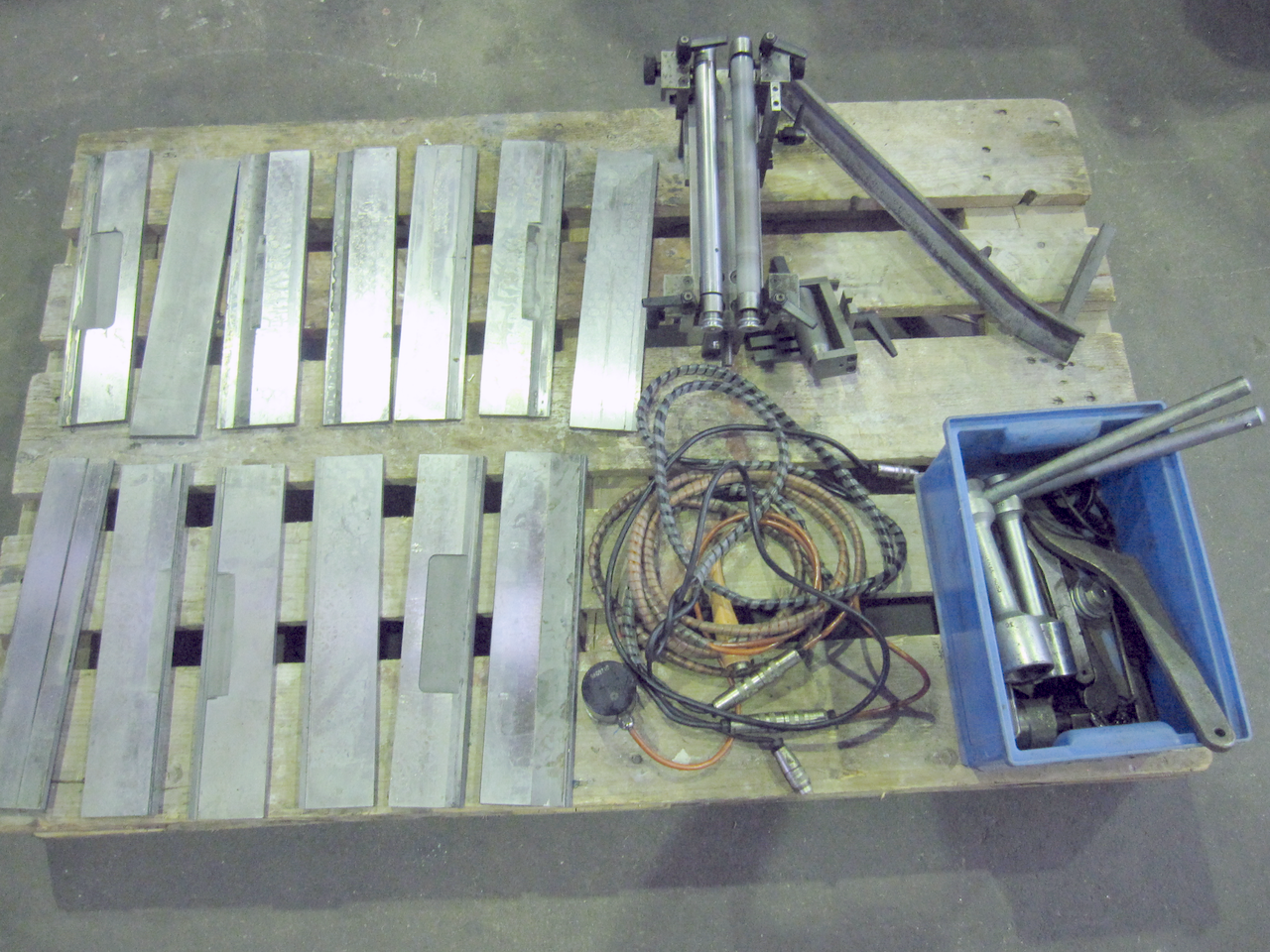

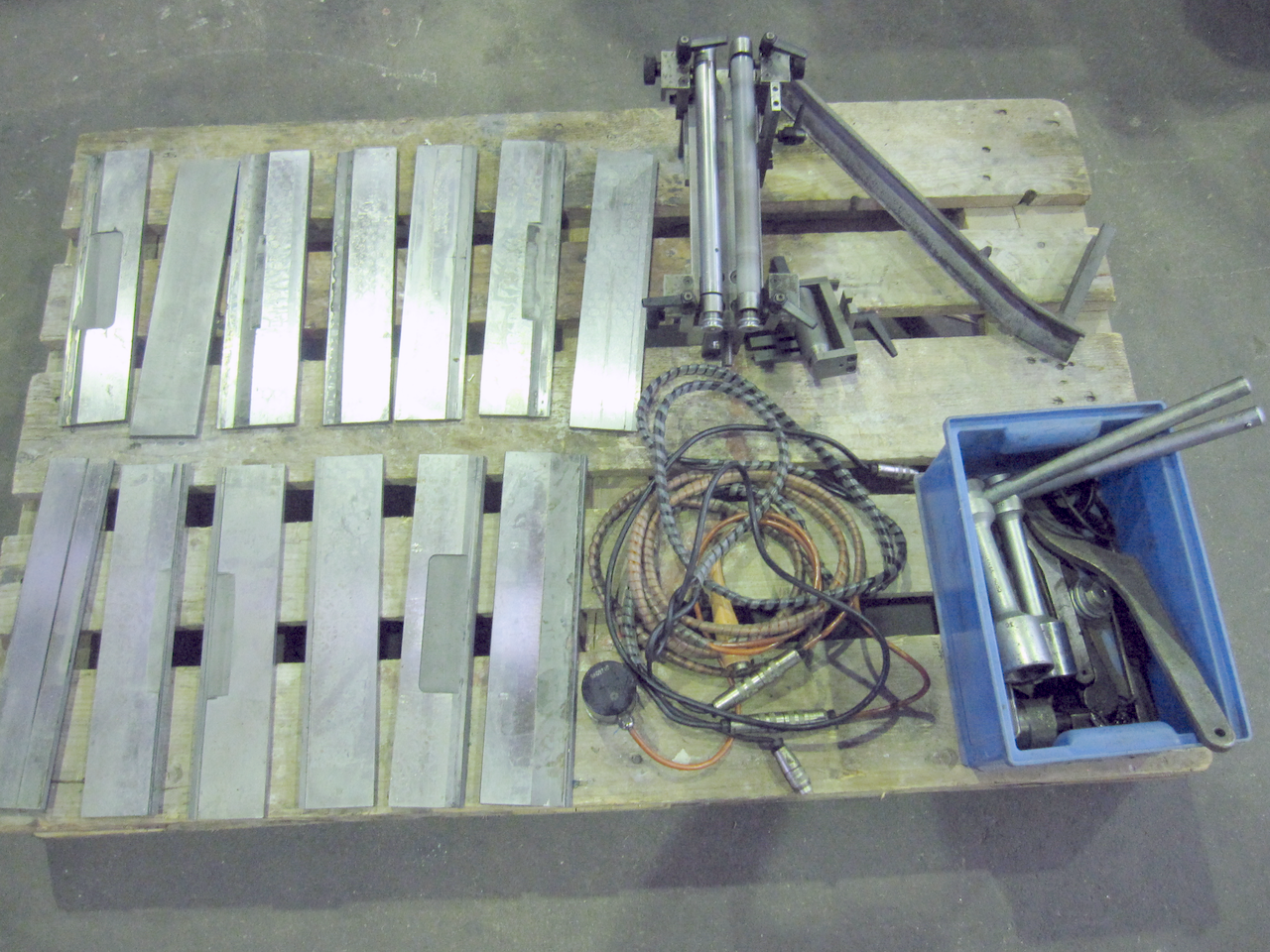

| Various accessories: | |
| Set of supporting templades | |
| Lamp | |
| Balancing attachment | Gt Elettronica VM 23 |
| Redressing device | 2 x |
