ACIERA F 4 is a universal milling machine for precision work, providing high accuracy and reliability. Table 800×250 mm; travels X400 Y175 Z450 mm; quill 60 mm; spindle ISO30 50–3400 rpm. Feeds 12–360 mm/min; rapid 1.8 m/min. Power 3×380 V 50 Hz; motor 2.5 CV; weight ~900 kg; dims 1200×900×1600 mm. Accessories: motorized vertical table adjustment, coolant, steady, lamp. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 800 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y axis) | 175 mm |
| Vertical travel (z axis) | 450 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 3400 t/min |
| Taper in spindle | 30 ISO |
| Feeds stepless: | |
| longitudinal from | 12 mm/min |
| up to | 360 mm/min |
| vertical from | 12 mm/min |
| up to | 360 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 1.8 m/min |
| vertical | 1.8 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.5 CV |
| Machine's weight about | 900 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Motorized table adjustment vertically | |
| Coolant system | |

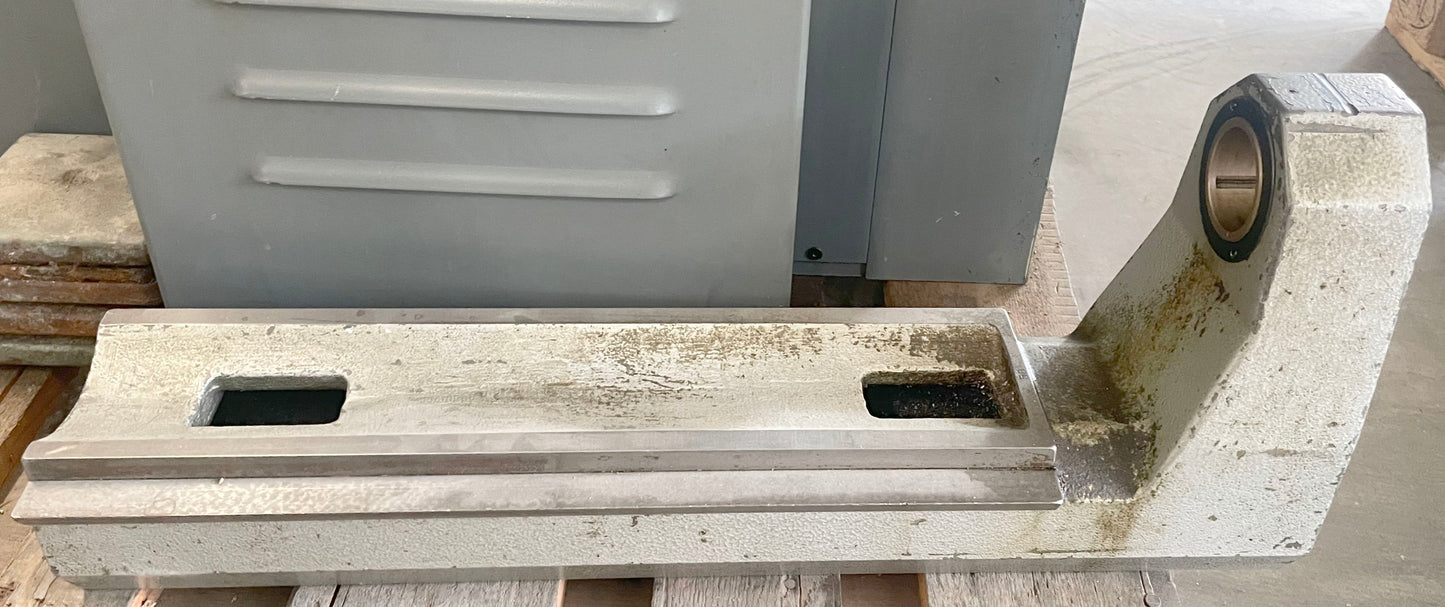

| Steady | |
| Lamp |
