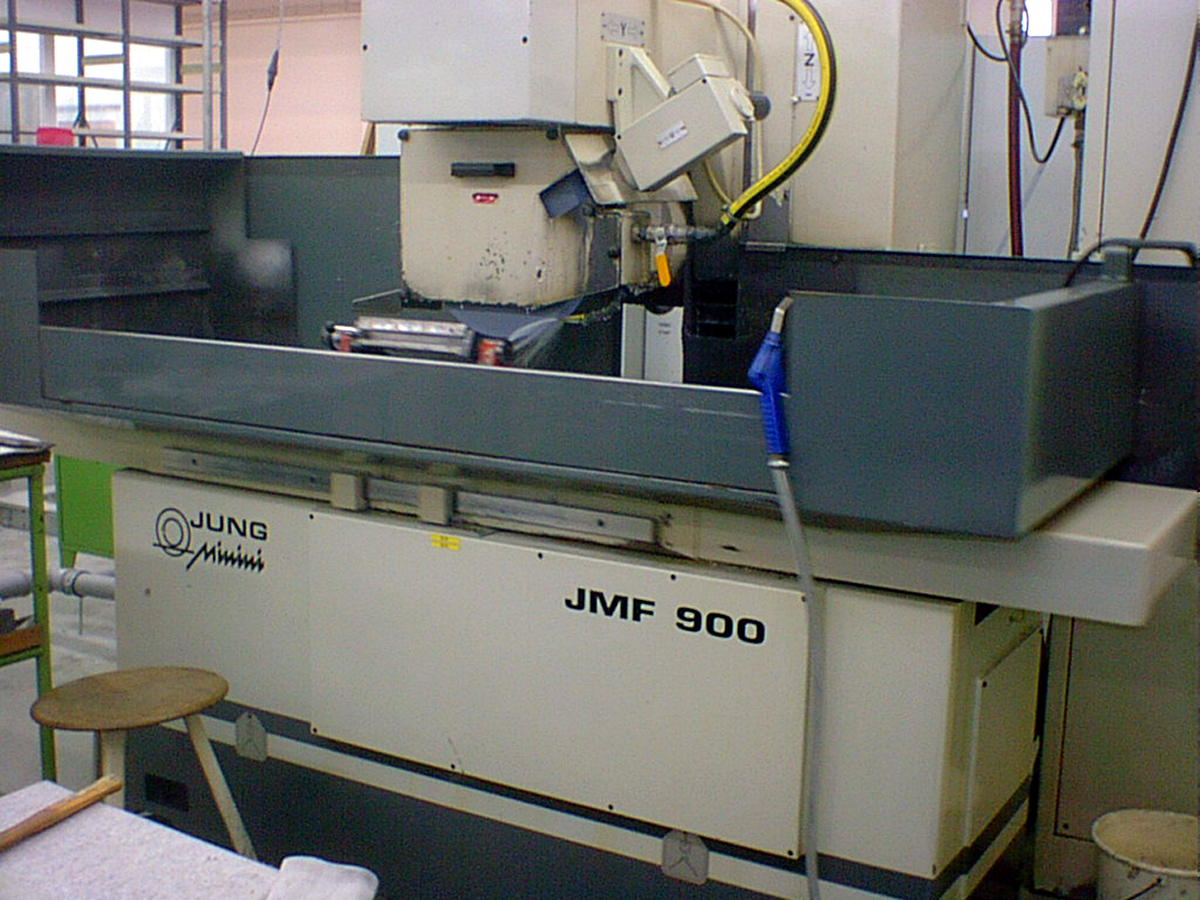

JUNG Minini JMF 900
Type: Minini JMF 900
Manufacturer: JUNG
Group: CNC surface grinder
Subgroup: CNC Surface grinder
Control: MOD. 58 CN
Stock: 012405
JUNG Minini JMF 900 is a CNC Surface grinder, engineered for precision, high accuracy and reliability. Table 900x400 mm; travels X 1000 mm, Z 500 mm, Y 400 mm; table load max 1000 kg; grinding wheel Ø400x50 mm. Grinding spindle motor 7.5 kW, voltage 3x380 V 50 Hz; machine length 3000 mm. Accessories: magnetic plate 800x500 mm, redressing device, set of flanges, balancing arbor, lamp. Capable of tight tolerances; typical applications include automotive, aerospace, machine tools, medical and watchmaking.
| Table length | 900 mm |
| Table width | 400 mm |
| Axial motion: | |
| Longitudinal travel (X-axis) | 1000 mm |
| Cross travel (z-axis) | 500 mm |
| vertical travel (Y-axis) | 400 mm |
| Table load max. | 1000 kg |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 50 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 7.5 kW |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Various accessories: | |
| Magnetic plate: | |
| Length | 800 mm |
| Width | 500 mm |
| Redressing device | |
| Set of flanges | |
| Balancing arbor | |
| Lamp |
