SF 26 is a SCHÜTTE multi-spindle turning lathe, engineered for precision, high accuracy and reliability. Capacities: 6 spindles; round bar capacity 26 mm; max bar advance 80 mm; max turning length 40 mm; long-slide stroke 63/39.6 mm; up to 31 parts; cycle time up to 95 s. Specs: 355–5000 rpm; 50 Hz 3x 380 V; 15 kW; weight ≈4000 kg; dimensions L3125×W1030×H2000 mm. Equipment: IEMCA PRA 40/33P bar loader, 2 longitudinal slides, 6 drilling units with independent feed, 1 thread-rolling attachment, 6-position turret, tangential threading device. Delivers tight tolerances; typical sectors: automotive, watchmaking, tooling, aerospace, medical.
| Number of spindles | 6 |
| Capacity round bar | 26 mm |
| Max. advance of bar | 80 mm |
| Max. turning length | 40 mm |
| Max. stroke of long slide | 63 / 39.6 mm |
| Number of possible pieces | 31 |
| Machining rate: | |
| from | s |
| up to | 95 s |
| Spindle speeds: | |
| from | 355 t/min |
| up to | 5000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 15 kW |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3125 mm |
| Width | 1030 mm |
| Height | 2000 mm |
| Various accessories: | |

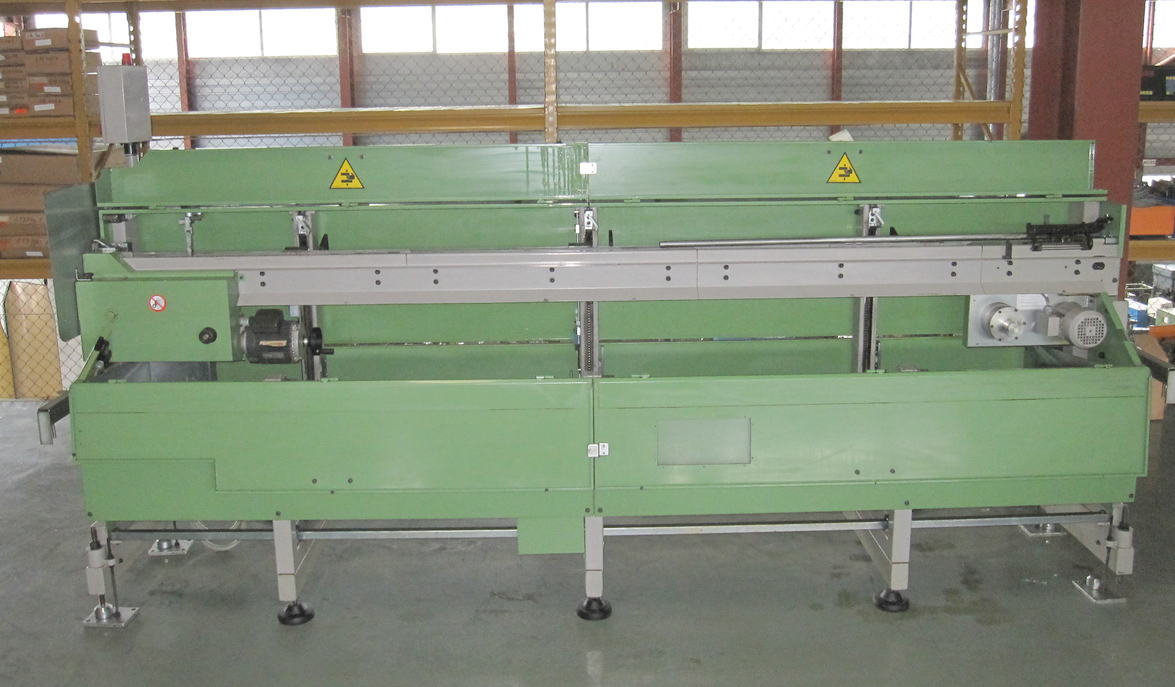

| Automatic bar loader (num. bars) | IEMCA PRA 40/33P |
| Coolant system | |
| Thread rolling attachment | 1 x |
| Longitudinal slide number | 2 |
| Drilling unit with independent feed | 6 x |
| Appareil à rouler les filêts à commande mécanique | |
| Tool break control | |
| Turret number of tools | 6 x |
| Threading attachment | tangent. |
