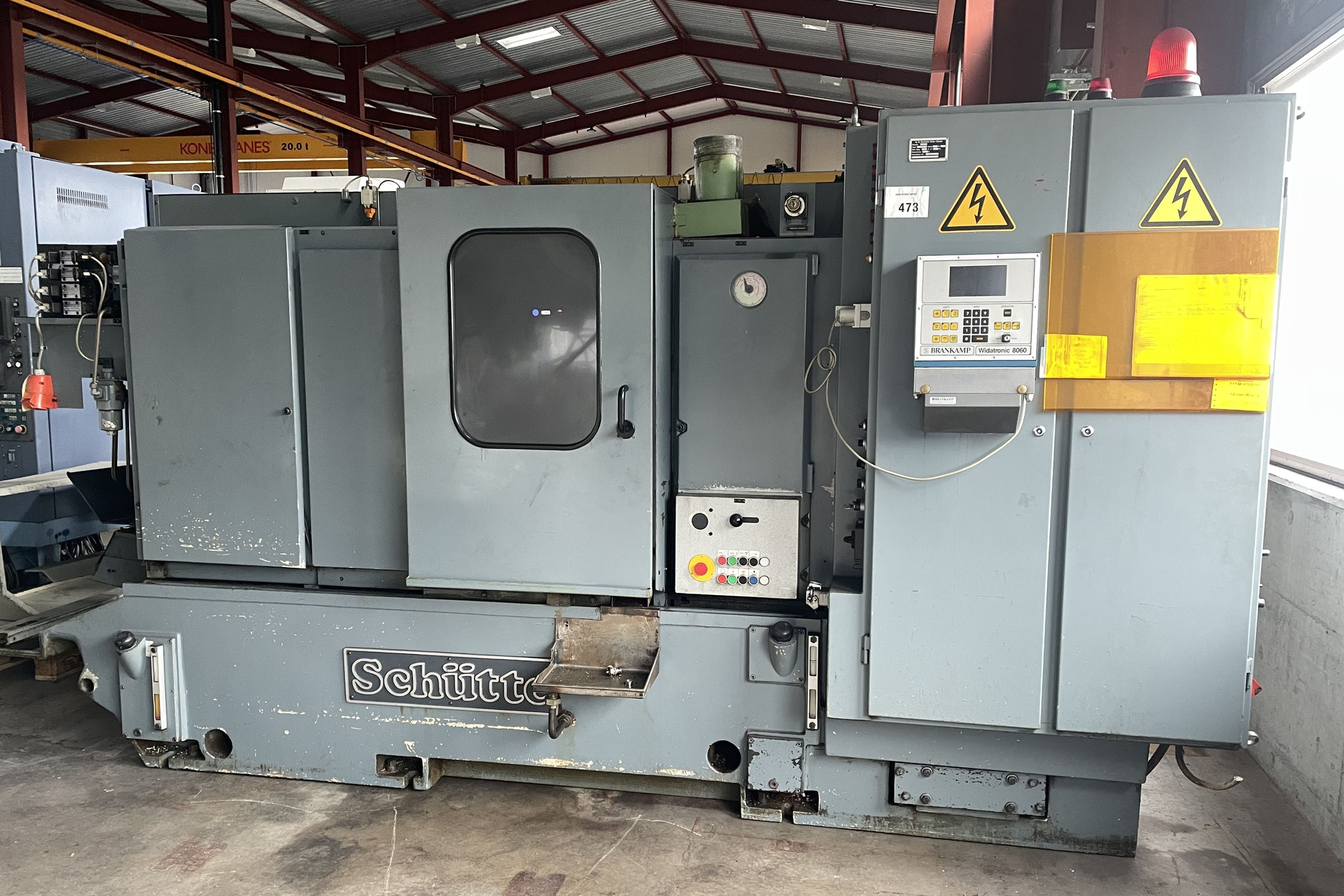

SCHÜTTE SF 26 is a Multi-spindle turning lathe engineered for precision machining with high accuracy and reliability. Capacities: 6 spindles, 26 mm bar capacity, max bar advance 80 mm, max turning length 40 mm, long-slide stroke 63/39.6 mm, 2 longitudinal slides, up to 31 parts; cycle time up to 95 s; spindle speeds 355–5000 rpm. Technical: 50 Hz 3x380 V supply, 15 kW, weight approx. 4000 kg, dimensions L3125×W1030×H2000 mm. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of spindles | 6 |
| Capacity round bar | 26 mm |
| Max. advance of bar | 80 mm |
| Max. turning length | 40 mm |
| Max. stroke of long slide | 63 / 39.6 mm |
| Number of possible pieces | 31 |
| Machining rate: | |
| from | s |
| up to | 95 s |
| Spindle speeds: | |
| from | 355 t/min |
| up to | 5000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 15 kW |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3125 mm |
| Width | 1030 mm |
| Height | 2000 mm |
| Various accessories: | |

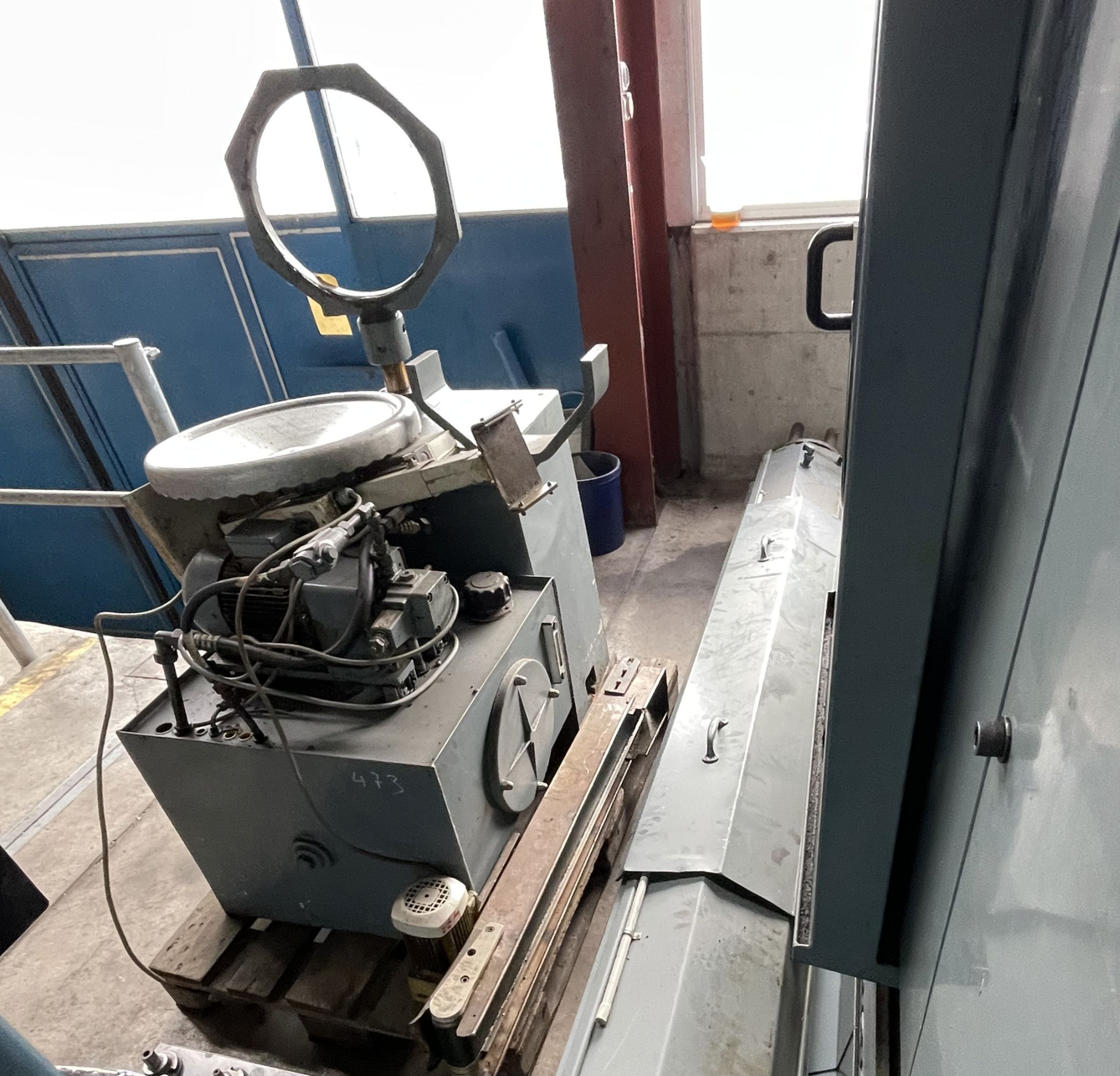

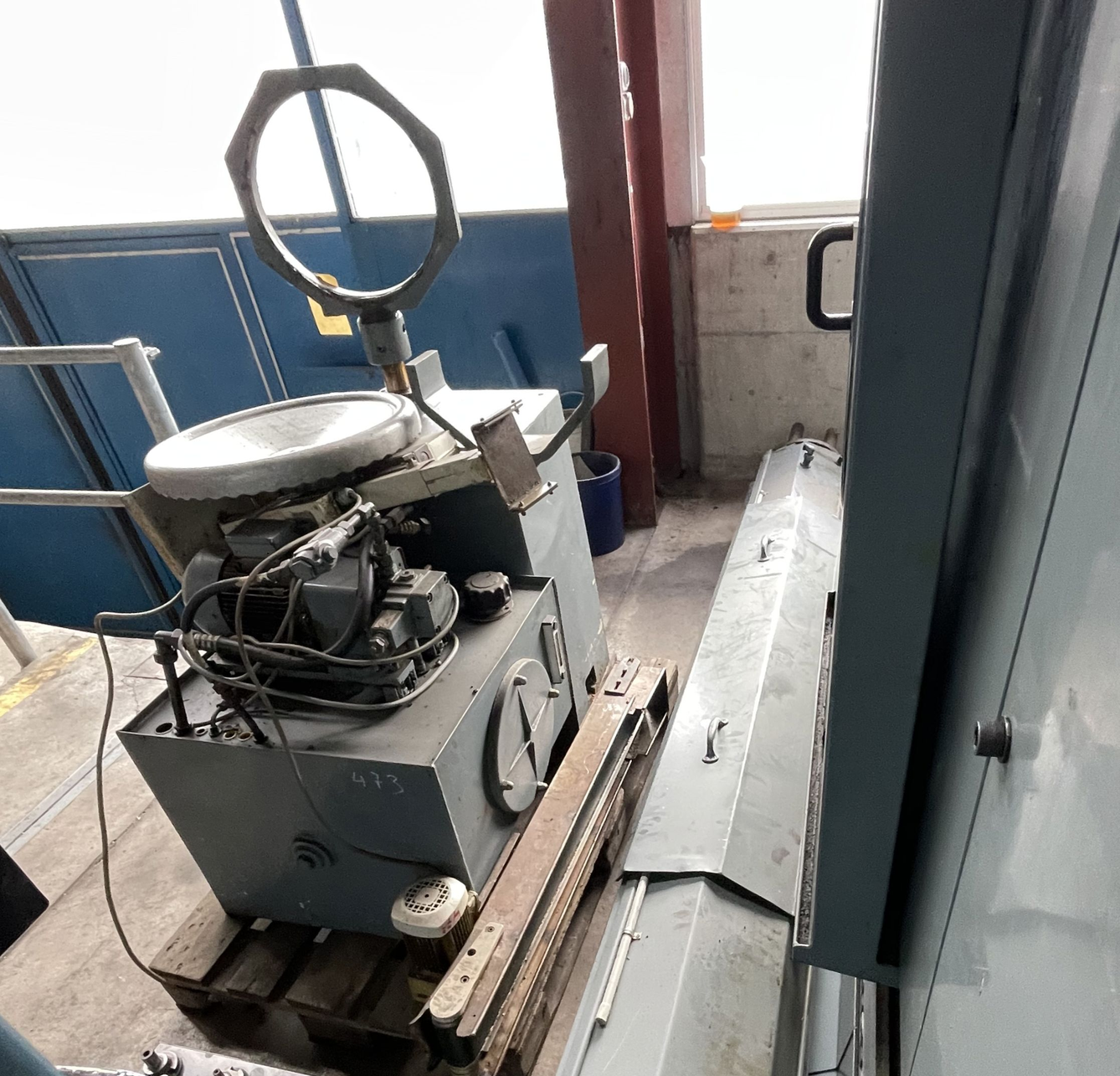

| Bar feeder | |
| Longitudinal slide number | 2 |

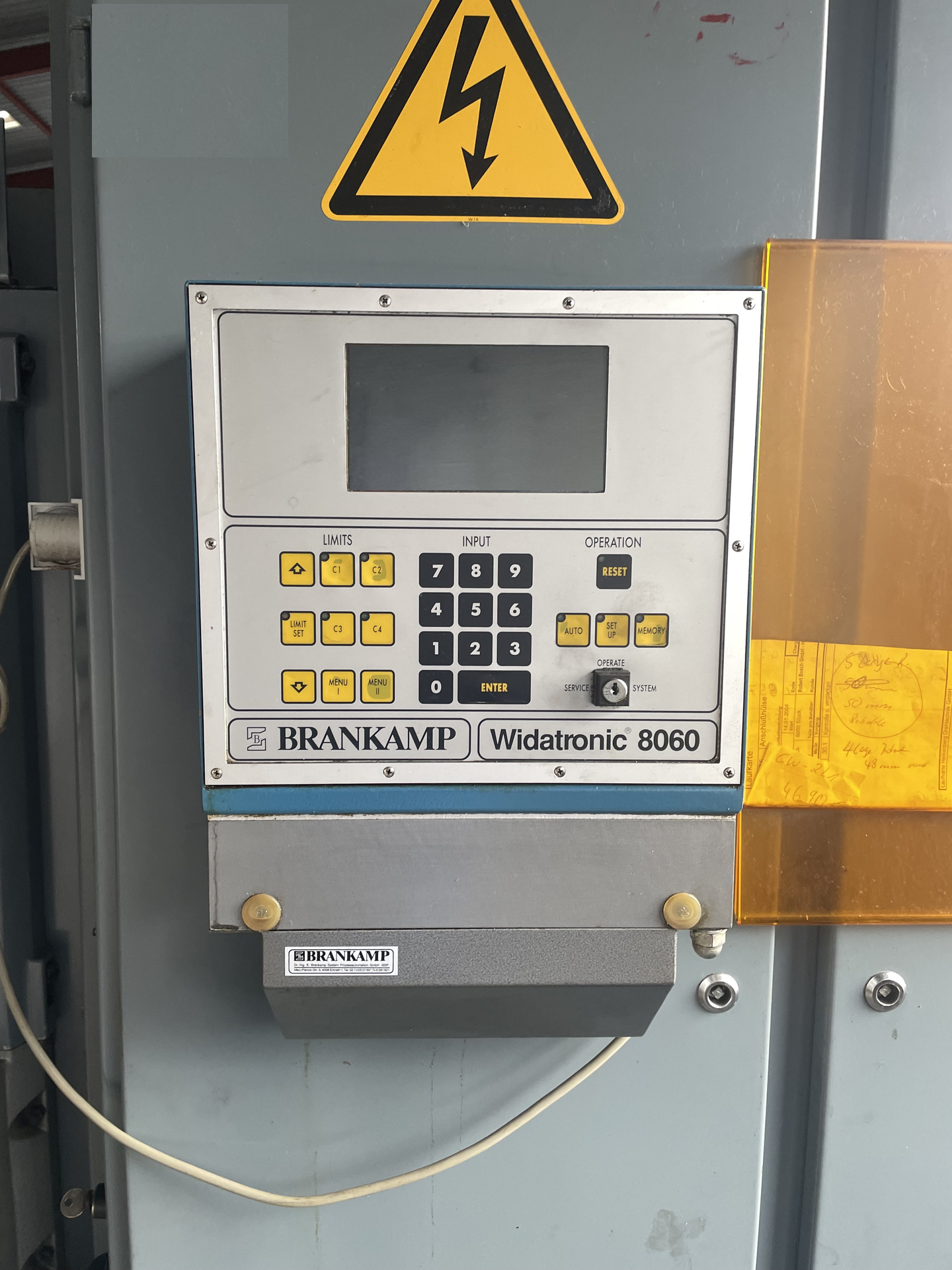

| Tool break control | |
| Back working unit |
