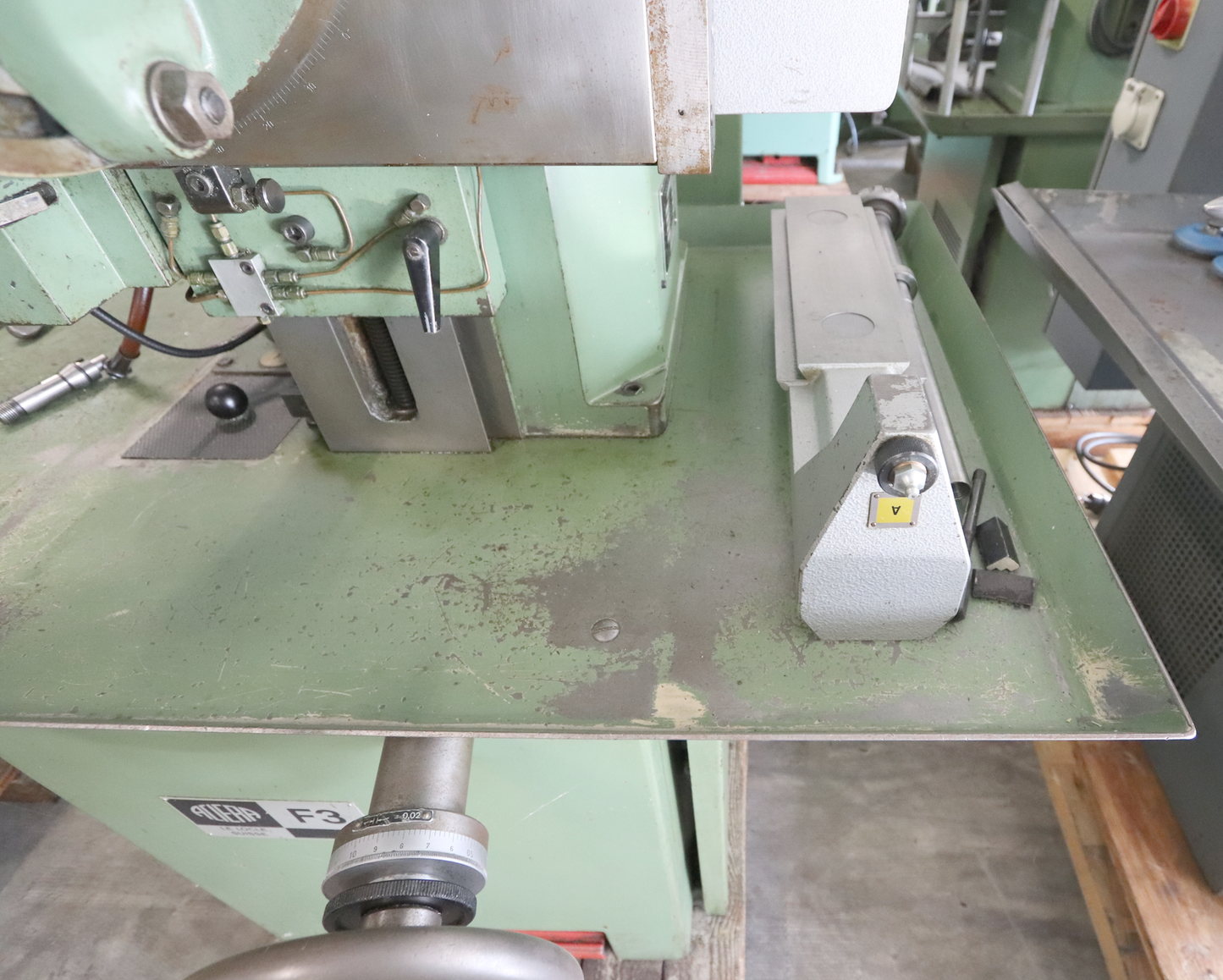

ACIERA F 3 is a Universal milling machine engineered for precision machining with high accuracy and proven reliability. Table 600×190 mm; travels X 300 mm, Y 135 mm, Z 300 mm; distance vertical spindle–table 260 mm, horizontal spindle–table 310 mm. Spindle 8 steps 100–2000 t/min, taper 20 W. Feeds 8 steps, longitudinal 12–116 mm/min. Supply 50 Hz 3x380 Volt; motor 2.0 CV; total installed power 3 CV; weight ≈600 kg; overall 1100×900×1600 mm. Accessories: vice (jaw width 100 mm), tilting table, vertical milling head. Designed to achieve tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 600 mm |
| Table width | 190 mm |
| Longitudinal travel (X-axis) | 300 mm |
| Transversal travel (y axis) | 135 mm |
| Vertical travel (z axis) | 300 mm |
| Distance from vertical spindle to table | 260 mm |
| Distance from horizontal spindle to table | 310 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 100 t/min |
| up to | 2000 t/min |
| Taper in spindle: | 20 W |
| Feeds steps: | 8 |
| longitudinal from | 12.0 mm/min |
| up to | 116 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.0 CV |
| Total power required | 3 CV |
| Machine's weight about | 600 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |
| Vice: width | 100 mm |
| Tilting table | |
| Vertical milling head |
