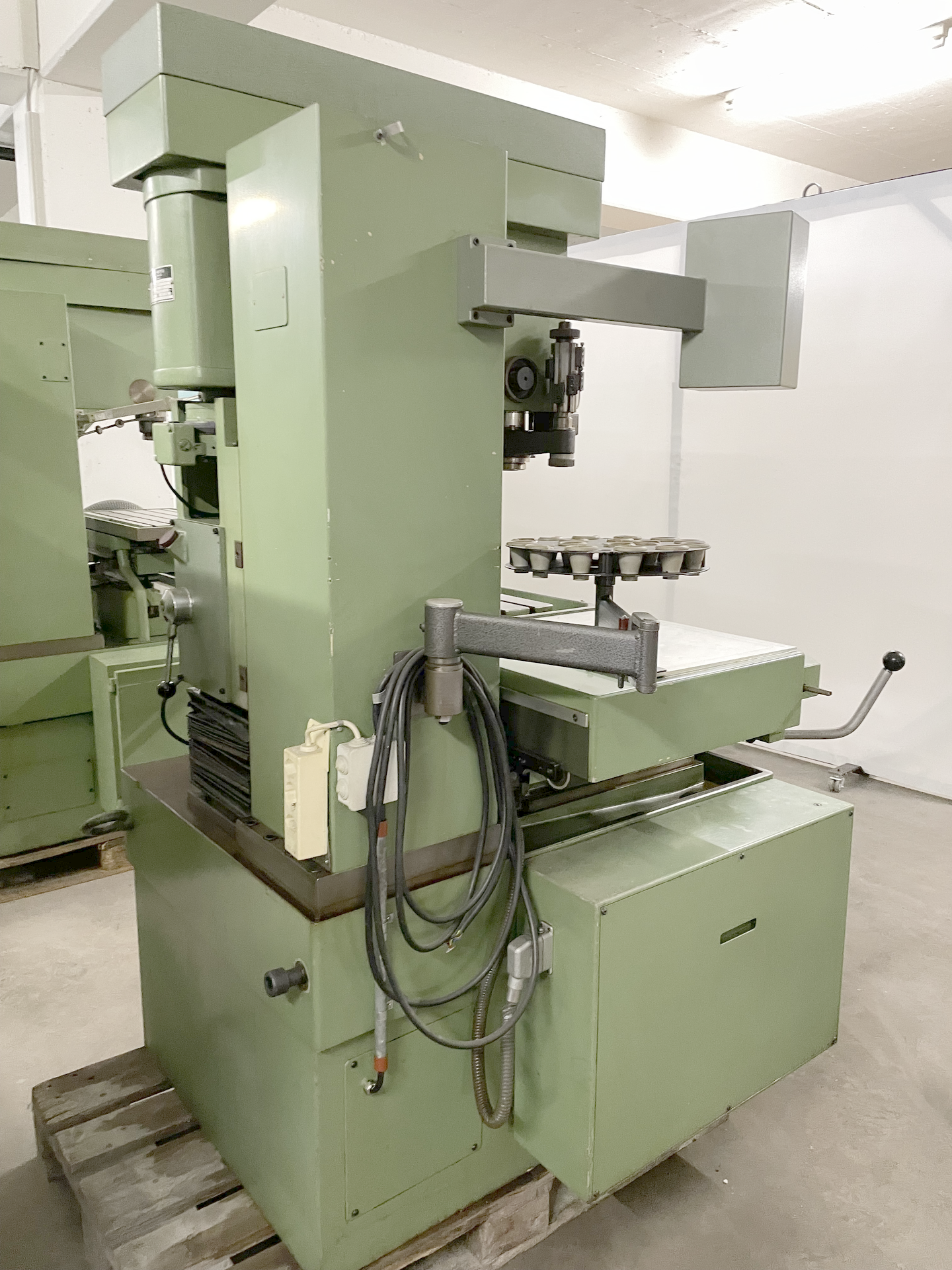

ACIERA 23 TR 50 is a pillar drilling machine engineered for outstanding precision, high accuracy and reliable performance. Working capacities: drill capacity in steel up to Ø23 mm, throat 365 mm, spindle stroke 120 mm; table 660×519 mm, clamping surface 520×410 mm, T‑slot 14H8 mm; travels X 400 mm, Y 285 mm. Main specs: 8 spindle speeds from 45 to 4000 t/min, 6 feeds from 0.06 to 1.2 mm/t, 3×380 V 50 Hz supply, total power 5 CV; weight ≈1500 kg; footprint 1600×1200×2000 mm. Accessories: 2‑axis digital readout, BREGNARD table, tool holder deposit. Delivers tight tolerances; suitable for machine building, automotive, aerospace, medical and watchmaking industries.
| Table length | 660 mm |
| Table width | 519 mm |
| Clamping surface: | |
| Length | 520 mm |
| Width | 410 mm |
| T-channel width | 14H8 mm |
| Drill capacity in steel | 23 mm |
| Depth of throat | 365 mm |
| Drill depth (spindle stroke) | 120 mm |
| Table travels: | |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 285 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 45 t/min |
| up to | 4000 t/min |
| Feeds: | |
| number (steps) | 6 |
| from | 0.06 mm/t |
| up to | 1.2 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 5 CV |
| Machine's weight about | 1500 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1200 mm |
| Height | 2000 mm |
| Various accessories: | |
| Digital readout number of axis: | 2 |
| Tool holder deposit | |
| BREGNARD table |
