| Min. diameter threaded | 4 mm |
| Max. diameter threaded | 20 mm |
| Min. pitch | 1 mm |
| Max. pitch | 3 mm |
| Max. roll die diameter | 118 mm |
| Roll die width | 50 mm |
| Shaft distance: | |
| min. | 100 mm |
| max | 135 mm |
| Shaft diameter | 40 mm |
| Roll speeds: | |
| up to | 80 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 2 kW |
| Machine's weight about | 750 kg |
| Overall dimensions machine: | |
| Length | 1170 mm |
| Width | 740 mm |
| Height | 1050 mm |
| Various accessories: | |

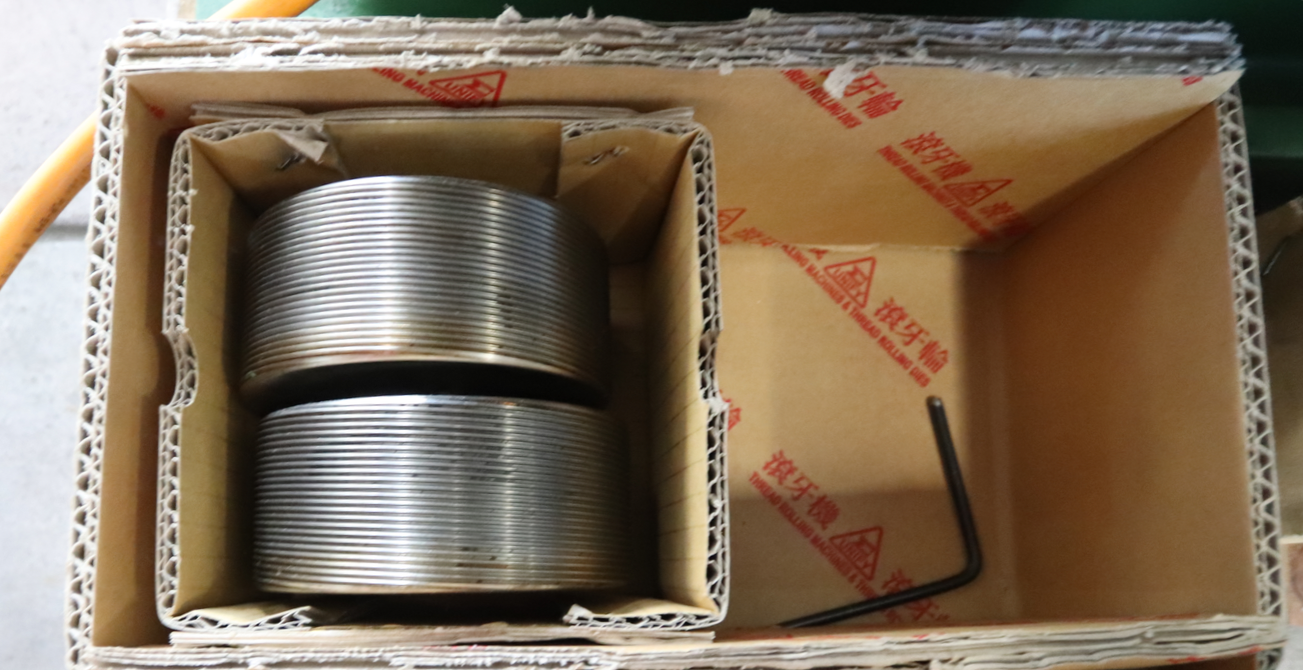

| Set of thread rolls | |
| Lamp | |
| Set of service tools |
