ACIERA 23 is a Pillar drilling machine engineered for precision work, high accuracy and reliability. Capacities: table 760×400 mm, clamping surface 600×320 mm, T‑slot 12H8, table height 810 mm; drilling Ø23 mm, tapping M18, spindle stroke 120 mm, table‑to‑spindle nose 110–570 mm; travels X500 Y300 Z460 mm. Specs: stepless spindle 45–4000 rpm, vertical feed up to 800 mm/min, quill feed 6 steps 0.04–0.6 mm/rev; supply 3×380 V 50 Hz; weight ≈2050 kg; dims 1700×1400×2100 mm. Accessories: 2‑axis DRO ACU RITE, threading device, lamp, quick‑change, clamping set, spindle brake, turret stop. Achieves tight tolerances; suitable for automotive, machine tools, aerospace, medical, watchmaking.
| Table length | 760 mm |
| Table width | 400 mm |
| Clamping surface: | |
| Length | 600 mm |
| Width | 320 mm |
| T-channel width | 12H8 mm |
| Height of table above floor | 810 mm |
| Drill capacity in steel | 23 mm |
| Threat cutting in steel M | 18 |
| Drill depth (spindle stroke) | 120 mm |
| Max. distance from table | |
| to spindle nose | 110 - 570 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 300 mm |
| Vertical travel (z axis) | 460 mm |
| Spindle speeds: | |
| stepless | |
| from | 45 t/min |
| up to | 4000 t/min |
| Vertical feeds: | |
| from | mm/min |
| up to | 800 mm/min |
| Quill feed speed: | |
| number (steps) | 6 |
| from | 0.04 mm/t |
| up to | 0.6 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 2050 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 1400 mm |
| Height | 2100 mm |
| Various accessories: | |
| Digital readout number of axis: | 2 |
| Manufacturer | ACU RITE |
| Threading device | |
| Lamp | |
| Quick change device | |

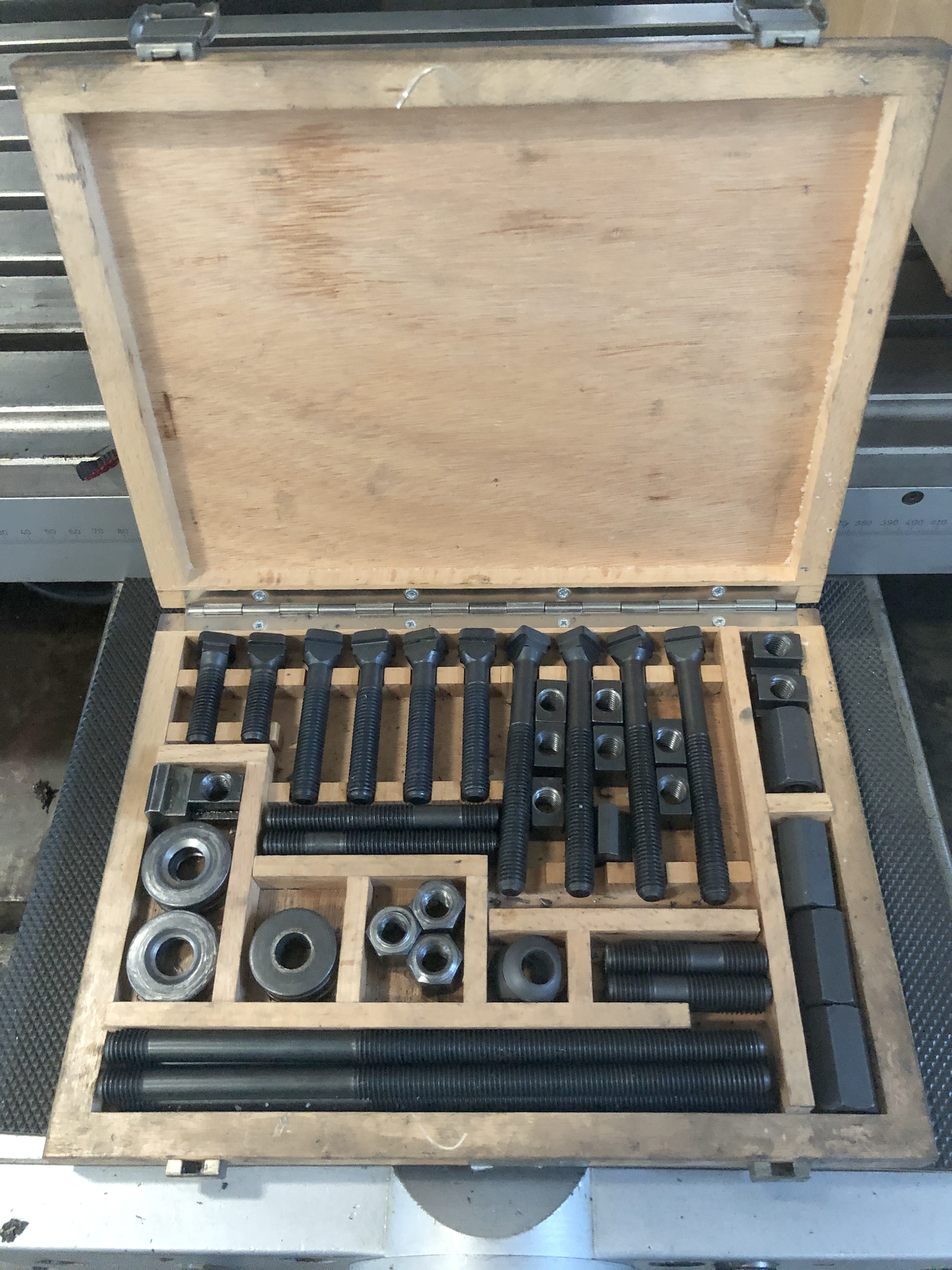

| Set of clamping tools | |
| Spindle brake | |
| Turret stopping device |
