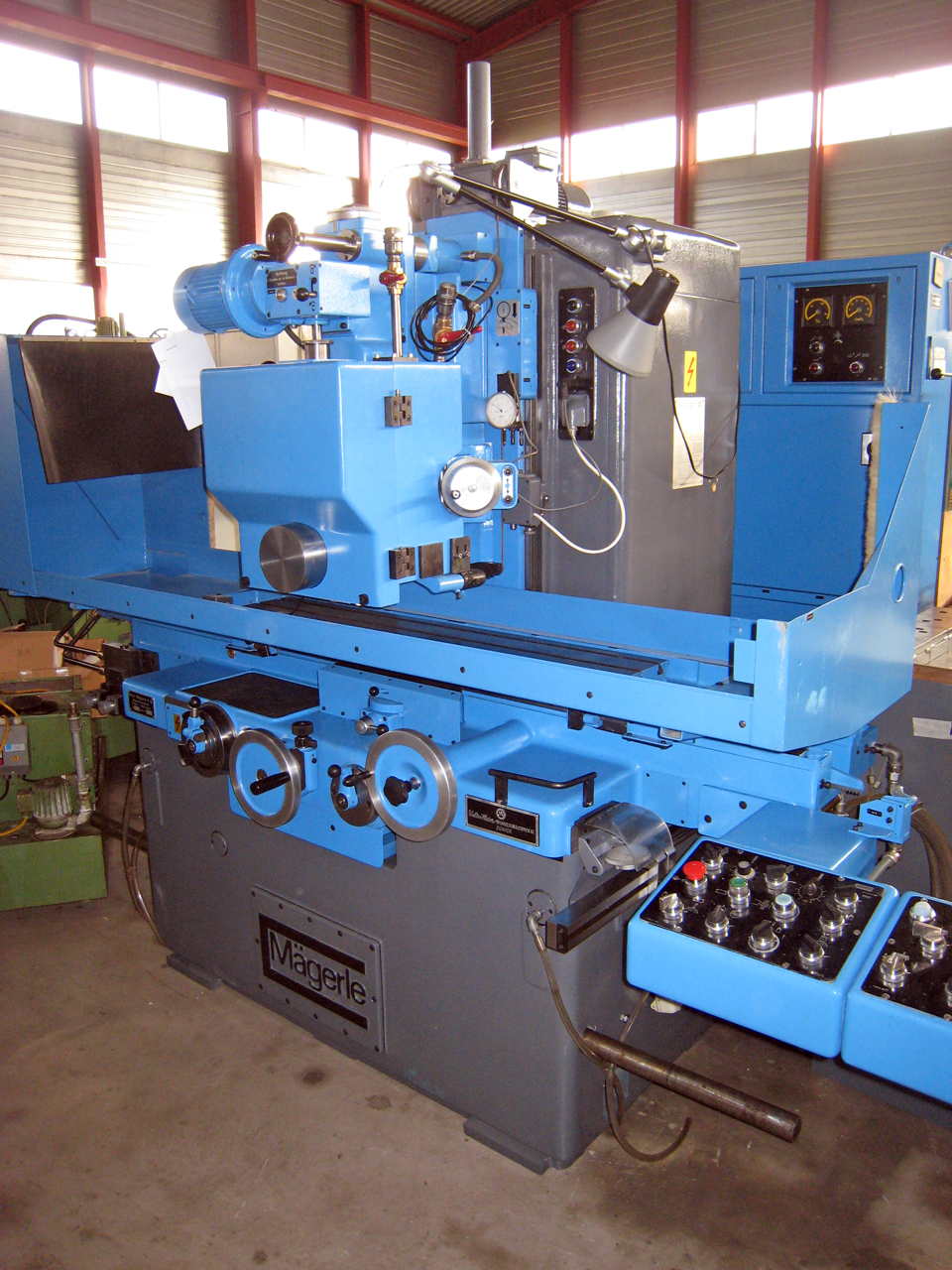

MÄGERLE FPA 12 S41
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Table length | 1250 mm |
| Table width | 240 mm |
| Number of T-channels | 3 |
| T-channel width | 14H7 mm |
| Distance of the T-slots | 80 mm |
| Clamping surface | mm |
| Length | 1250 mm |
| Width | 240 mm |
| Grinding length | 1200 mm |
| Grinding width | 370 mm |
| Execution: | |
| with automatic cycle | |
| Max. distance from table | |
| to spindle-centreline | 130 - 600 mm |
| Longitudinal travel (X-axis) | 1330 mm |
| Transversal travel (y axis) | 270 mm |
| Table speeds: | |
| stepless | |
| from | 3 m/min |
| up to | 30 m/min |
| Diameter of grinding wheel | 300 mm |
| Width of the grinding wheel | 50 mm |
| Wheel int. diameter | 127 mm |
| Grinding wheel speeds: | |
| up to | 2180 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3700 mm |
| Width | 1750 mm |
| Height | 2450 mm |

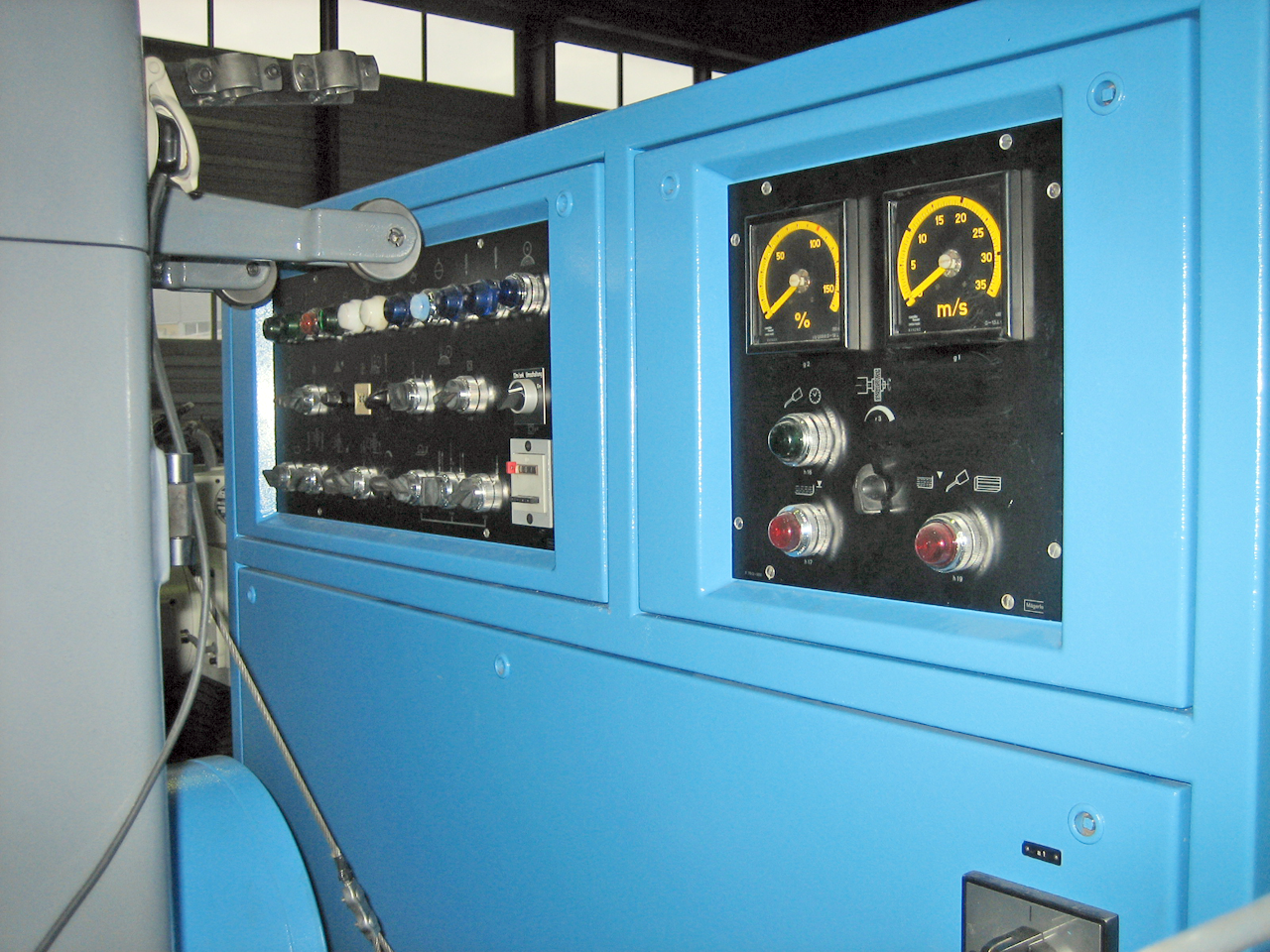

| Dimensions electric cabinet: | |
| Length | 1750 mm |
| Width | 500 mm |
| Height | 2000 mm |
| Various accessories: | |

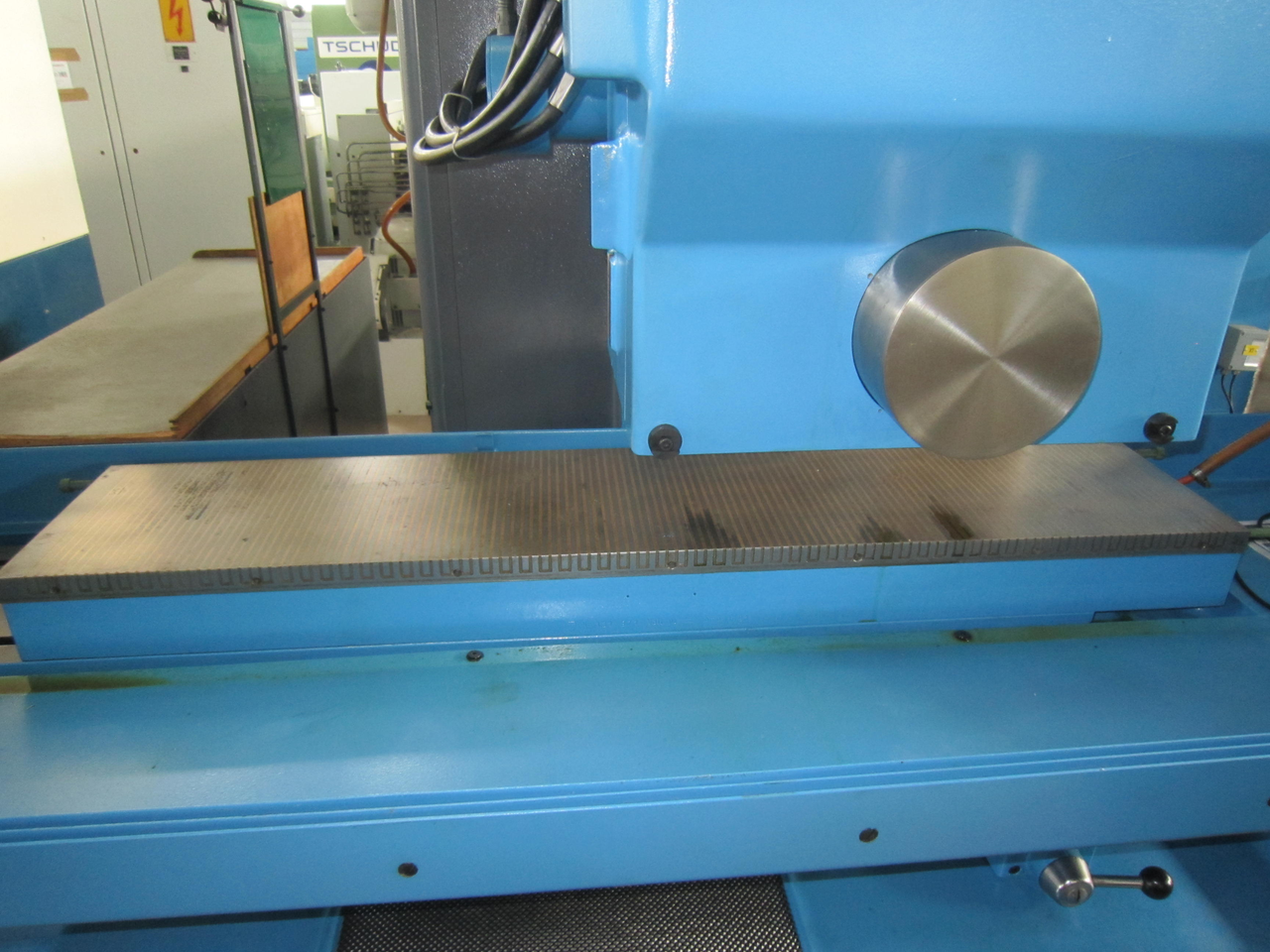

| Magnetic plate: | |
| Length | 700 mm |
| Width | 200 mm |

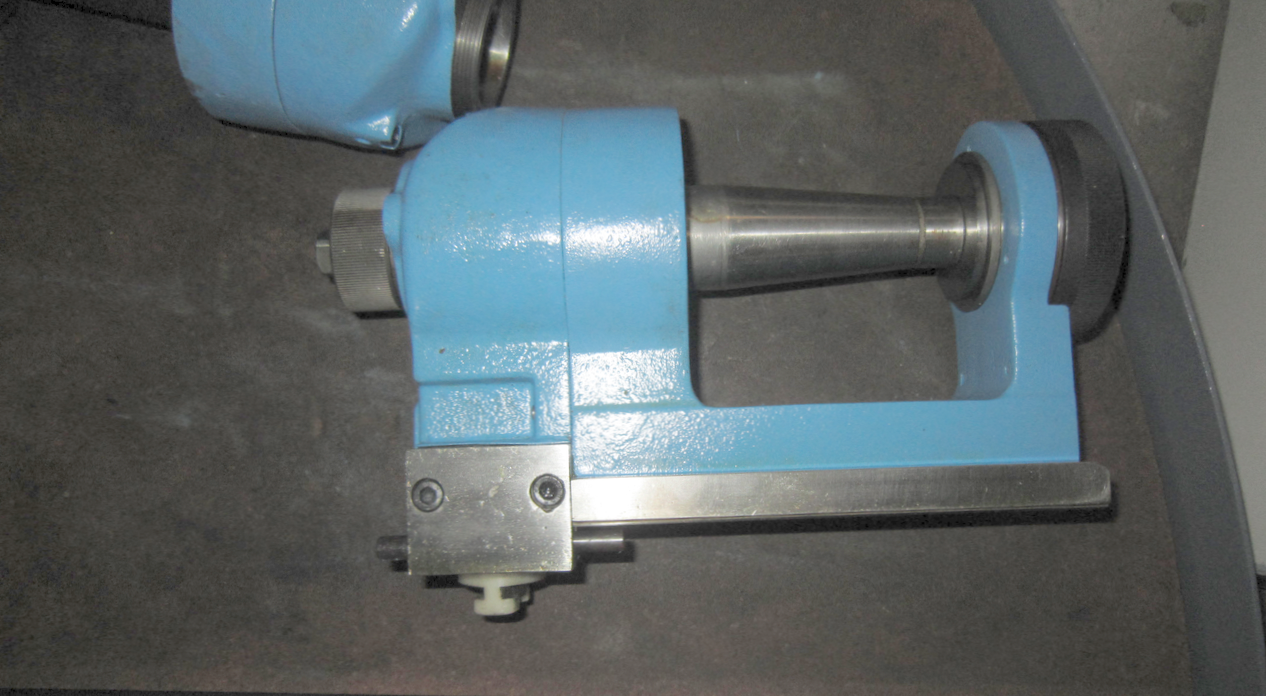

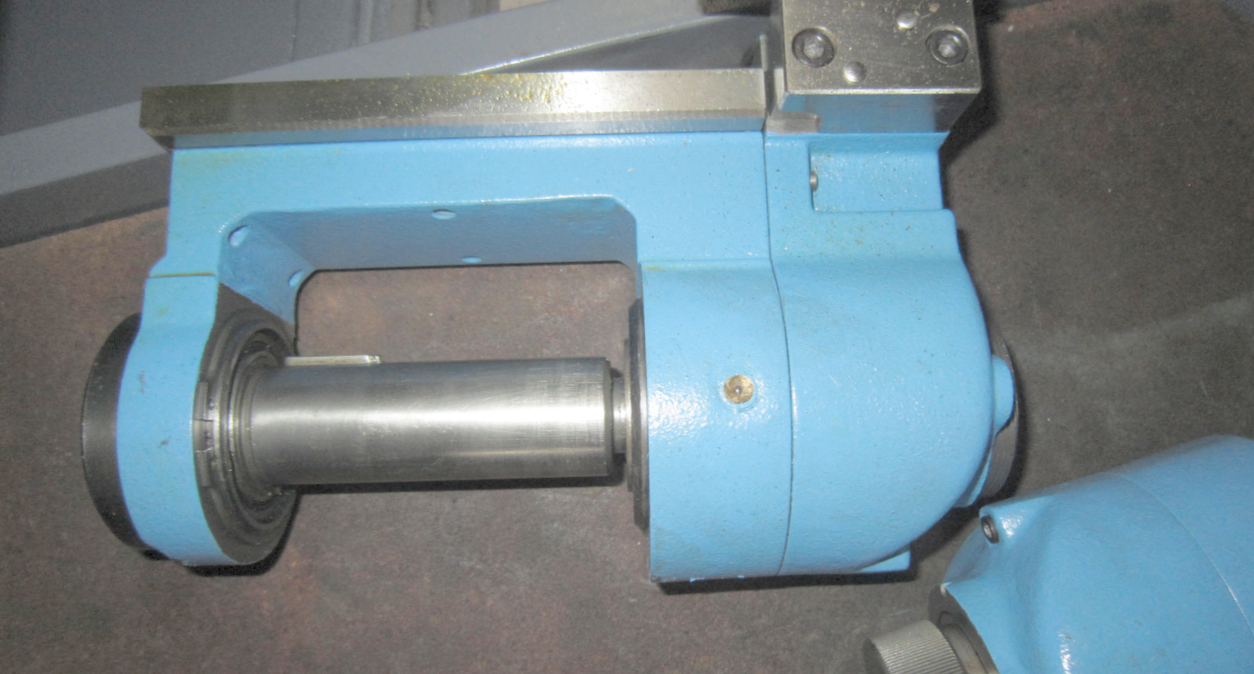

| Crushing profiling device | |
| Tool cabinet | |
| Feed | |
| Set of service tools | |
| Automatic feed |
MÄGERLE FPA 12 S41 is a Surface grinder offering high precision, accuracy and reliability. Table 1250×240 mm; grinding 1200×370 mm; X travel 1330 mm; Y travel 270 mm; table–spindle 130–600 mm. Wheel Ø300×50 mm, bore 127 mm, up to 2180 rpm; table speed 3–30 m/min; 3x380 V 50 Hz; weight ~4000 kg; machine 3700×1750×2450 mm. Accessories: magnetic plate 700×200 mm, profiling device, tool cabinet, service tool set, automatic feed. Enables tight tolerances in precision component production.
Technical specifications are subject to change without notice
