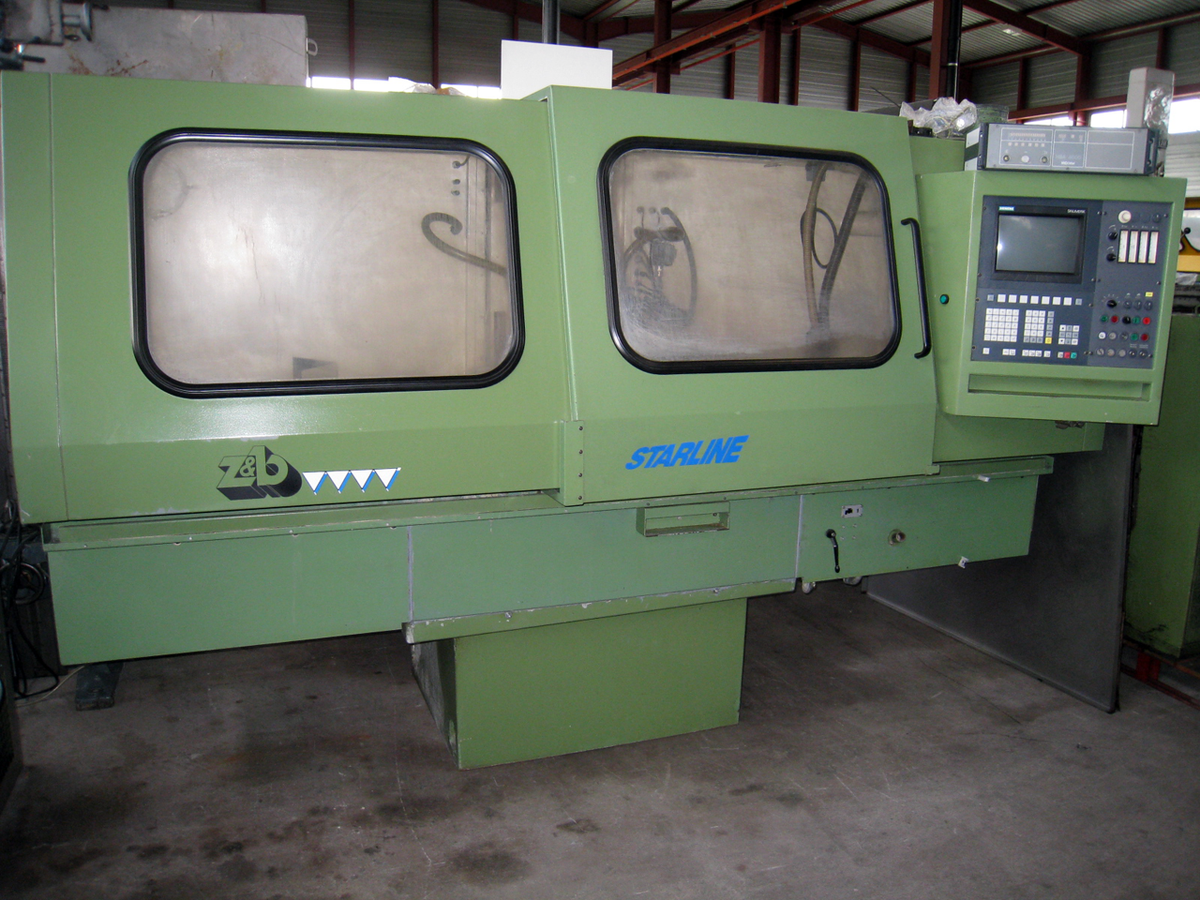

ZIERSCH + BALTRUSCH STARLINE 800 CNC
Special Price
CHF 12 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!
ZIERSCH + BALTRUSCH STARLINE 800 CNC is a CNC surface/profil grinder offering high precision, accuracy and reliability. Table 800×300 mm, table–spindle 600 mm; grinding 800×300 mm; wheel Ø250 mm, max width 70 mm, bore 51 mm. Table speeds 2–35 m/min; creep 2–1000 m/min; cross feed 1–10000 mm/min; vertical up to 10000 mm/min. Spindle motor 6.6 kW; 3×400 V 50 Hz; total power 22 kVA; weight ≈4500 kg. Accessories: coolant, paper filtration, oil‑mist extractor, coolant temperature stabiliser, magnetic chuck 800×300, TAG/TAD, electronic balancer, full cabin, RS‑232. Achieves tight tolerances; ideal for automotive, machine tools, aerospace, medical, watchmaking.
| Table length | 800 mm |
| Table width | 300 mm |
| Max. distance from table | |
| to spindle centreline | 600 mm |
| Grinding length | 800 mm |
| Grinding width | 300 mm |
| Grinding wheel: | |
| Diameter | 250 mm |
| max. width | 70 mm |
| Width | 50 mm |
| Bore | 51 mm |
| Table speeds: | |
| stepless | |
| from | 2 m/min |
| up to | 35 m/min |
| Creep feed: | |
| from | 2 m/min |
| up to | 1000 m/min |
| Automatic cross feed: | |
| stepless | |
| from | 1 mm/min |
| up to | 10000 mm/min |
| Automatic vertical feed: | |
| from | mm/min |
| up to | 10000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 6.6 kW |
| Total power required | 22 kVA |
| Machine's weight about | 4500 kg |
| Various accessories: | |
| Coolant system | |
| Paper filtration system | |
| Oil mist extractor | |
| Stabilisation coolant temperature | |
| Electrical magnetic chuck | |
| Length | 800 mm |
| Width | 300 mm |
| Redressing device | TAG |
| Profile wheel trueing attachment | TAD |
| Creep feed | |
| Electronic balancing device | |
| Lamp | |
| Full splash cabin | |
| Interface serial port RS 232-C, V 24 |
