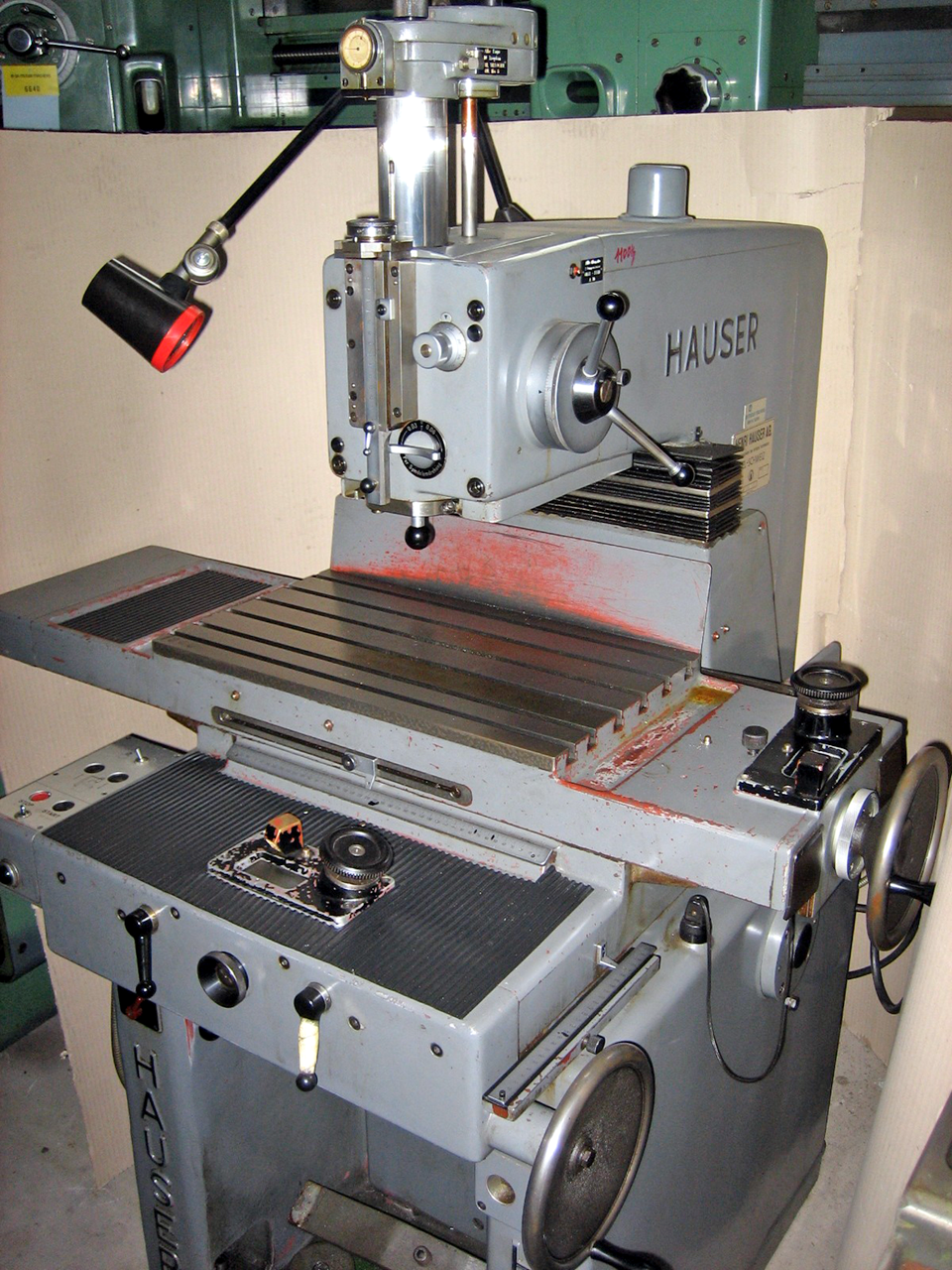

HAUSER 3 BA is a high-precision jig boring machine designed for superior accuracy and reliability. Working capacities: table 550x320 mm, table load max 400 kg; travels X 400 mm, Y 250 mm, Z 400 mm; drill capacity in steel Ø20 mm; max bore Ø75 mm; spindle taper MT 2; drilling spindle stroke 130 mm; table-to-spindle distance 590 mm. Main specs: stepless spindle speeds 60–3000 t/min; 2 steps for spindle slide; spindle motor 1 CV; supply 3x380 V 50 Hz; weight ≈1100 kg; dimensions 1200x1150x1650 mm. Accessory: lamp. Enables tight tolerances; typical applications: tooling, aerospace, automotive, watchmaking, medical.
| Table length | 550 mm |
| Table width | 320 mm |
| Table load max. | 400 kg |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y-axis) | 250 mm |
| Vertical travel (z axis) | 400 mm |
| Drill capacity in steel | 20 mm |
| Taper in spindle: MT | 2 |
| Stroke of drilling spindle (Z-axis) | 130 mm |
| Bore diameter max. | 75 mm |
| Distance table to spindle | 590 mm |
| Spindle speeds: | |
| stepless | |
| from | 60 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| number (steps) | 2 |
| from | mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1 CV |
| Machine's weight about | 1100 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1150 mm |
| Height | 1650 mm |
| Various accessories: | |
| Lamp |
