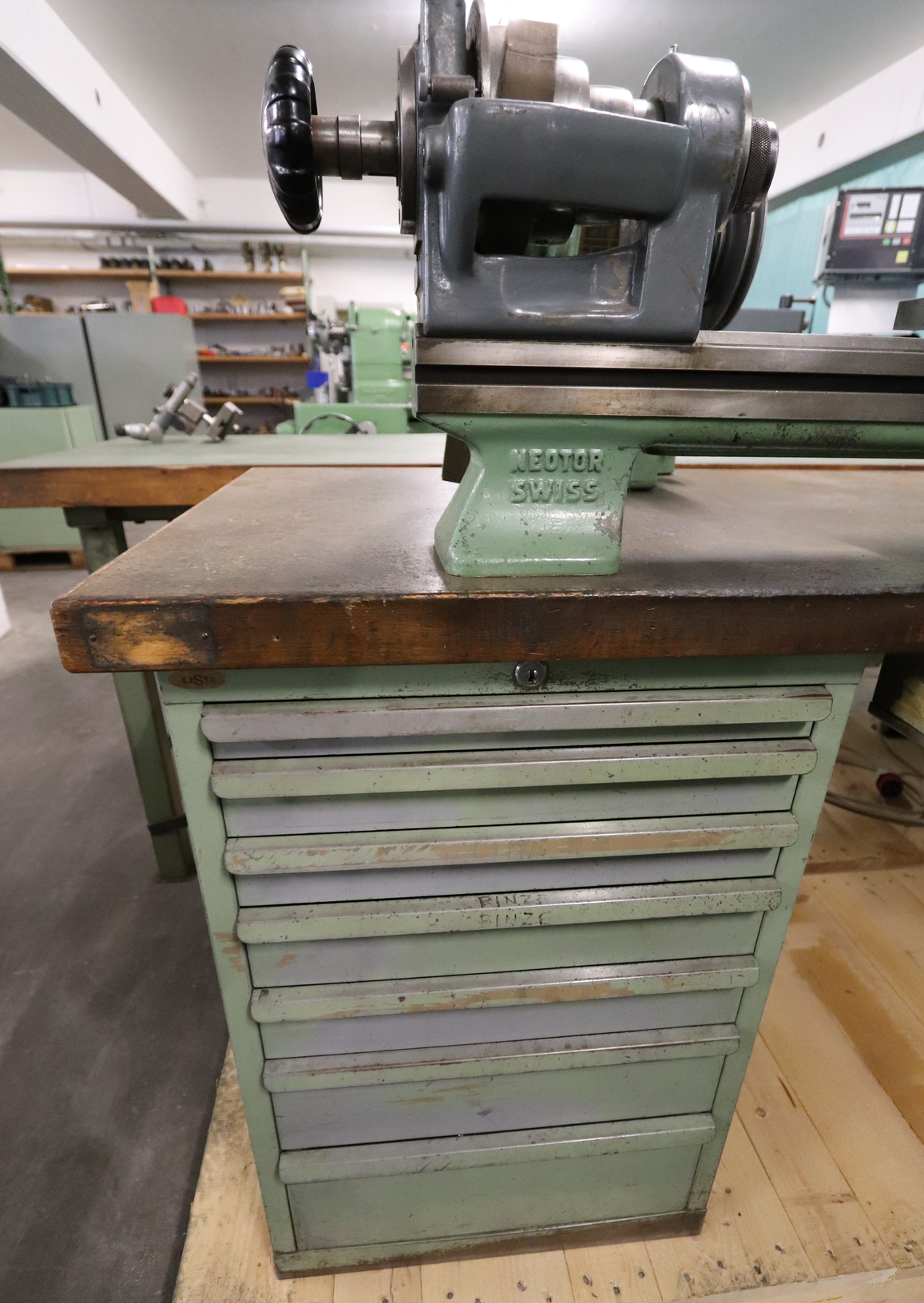

HABEGGER NEOTOR
Type: NEOTOR
Manufacturer: HABEGGER
Group: Toolmakers lathe
Subgroup: Toolmakers lathe
Stock: 011217
HABEGGER NEOTOR is a toolmakers lathe of high precision, engineered for superior accuracy and reliability. Working capacities: centre height 102 mm, distance between centres 450 mm, swing over cross-slide 120 mm, swing over bed 200 mm, spindle hole 20.0 mm, collet type 20 W, tailstock taper 2 CM. Technical specifications: 50 Hz 3x 380 V supply, machine weight approx. 150 kg, dimensions L1200×W700×H1300 mm. Equipment: working bench L2000×W800×H900 mm. Designed to achieve tight tolerances; suitable for watchmaking, toolmaking, medical and aerospace applications.
| Centre height | 102 mm |
| Distance between centres | 450 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 20.0 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 150 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Various accessories: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
