| Screen diameter | 750 mm |
| Microscope stage length | 650 mm |
| Microscope stage width | 225 mm |
| Longitudinal way | 200 mm |
| Transversal way | 80 mm |
| Amplifications: | |
| 10 | x |
| 20 | x |
| 30 | x |
| 50 | x |
| Lighting: | |
| Diascopy lighting | |
| episcopy | |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1300 mm |
| Height | 2000 mm |
| Various accessories: | |
| Inclinable rotary table | Ø 160 mm |
| Obscuration device |

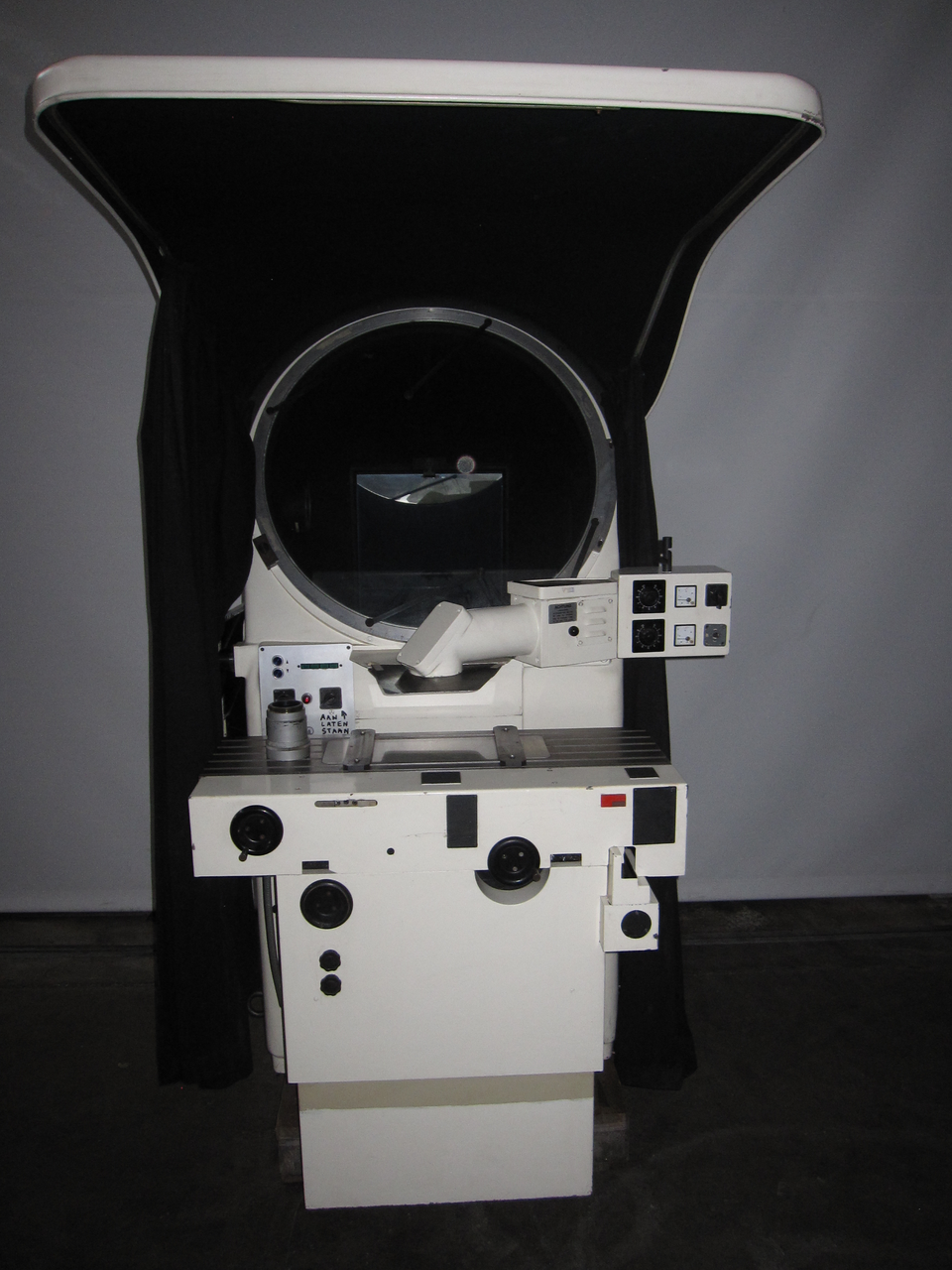

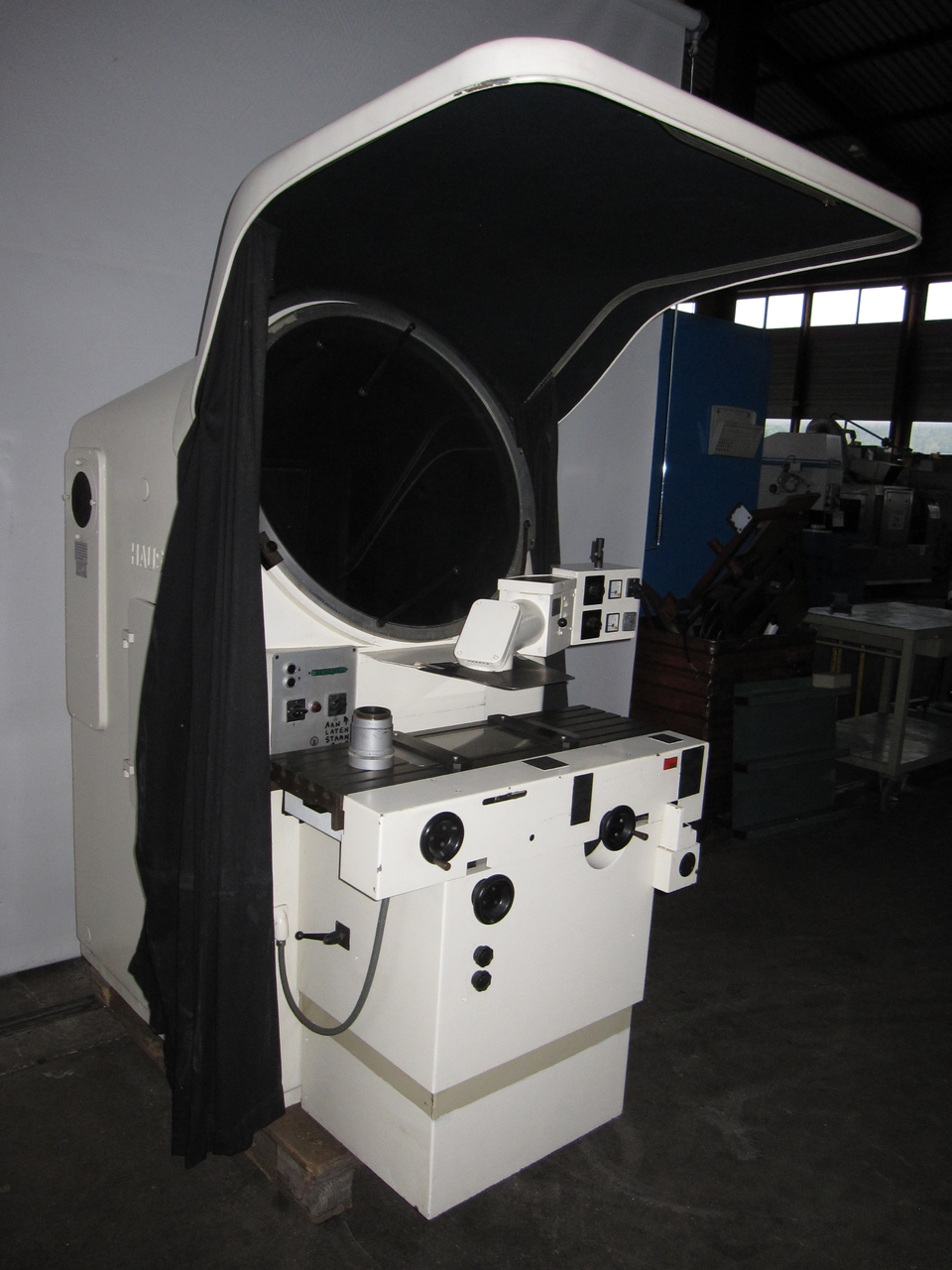

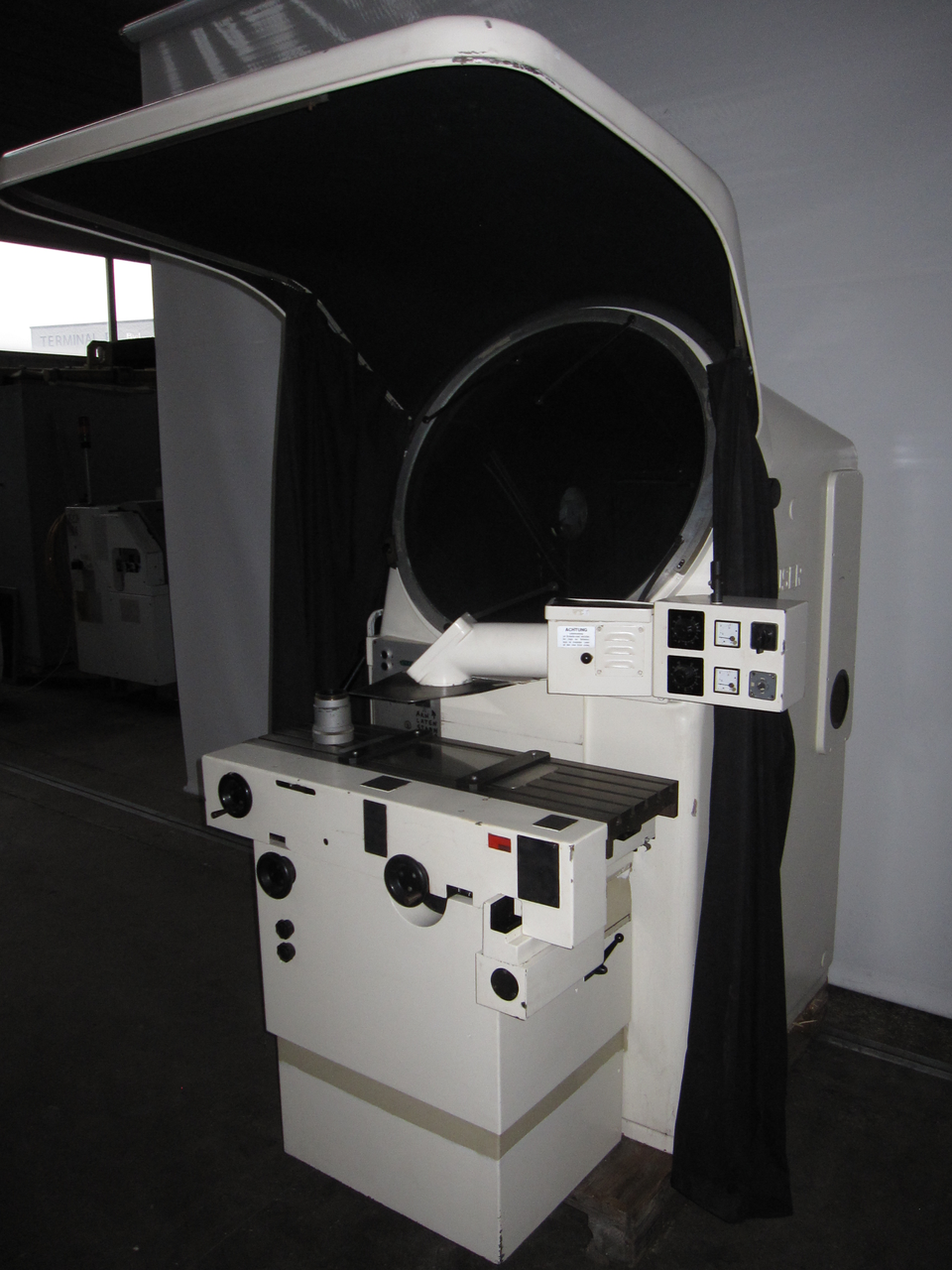

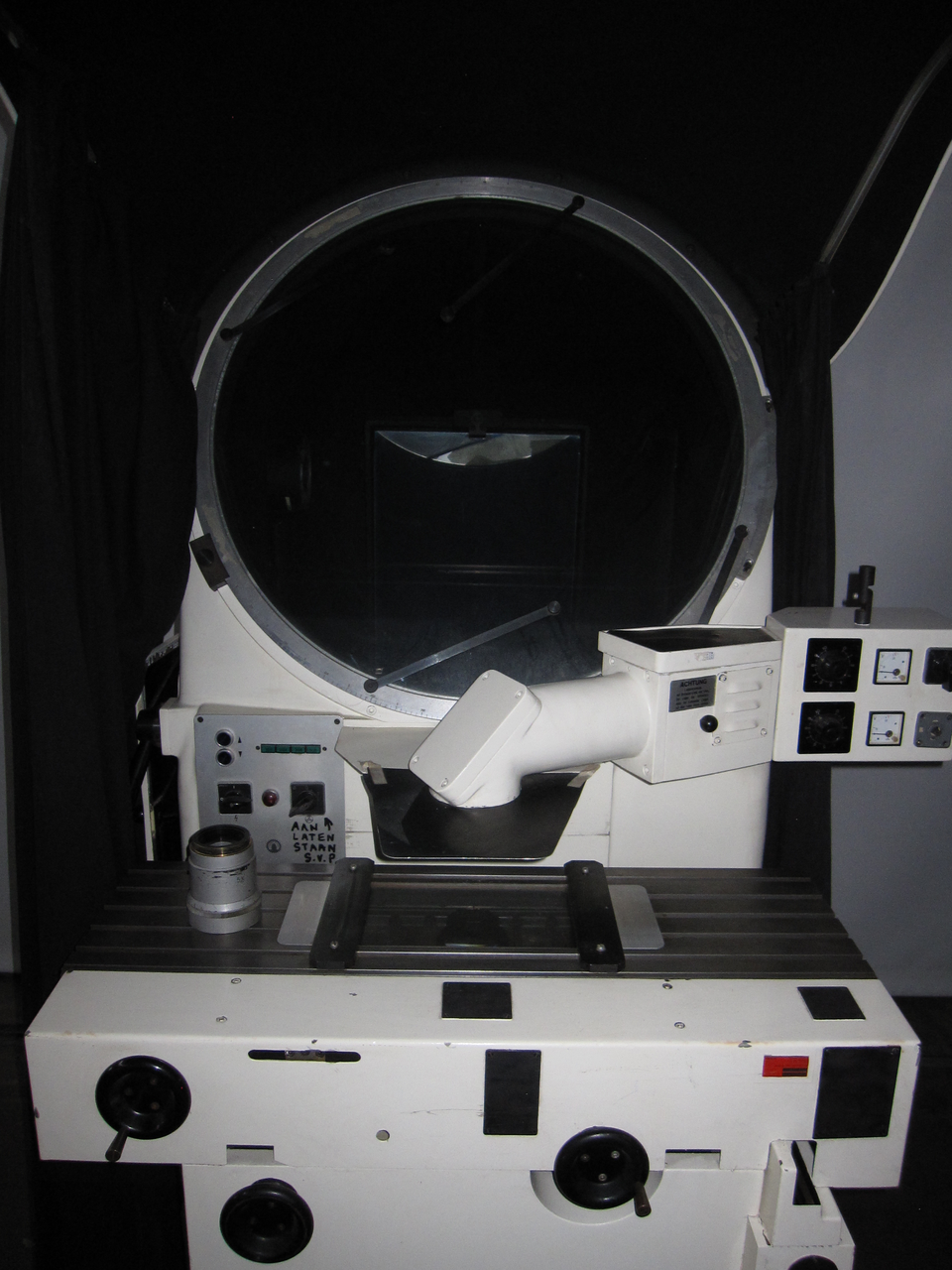

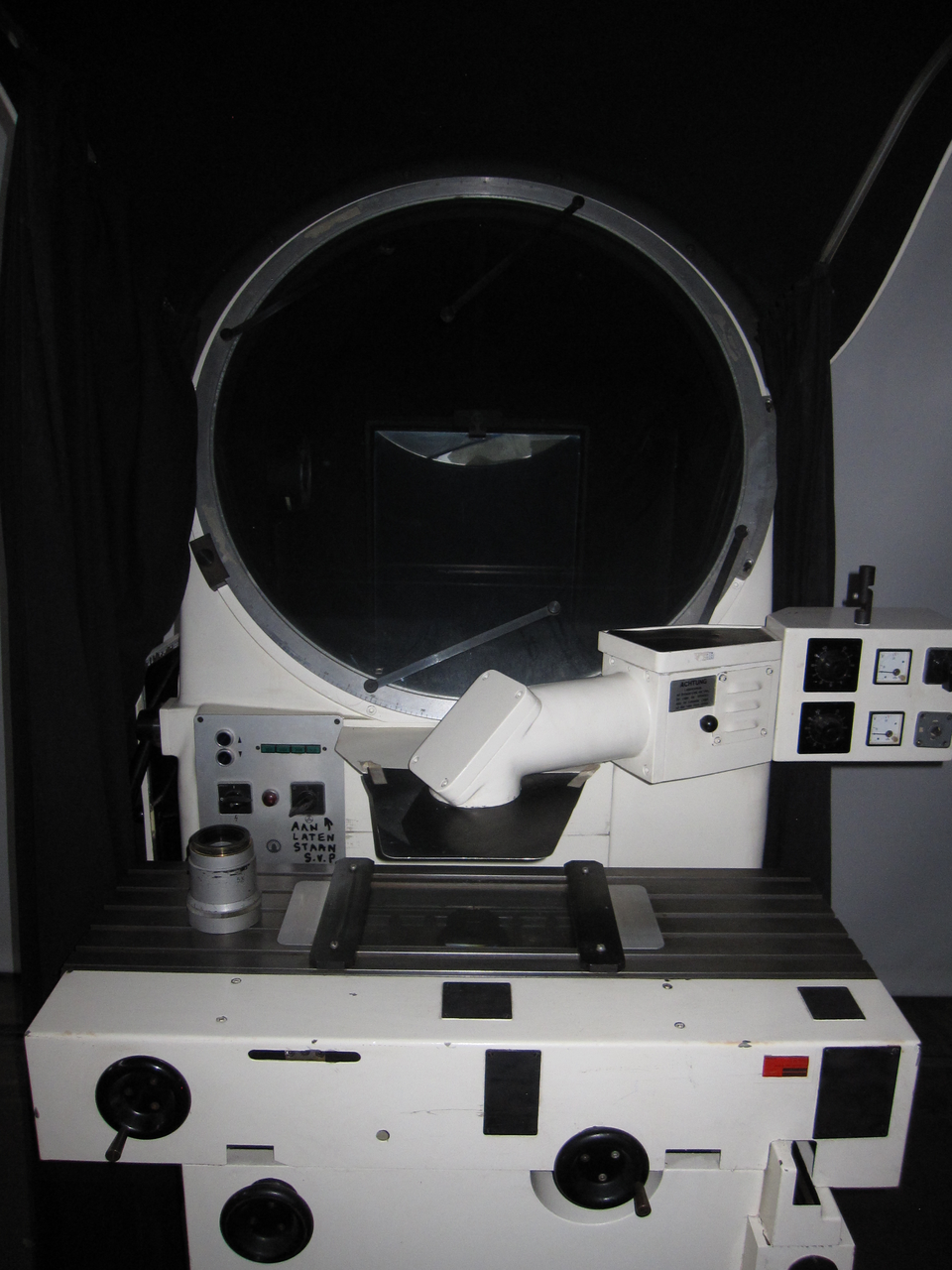

HAUSER P 75 DGG is a high‑precision profile projector engineered for reliable, highly accurate optical measurement and inspection. Working capacities: screen diameter 750 mm; stage 650×225 mm; longitudinal travel 200 mm, transversal 80 mm; magnifications 10x, 20x, 30x, 50x; diascopy and episcopy lighting. Main specs: 50 Hz, 3×380 V supply; machine weight ≈800 kg; overall dimensions L2000×W1300×H2000 mm. Accessories: inclinable rotary table Ø160 mm, obscuration device. Designed to achieve tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
