SCHÜTTE SF 20 DNT
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Number of spindles | 6 |
| Capacity round bar | 20 mm |
| Capacity square bar | 14 mm |
| Capacity hexagon bar | 17 mm |
| Max. advance of bar | 80 mm |
| Max. turning length | 40 mm |
| Max. stroke of long slide | 63 / 39.6 mm |
| Number of possible pieces | 31 |
| Machining rate: | |
| from | s |
| up to | 95 s |
| Spindle speeds: | |
| stepless | |
| from | 355 t/min |
| up to | 5000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 15 kW |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 3125 mm |
| Width | 1030 mm |
| Height | 2000 mm |
| Various accessories: | |
| Bar feeder | CUCCI |
| Threading attachment | OERTLINGHAUS |
| Coolant system | |
| Chip conveyor | KNOLL |

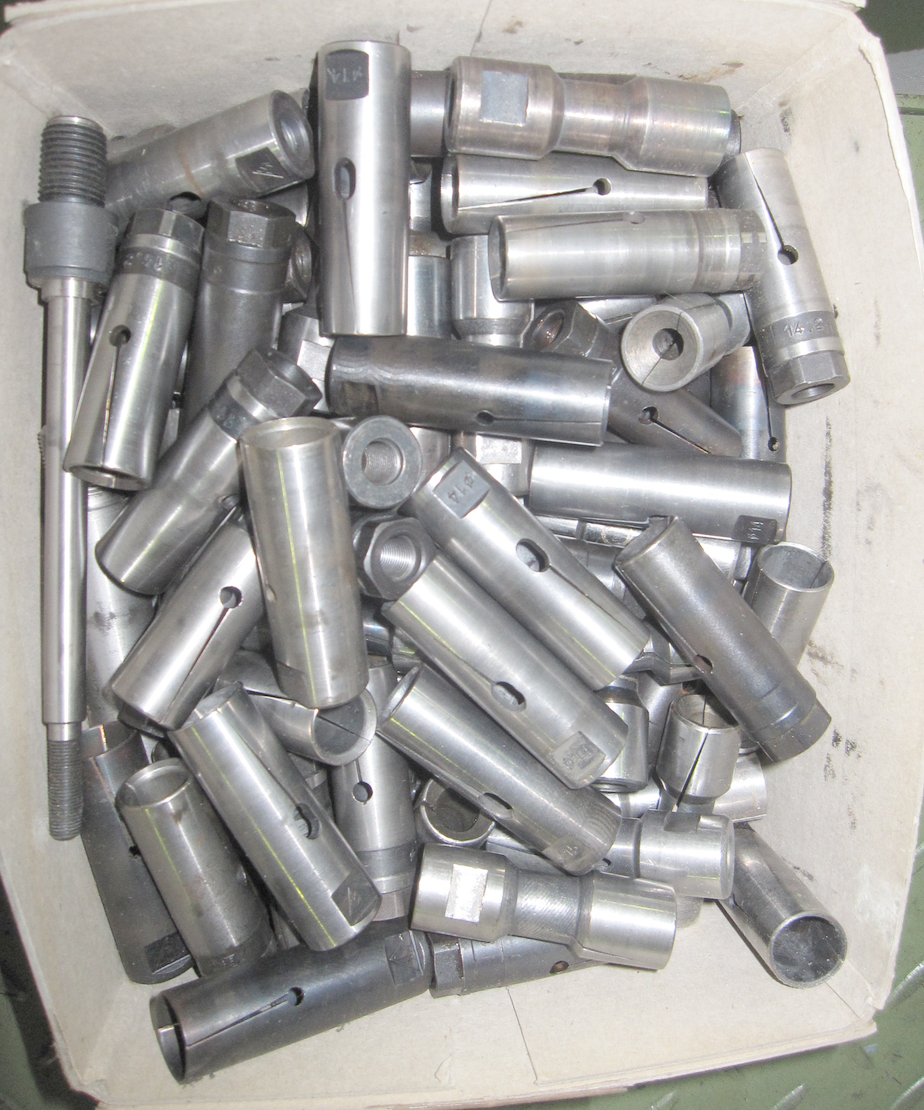

| Toolholders |
SCHÜTTE SF 20 DNT is a multi-spindle turning lathe engineered for high-precision machining with excellent accuracy and reliability. Capacities: round bar 20 mm, square 14 mm, hex 17 mm; max. bar advance 80 mm; max. turning length 40 mm; long slide stroke 63 / 39.6 mm; up to 31 parts; cycle time up to 95 s. Key specs: 6 spindles; stepless spindle speeds 355–5000 rpm; 3×380 V 50 Hz supply; 15 kW power; approx. 4000 kg; dimensions L3125 × W1030 × H2000 mm. Accessories: bar feeder CUCCI, threading attachment OERTLINGHAUS, chip conveyor KNOLL. Delivers tight tolerances for automotive, watchmaking, machine tools, aerospace and medical applications
Technical specifications are subject to change without notice
