BLOHM PLANOMAT 408
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

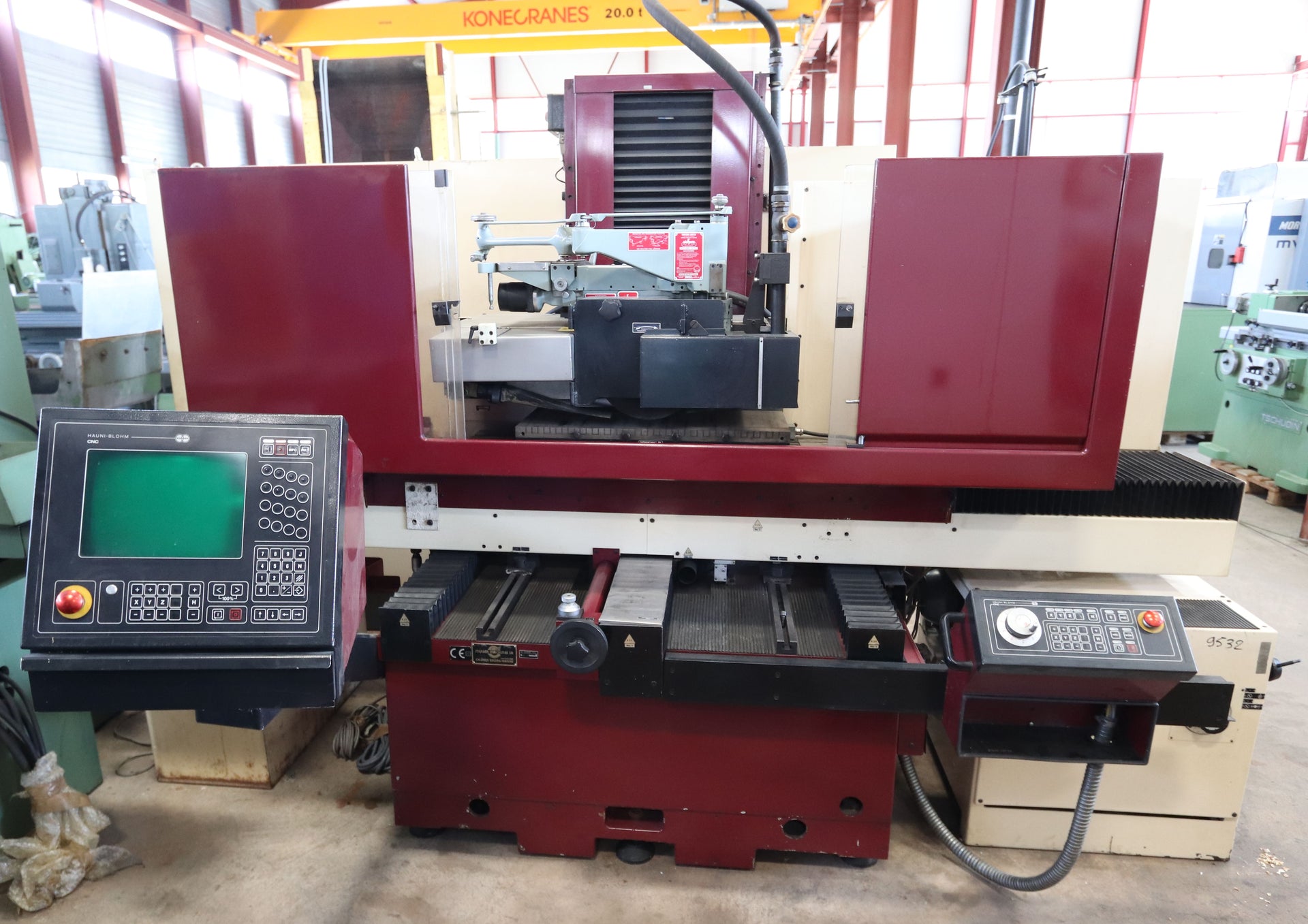

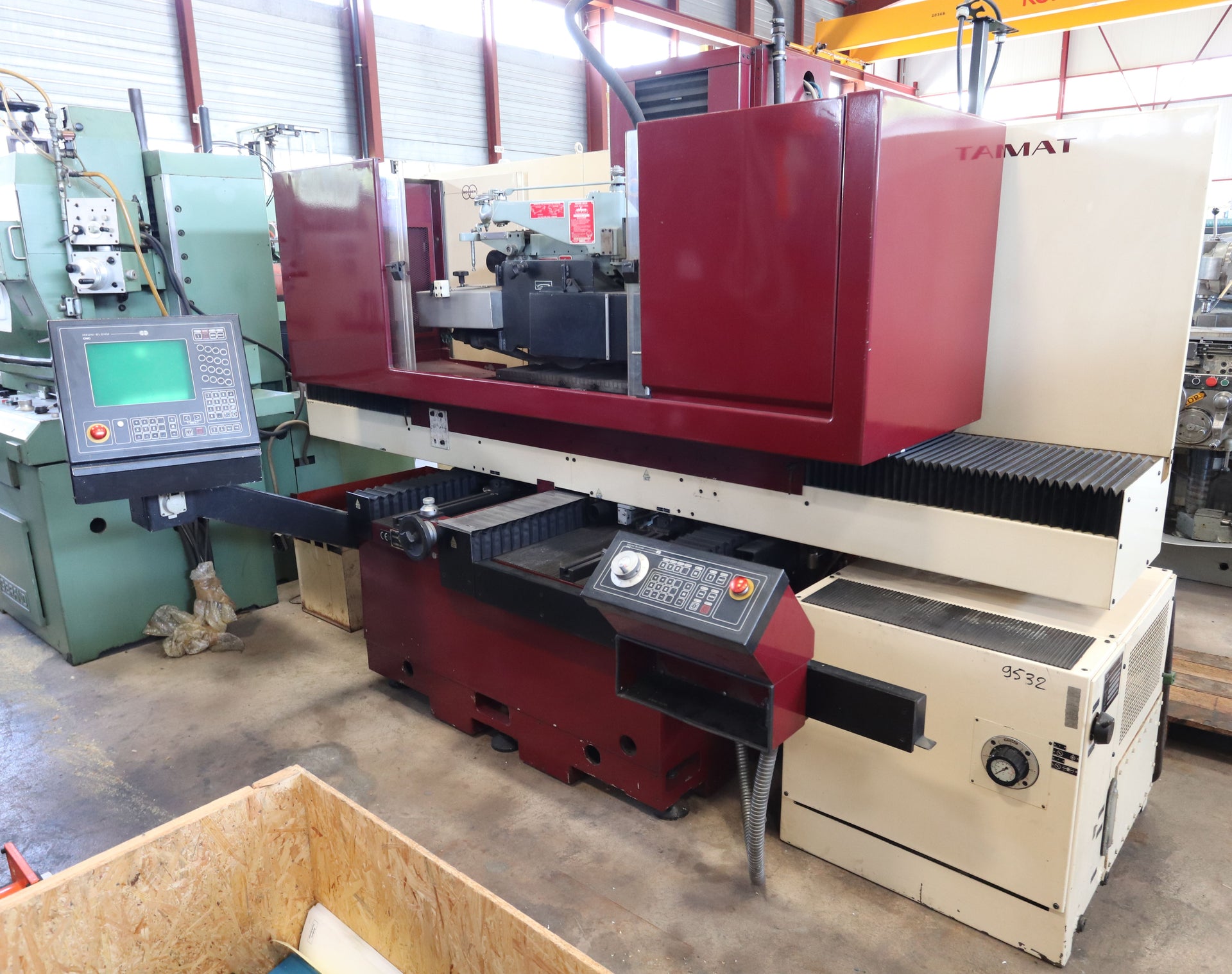

BLOHM PLANOMAT 408 is an NC Surface grinding machine offering high precision, superior accuracy and reliability. Working capacities: table 800x450 mm; grinding length 800 mm; grinding width 400 mm; grinding height 500 mm; table‑to‑spindle 150/700 mm; travels X900 Y400 Z550 mm. Technical specs: wheel Ø400x80 mm bore 127 mm, 1650 rpm; automatic cross‑feed up to 4 m/min; table speeds 0.02–25 m/min; vertical feed 1–2000 mm/min; spindle motor 23 kW; 3x380V 50Hz; total 45 kVA; weight ~4800 kg; dims 3200x2400x2400 mm. Accessories: coolant system, paper filtration, electric magnetic chuck 800x350 mm, flange set, balancing arbor, DIAFORM manual. Achieves tight tolerances; suitable for automotive, aerospace, tooling, medical and precision engineering.
| Table length | 800 mm |
| Table width | 450 mm |
| Grinding length | 800 mm |
| Grinding width | 400 mm |
| Grinding height | 500 mm |
| Max. distance from table | |
| to spindle-centreline | 150 / 700 mm |
| Longitudinal travel (X-axis) | 900 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 550 mm |
| Automatic cross-feed: | |
| stepless | |
| from | m/min |
| up to | 4 m/min |
| Table speeds: | |
| stepless | |
| from | 0.02 m/min |
| up to | 25 m/min |
| Automatic vertical feed: | |
| from | 1 mm/min |
| up to | 2000 mm/min |
| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 80 mm |
| Wheel int. diameter | 127 mm |
| Grinding wheel speeds: | |
| from | 1650 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 23 kW |
| Total power required | 45 kVA |
| Machine's weight about | 4800 kg |
| Overall dimensions machine: | |
| Length | 3200 mm |
| Width | 2400 mm |
| Height | 2400 mm |
| Various accessories: | |

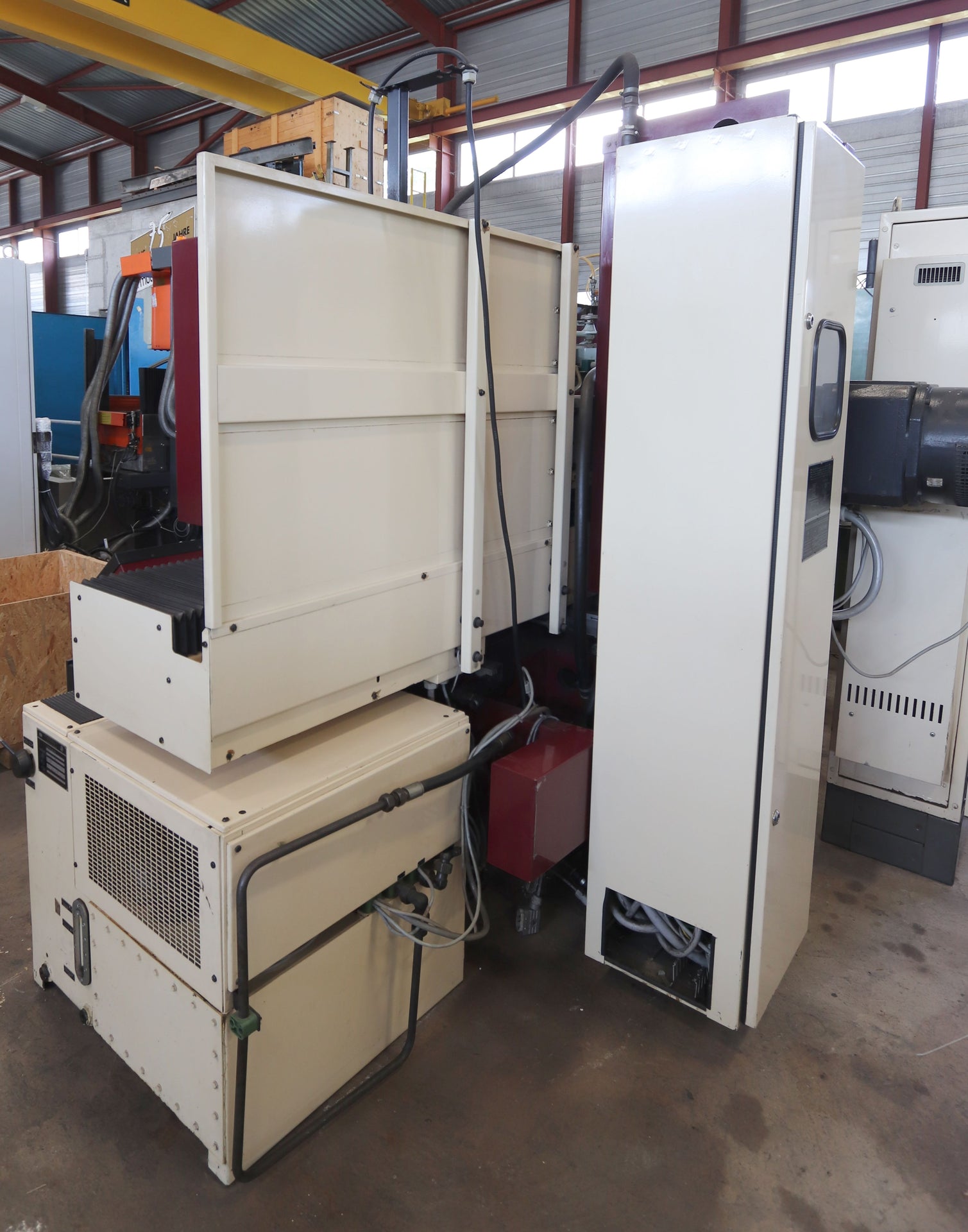

| Coolant system | |
| Paper filtration system | |

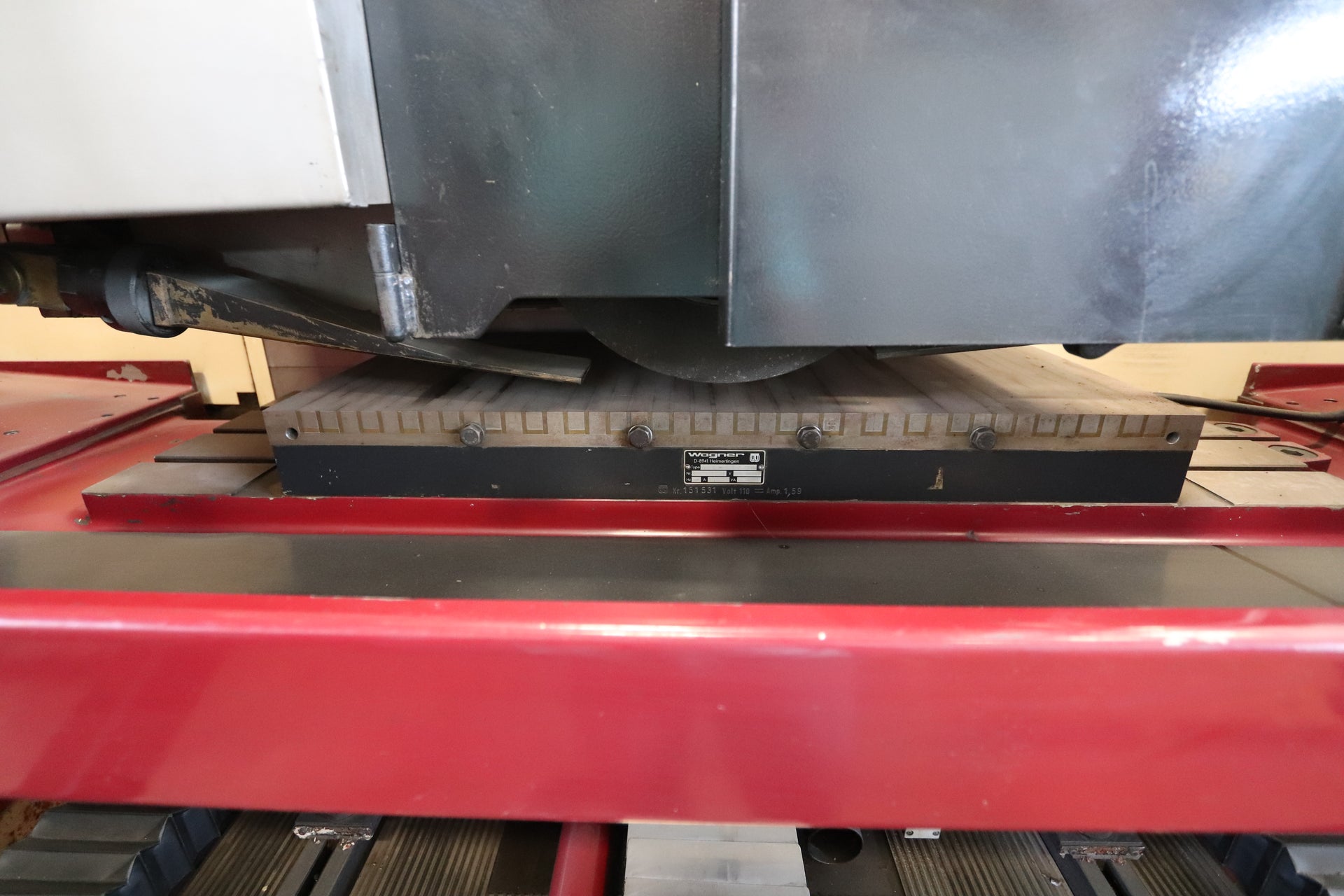

| Electrical magnetic chuck | |
| Length | 800 mm |
| Width | 350 mm |
| Set of flanges | |
| Balancing arbor | |
| DIAFORM profiling device | manual |
