SCHAUBLIN 102 is a toolmakers lathe engineered for high-precision turning, providing excellent accuracy and reliability. Working capacities: centre height 102 mm, distance between centres 375 mm, swing over cross-slide 120 mm, swing over bed 200 mm; tailstock taper 2 CM. Main specs: spindle 12 steps 45–2800 t/min, spindle motor 0.5 CV, supply 3x 380 V 50 Hz; machine dimensions L1200×W700×H500 mm; weight approx. 250 kg. Equipment: workbench version with bench L1600×W700×H850 mm, single drive SIMONET, set of collets W20. Enables tight tolerances; suitable for watchmaking, precision instruments, toolmaking, aerospace, medical and automotive.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2800 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 CV |
| Machine's weight about | 250 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 500 mm |

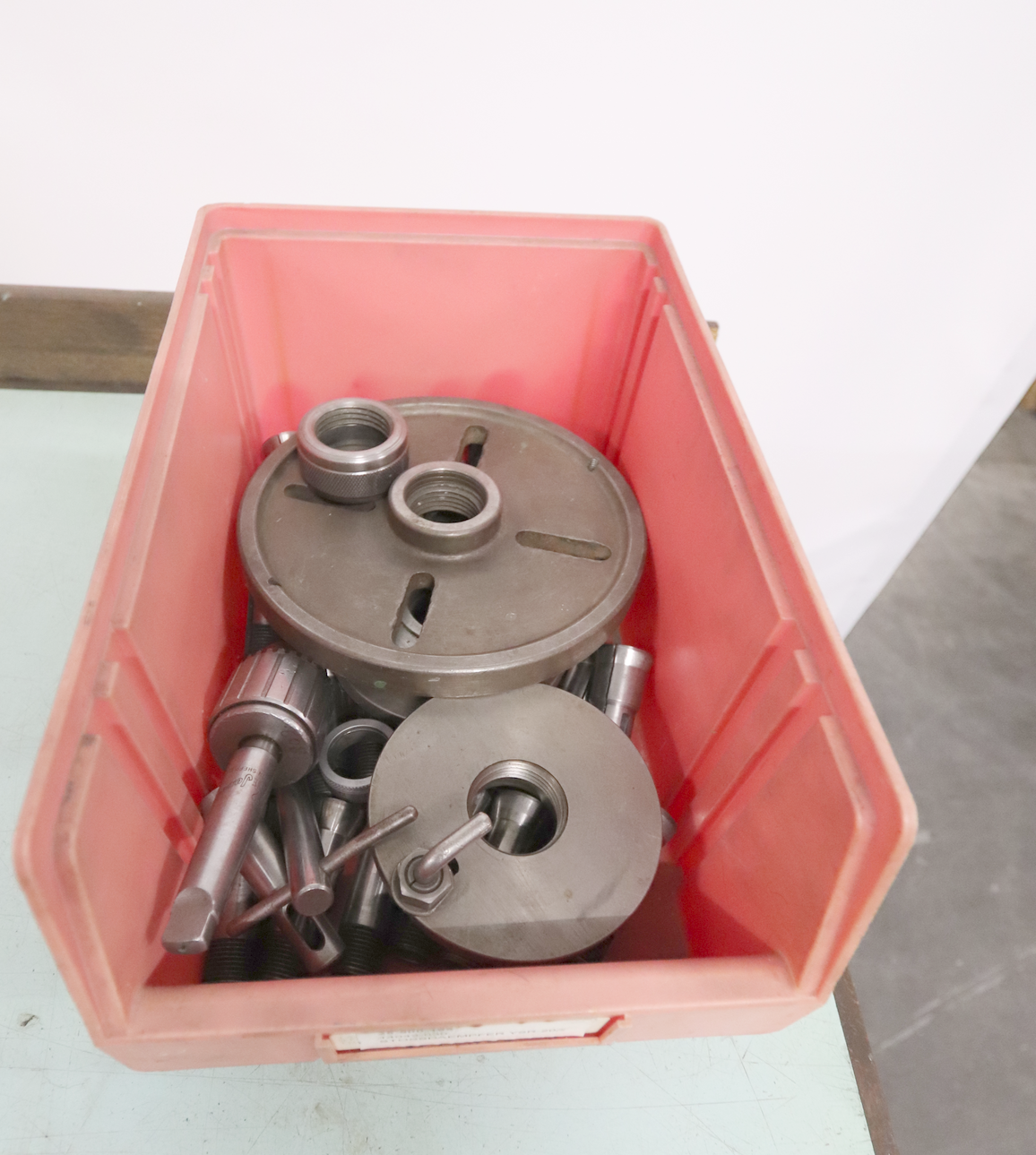

| Various accessories: | |
| On work bench: | |
| Working bench: | |
| Length | 1600 mm |
| Width | 700 mm |
| Height | 850 mm |
| Rear drive | SIMONET |
| Headstock with reduction gear | |
| Driving plate | |
| Set of collets | W20 |
