KUGEL MULLER MPS 2
Type: MPS 2
Manufacturer: KUGEL MULLER
Stock: 008532
Download technical sheet (PDF)

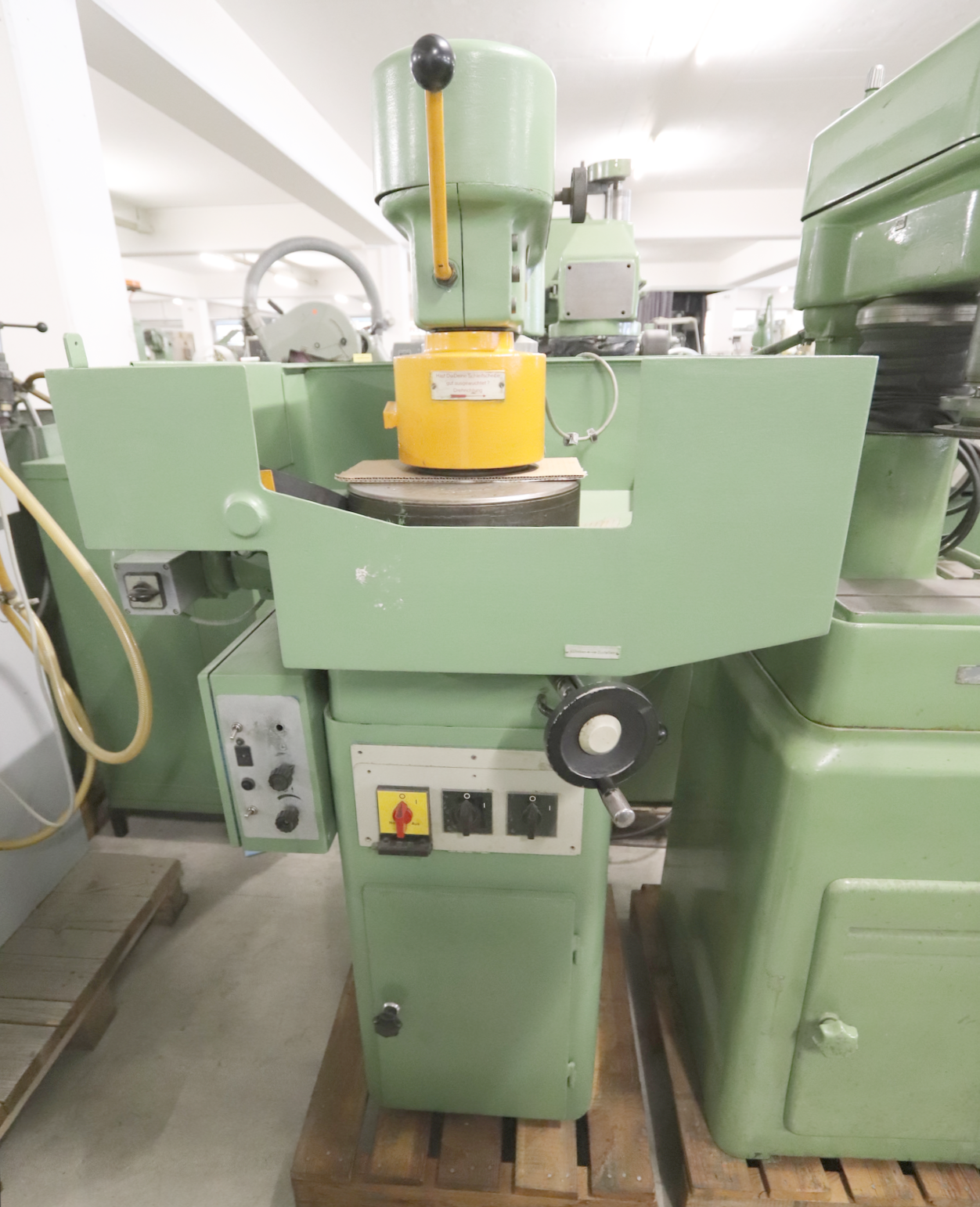

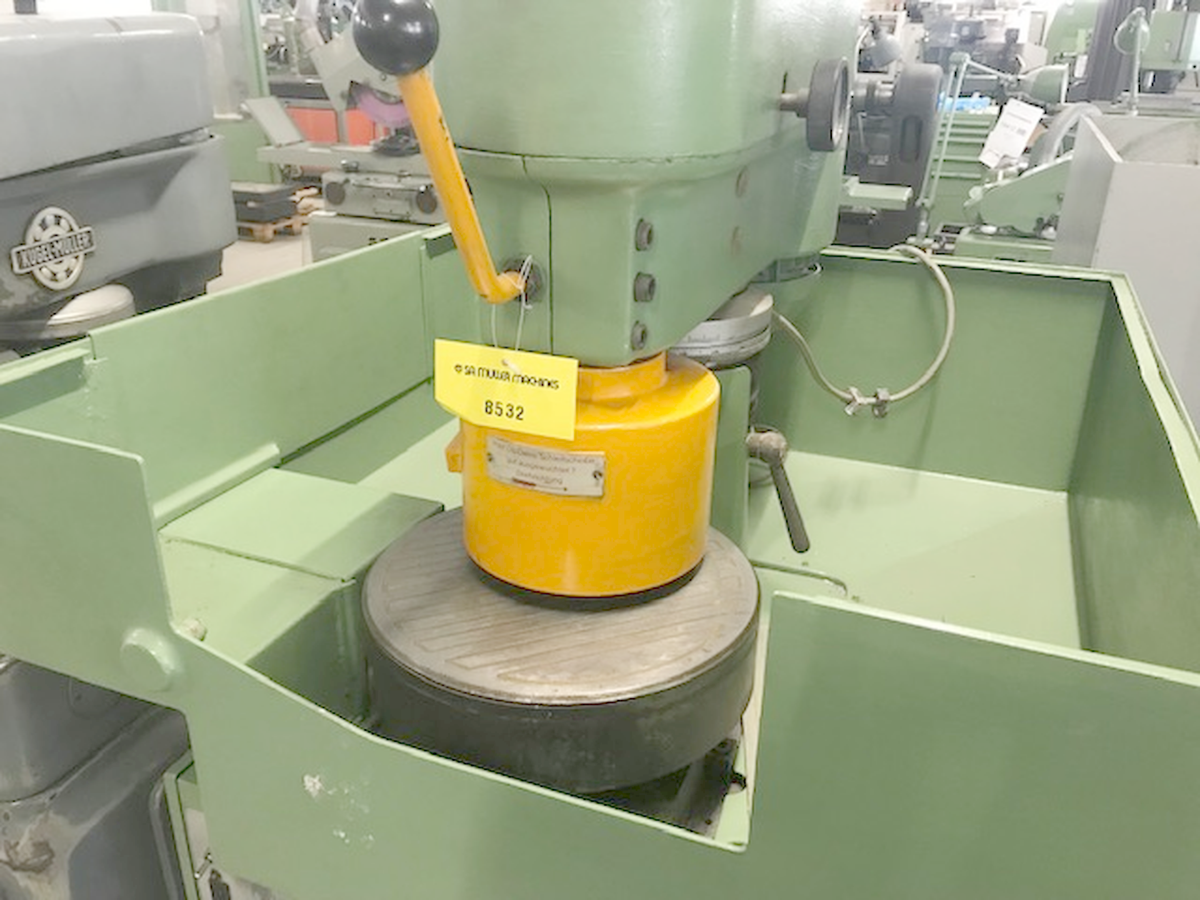

KUGEL MULLER MPS 2 is a bell-disc grinder engineered for precision, high accuracy and reliable performance. Capacities: grinding wheel diameter 175 mm, circular table diameter 300 mm, grinding height over table 245 mm. Main specifications: grinding spindle speed 2560 t/min, voltage 50 Hz 3x 380 V, machine weight about 200 kg, overall dimensions L750 × W600 × H1670 mm. Accessories: magnetic plate diameter 300 mm. Enables achievement of tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.

Throwing wheel diameter 175 mm
Circulary table diameter 300 mm
Grinding height over table 245 mm
Grinding spindle speeds 2560 t/min
Voltage 50 Hz 3x 380 Volt
Machine's weight about 200 kg
Overall dimensions machine:
   Length 750 mm
   Width 600 mm
   Height 1670 mm
Various accessories:
Magnetic plate:
   Diameter 300 mm
Redressing device
