SIP PD - 6
Type: PD - 6
Manufacturer: SIP
Group: Rotary table / cross table
Subgroup: Rotary table
Stock: 008173

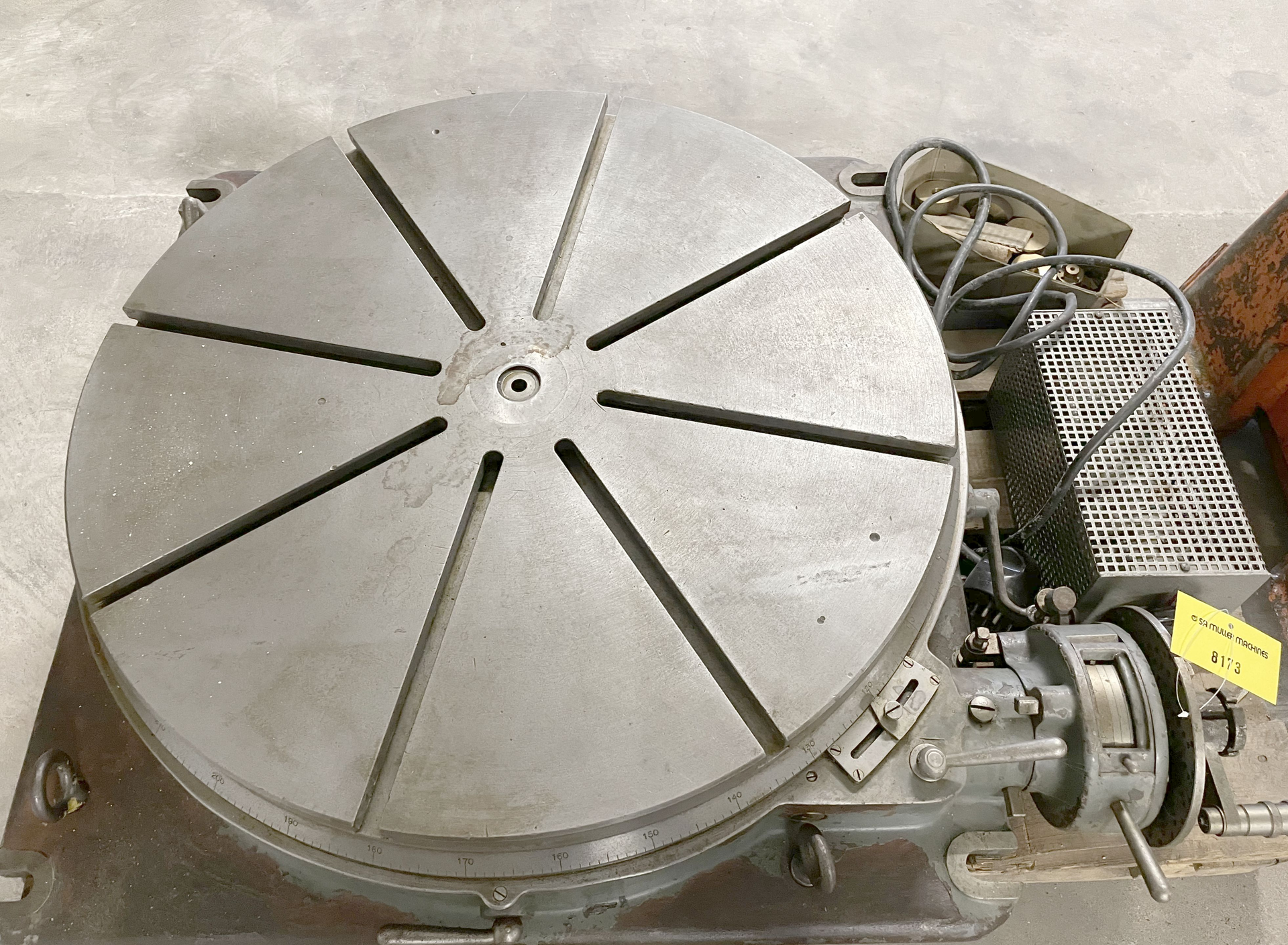

SIP PD - 6 is a rotary table, horizontal, designed to deliver precision, high accuracy and reliability. Key working capacities: diameter 800 mm, table height 240 mm, 8 T-channels 18 mm wide. Main technical specifications: dimensions 1100 x 900 x 250 mm (LxWxH), machine weight about 300 kg. Enables tight tolerances and is suitable for automotive, watchmaking, machine tool, aerospace and medical applications.
| Rotary table | |
| Execution: | |
| Horizontal | |
| Clamping surface: | |
| Diameter | 800 mm |
| Table height | 240 mm |
| Number of T-channels | 8 |
| T-channel width | 18 mm |
| Machine's weight about | 300 kg |
| Dimensions: | |
| Length | 1100 mm |
| Width | 900 mm |
| Height | 250 mm |
