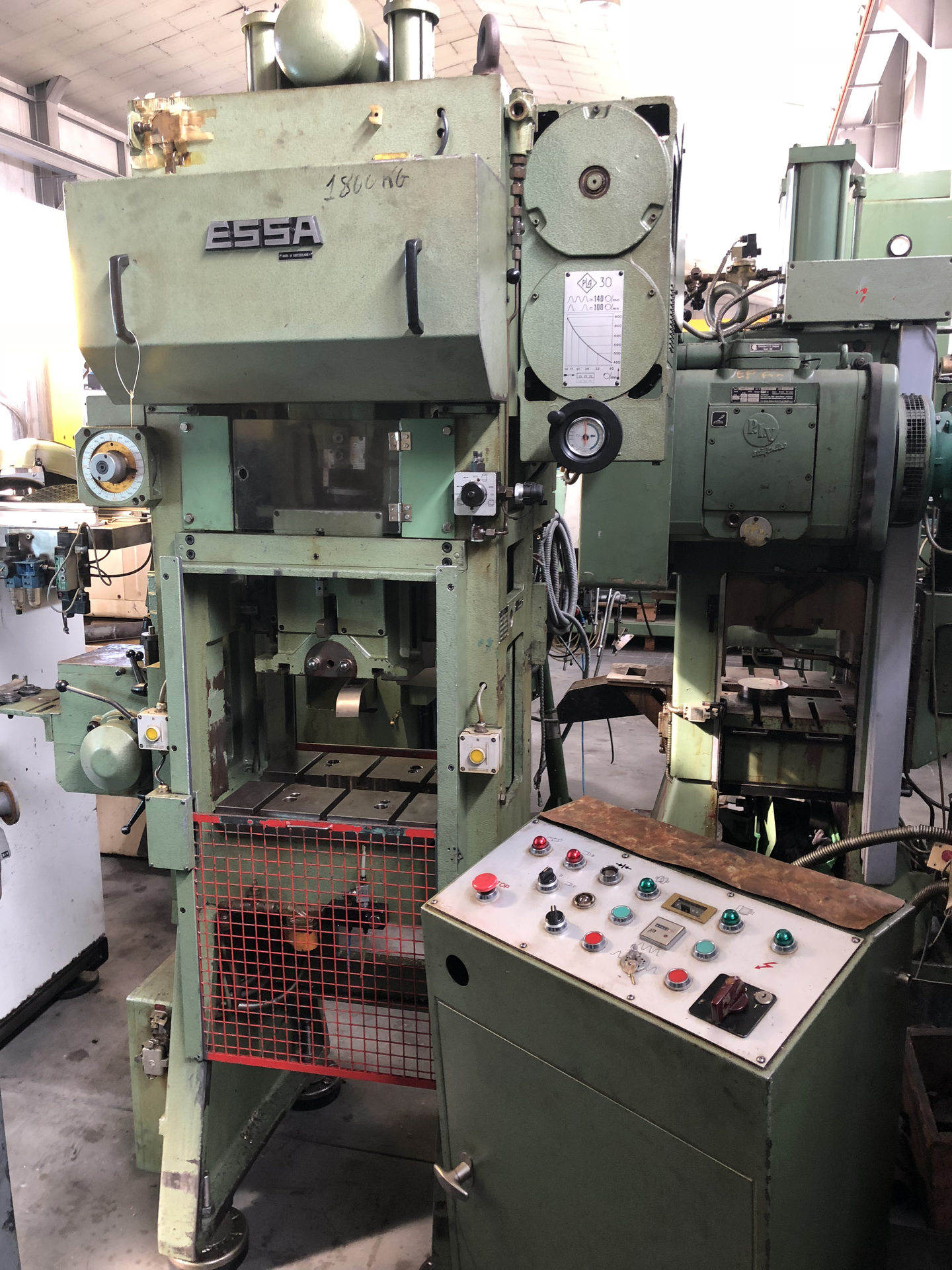

ESSA PLA 30 is a High speed press engineered for precision, high accuracy and reliability. Pressure: 30 to; up to 900 c/min; slide stroke 10 mm; slide bore 38 mm; longitudinal passage 455 mm; table 425×350 mm; diameter 85 mm. Voltage 50 Hz 3x:380 V; Power 6 kW; machine weight about 1950 kg; overall dims L1500×W1000×H2000 mm. Automatic feed: 1; rolls; electro-pneumatic clutch; safety device. Delivers tight tolerances and is suitable for automotive, watchmaking, machine tools, aerospace and medical sectors
| Pressure | 30 to |
| Stroke: (stepless) | |
| up to | 900 c/min |
| Execution: | |
| 4 supports | |
| Table surface: | |
| Length | 425 mm |
| Width | 350 mm |
| Table relieving: | |
| Diameter | 85 mm |
| Slide stroke | 10 mm |
| slide bore diameter | 38 mm |
| Passage between the supports: | |
| longitudinal | 455 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 6 kW |
| Machine's weight about | 1950 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1000 mm |
| Height | 2000 mm |
| Various accessories: | |

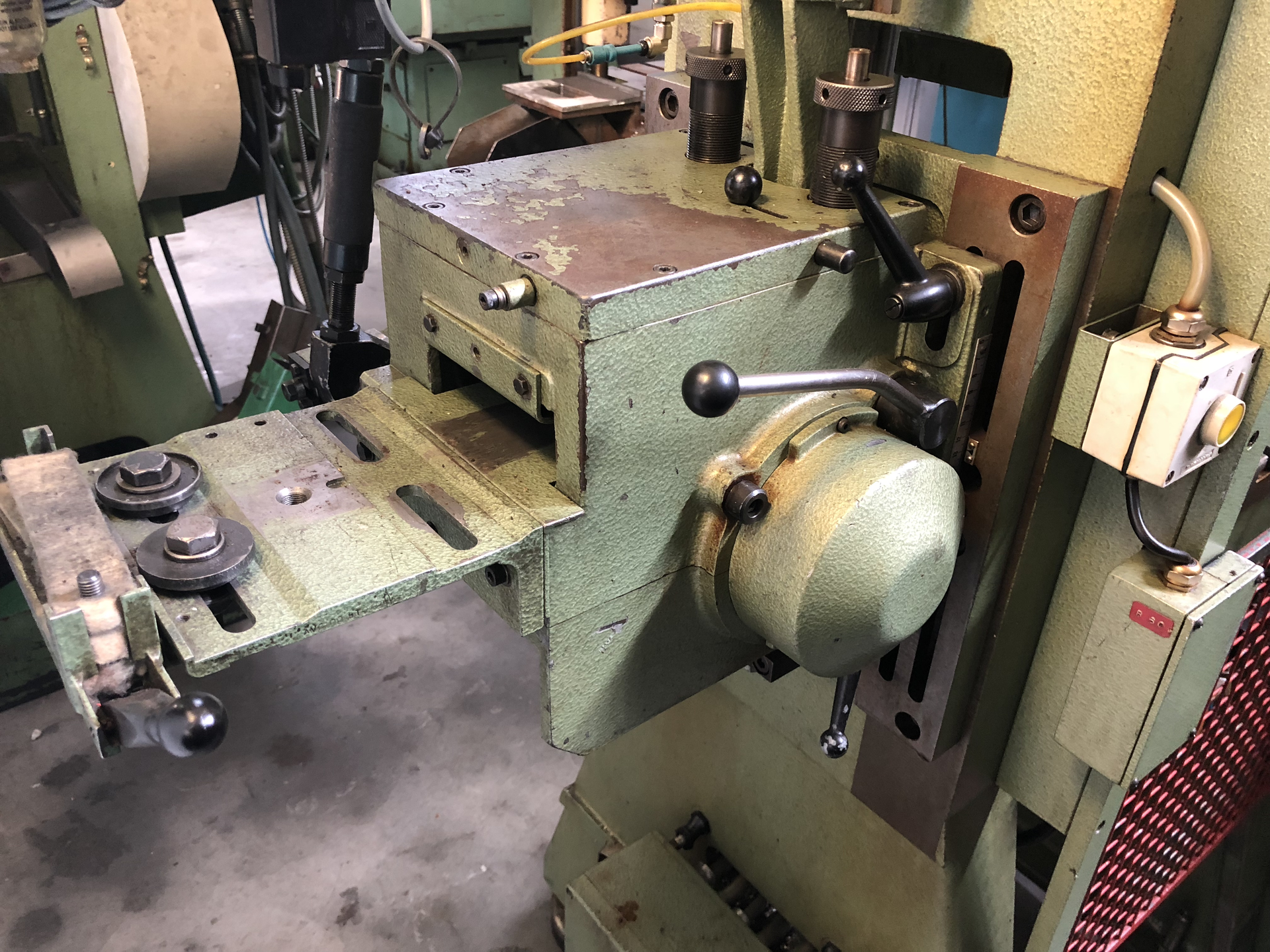

| Automatic feed: number | 1 |
| Execution: | |
| rolls | |
| Electro-pneumatic clutch | |
| Security/savety device |
