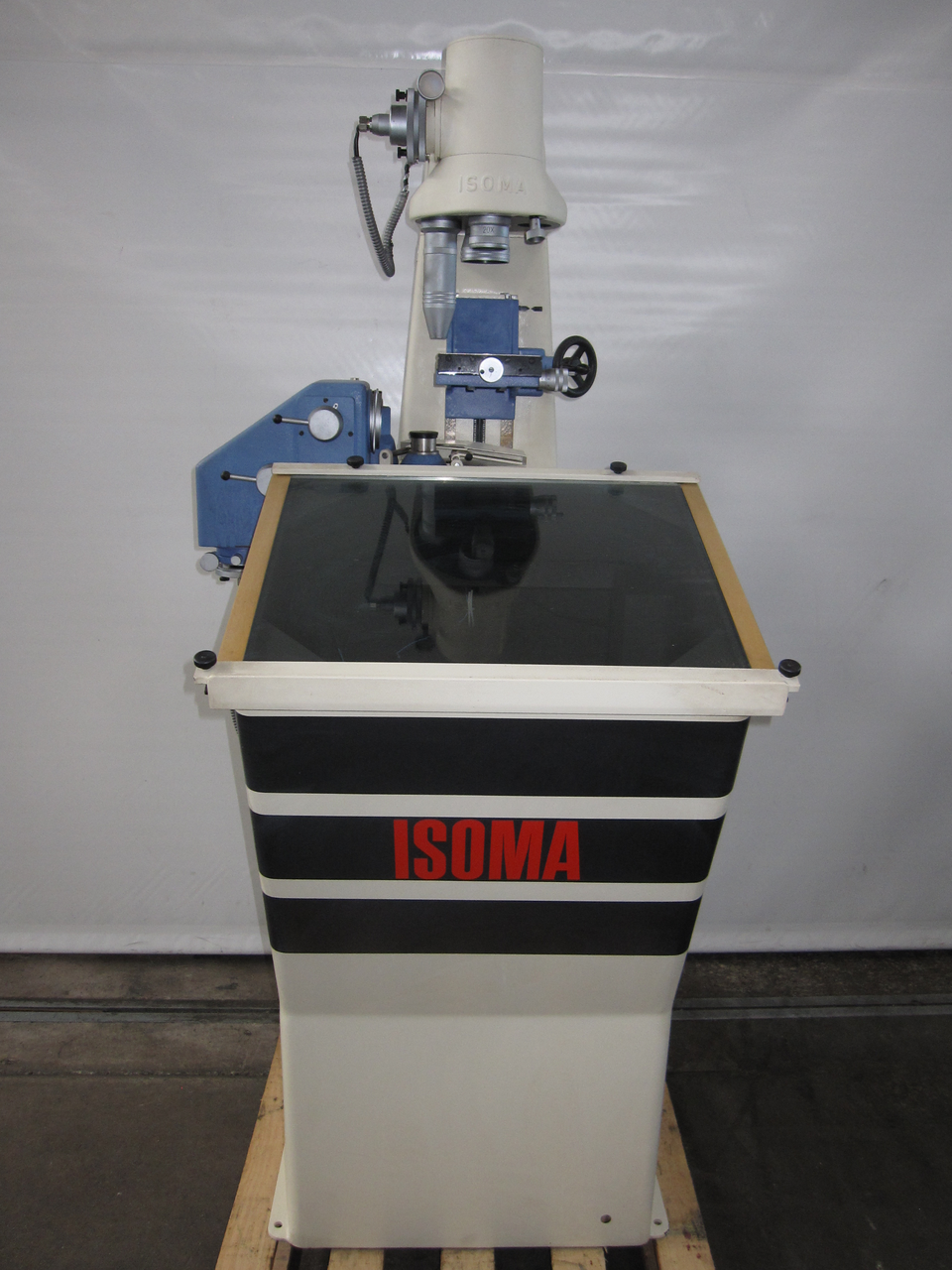

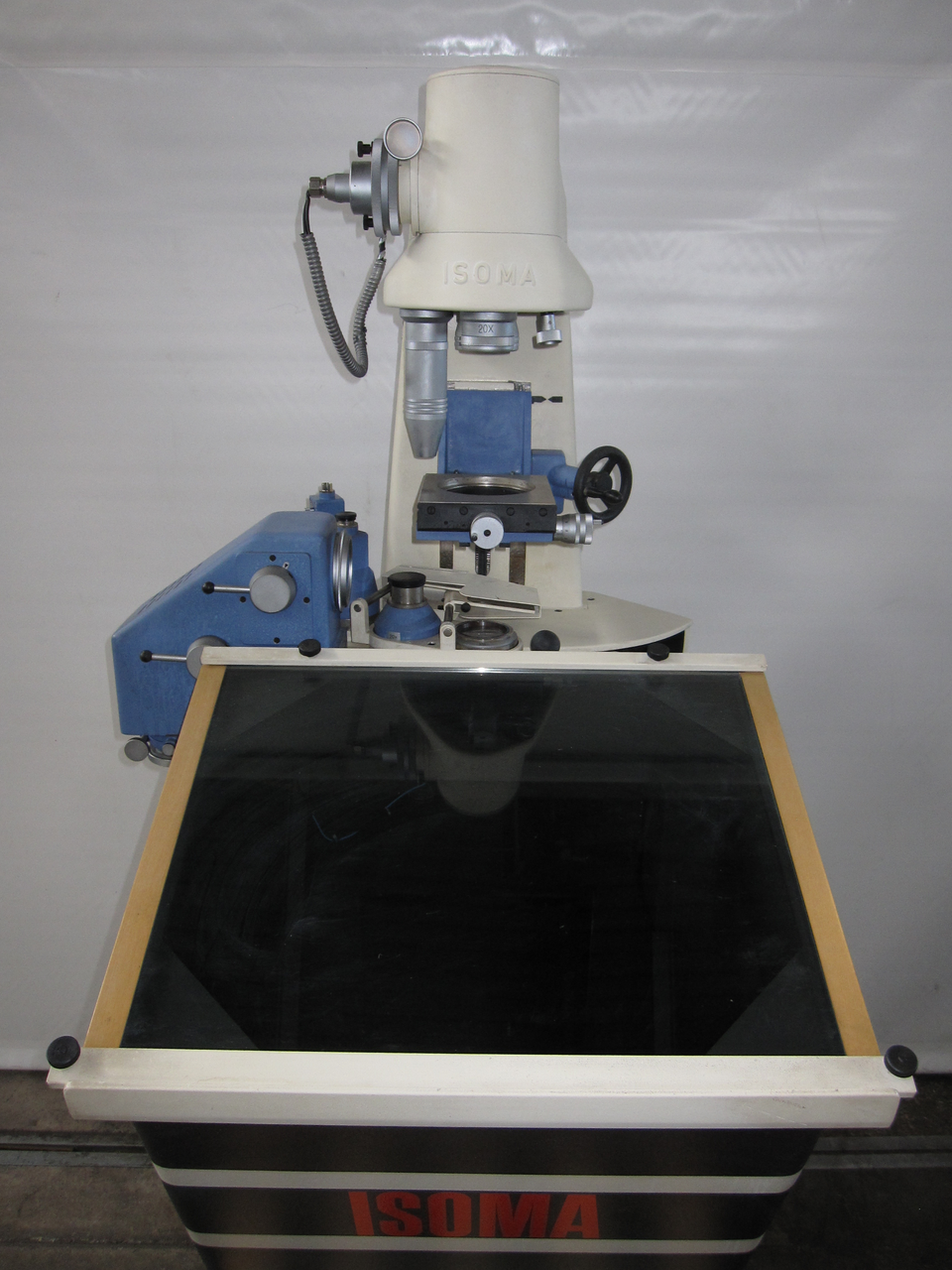

ISOMA M 109 A is a profile projector of high precision, engineered for accurate, reliable dimensional inspection. Working capacities: screen 550×450 mm; microscope stage 170×150 mm; longitudinal travel 40 mm, transversal travel 15 mm; glass table Ø85 mm; magnifications 10×, 20×, 50×, 100× with manual change. Technical specifications: voltage 3x 220 V 50 Hz; machine weight about 280 kg; overall dimensions L1100×W850×H2000 mm. Enables tight tolerances; typical applications include automotive, watchmaking, tooling, aerospace and medical.
| Screen width | 550 mm |
| Screen height | 450 mm |
| Microscope stage length | 170 mm |
| Microscope stage width | 150 mm |
| Longitudinal way | 40 mm |
| Transversal way | 15 mm |
| Diameter of the glass table | 85 mm |
| Amplifications: | |
| 10 | 1 x |
| 20 | 1 x |
| 50 | 1 x |
| 100 | 1 x |
| Change of objective with: | |
| manual | |
| Lighting: | |
| Diascopy lighting | |
| episcopy | |
| Voltage 50 Hz 3x | 220 Volt |
| Machine's weight about | 280 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 850 mm |
| Height | 2000 mm |
