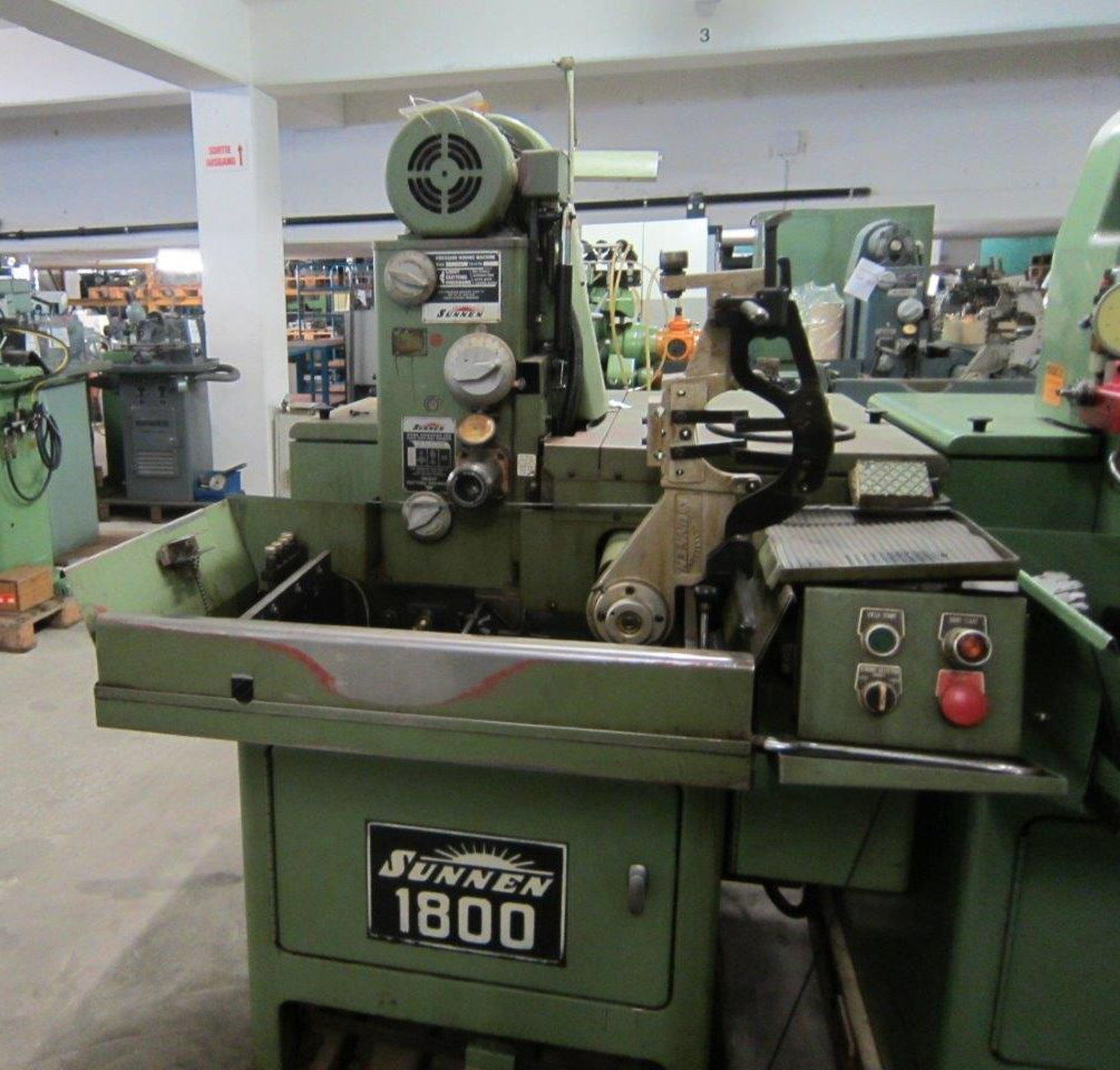

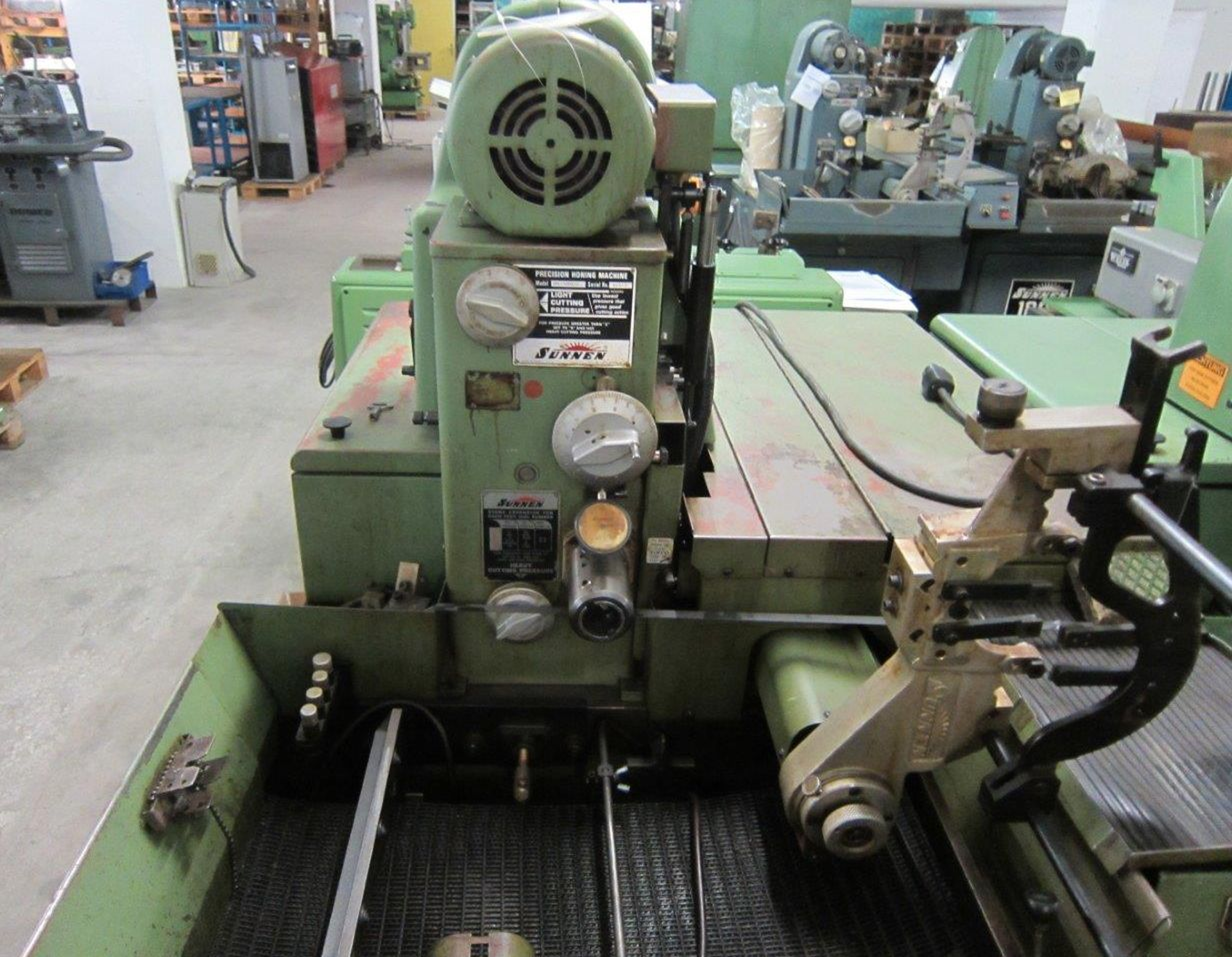

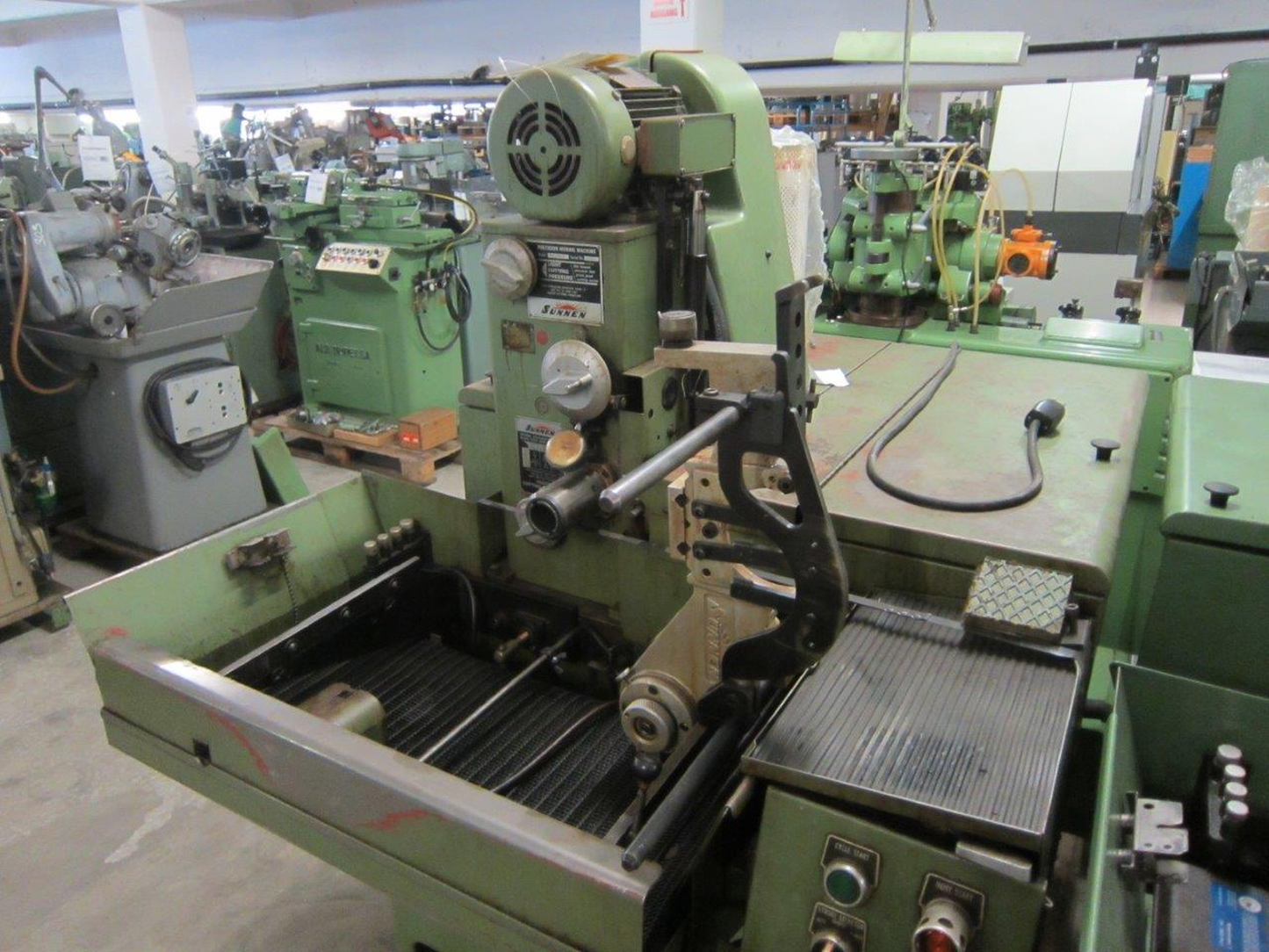

SUNNEN MBC-1800 is a Honing machine of high precision, designed for superior accuracy and reliability. Capacities: Ø 2–165 mm, max honing length 406 mm; spindle 12 steps 200–2500 t/min. Power 50 Hz 3x380 V, spindle motor 0.73 kW, weight ≈600 kg, footprint 1400×1200×1600 mm. Achieves tight tolerances; typical applications: automotive, tooling, aerospace, medical, watchmaking.
| Min. diameter | 2 mm |
| Max. diameter | 165 mm |
| Max. honing length | 406 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 200 t/min |
| up to | 2500 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.73 kW |
| Machine's weight about | 600 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1200 mm |
| Height | 1600 mm |
| Various accessories: | |
| Coolant system | |
| Automatic workpiece honing unit |
